General characteristics
| pressing capacity | 50 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 350 mm |
| Daylight | 900 mm |
| Distance between columns | 900 mm |
| Working speed | max. 9 mm/s |
| Horizontal movable cylinder | 550 mm |
Dimensions and weight
| Length | 1700 mm |
| Width | 700 mm |
| Height | 2100 mm |
| Weight | 720 kg |
Description

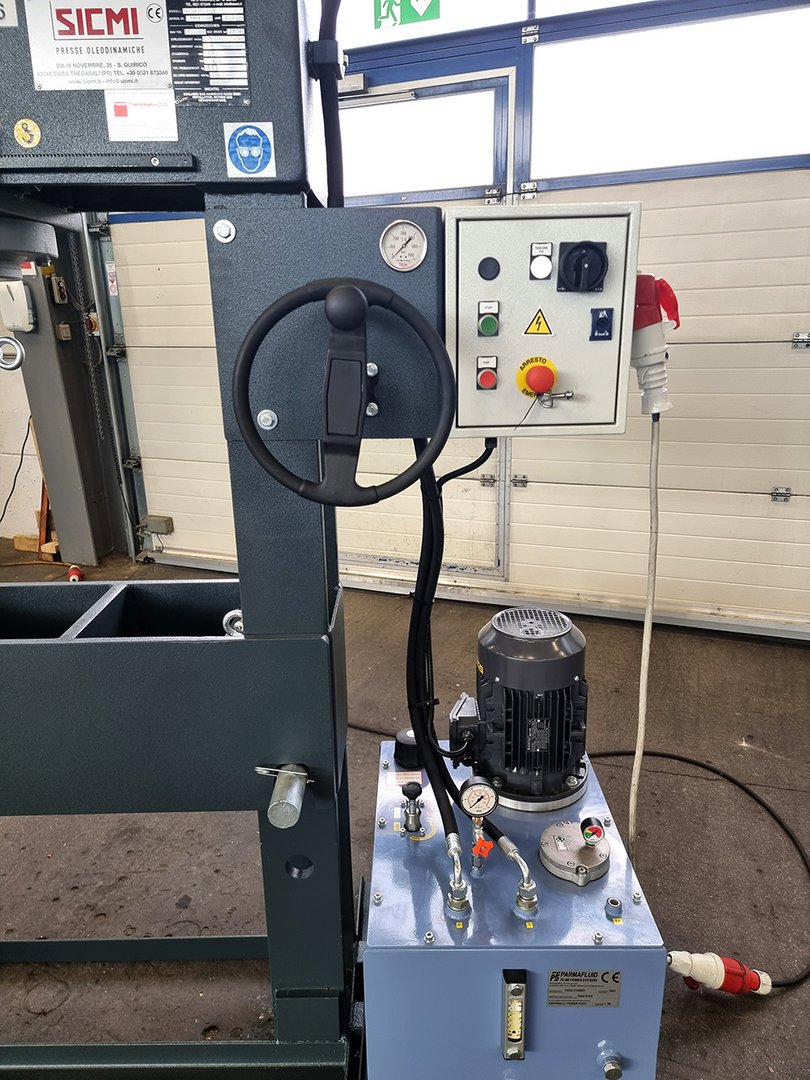

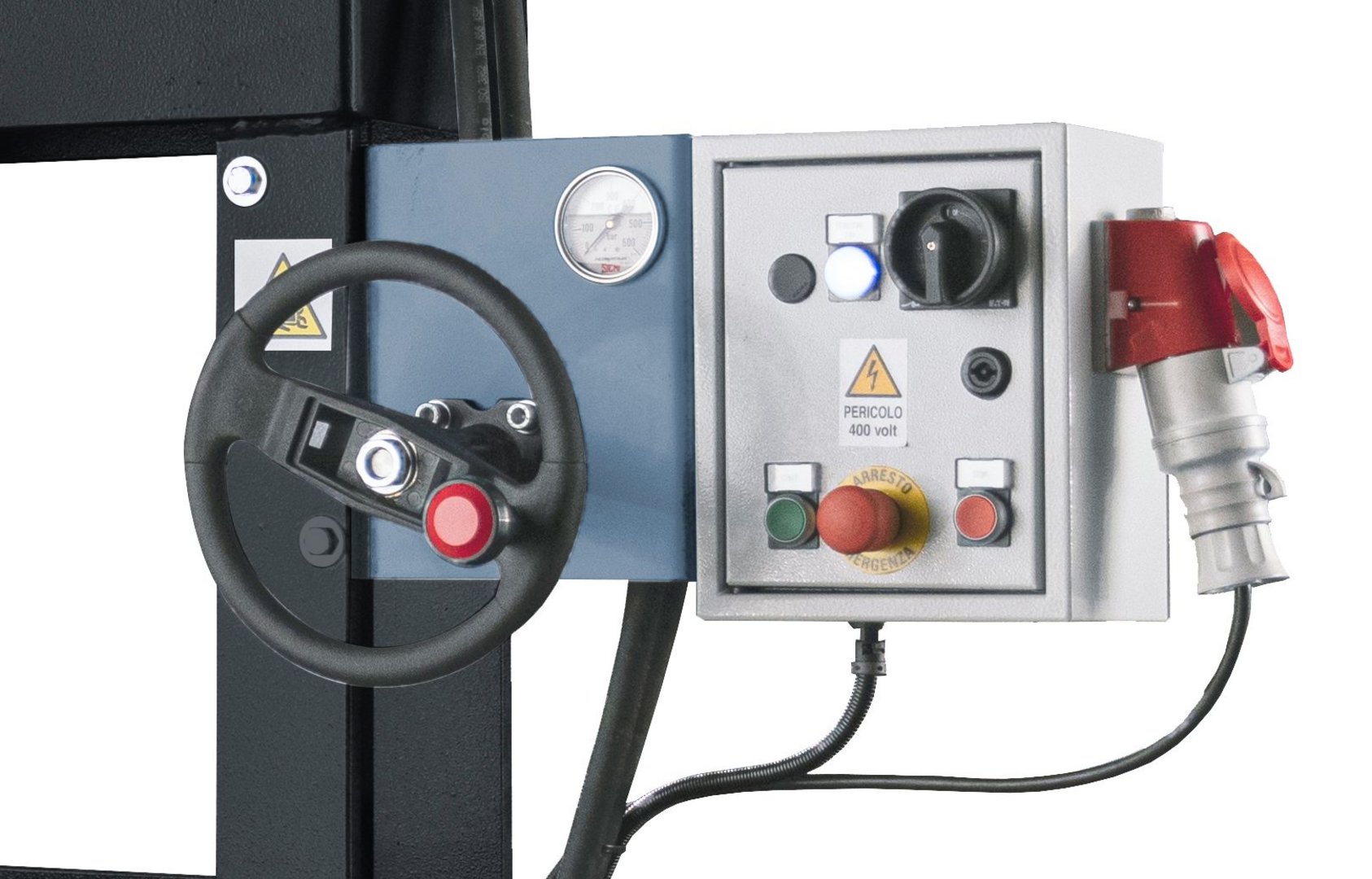

The hydraulic movement of the piston is controlled by a handwheel,
which enables very sensitive and precise positioning.
One-handed operation is possible thanks to the working speed of less than 10 mm/s.
Very suitable for straightening and pressing work.
The cylinder can be moved sideway by handwheel (only "M" versions)
Further information
Product video

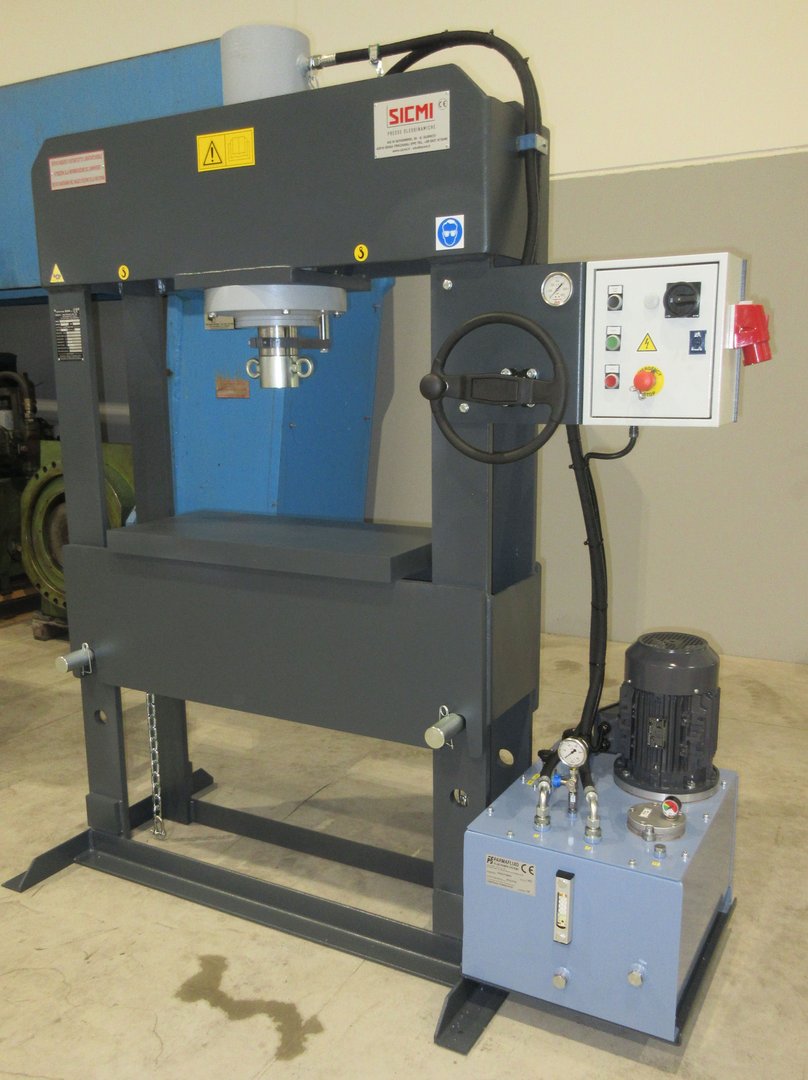

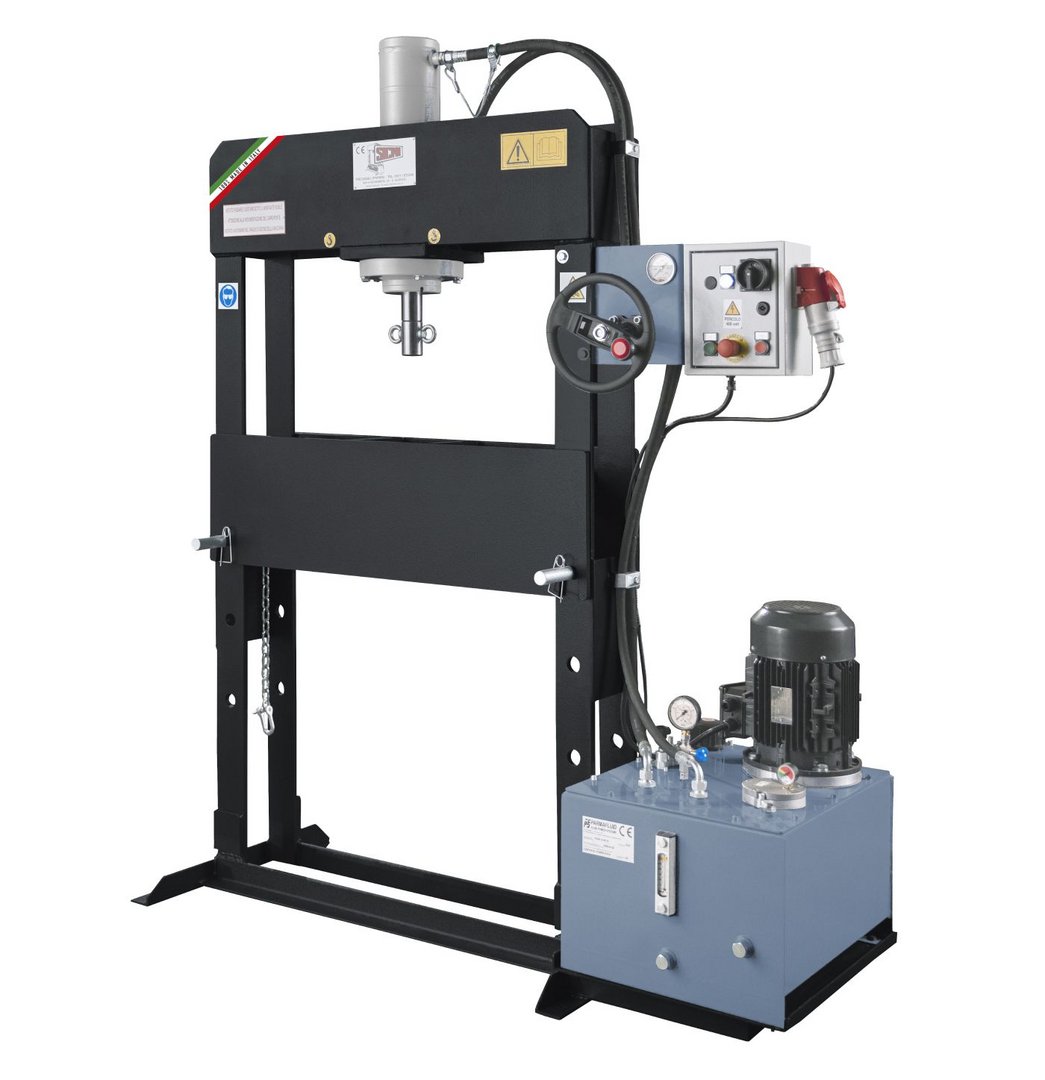

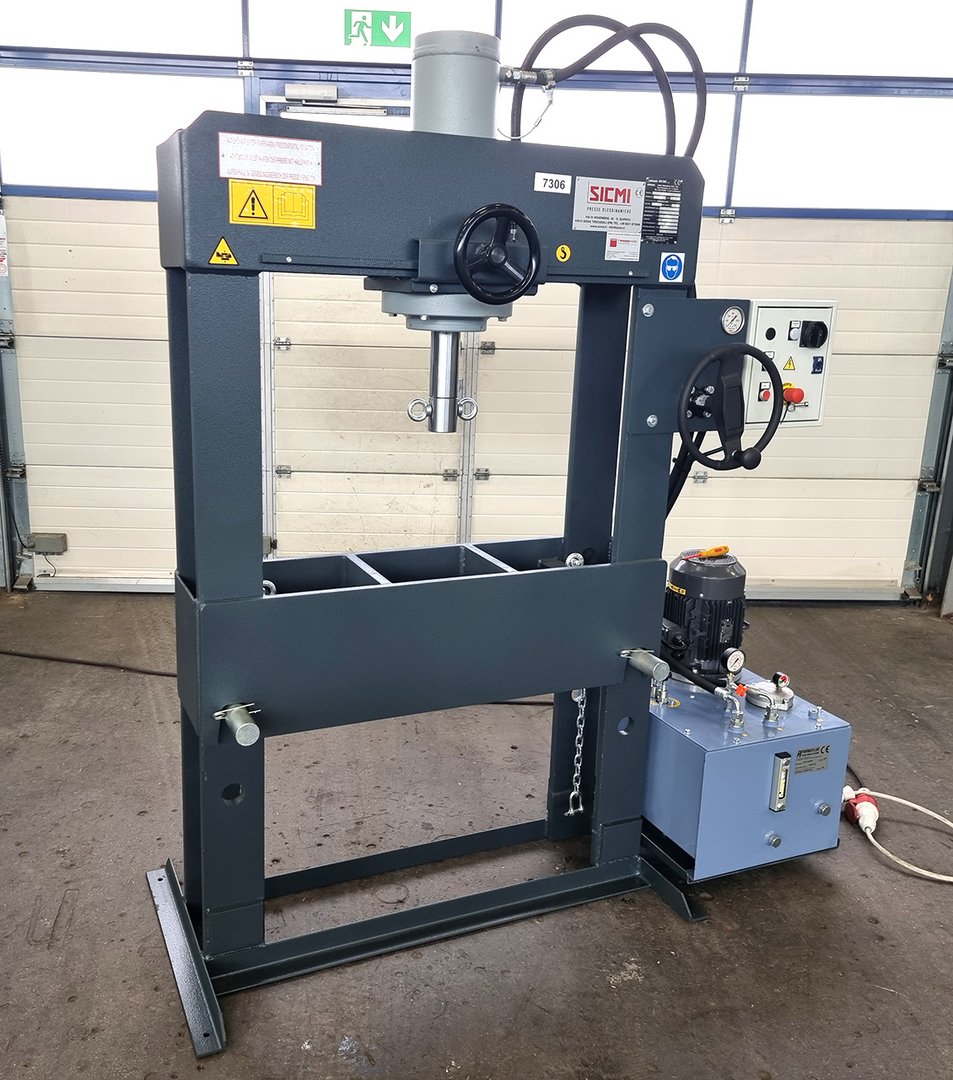

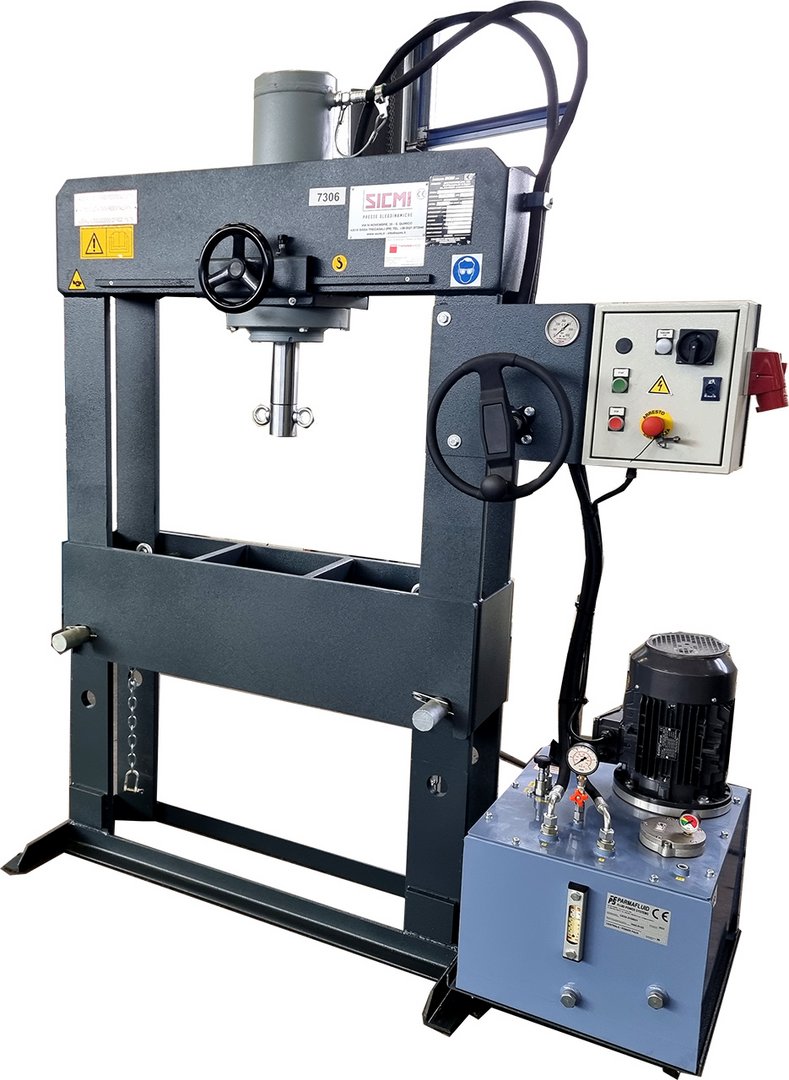

Hydraulic workshop press PSV 50 M
