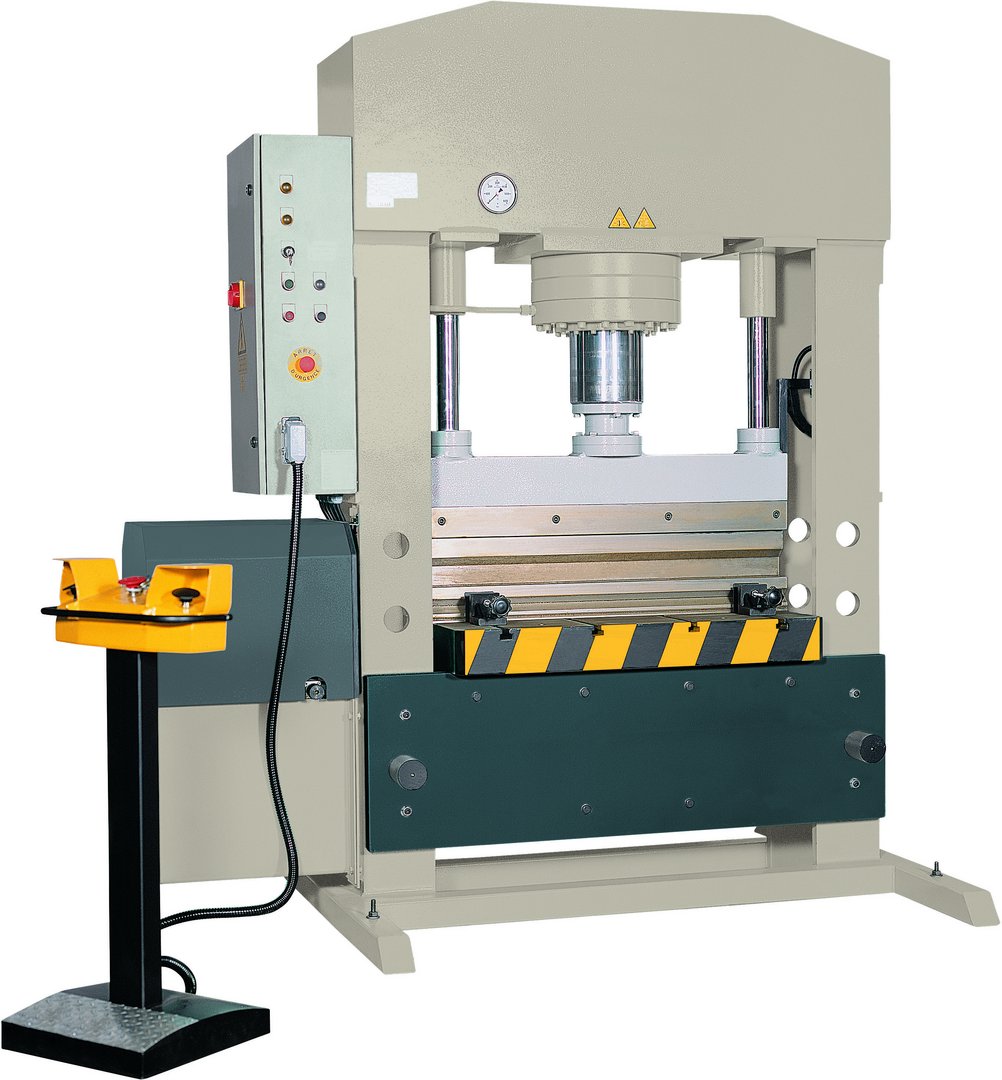

hydraulic workshop press with bending device HESSE by LFSS AP 1520/100
| Model | AP 1520/100 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 100 to |
| Distance between columns | 1520 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 100 to |
| Cylinder fix or moveable | fix |
| Bending length | 1500 mm |
| Stroke | 300 mm |
| Distance between columns | 1520 mm |
| Distance between table and toolholder | 680 mm |
| Rapid speed | 10 mm/s |
| Working speed | 5 mm/s |
| Max. bending capacity (mild steel) | 6 mm |
| Table | 500x1520 mm |
| Hole in table | 100 mm |
| Hole distance | 190 mm |
Dimensions and weight
| Length | 2630 mm |
| Width | 1000 mm |
| Height | 2275 mm |
| Weight | 2500 kg |
Description
2 guidings
big upper tool holder and table with t-slots

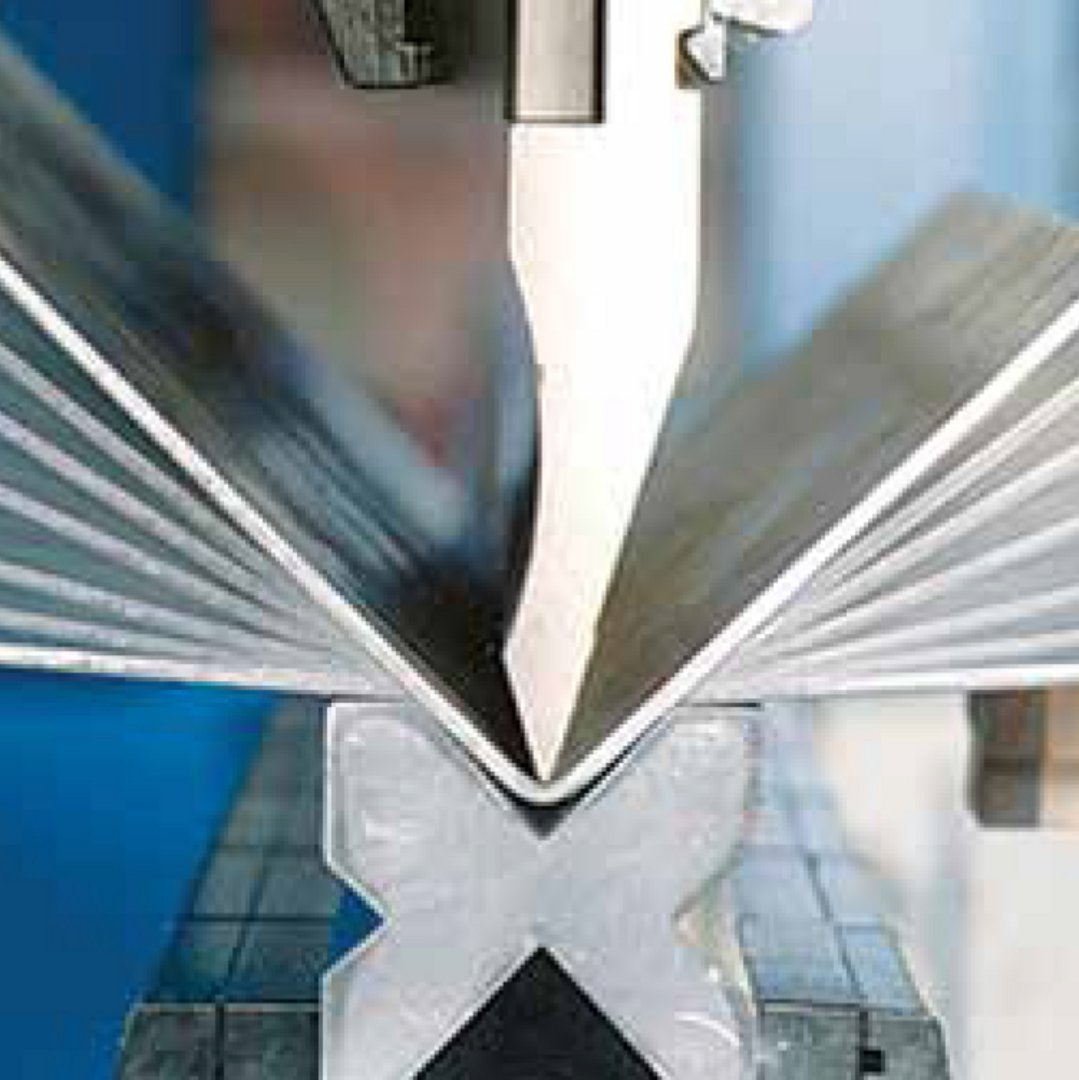

upper and lower pressbrake tool

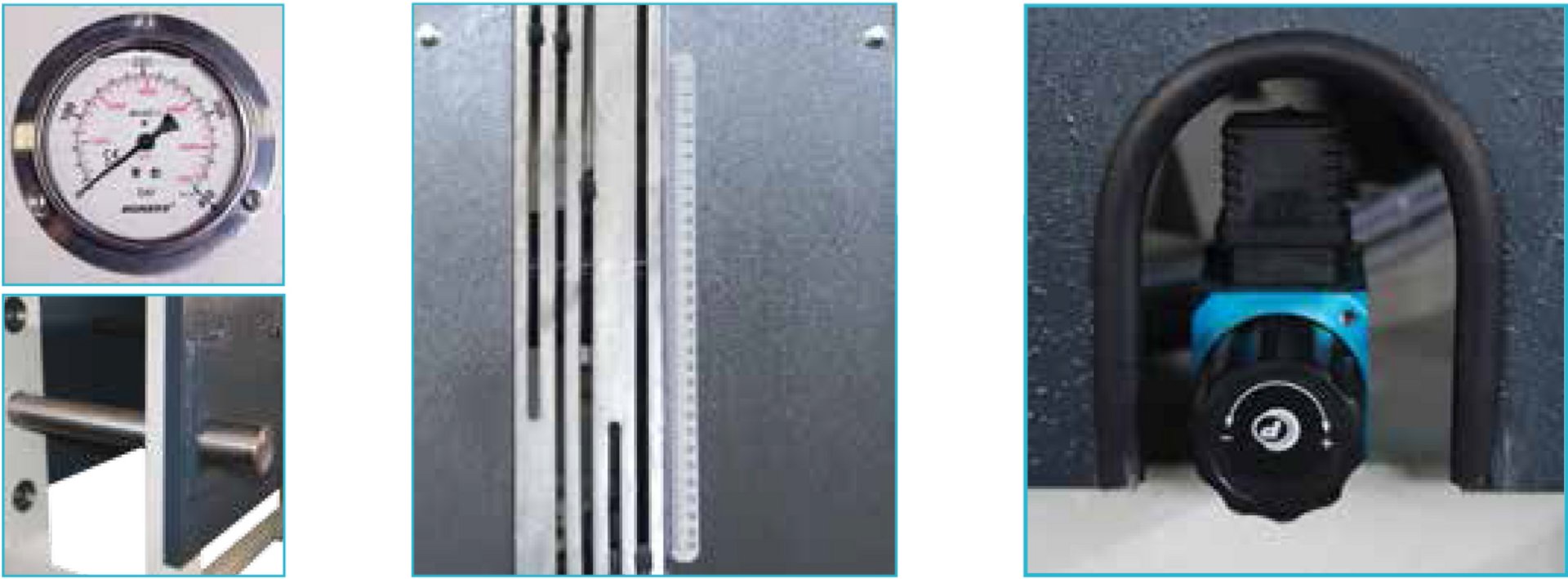

manometer
rapid down move with automtic change to working speed
piston stops in every position
manuel and 2 hand working
Tisch höhenverstellbar
according to CE regulations
user manual in GERMAN and ENGLISH
