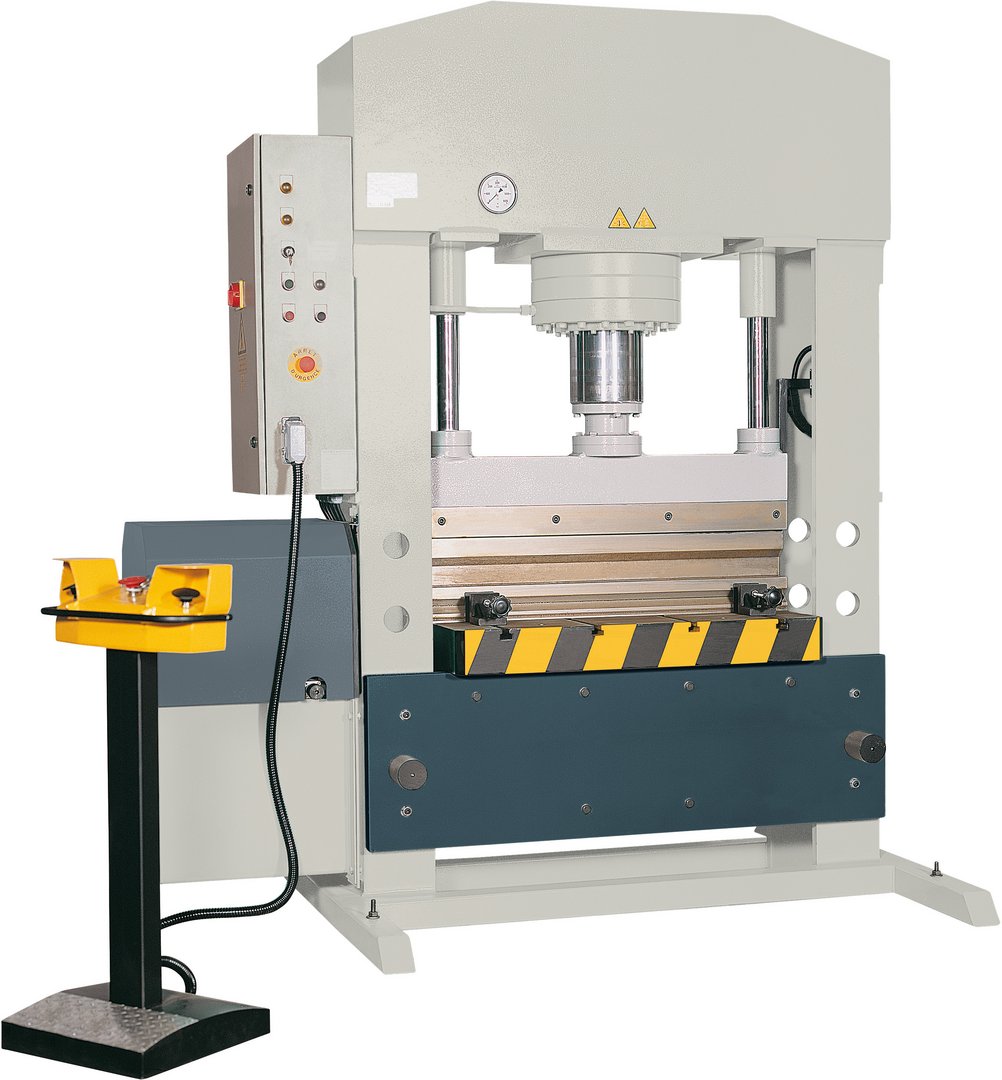

Hydraulic workshop press with bending device HESSE by LFSS AP 1020/150
| Model | AP 1020/150 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 150 to |
| Distance between columns | 1020 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 150 to |
| Cylinder fix or moveable | fix |
| Bending length | 1000 mm |
| Stroke | 300 mm |
| Distance between columns | 1020 mm |
| Distance between table and toolholder | 610 mm |
| Rapid speed | 9 mm/s |
| Working speed | 5 mm/s |
| Retraction speed | 10 mm/s |
| Max. bending capacity (mild steel) | 8 mm |
| Table | 600x1020 mm |
| Hole in table | 100 mm |
| Hole distance | 190 mm |
Dimensions and weight
| Length | 2110 mm |
| Width | 1000 mm |
| Height | 2450 mm |
| Weight | 2400 kg |
Description
2 guidings
big upper tool holder and table with t-slots
upper and lower pressbrake tool

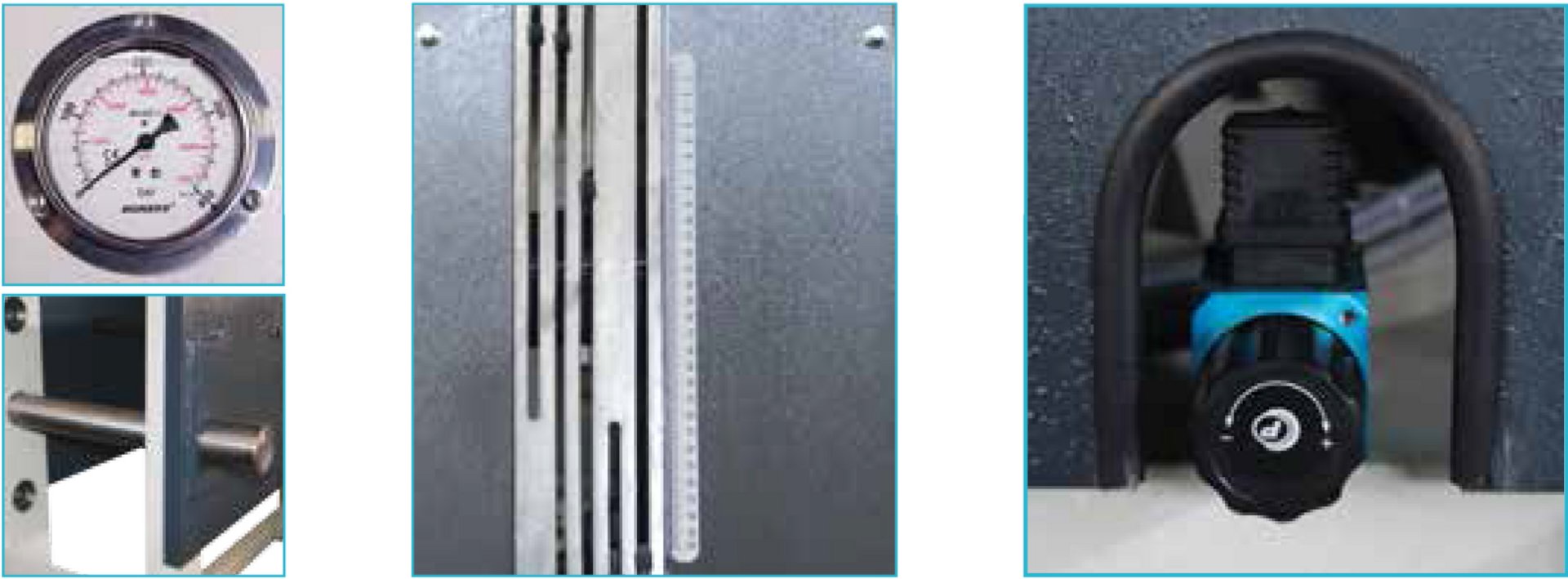

manometer
rapid down move with automtic change to working speed
piston stops in every position
manuel and 2 hand working
Tisch höhenverstellbar
according to CE regulations
user manual in GERMAN and ENGLISH
