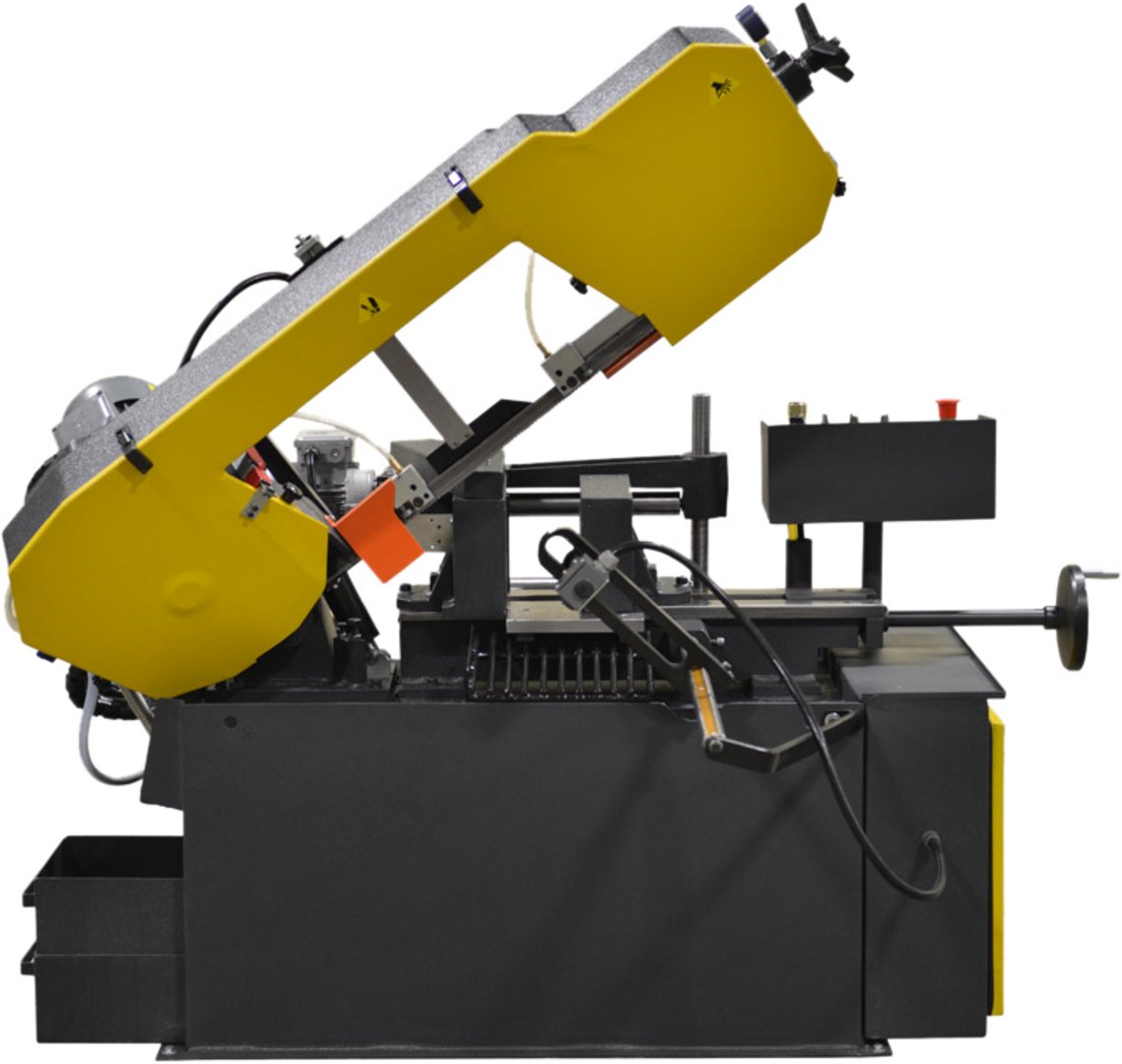

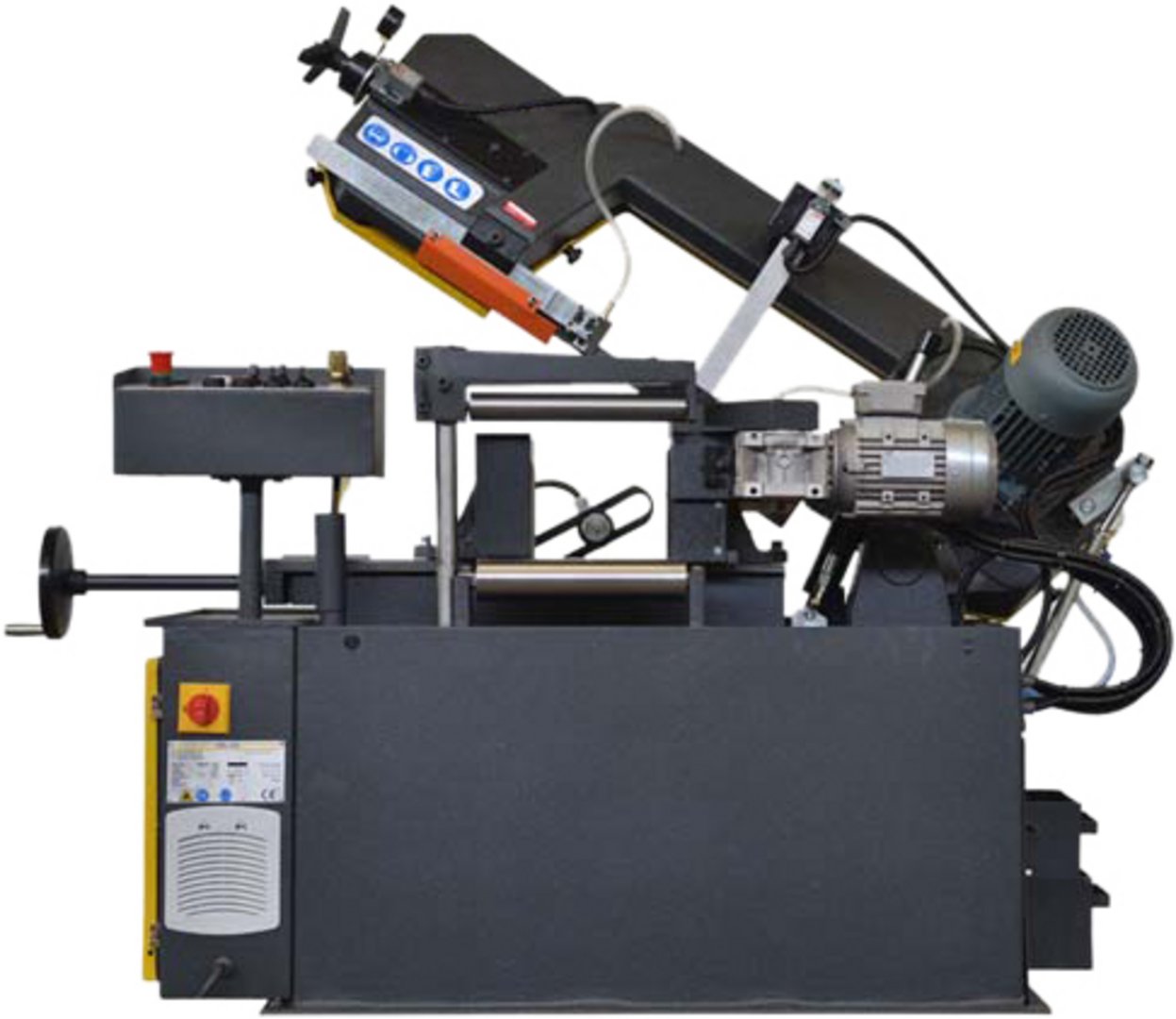

Fully automatic band saw HESSE by BEKA-MAK BMSO 230
| Model | BMSO 230 |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 230 mm |
| Cutting capacity 0° square | 230 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 2730x27x0,9 mm |
| Band speed continous | 35-70 m/min |
| Cutting capacity 0° round | 230 mm |
| Cutting capacity 0° square | 230 mm |
| Cutting capacity 0° flat | 240x230 mm |
| Working height | 590 mm |
| Hydraulic motor | 0.37 kW |
| Motor | 1.3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 1700 mm |
| Width | 800 mm |
| Height | 1500 mm |
| Weight | 530 kg |
Description
blade brush

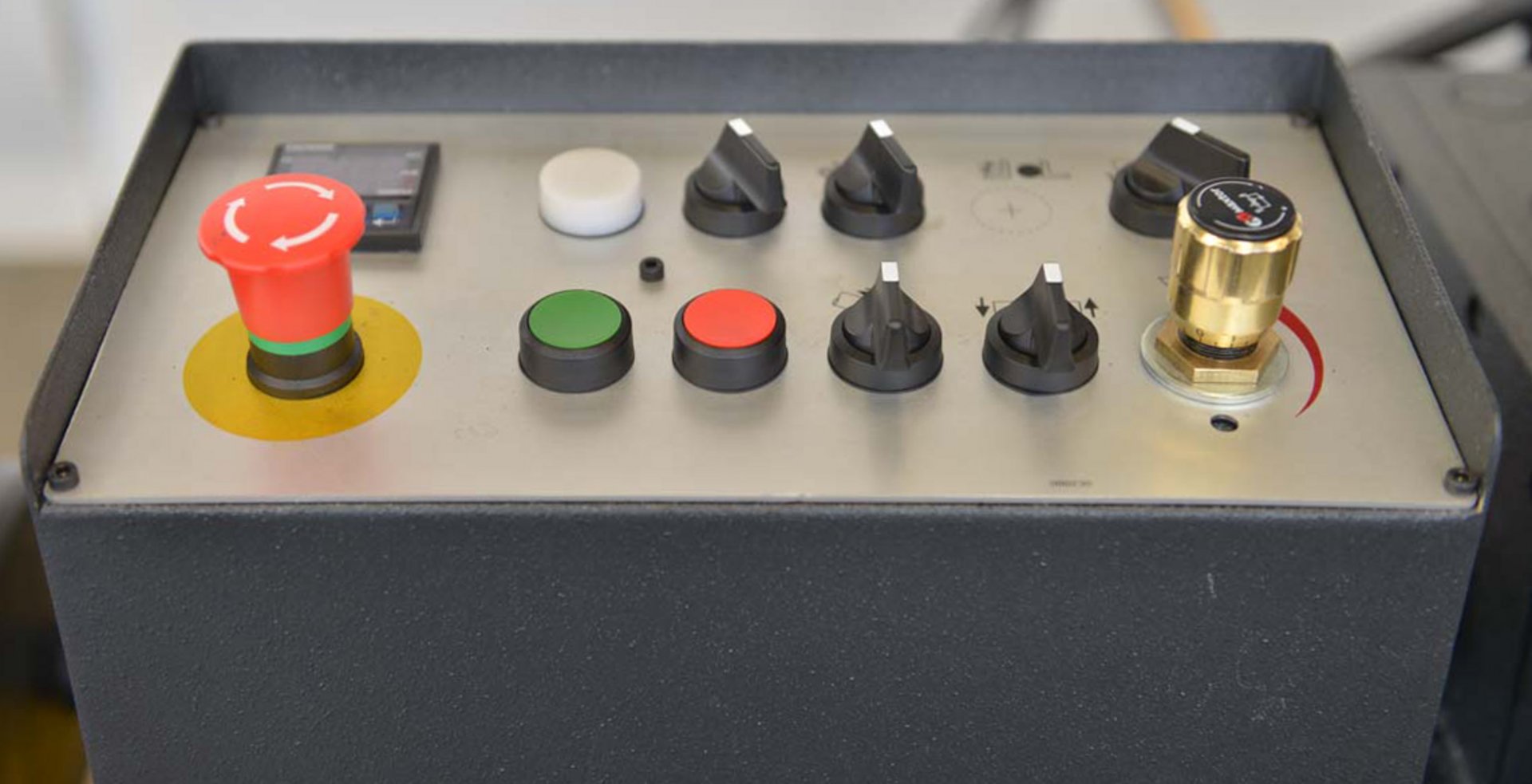

control panel
height adjustment switch
hydromechanical blade tension
inverter

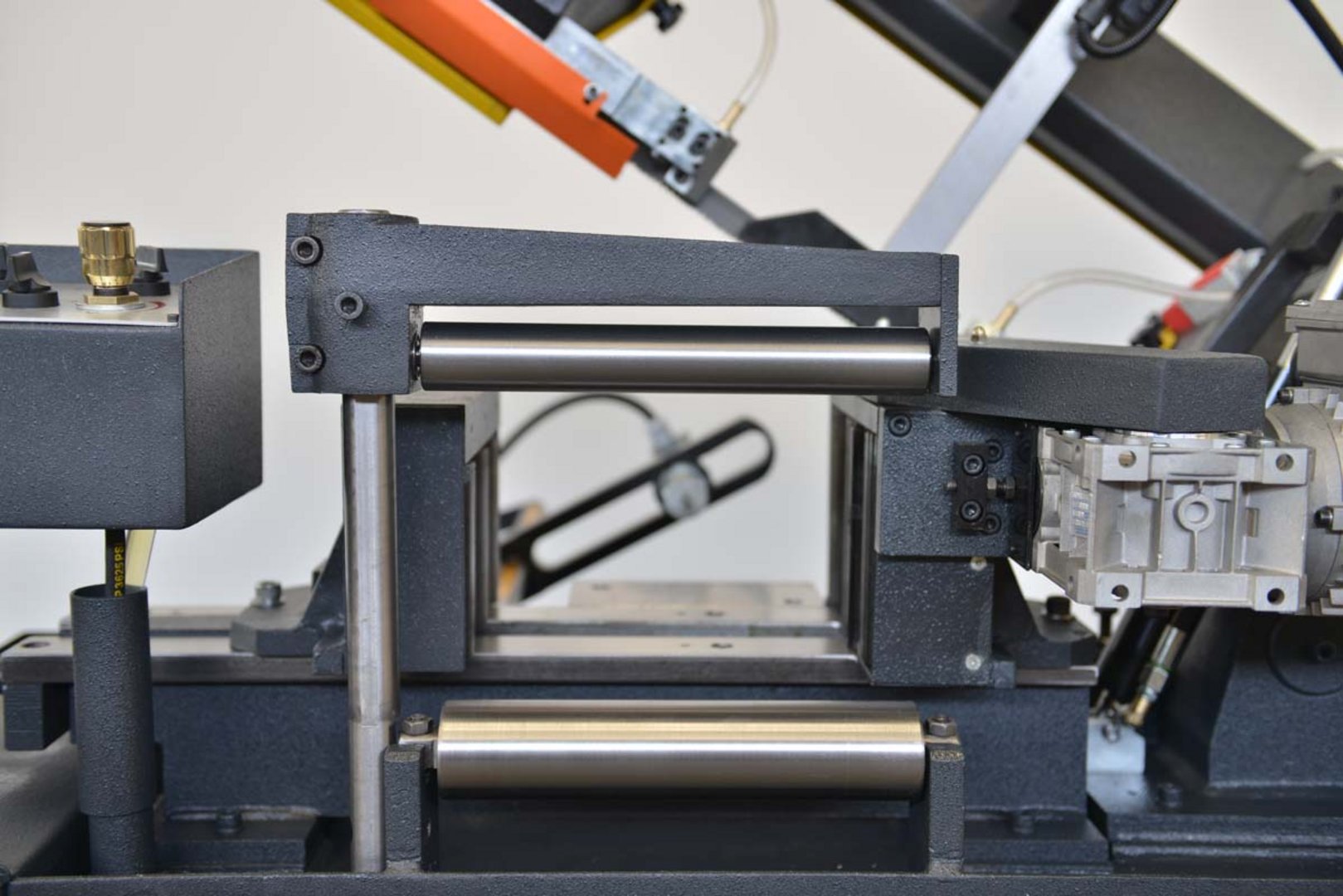

mechanic top clamping
material length stop
coolant pump
saw blade
security switch
1,2 meter roller table
users manual in GERMAN or ENGLISCH
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
