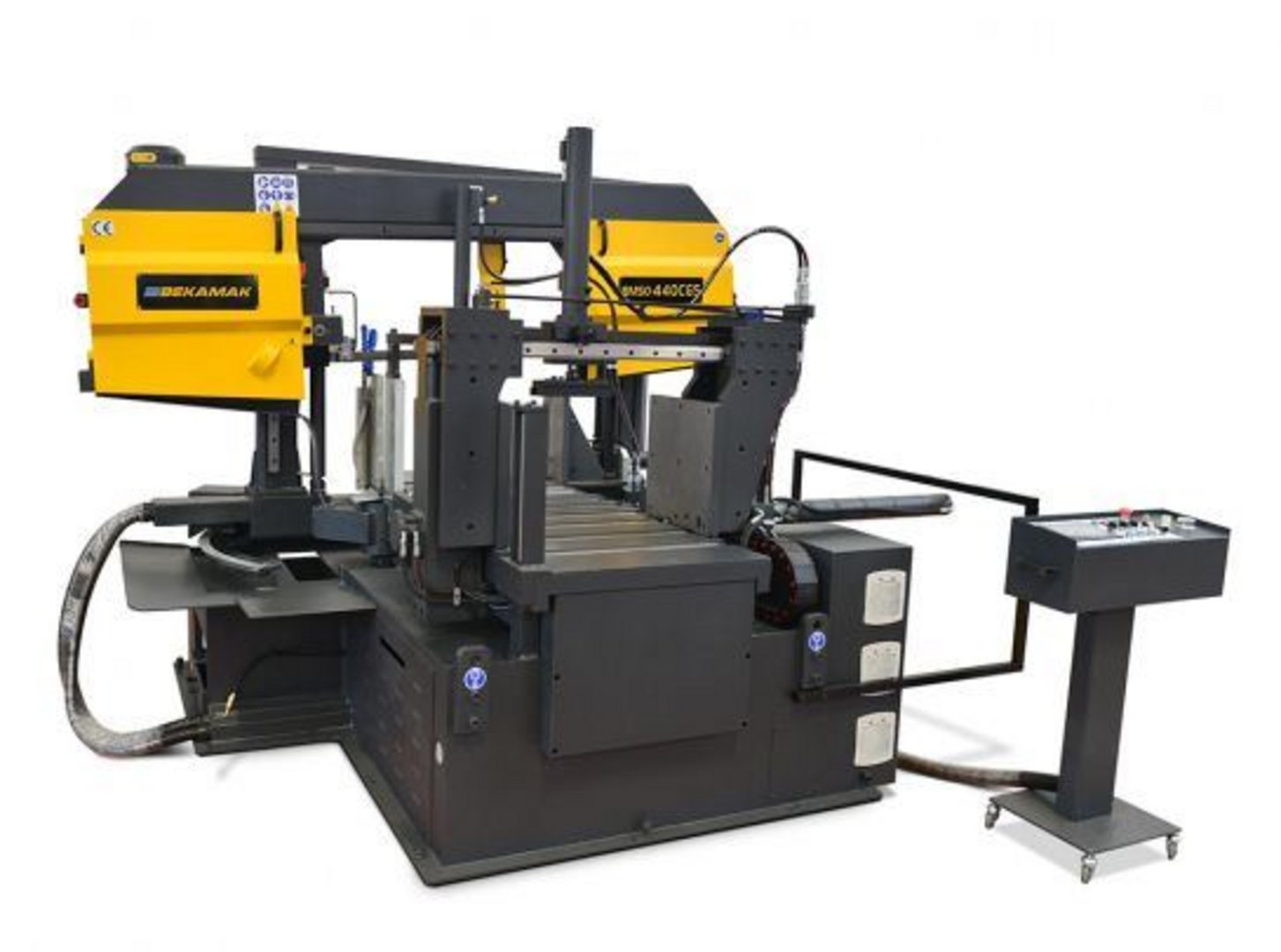

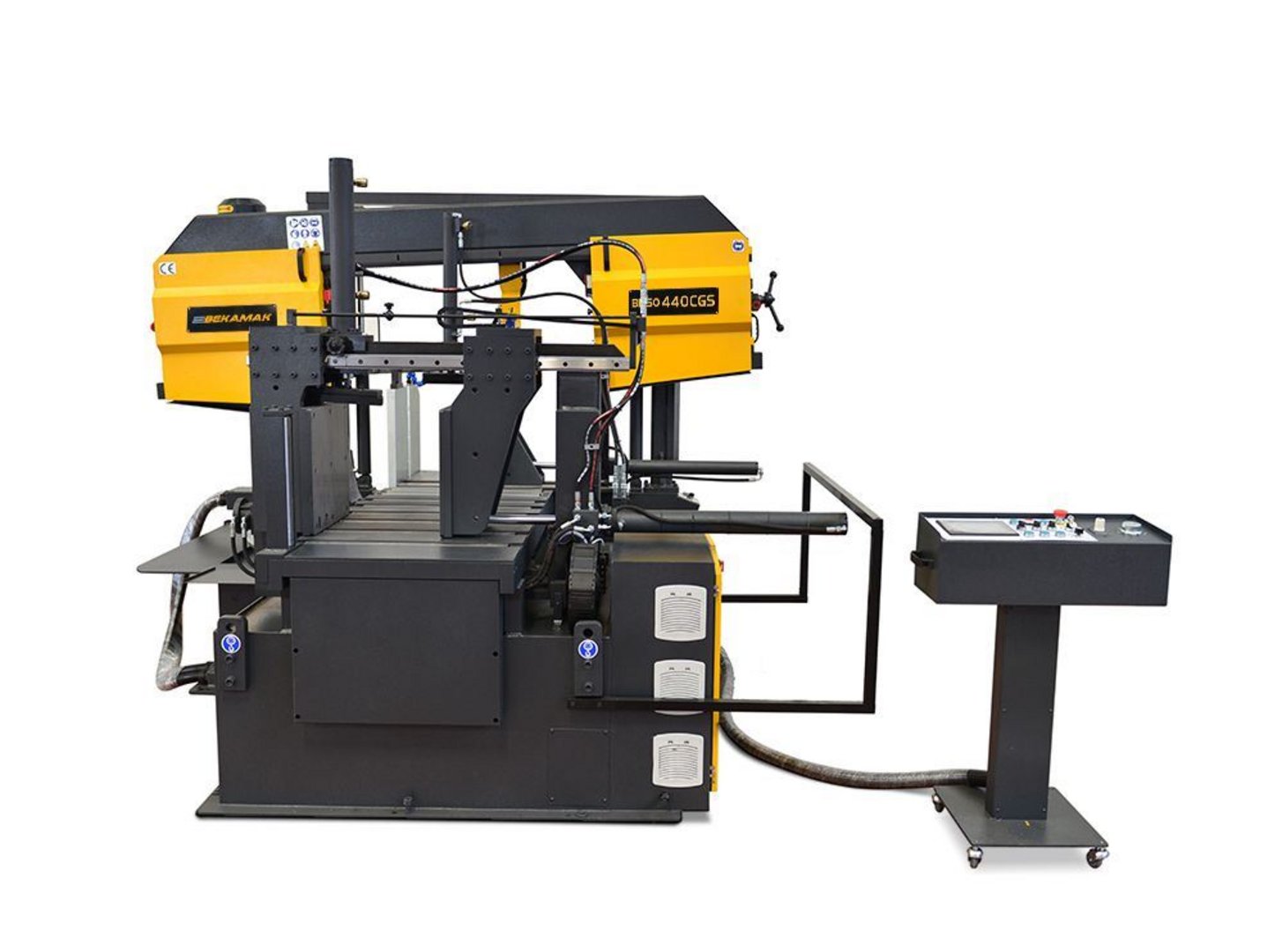

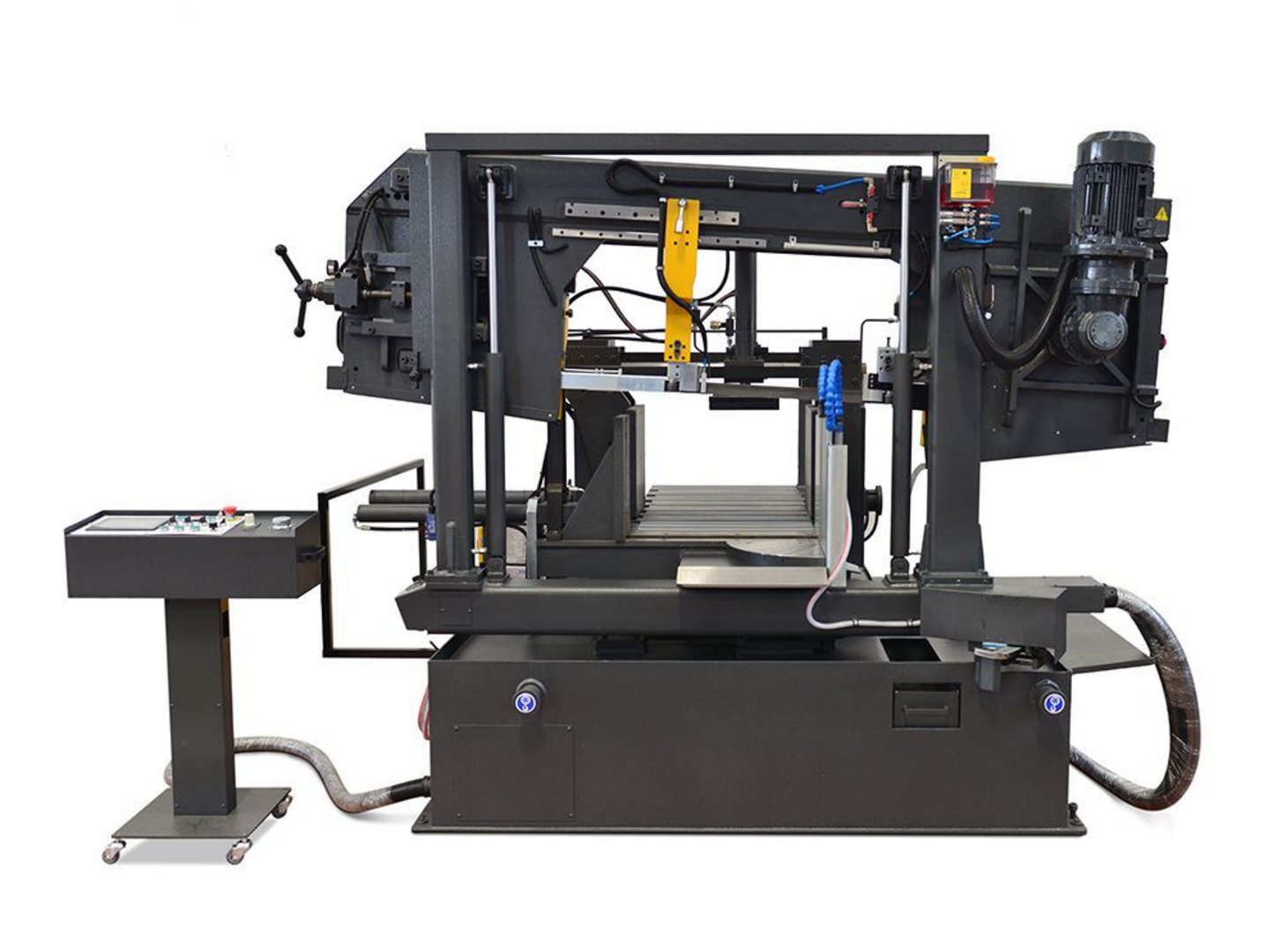

Fully automatic band saw HESSE by BEKA-MAK BMSO 440 CGH NC
| Model | BMSO 440 CGH NC |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 440 mm |
| Cutting capacity 0° square | 440 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5400x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 440 mm |
| Cutting capacity 0° square | 440 mm |
| Cutting capacity 0° flat | 610x425 mm |
| Cutting capacity 30° | rund 440 mm, quadrat 440 mm, rechteck 570 x 440 mm |
| Cutting capacity 45° | rund 430 mm, quadrat 425 mm, rechteck 430 x 425 mm |
| Cutting capacity 60° | rund 320 mm, quadrat 290 mm, rechteck 260 x 425 mm |
| Working height | 735 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2850 mm |
| Width | 2350 mm |
| Height | 2000 mm |
| Weight | 3600 kg |
Description
NC control
double column band saw on linear guidelines
3° cutting angle
blade brush

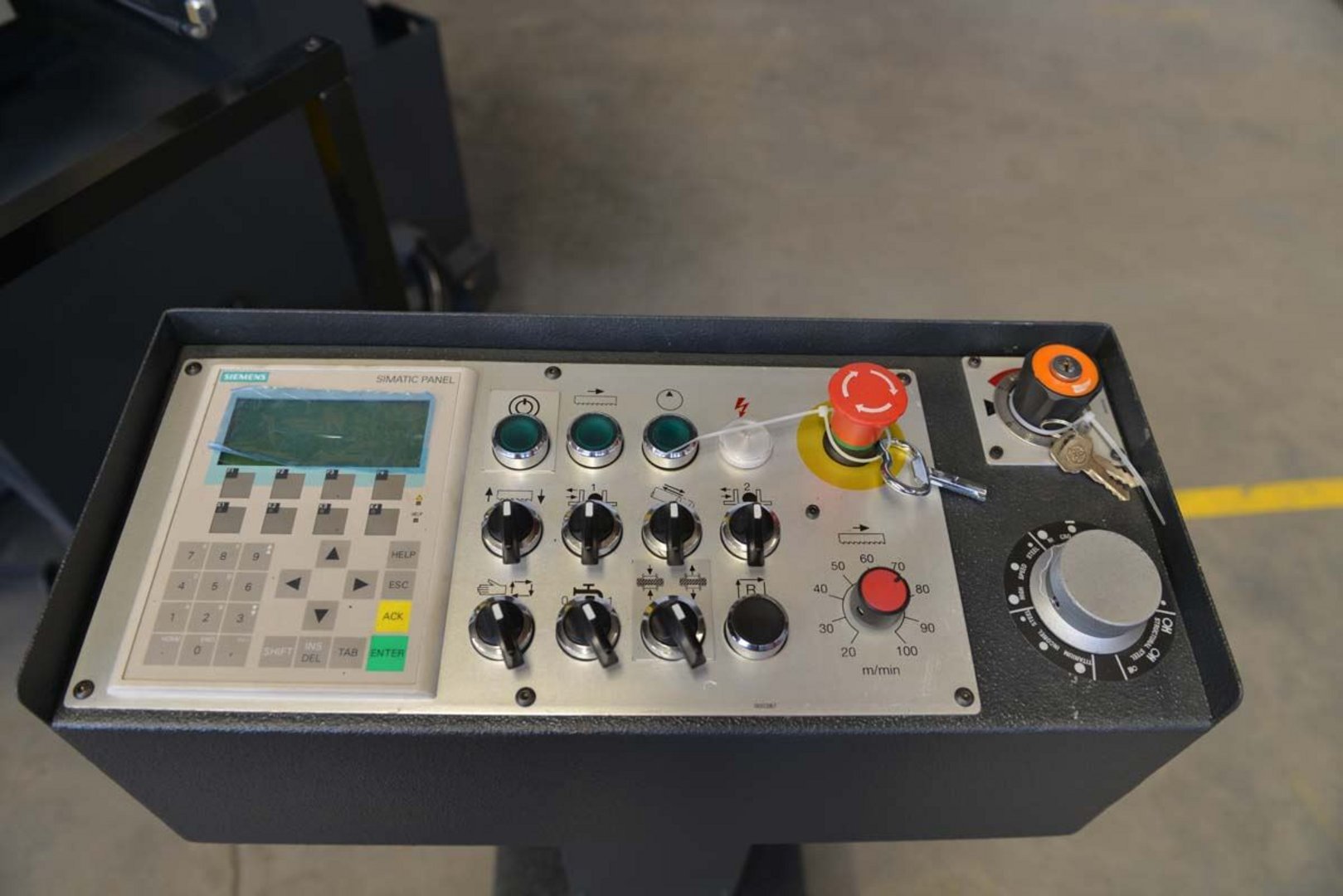

control panel
hydraulic feeding vice
hydraulic vice
hydromechanical blade tensioning
inverter
optical height adjustment

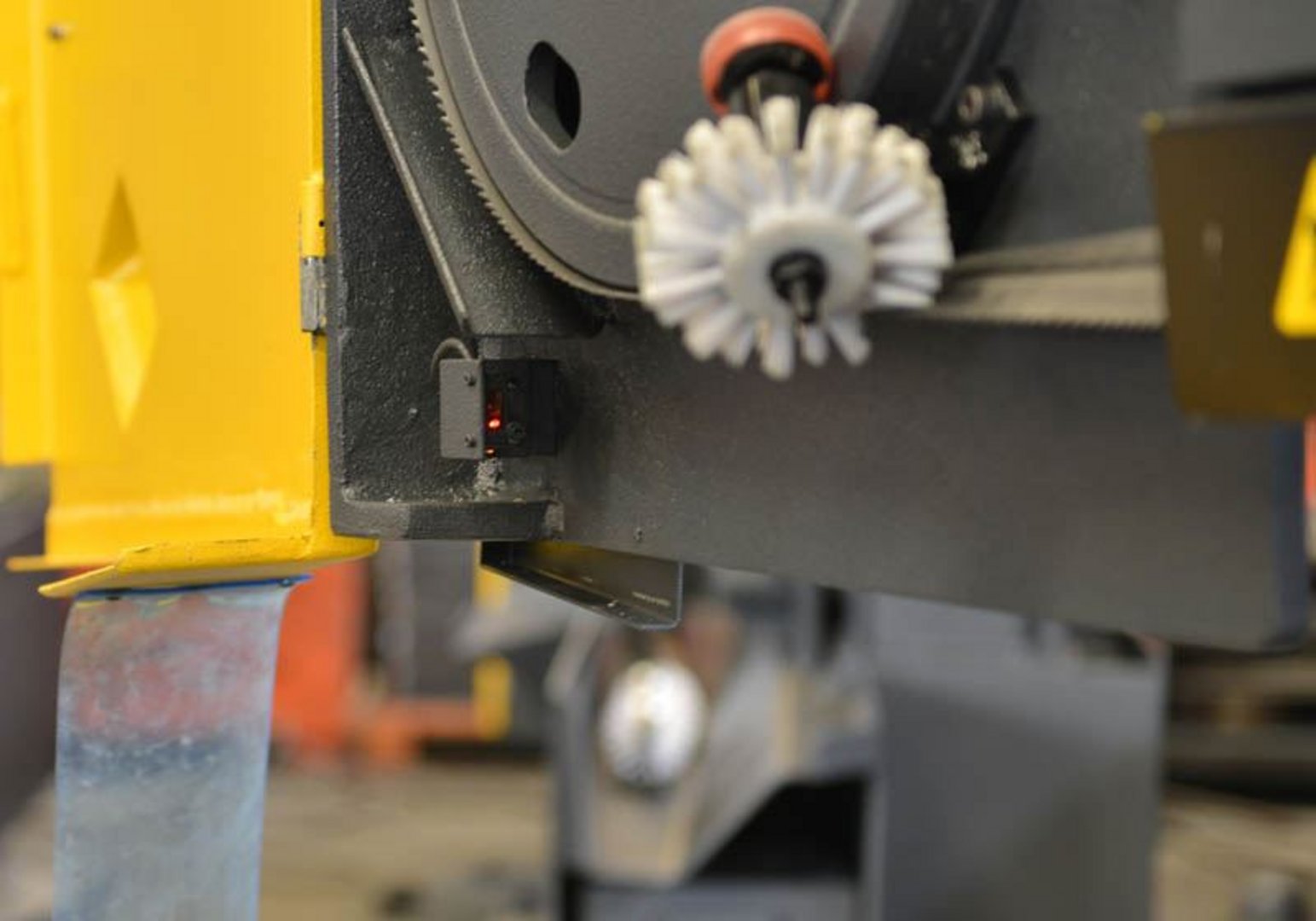

proximity switch for sensing blade slippage
material limit shaft
pressure adjustment
coolant pump
saw blade

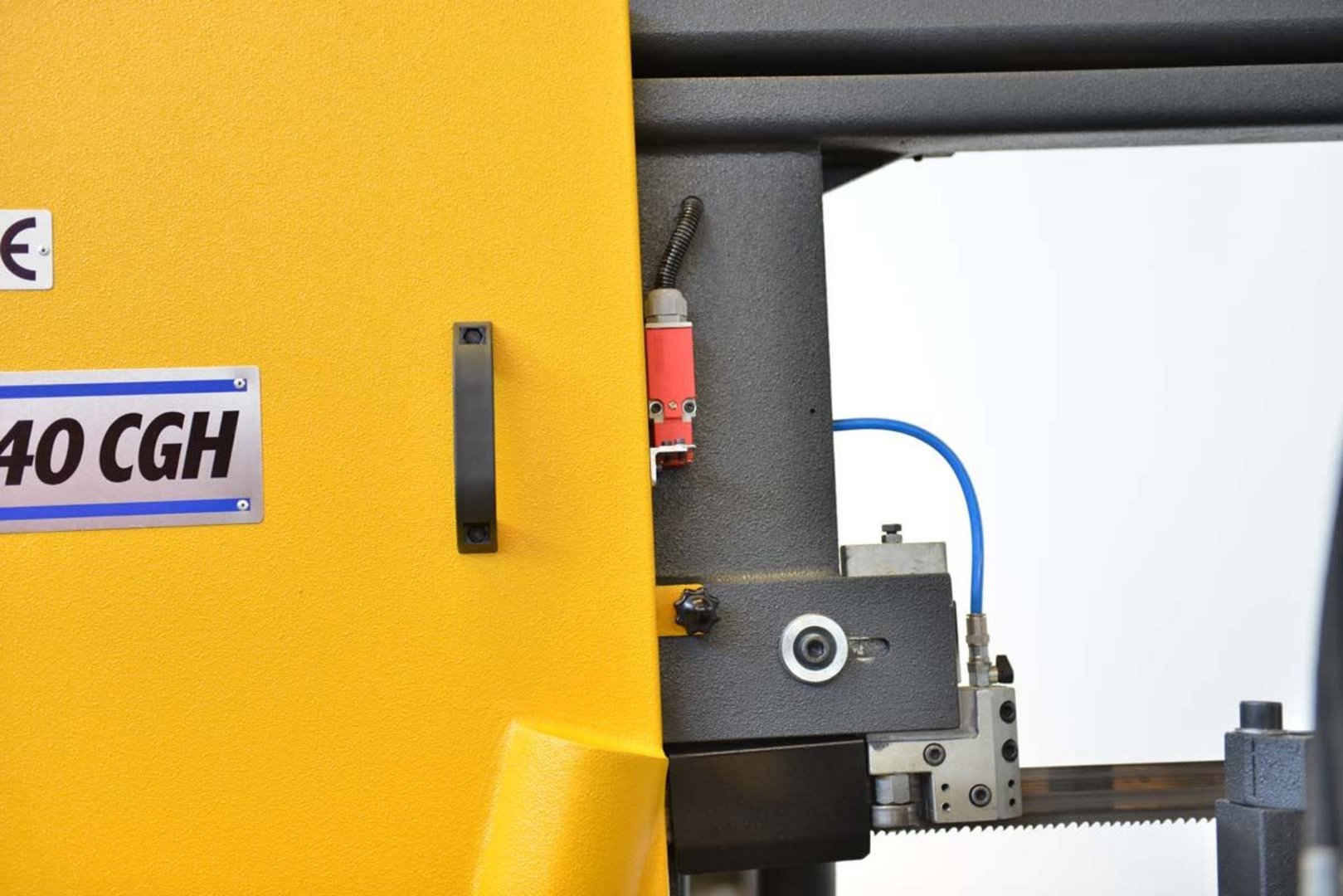

security switch
user manual in GERMAN or ENGLISH
options:
hydraulic top clamping
micro coolant equipment
laser cutting line
alternative:
model BMSO 440 CGS NC (with servo instead of hyraulic feed) € 61.900,--
