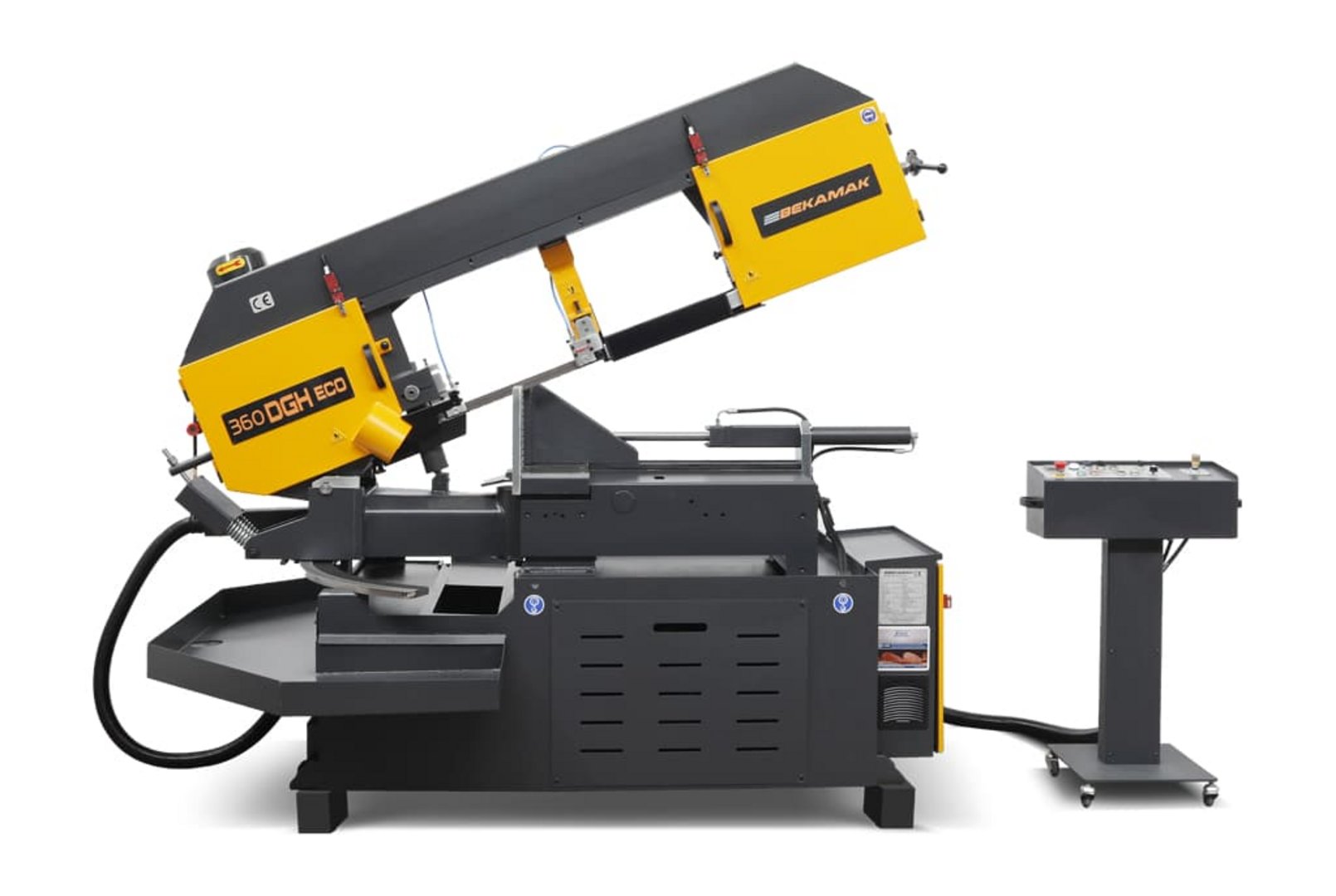

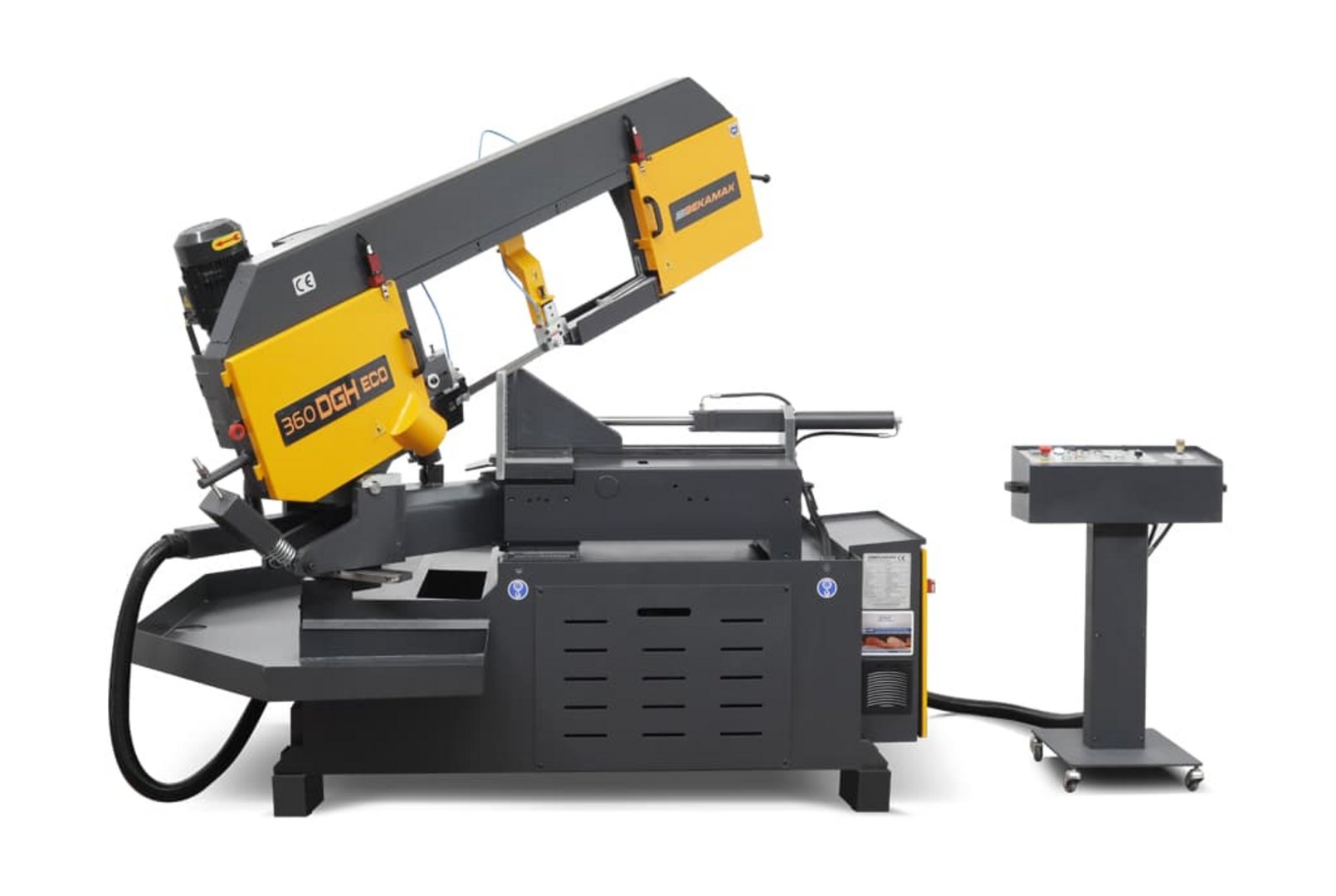

Semiautomatic band saw HESSE by BEKA-MAK BMSY 360 DGH ECO
| Model | BMSY 360 DGH ECO |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 360 mm |
| Cutting capacity 0° square | 360 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 4800x34x1,1 mm |
| Band speed continous | 15 - 120 m/min |
| Cutting capacity 0° round | 360 mm |
| Cutting capacity 0° square | 360 mm |
| Cutting capacity 0° flat | 510x360 mm |
| Cutting capacity 45° | rund 360 mm, quadrat 360 mm, rechteck 390 x 360 mm |
| Cutting capacity 60° | rund 250 mm, quadrat 220 mm, rechteck 220 x 360 mm |
| Cutting capacity - 60° | rund 280 mm, quadrat 260 mm, rechteck 260 x 360 mm |
| Working height | 860 mm |
| Hydraulic motor | 0.37 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2650 mm |
| Width | 1210 mm |
| Height | 1870 mm |
| Weight | 1450 kg |
Description
Hydraulic vice
Inverter for contious variable band speed
Continuously adjustable saw arm lowering speed
Hydromechanical blade tension can be read via pressure gauge
Control panel
Chip brush
Coolant equipment
Operating instructions in German or English
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
