General characteristics
| Drilling capacy mild steel | 40 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 360 mm |
| Revs | 38 - 1.270 (9) r.p.m. |
| Motor | 2.2 kW |
| Tapping capacity | M32 |
| Feeds | 0,10 - 0,40 (4) mm/r |
| max. drilling depth | 200 mm |
| Column diameter | 175 mm |
| Distance spindle - table | 35 - 835 mm |
| Distance spindle-base | 1240 mm |
| Table | 550 x 550 mm |
| Base dimensions | 950 x 550 mm |
Dimensions and weight
| Length | 550 mm |
| Width | 950 mm |
| Height | 2363 mm |
| Weight | 610 kg |
Description
ERLO (MADE IN SPAIN)
for manufacturing use
automatic feed
gear drive
fixed machine table

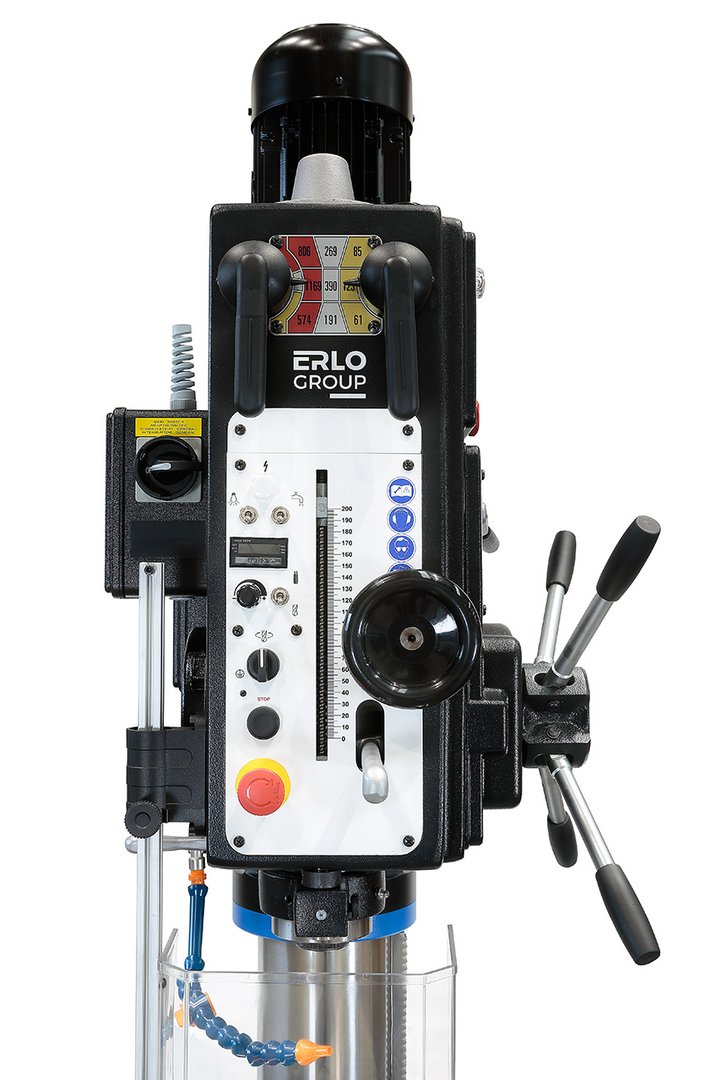

displaceable and rotatable drill head

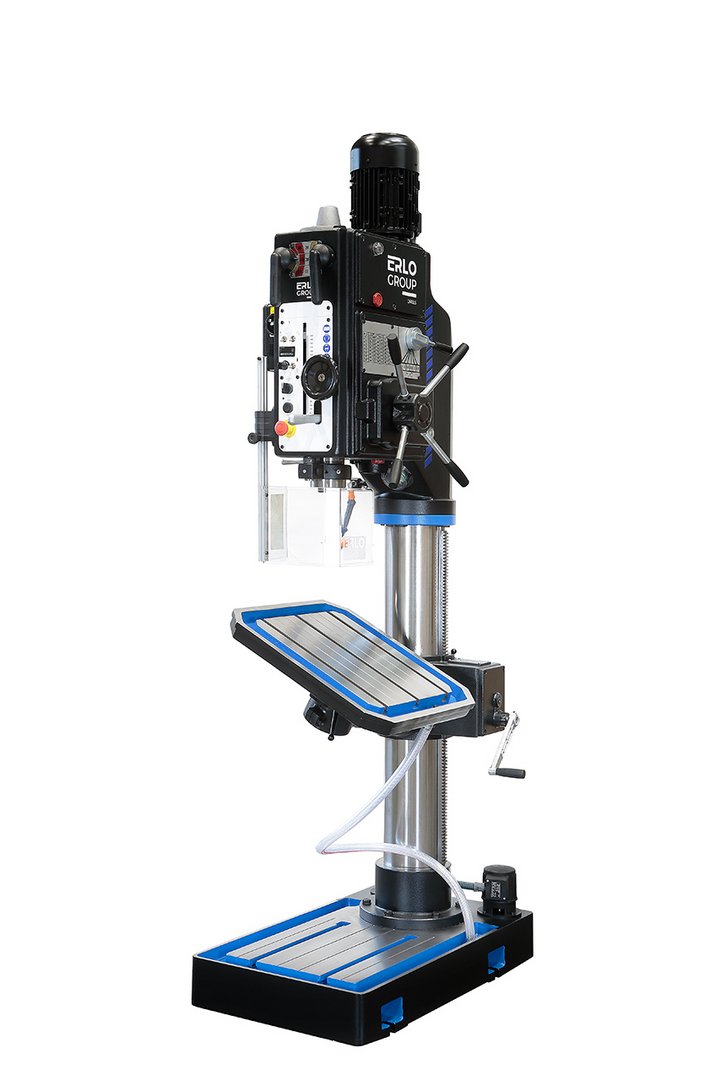

tiltable turntable
front wheel for sensitive fine feed
coolant equipment
lighting
Option:
Manual tapping system € 810,--
Alternative:
ERLO B-40 version with electromagnetic clutch € 18.540,--
Further information
Product video

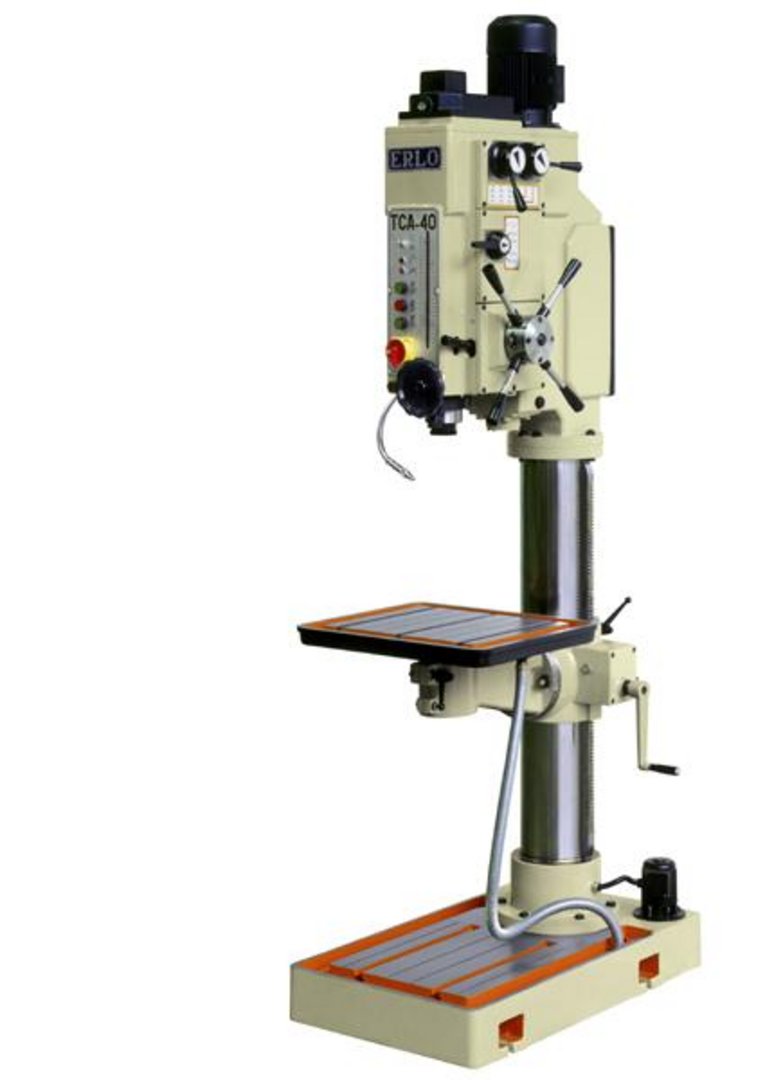

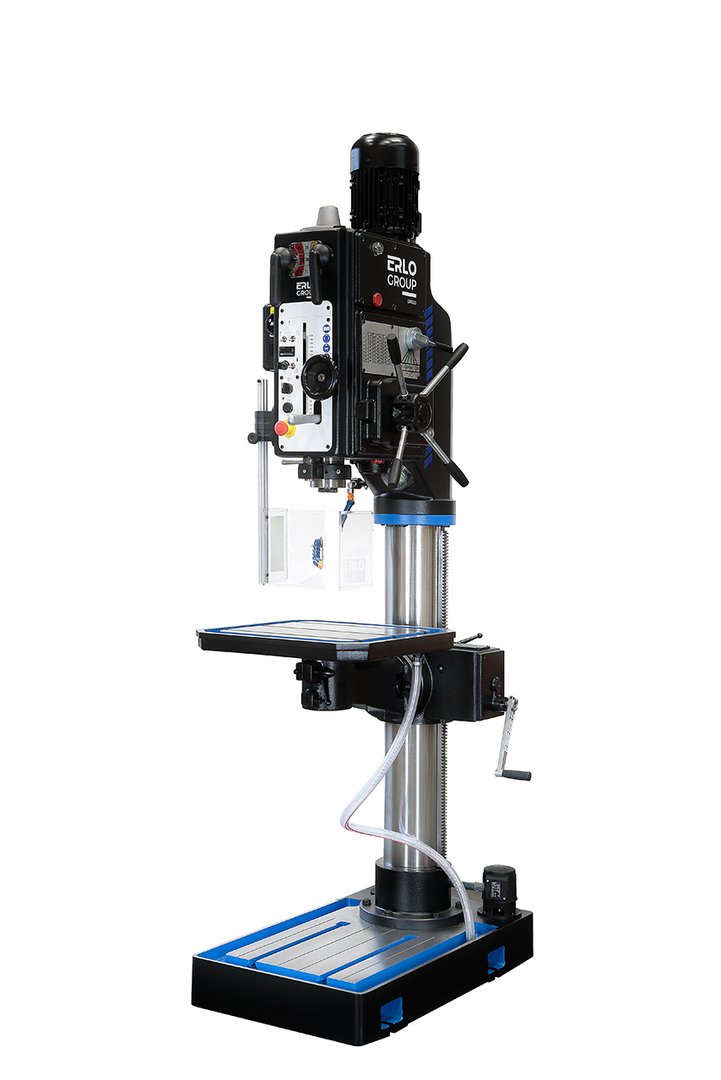

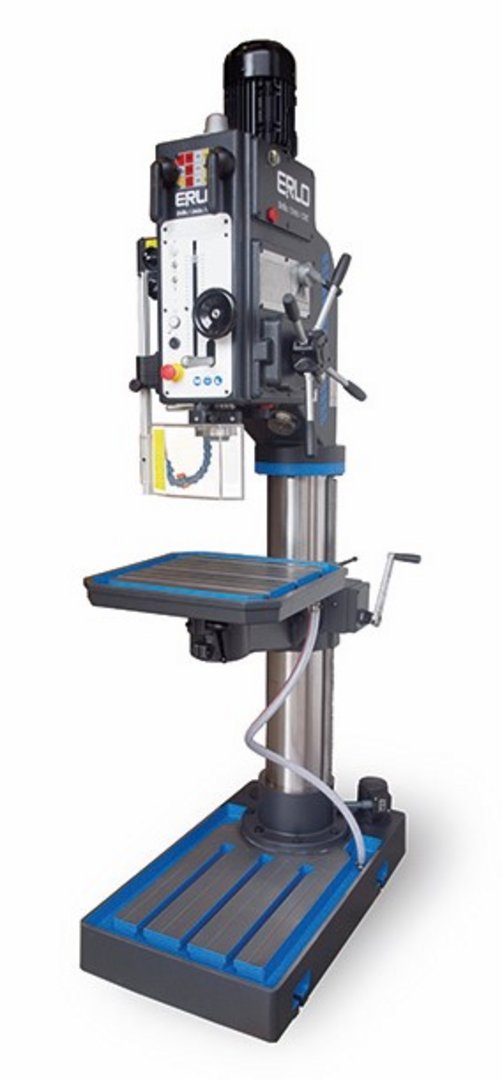

Column drilling machine A 40
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
