General characteristics
| Drilling capacy mild steel | 23 mm |
| Taper | 19 mm Weldon |
| Motor power | 1.15 kW |
| Max. drilling capacity | 23 mm |
| Max. core drill capacity | 50 mm |
| Max. cutting depth | 50 mm |
| Stroke | 160 mm |
| Motor speed | 240 / 480 rpm |
| Min. workpiece thickness | 6 mm |
Dimensions and weight
| Length | 331 mm |
| Width | 254 mm |
| Height | 456 mm |
| Weight | 155 kg |
Description

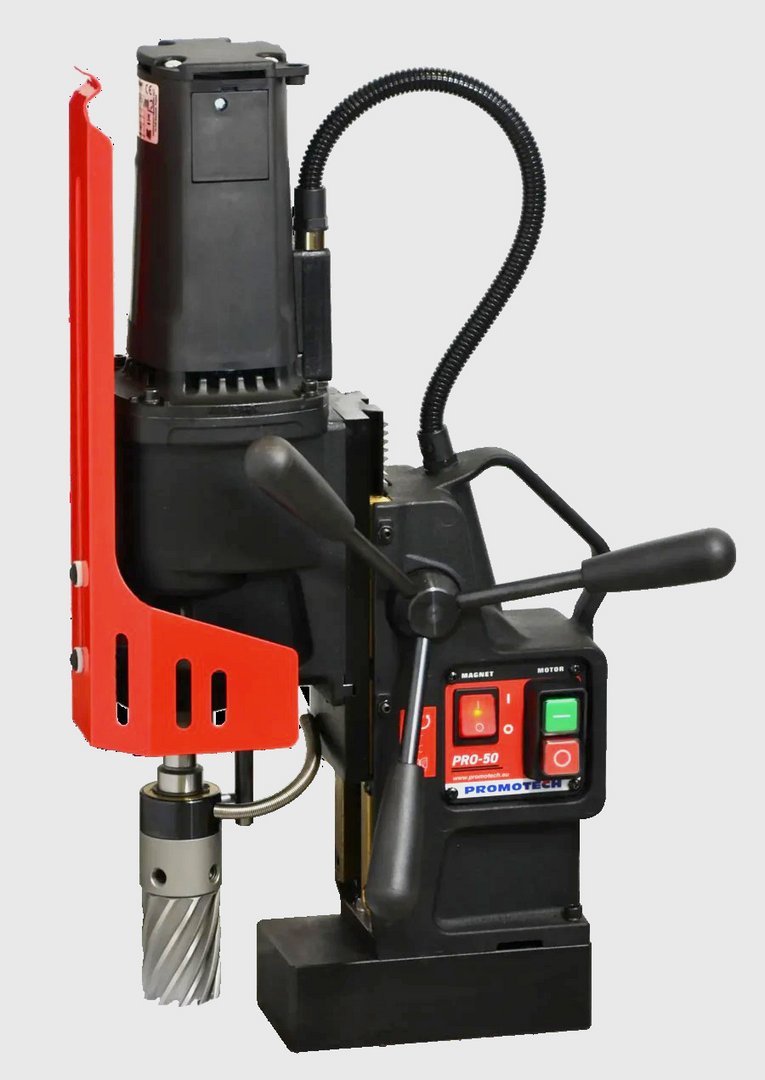

PRO-50 featuring purpose designed motor and 2-speed gear box 240/480 rpm is optimized to provide appropriate speed for
work with HSS cutters up to Ф 45 mm and twist drills up to Ф 23 mm. Rigid construction, optimized by means of FEA
(finite element analysis) software extends tool life and enables depth of cut up to 75 mm.
Compact design along with innovative smart magnet with reduced weight make it a lightweight machine.

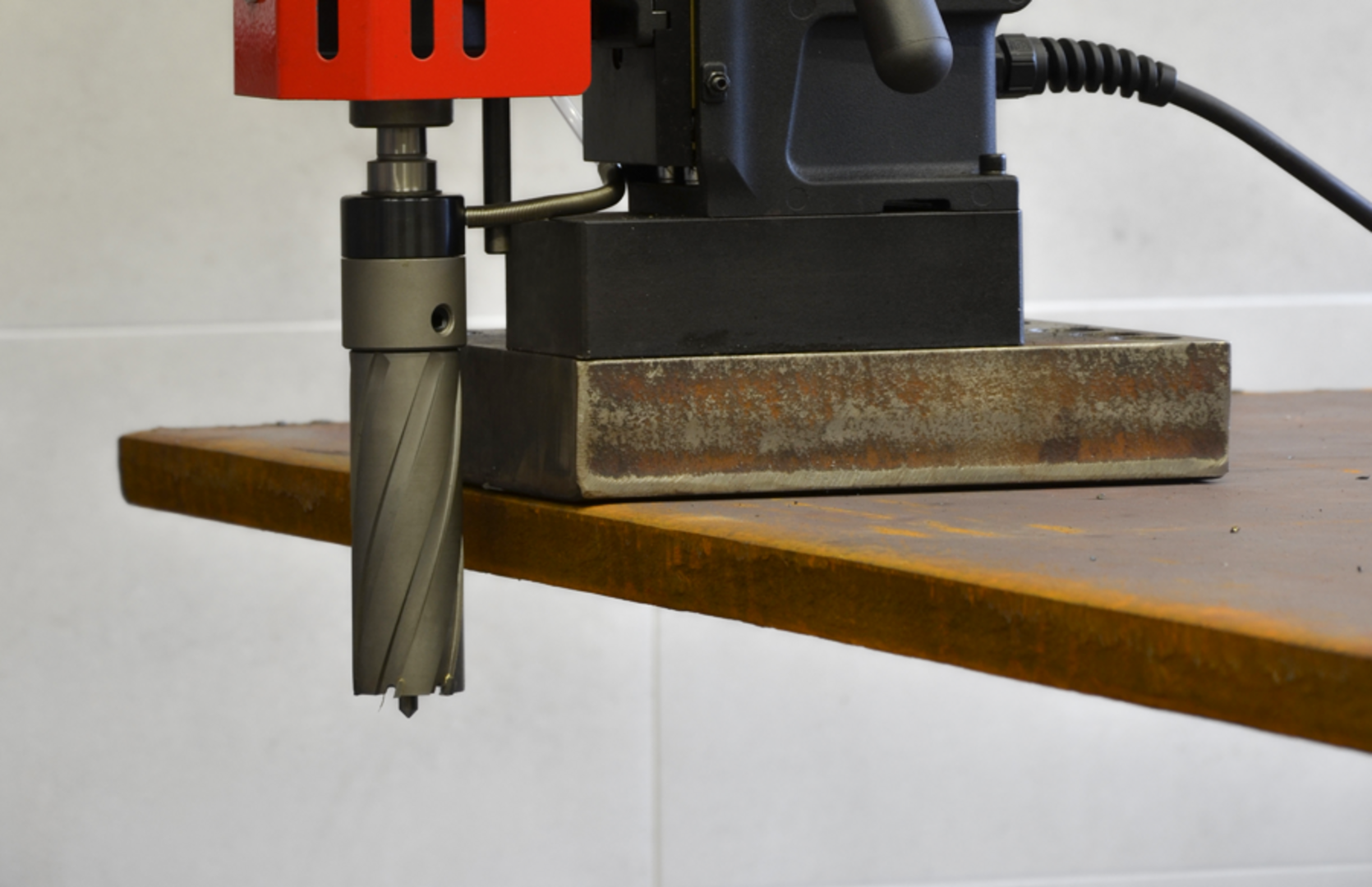

PRO-50 provides maximum holding power on thin materials thanks to Magnetic Field Shape Control (MFSC). The drill protects
both the machine and the operator from work on too thin work piece by means of Magnetic Power Adhesion Control (MPAC).
PRO-50 is also equipped with Energy Saving Base (ESB) that uses only 50% of its power when motor is not running.
Features and benefits:
• Compact design with excellent ratio weight/power
• Purpose designed motor
• Motor Speeds 240/480 rpm (under load)
• Spindle equipped with MT2
• Innovative smart magnet with reduced weight
• Rigid design to extend tool life
• Large stroke enables the use of long tools
• Motor cable with additional protective cover
• Magnetic Field Shape Control (MFSC) provides
maximum holding power on thin materials
• Magnetic Power Adhesion Control (MPAC) detects adhesive force of
electromagnetic base and protects both the machine and the operator
from work on too thin work piece
• Energy Saving Base (ESB) uses only 50% of its power when motor is not running
Standard shipping set:
• Drilling machine
• Plastic box
• Handle (3pcs)
• MT2 arbor with 19 mm (3/4”) Weldon tool holder
• Safety strap
• Cooling system
• Protective spring for cooling system hose
• MT2 drift
• 2.5 mm hex wrench
• 5 mm hex wrench
• 5 mm hex wrench with a handle
• 8 mm combination wrench
• Operator’s manual
Options (prices on request):
Pipe adjustment
Pressure cooling system
Vacuumpad
Vackuumpump
Compressed air ejector
