General characteristics
| Drilling capacy mild steel | 32 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 300 - 1.000 mm |
| Revs | 32 - 2.500 (16) r.p.m. |
| Distance table - spindle underside | 530 - 1.000 mm |
| Spindle motor | 2.2 kW |
| Column diameter | 240 mm |
| Quill travel | 250 mm |
| Feeds | 0,10 - 1,25 (8) mm/r |
Dimensions and weight
| Length | 1760 mm |
| Width | 800 mm |
| Height | 2080 mm |
| Weight | 1600 kg |
Description

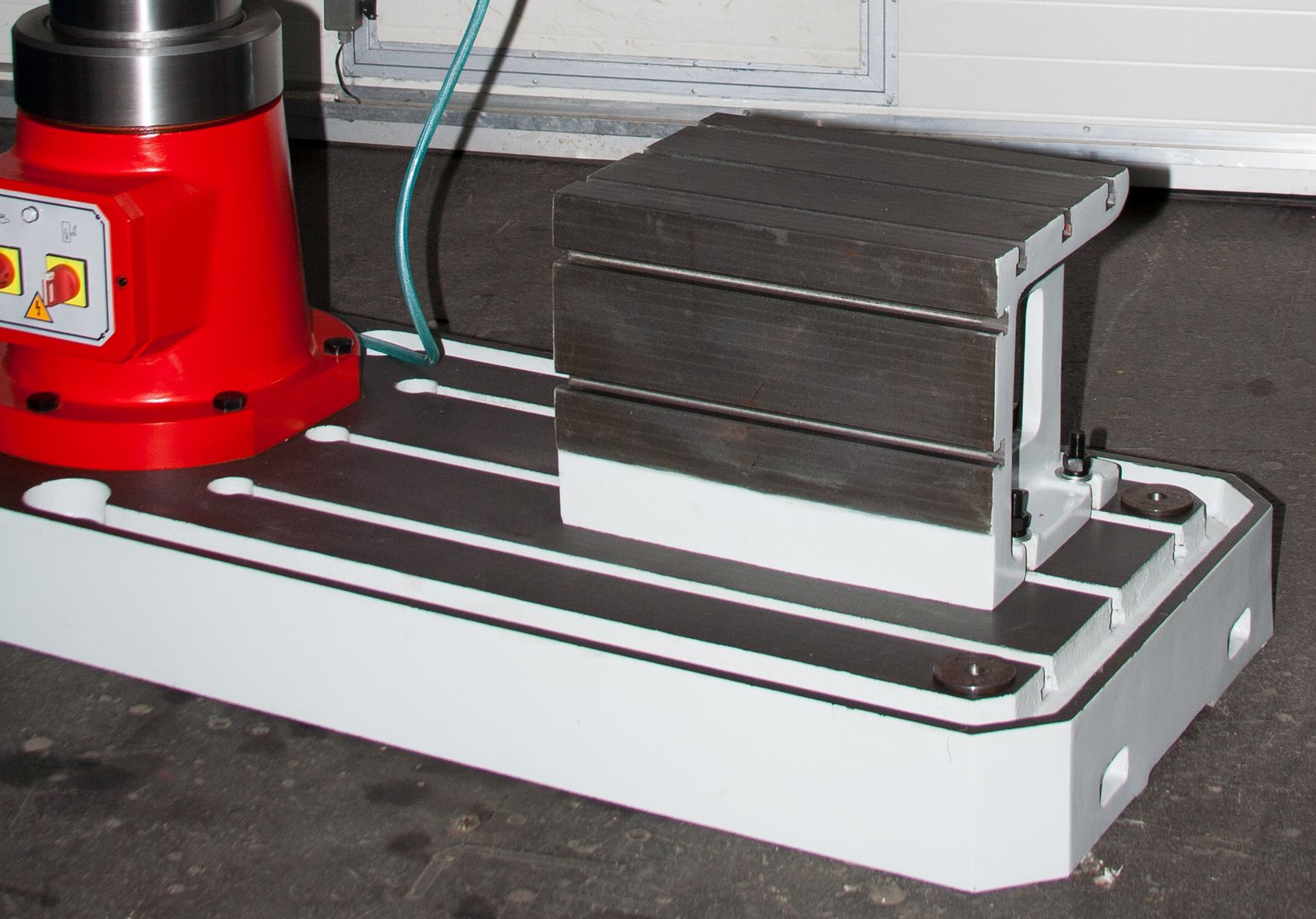

box table 600 x 455 x 455 mm
coolant equipment
machine lamp
mechanical clamping for height adjustment and spindle stock
electr. clamping for arm rotation
machine and equipment according to the CE-regulations
operating manual in GERMAN and ENGLISH
