General characteristics
| pressing capacity | 40 to |
| Tonnage rating point | 2.6 mm |
| Table length | 650 mm |
| Table width | 380 mm |
| Hole in table | 120 mm |
| Stroke | 8 - 78 mm |
| Strokes | 145 1/min |
| Ram guides | 6 |
| Ram adjustment | 60 mm |
| Ram hole | 40 mm |
| Throat depth | 195 mm |
| Daylight | 297 mm |
| Table height | 800 mm |
| Motor | 3 kW |
Dimensions and weight
| Length | 1450 mm |
| Width | 1150 mm |
| Height | 2150 mm |
| Weight | 2200 kg |
Description

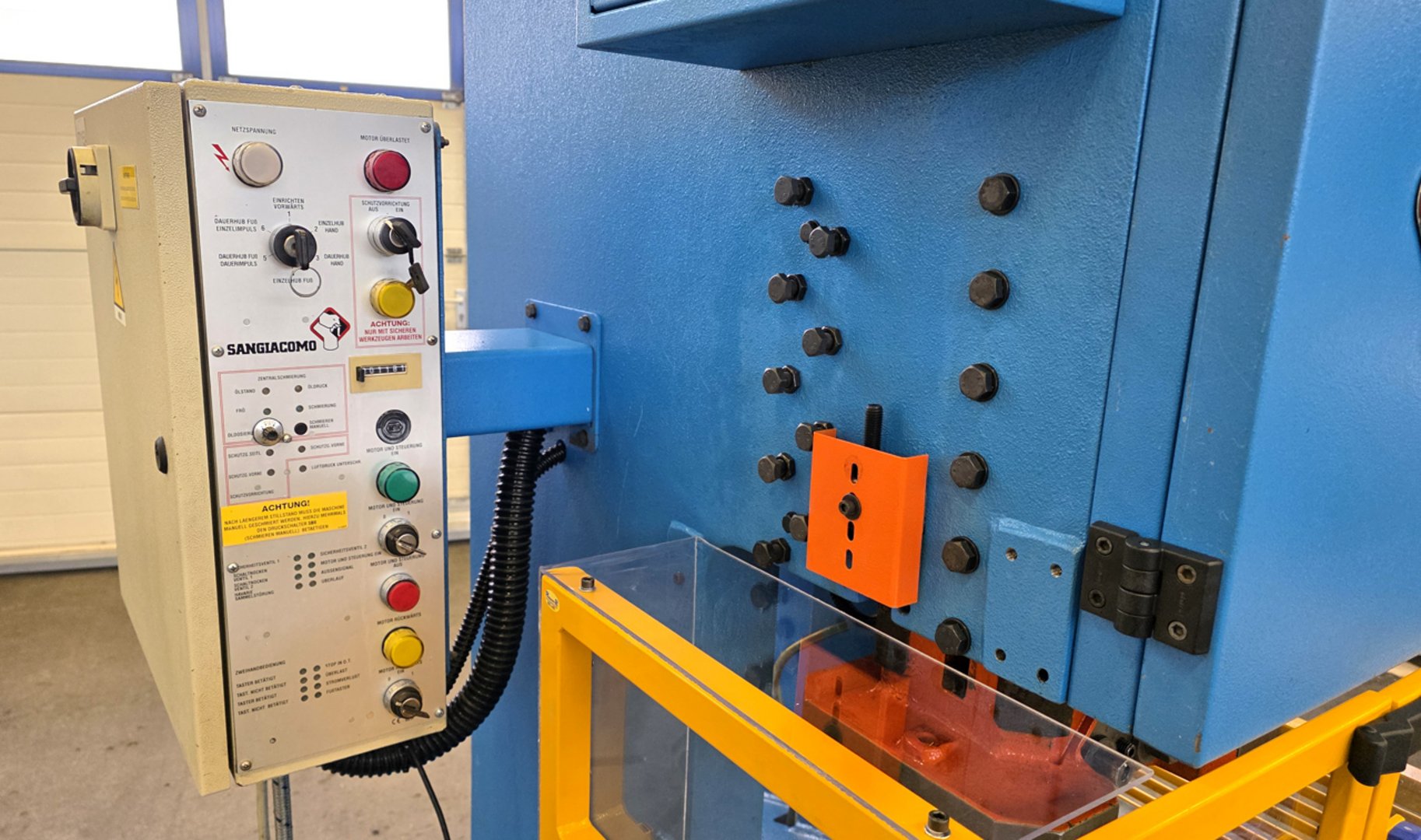

Two-hand control panel and foot pedal
Work area enclosure with safety switch
Additional bolster plate
Central lubrication system
Stroke counter
Operating manual with CE declaration of conformity
Further information
Product video

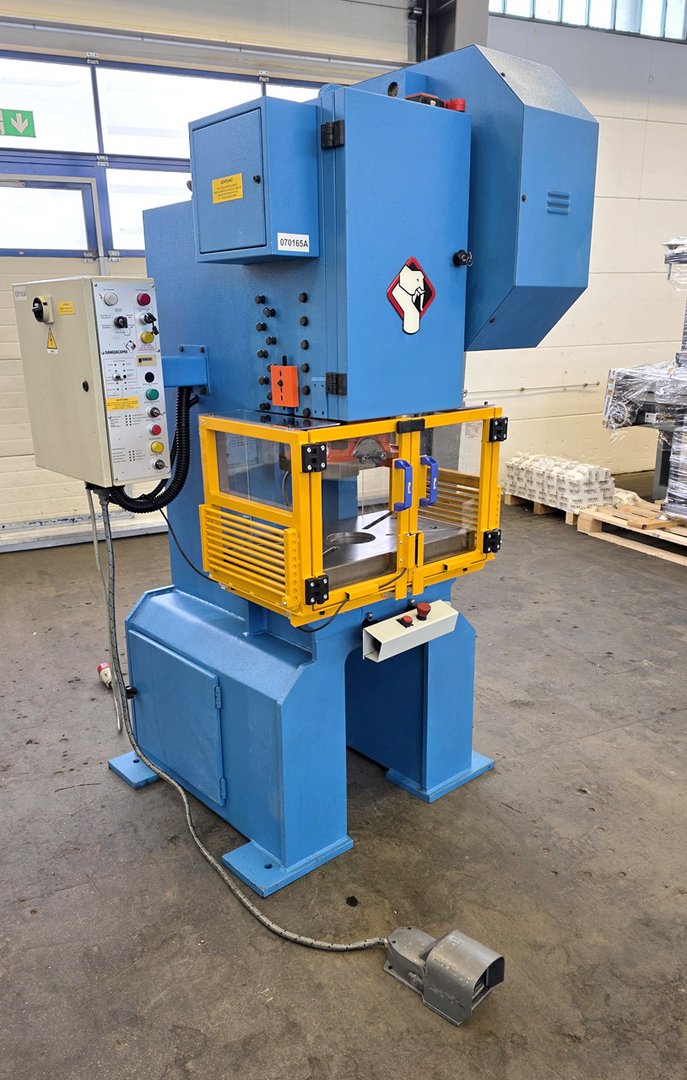

C-frame eccentric press Sangiacomo T 40 CE
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
