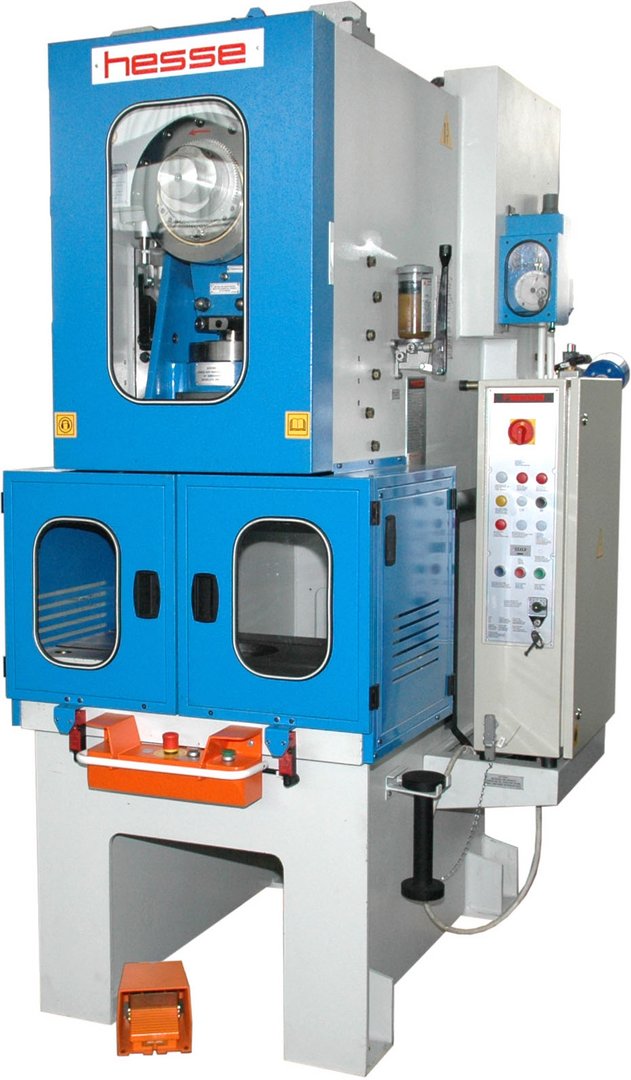

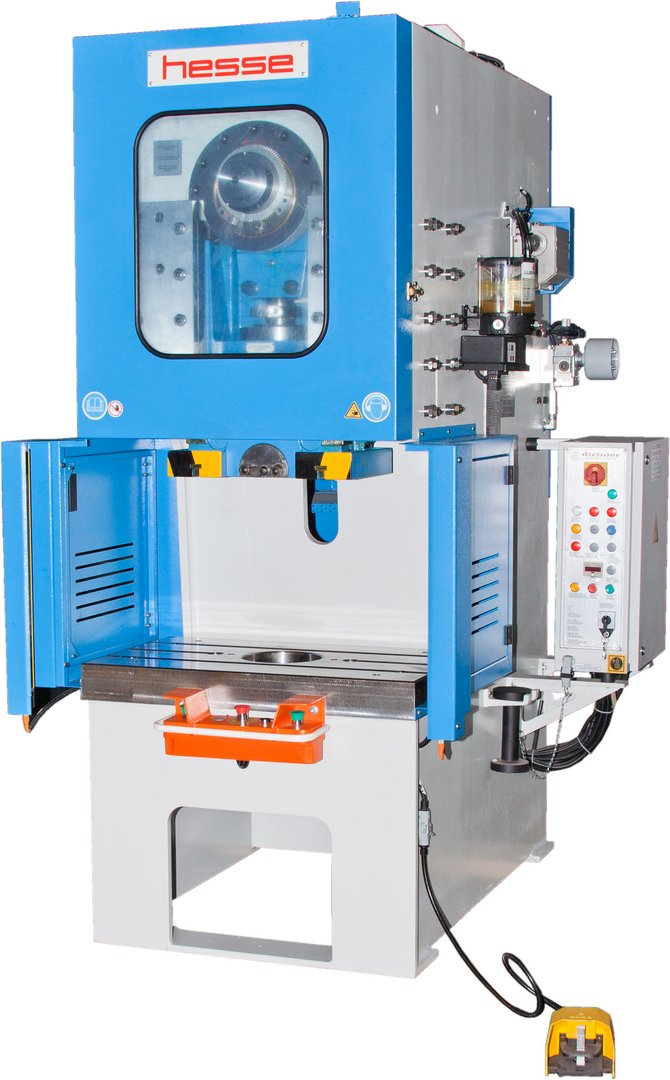

C-frame eccentric press HESSE by DIRINLER CDCS 630 P81
| Model | CDCS 630 P81 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 63 to |
| Strokes | 54 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 63 to |
| Table length | 750 mm |
| Table width | 500 mm |
| Hole in table | 170 mm |
| Stroke | 4 - 102 mm |
| Strokes | 54 1/min |
| Ram | 490x325 mm |
| Ram adjustment | 90 mm |
| Throat depth | 270 mm |
| Distance between columns | 440 mm |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 1800 mm |
| Width | 1150 mm |
| Height | 2750 mm |
| Weight | 4100 kg |
Description
8-fold ram guide
front protection by light guard
manual stroke adjustment
ram adjustment witch ratchet
drive over gear
combined clutch brake unit with pneumatic control
fix table
single and continuous stroke
foot pedal and 2 hand control
mech. overload safety device
automatic central lubrication
user manual in GERMAN and ENGLISH
according to CE rules
