General characteristics
| Grinding lenght | 1000 mm |
| Distance spindle - table | 850 mm |
| Table | 1000 x 600 mm |
| Magnetic table | 1000 x 600 mm |
| Table movement hydraulic | 1000 mm |
| Table speed | 5 - 25 m/min |
| Cross feed | 1250 m/min |
| Max. cross feed | 690 mm |
| Automatic vertical feed | max. 400 mm/min mm |
| Vertical feed | 400 mm/min |
| Vertical feed incremental | 0.001 mm |
| Spindle revs | 1450 rpm |
| Spindle motor | 11 kW |
| Hydraulic motor | 3.7 kW |
| Cross feed motor | 0.37 kW |
| Total power | 20 kW |
| Maximal table load | 1500 kg |
| Max. workpiece weight on magnetic table | 1120 kg |
| Max. workpiece weight on t-slot table | 1500 kg |
| Grinding wheel dimensions | 355 x 75 x 127 mm |
Dimensions and weight
| Length | 3700 mm |
| Width | 4000 mm |
| Height | 3250 mm |
| Transport dimensions | 4800 x 2830 x 2800 mm |
| Weight | 7400 kg |
Description
Servo drive for grinding wheel feed, hardened and grounded slide ways
Grinding wheel spindle on 6 high precision angular contact bearings
Electro-magnetic chuck
Coolant equiptment with aut. paper filter and magnetic separator
Over the wheel automatic dressing device (with automatic compensation)
2 pcs. grinding wheels
2 pcs. grinding wheel flanges
machine lamp
Machine and equipment according to the CE-regulations
User manual in ENGLISH
New grinding spindle and spindle bearings
Buying used machinery is a matter of trust – Our transparency promise
We offer you maximum security and complete transparency.
• Honest insights: Detailed photos and functional videos of the current condition
• Live on-site check: Live testing is possible at our facility
• Digital demonstration: Individual live demonstration via video call
• Risk-free purchase: 14-day return policy
Details: https://www.hesse-maschinen.com/en/lp/used-machines
Further information
Product video

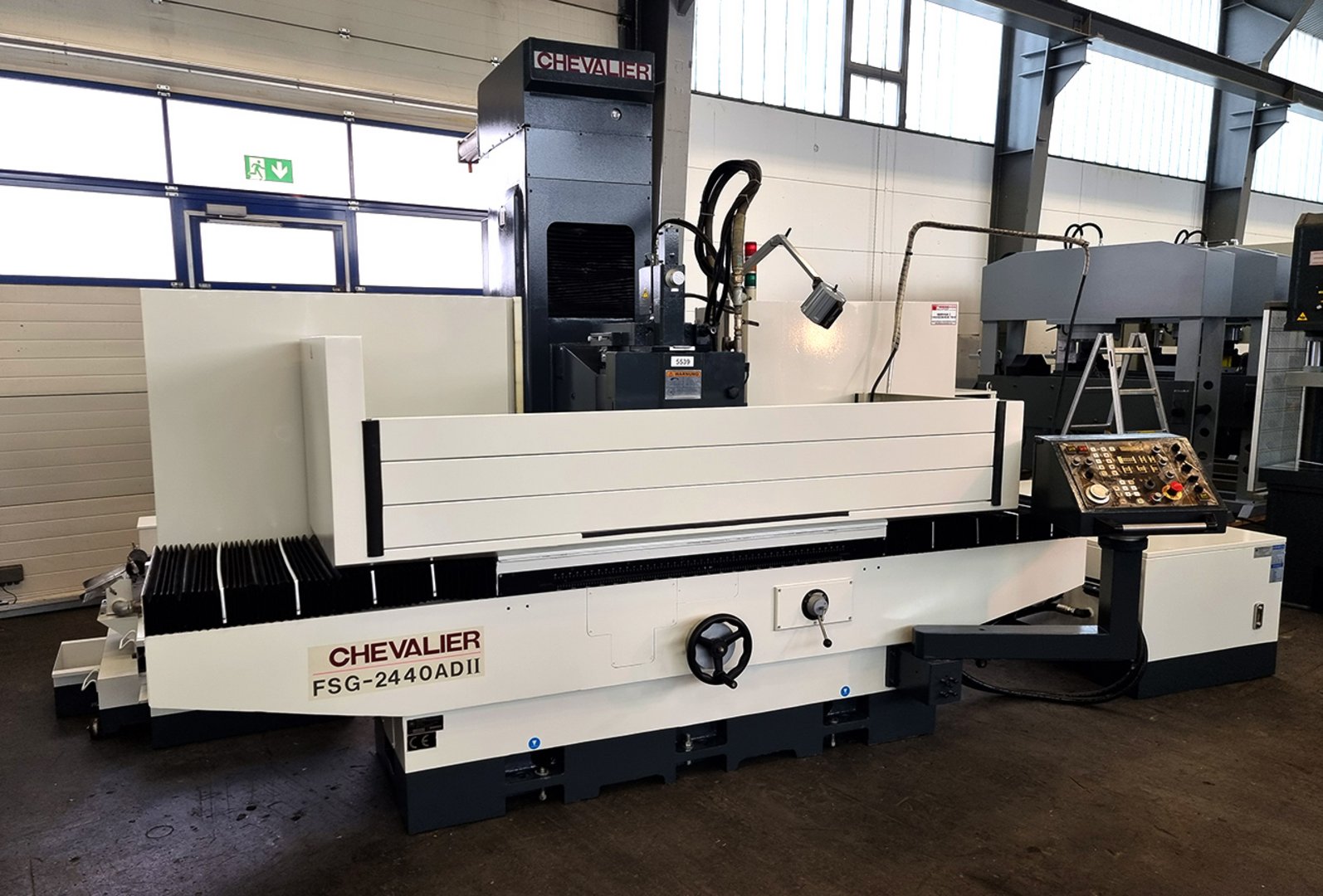

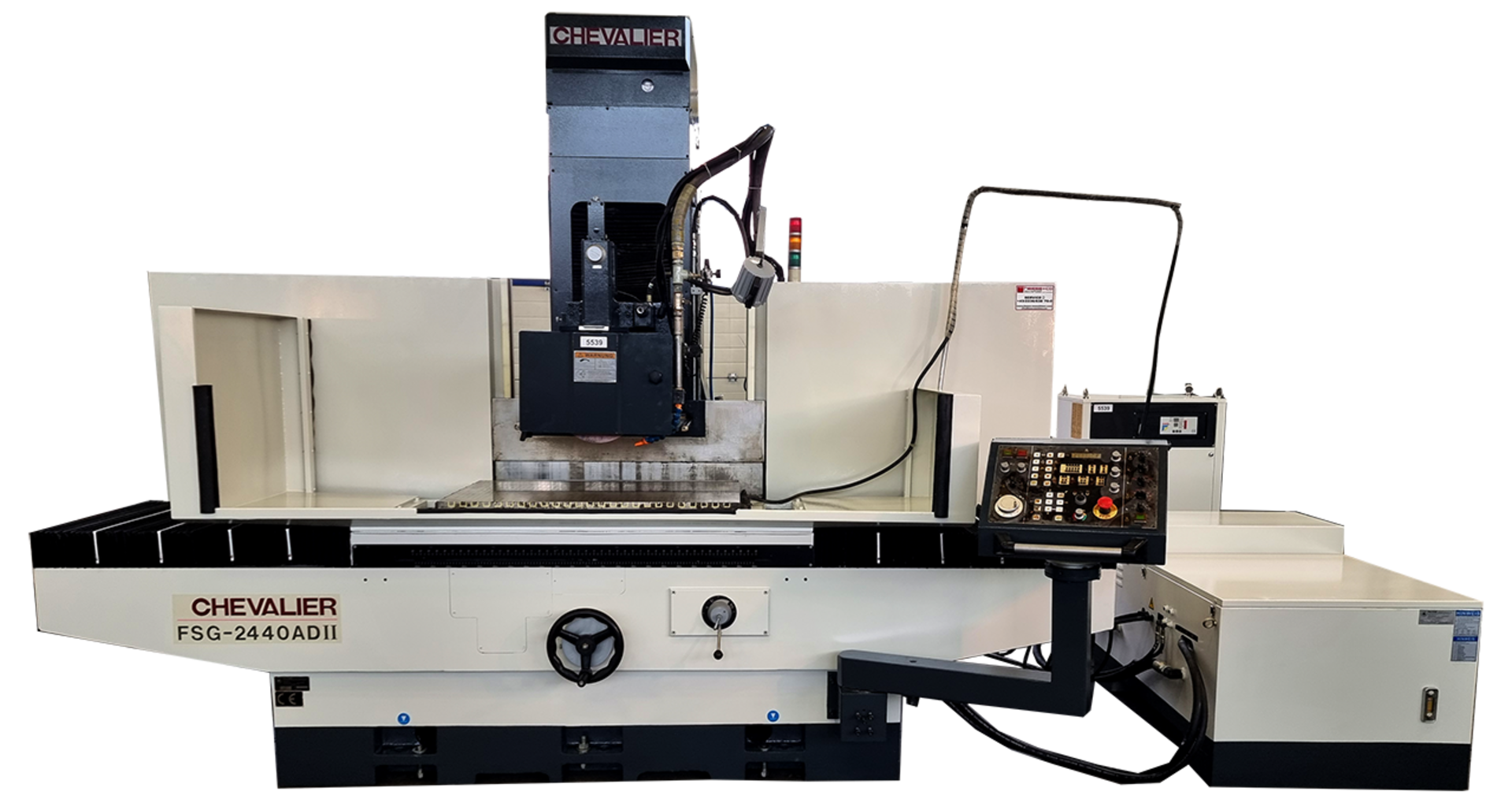

Flat grinding machine FSG-2440ADII
