Hydraulic CNC press brake HESSE by DURMA AD-S 30175
| Model | AD-S 30175 |
| Brand | HESSE by DURMA |
| Condition | new |
| Year of manufacture | 2026 |
| pressing capacity | 175 to |
| Bending length | 3050 mm |
| Stock number | 80248 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 175 to |
| Bending length | 3050 mm |
| Axes | Y1 / Y2 / X und R-Achse |
| Stroke | 265 mm |
| Inside distance between side frames | 2600 mm |
| Gap in side frame | 450 mm |
| Daylight | 530 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 160 mm/s |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 100 |
| Back gauge travel X-axis | 650 mm |
| Back gauge speed X-axis | 500 |
| Back gauge speed R-axis | 350 mm/s |
| Back gauge travel R-axis | 250 mm |
| Table height | 900 mm |
| Table width | 104 mm |
| Oiltank | 250 l |
| Motor power | 18.5 kW |
Dimensions and weight
| Length | 4250 mm |
| Width | 1700 mm |
| Height | 2850 mm |
| Weight | 10900 kg |
Description
4 axes (Y1, Y2, X and R)

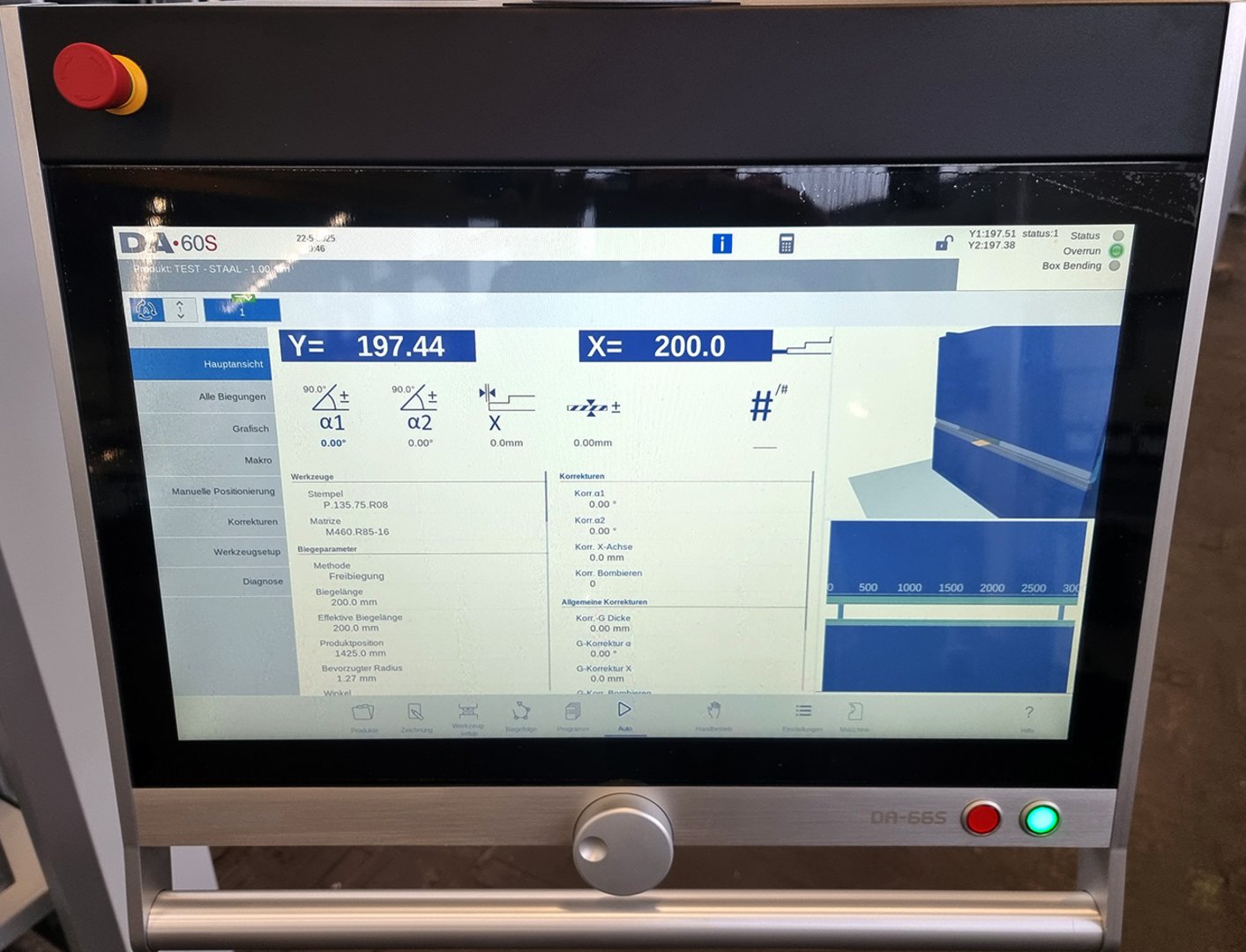

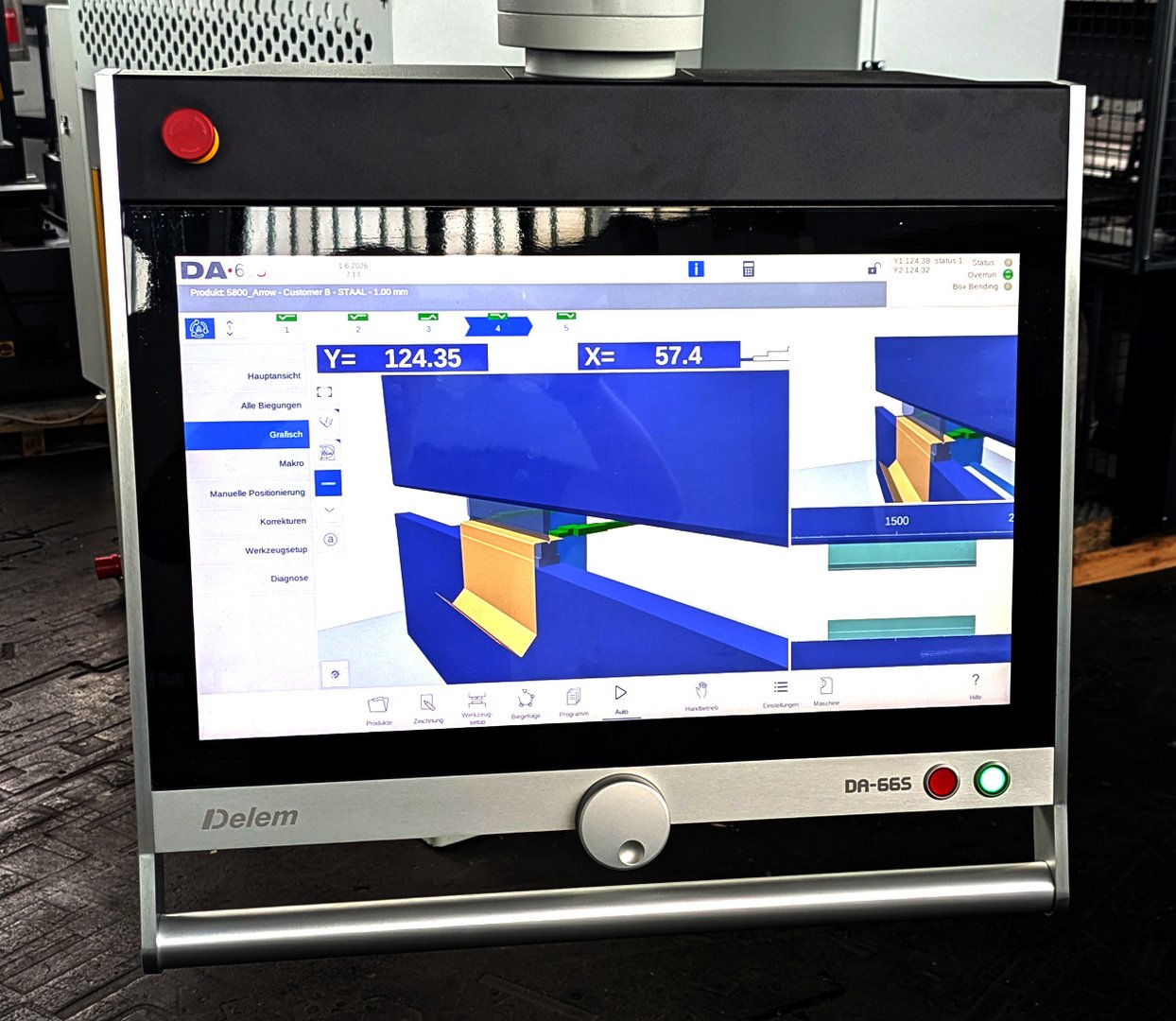

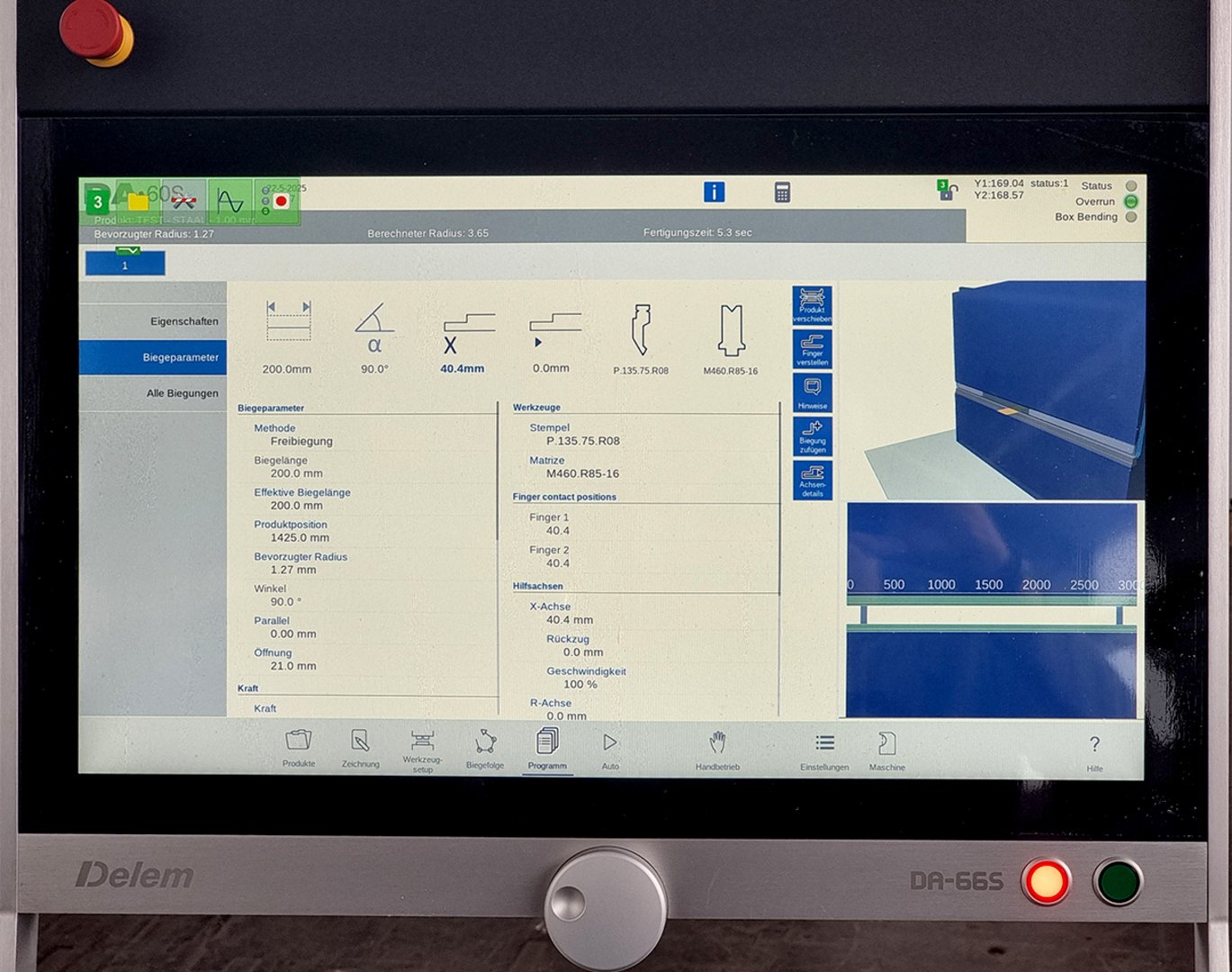

Color graphics control Delem DA 66 S
- 2D graphical touch screen programming mode
- 3D machine representation, in simulation and production
- 24" high resolution color TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control's multitasking environment
- Sensor bending & correction interface
- Profile-S2D offline software
servo motorized back gauge on linear guides and ball screws
back gauge finger blocks on double linear guides
CNC crowning table
upper tool 1010 / A / 75 °, devided and cranked
4-V die block 60x60 2009 (V = 16,22,35 and 50 mm)
laser safety device Fiessler AKAS mounted on the upper beam
linear guided sheet support arms
according to CE rules
oilfilling
users manual in English or German
Advantages of AD-S compaired to PBF:
- more stroke, installation height and throat
- higher approach and retraction speed of the top beam
- higher backgauge speed
- backgauge finger on double instead of single linear guide
- more options available such as: additional backgauge axes (e.g. Z1/Z2, Delta X, up to 6 axes), bending aids, laser angle measuring system, tandem design, other CNC controls ...
