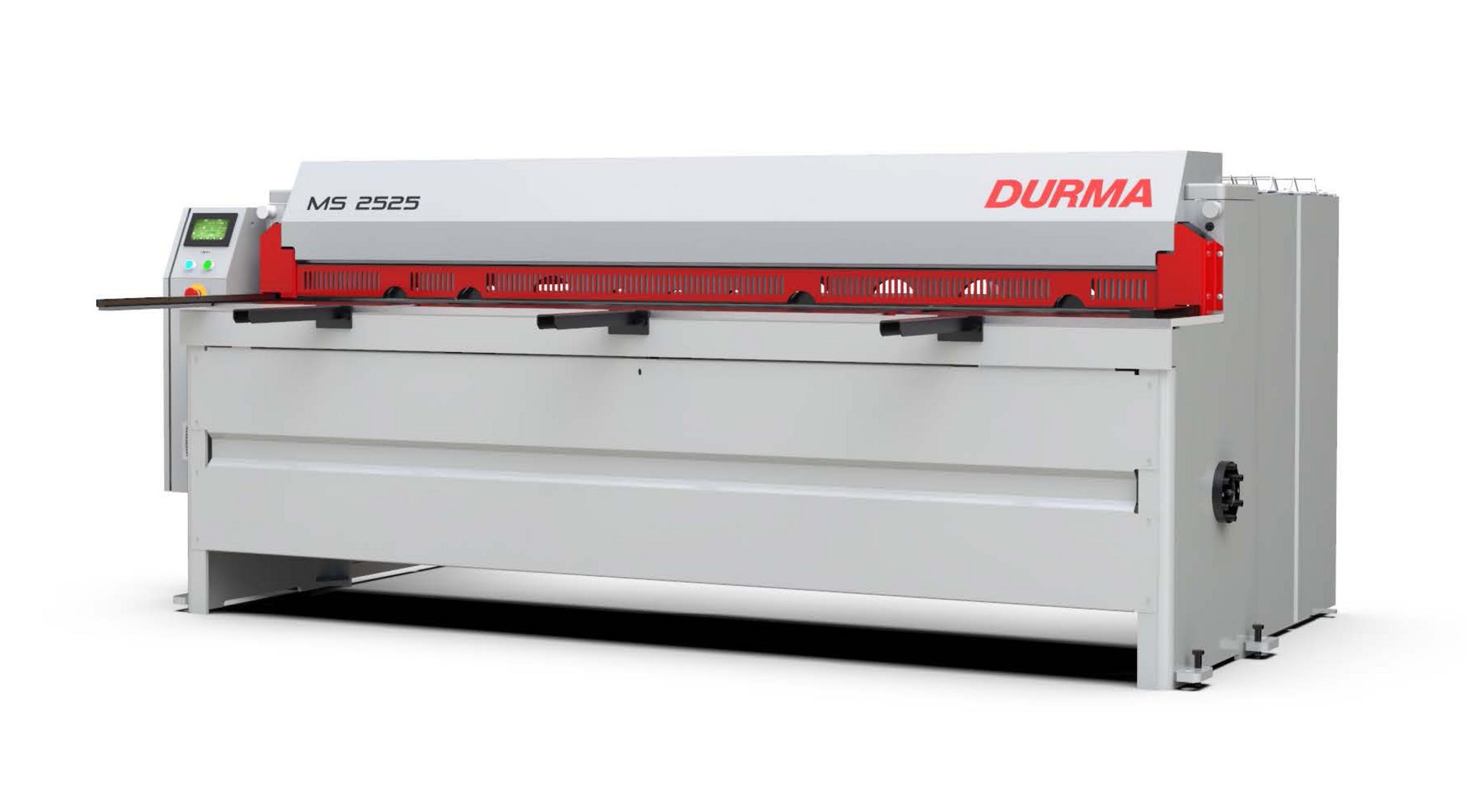

Motorized plate shear HESSE by DURMA MS 2525
| Model | MS 2525 |
| Brand | HESSE by DURMA |
| Condition | new |
| Max. thickness - mild steel | 2.5 mm |
| Cutting length | 2550 mm |
| Stock number | 90253 |
| Origin | Türkiye |
General characteristics
| Cutting length | 2550 mm |
| Max. thickness - mild steel | 2.5 mm |
| Strokes | 35 1/min |
| Back gauge | 750 mm |
| Motor power | 3 kW |
| Support arms | 2 pcs. |
| Table height | 850 mm |
| Table width | 400 mm |
Dimensions and weight
| Length | 2860 mm |
| Width | 1350 mm |
| Height | 1200 mm |
| Weight | 1500 kg |
Description
Motorized back gauge 750 mm
Pneumatic sheet support
Holddown with rubber
Moveable foot switch

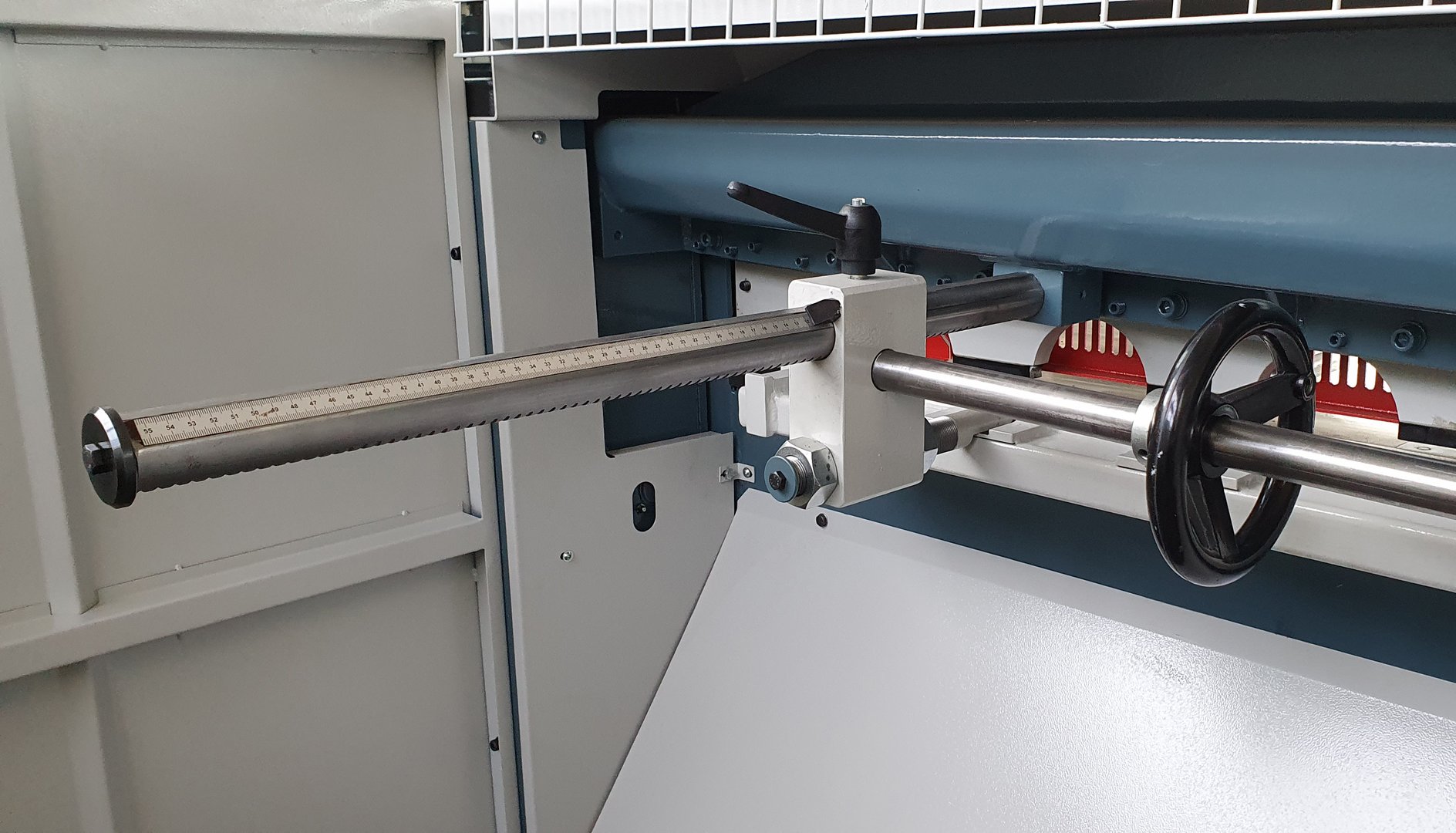

Squaring arm
2 supporting arms

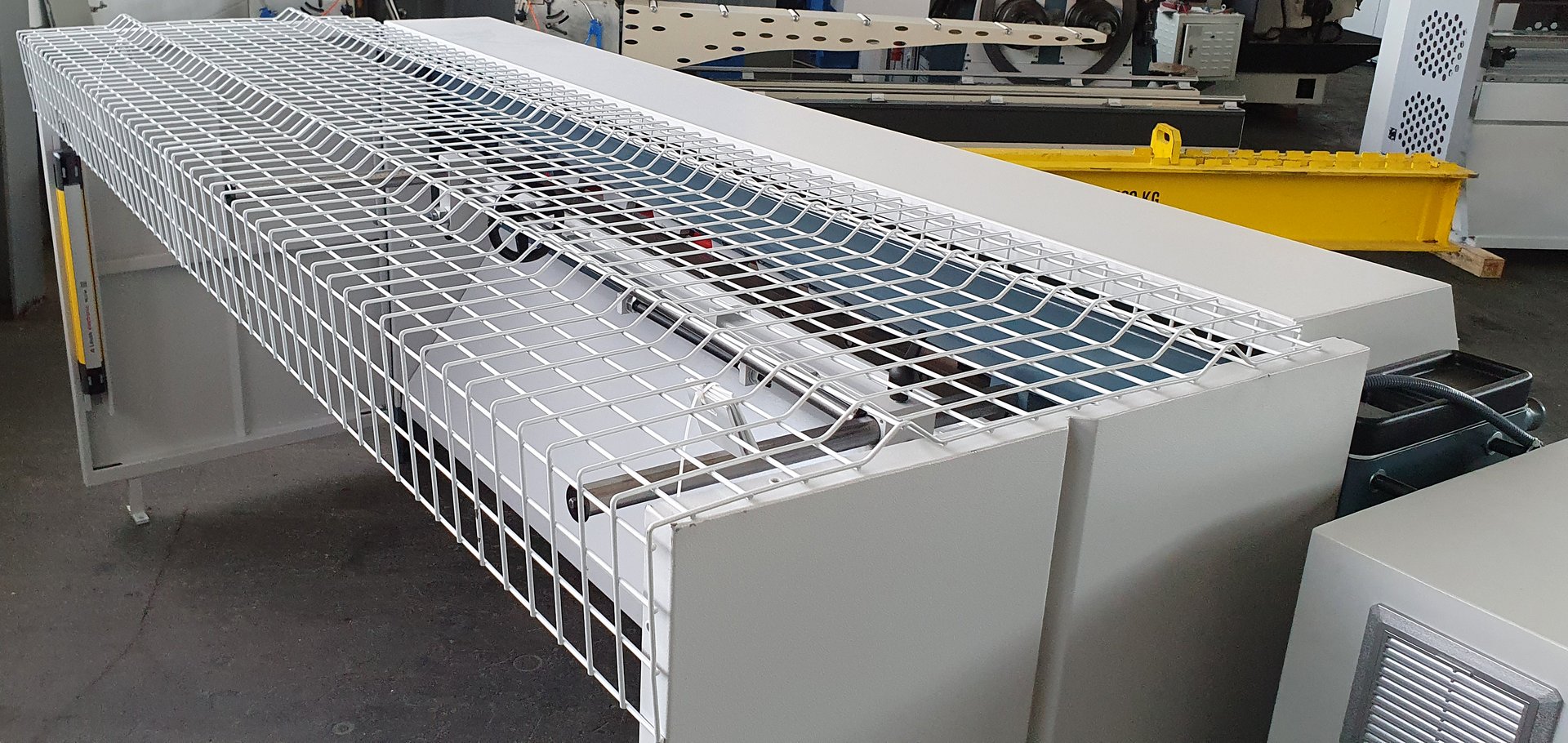

Photocell-protection on the back side
User manual in GERMAN or ENGLISH
