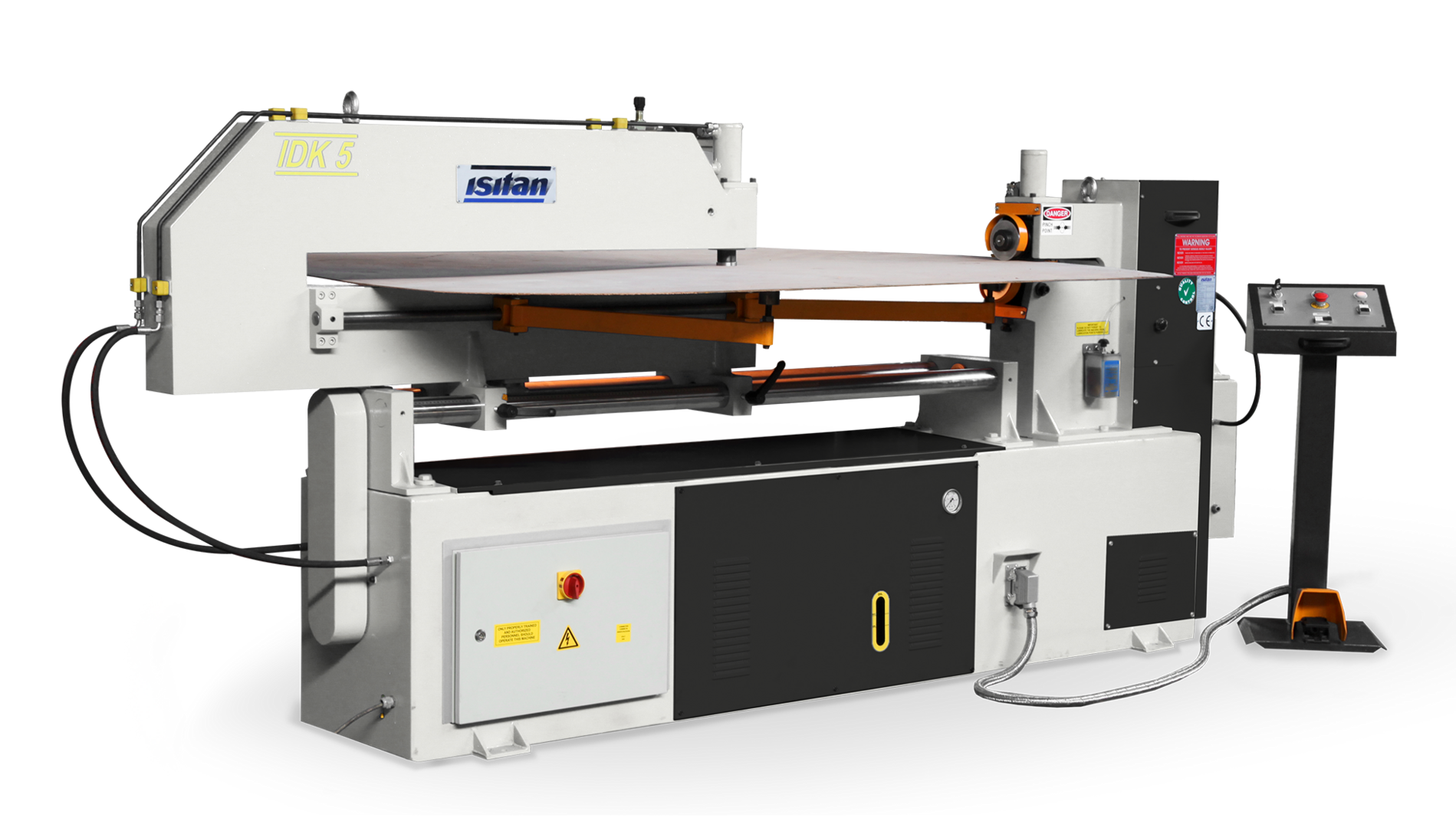

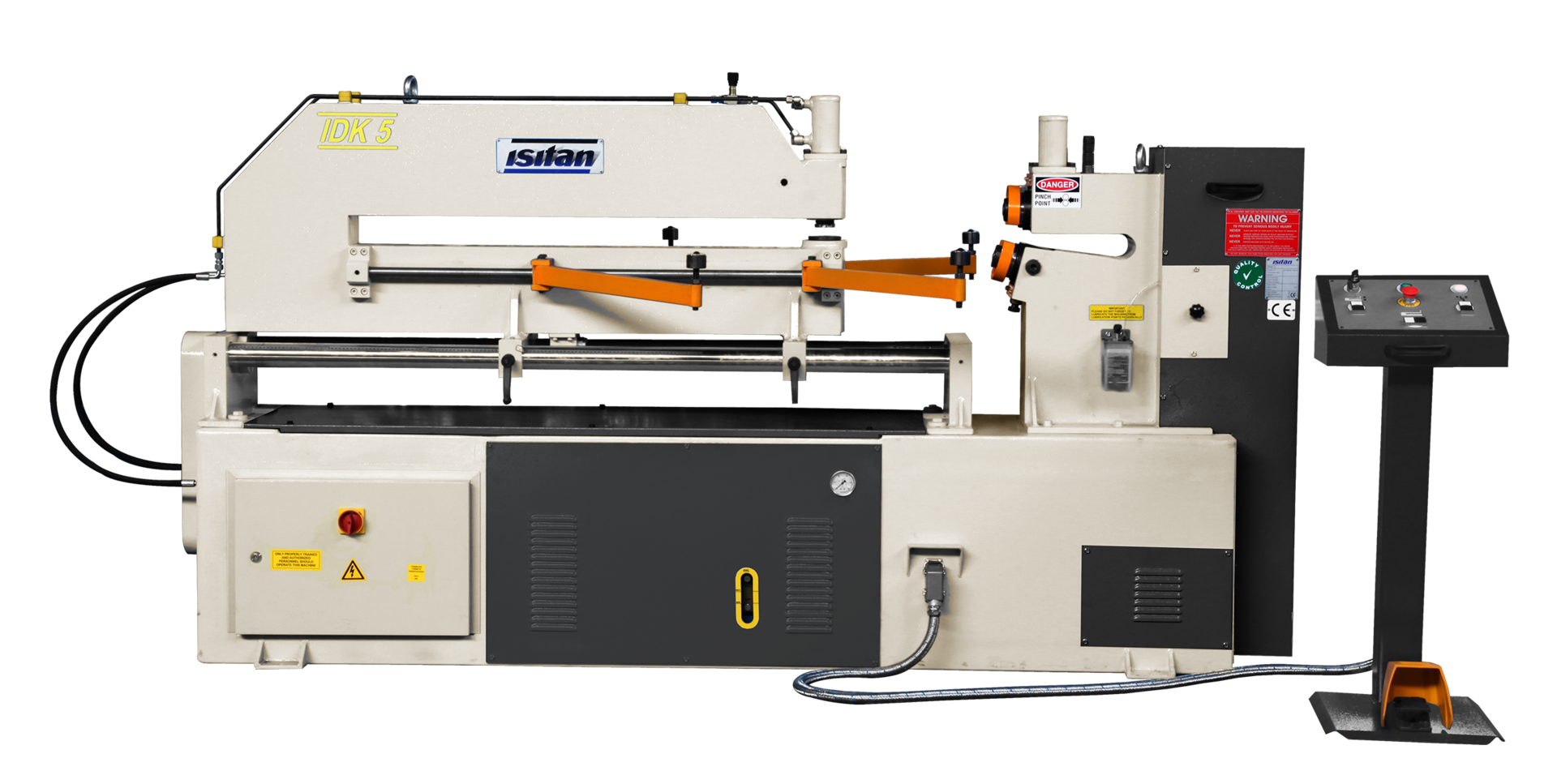

Flanging machine HESSE by ISITAN IDK-5
| Model | IDK-5 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Max. sheet thickness - mild steel | 5 mm |
| Max. blank diameter | 2000 mm |
| Origin | Türkiye |
General characteristics
| Max. sheet thickness - mild steel | 5 mm |
| Max. blank diameter | 2000 mm |
| Min. blank diameter | 250 mm |
| Motor | 2,2+0,75 kW |
Dimensions and weight
| Length | 3000 mm |
| Width | 750 mm |
| Height | 1400 mm |
| Weight | 1350 kg |
Description
Mobile control panel
Hydraulic clamp on center
Gearbox motor with brake
Motorized sheet centering system
Inside cutting system
Throat depth: 1200 mm
According to EC safety regulations
Operating manual
Optional equipment:
| 1 spare blade set |
| Flanging attachment with 1 set rolls |
