General characteristics
| Grinding lenght | 460 mm |
| Distance spindle - table | 395 mm |
| Table | 460 x 200 mm |
| Magnetic table | 450 x 200 mm |
| Table speed | 0 - 20 m/min |
| Cross feed | 0 - 3000 m/min |
| Max. cross feed | 220 mm |
| Automatic vertical feed | 290 mm |
| Vertical feed | 0 - 3000 mm/min |
| Vertical feed incremental | 0.001 mm |
| Spindle revs | 1000 - 7000 rpm |
| Spindle motor | 3 kW |
| Table height | 1060 mm |
| Max. workpiece weight on magnetic table | 175 kg |
| Max. workpiece weight on t-slot table | 210 kg |
| Grinding wheel dimensions | Dm. 205 x 12,7 x 31,75 mm |
| Servo-axis motors Y/Z | 1 |
| Servo-axis motor X | 2.4 kW |
Dimensions and weight
| Length | 2280 mm |
| Width | 2205 mm |
| Height | 2020 mm |
| Weight | 1500 kg |
Description
Smart i control with 10.4" touchscreen on a swiveling panel, with electronic wired handwheel
- RS232, USB I/O connection
- SMART Grind Cam (dxf transfer in G code)
- PC based control with graphical dialog programming or G-code programming
Infinitely variable speed
Surface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycle
Spindle with 4 angular contact ball bearings (P4, checkout 7)
Longitudinal guides with double V shape, with Turcite-B coating
All 3 axix with precision ball screws (class C2) and AC servo motors
Fully enclosed splash guard with lamp
Electromagnetic chuck plate
Coolant system with automatic paper filter and magnetic separator
autom. dressing attachment table mounted with compensation *
Grinding wheel
Grinding wheel flange
Grinding wheel balancing stand
Machine and equipment in accordance with CE regulations
Operating manual in GERMAN or ENGLISH
* The exact configuration of the dresser must be clarified before ordering
Further information
Product video

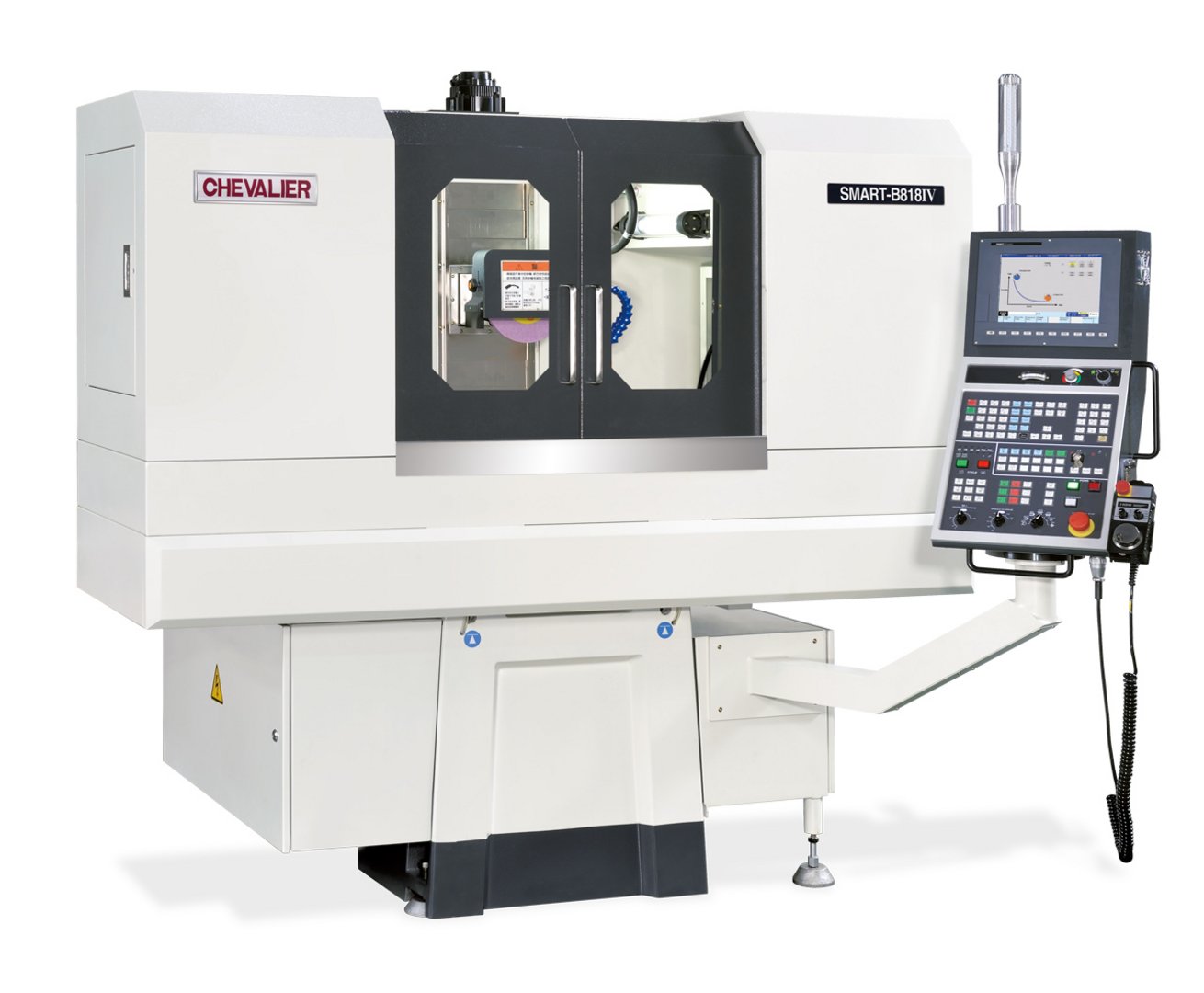

CNC flat grinding machine SMART-B818IV
