General characteristics
| Grinding lenght | 1015 mm |
| Distance spindle - table | 610 mm |
| Table | 1.000 x 400 mm |
| Grinding area | 1.015 x 405 x 610 mm |
| Magnetic table | 400 x 1.000 mm |
| Table movement hydraulic | 1050 mm |
| Table speed | 5 - 25 m/min |
| Cross feed | 0 - 2,250 m/min |
| Cross feed incremental | 3 - 32 mm |
| Max. cross feed | 450 mm |
| Automatic vertical feed | 480 mm |
| Vertical feed | 0 - 675 mm/min |
| Vertical feed incremental | 0.001 - 0.04 mm |
| Spindle revs | 500 - 1.800 rpm |
| Spindle motor | 3.7 kW |
| Hydraulic motor | 1.5 kW |
| Cross feed motor | 1.1 kW |
| Feed motor grinding wheel | 1.1 kW |
| Total power | 6 kW |
| Max. workpiece weight on magnetic table | 220 kg |
| Max. workpiece weight on t-slot table | 440 kg |
| Grinding wheel dimensions | 355 x 50 x 127 mm |
| Spindle speed | 1.45 U/min |
Dimensions and weight
| Length | 4280 mm |
| Width | 2080 mm |
| Height | 2100 mm |
| Weight | 3500 kg |
Description

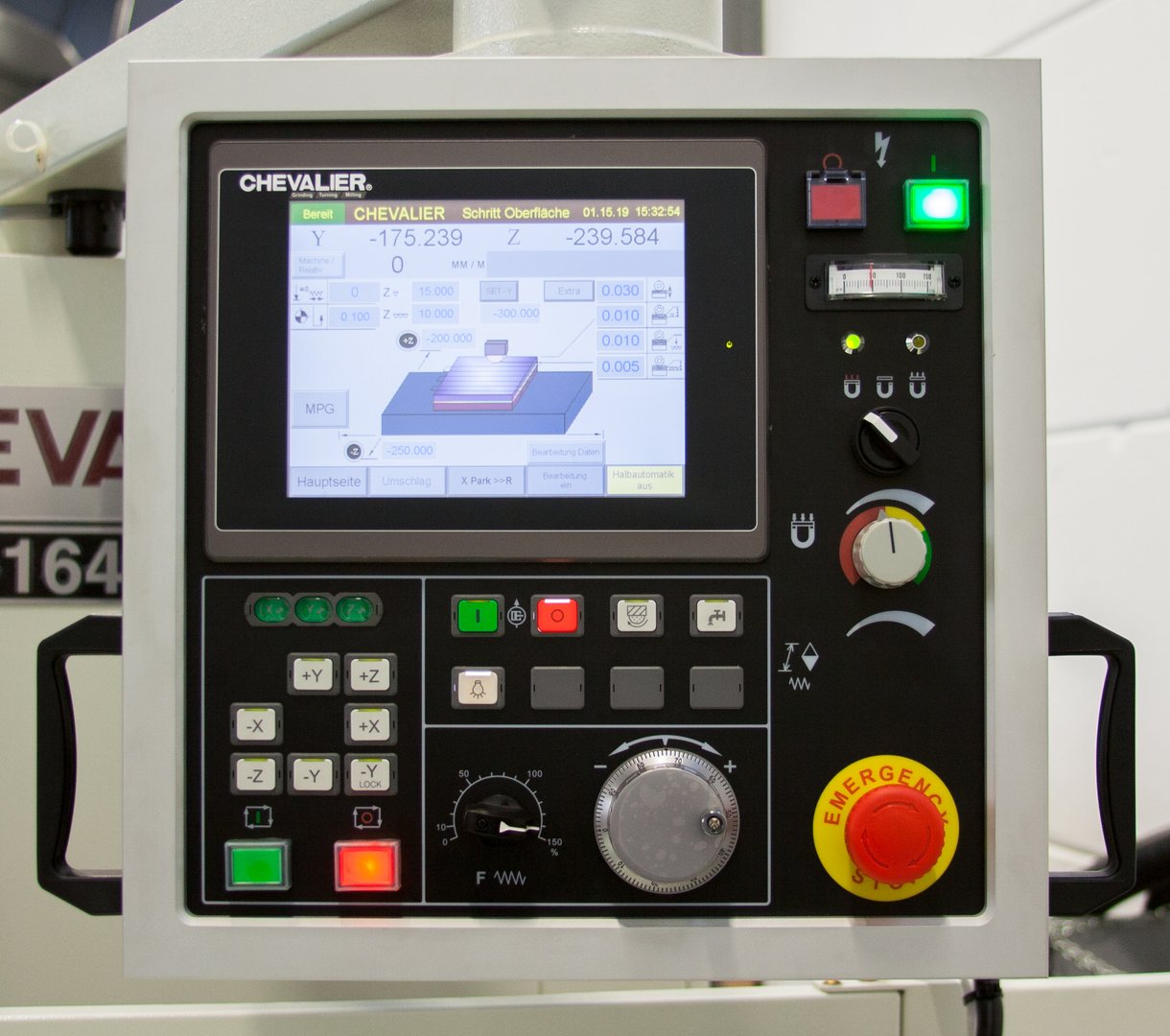

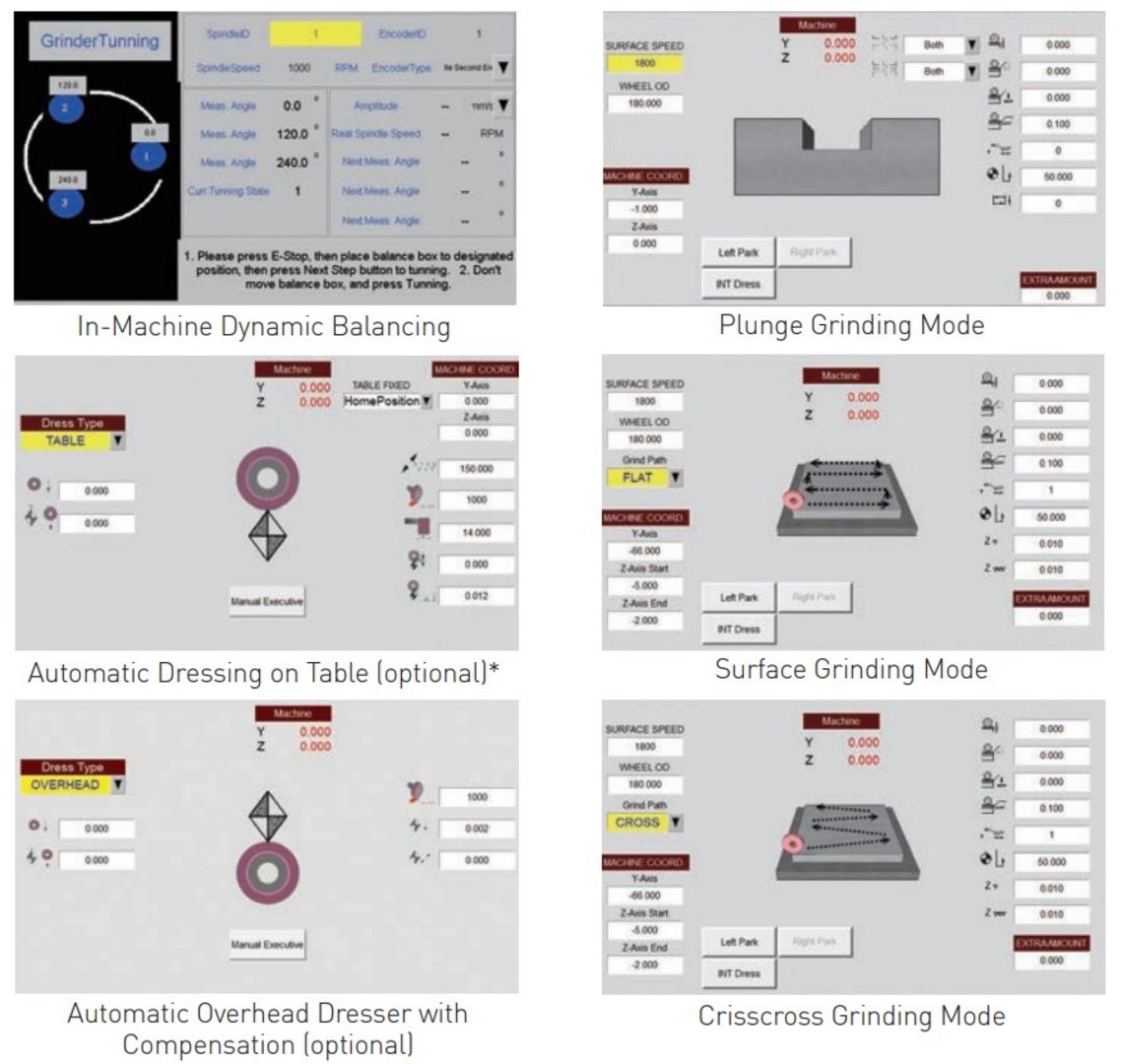

10,4" grafic NC-control on swiveling arm with touch screen for:
- seletion of working mode, program creation, graphic condition control, alarm list
aut. vertical feed
servo drive for grinding wheel feed and table cross feed

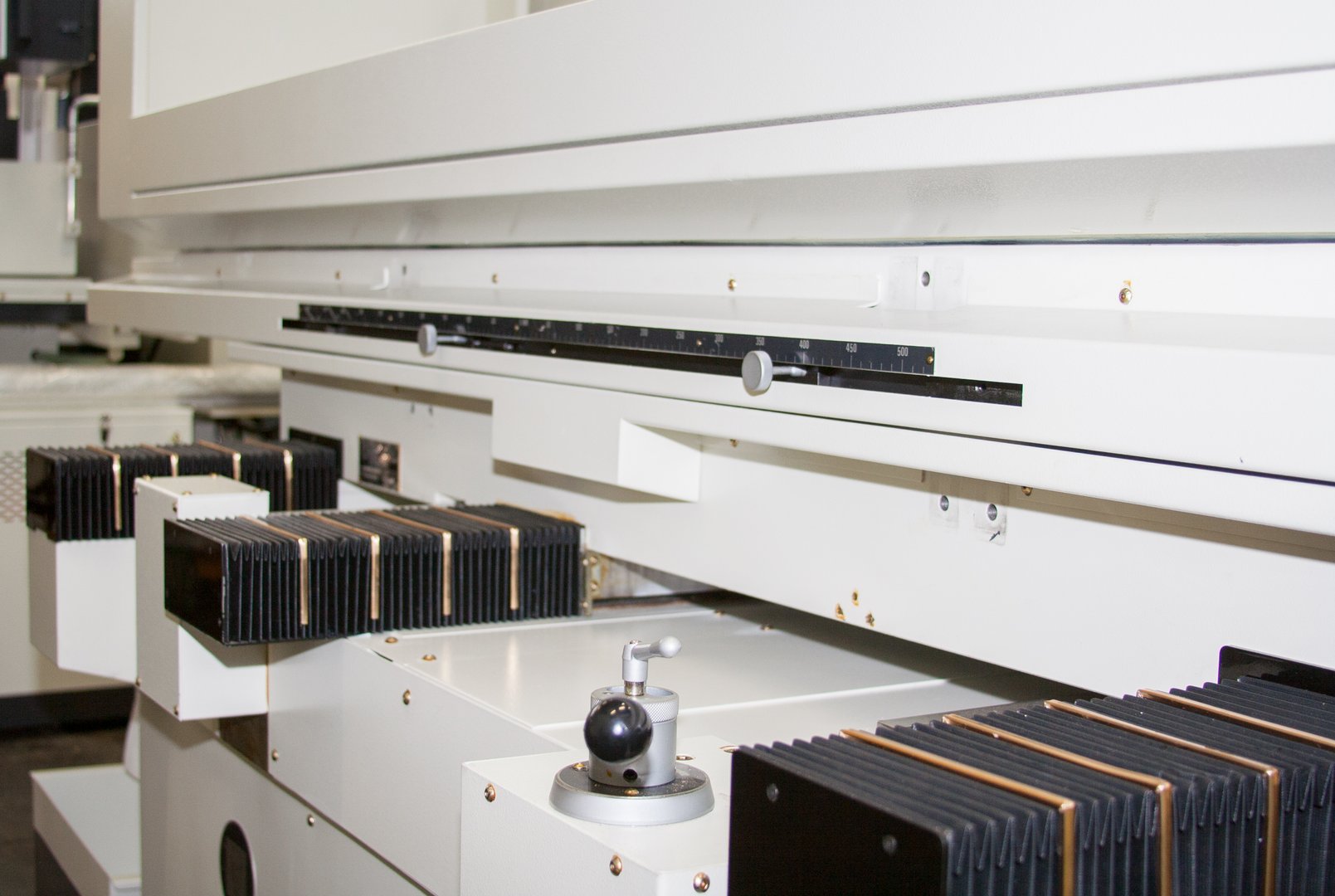

hardened slide ways in all 3 axes with needle rollers

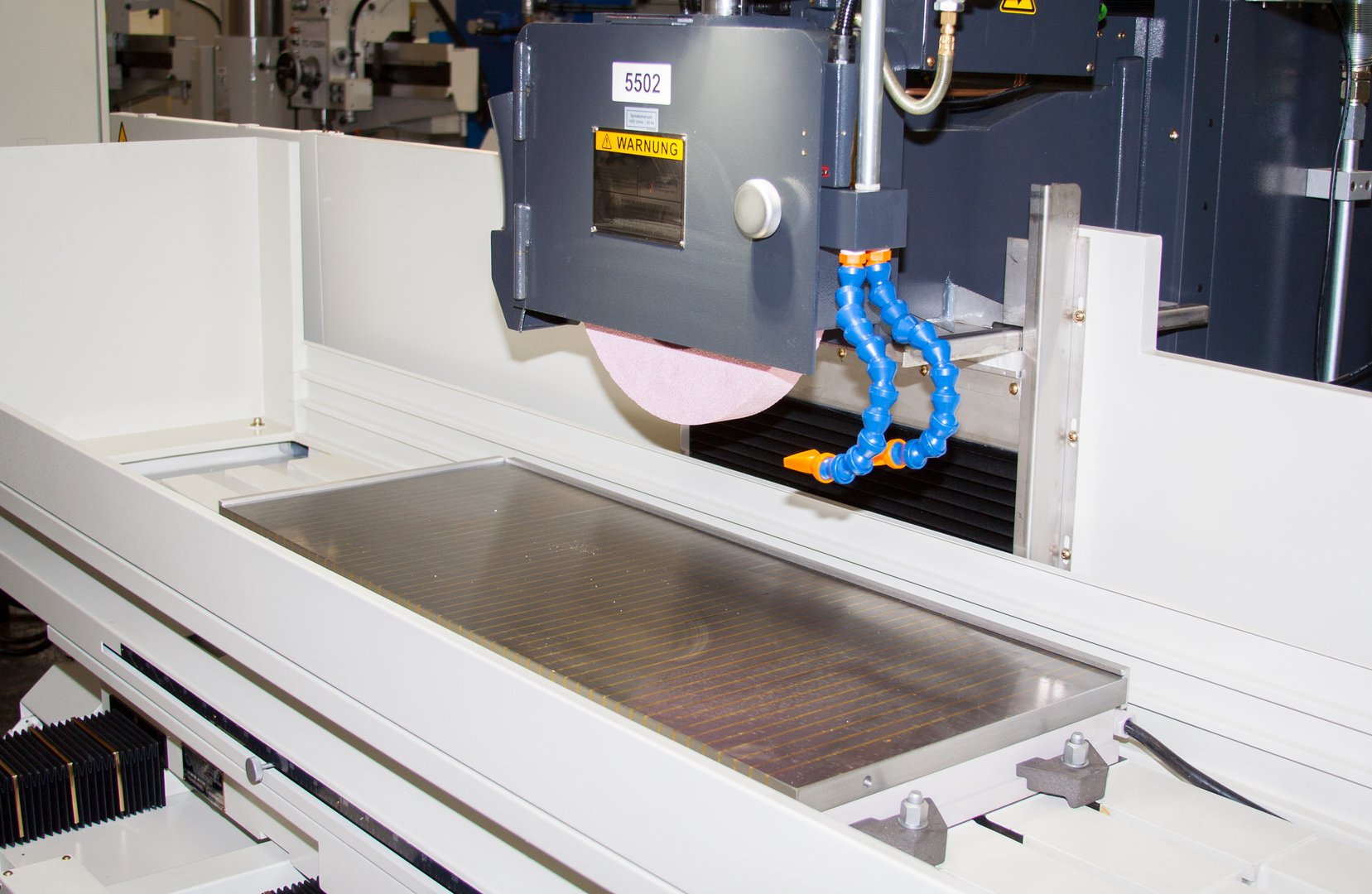

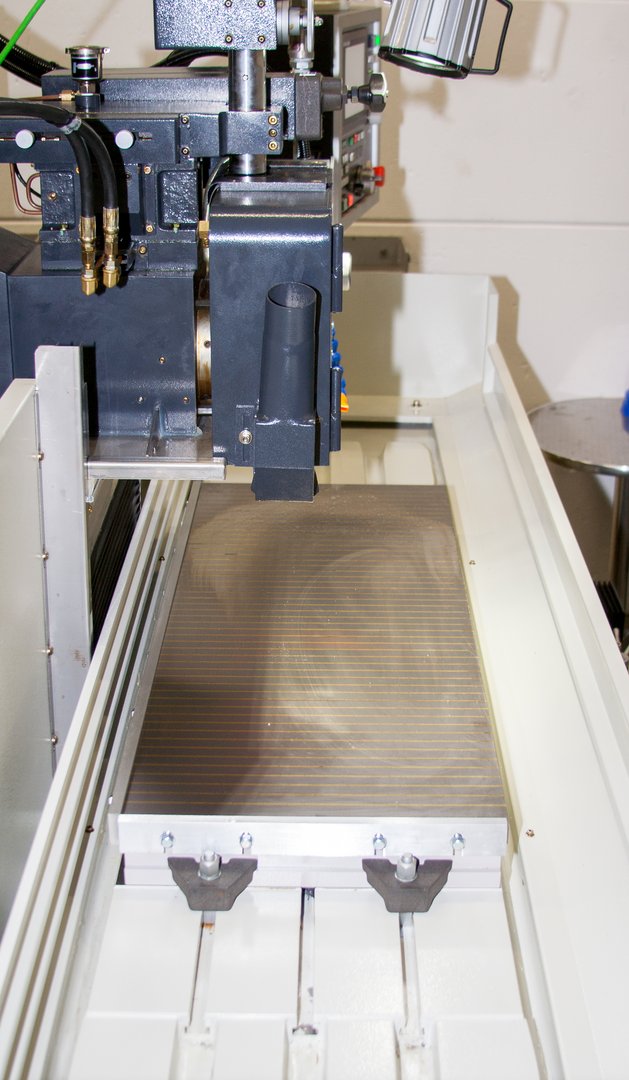

electro-magnetic chuck
coolant equiptment with aut. paper filter and magnetic separator
autom. dressing attachment table mounted with compensation *
grinding wheel
grinding wheel flange
grinding wheel balancing scale
balance arbor
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
* The exact configuration of the dresser must be clarified before ordering
Further information
Product video

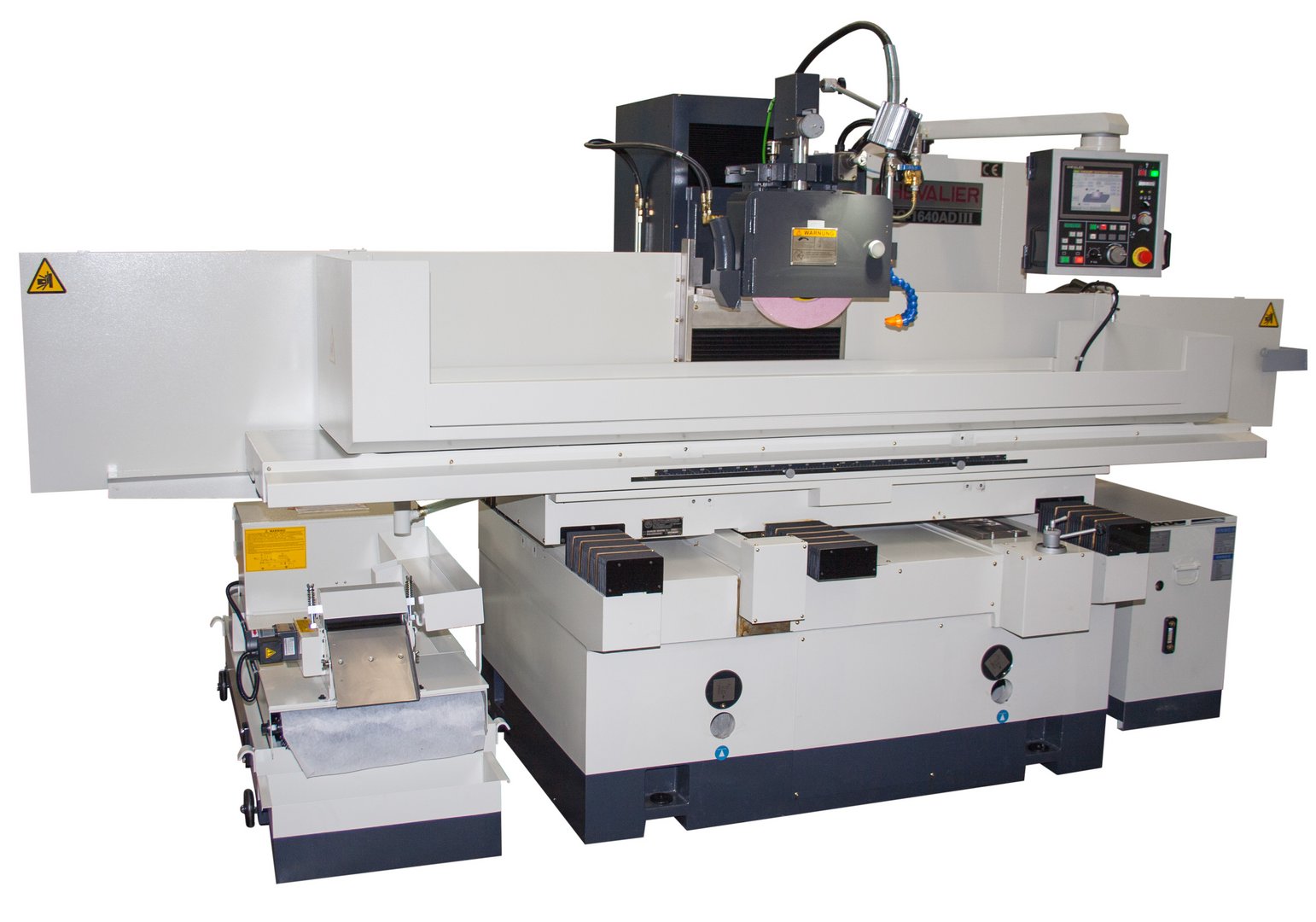

Flat grinding machine FSG-1640ADIV
