General characteristics
| Grinding lenght | 1200 mm |
| Distance spindle - table | 730 mm |
| Table | 1.200 x 500 mm |
| Magnetic table | 1.200 x 500 mm |
| Table speed | 5 - 25 m/min |
| Hydraulic motor | 3.7 kW |
| Total power | 18 kVA kW |
| Table height | 990 mm |
| Maximal table load | 1.17 kg |
| Max. workpiece weight on magnetic table | 930 kg |
| Max. workpiece weight on t-slot table | 1250 kg |
| Grinding wheel dimensions | 355 x 50 x 127 mm |
| Spindle speed | 500 - 1.800 U/min |
| Spindle motor | 7 kW |
Dimensions and weight
| Length | 4600 mm |
| Width | 3040 mm |
| Height | 2200 mm |
| Weight | 6400 kg |
Description

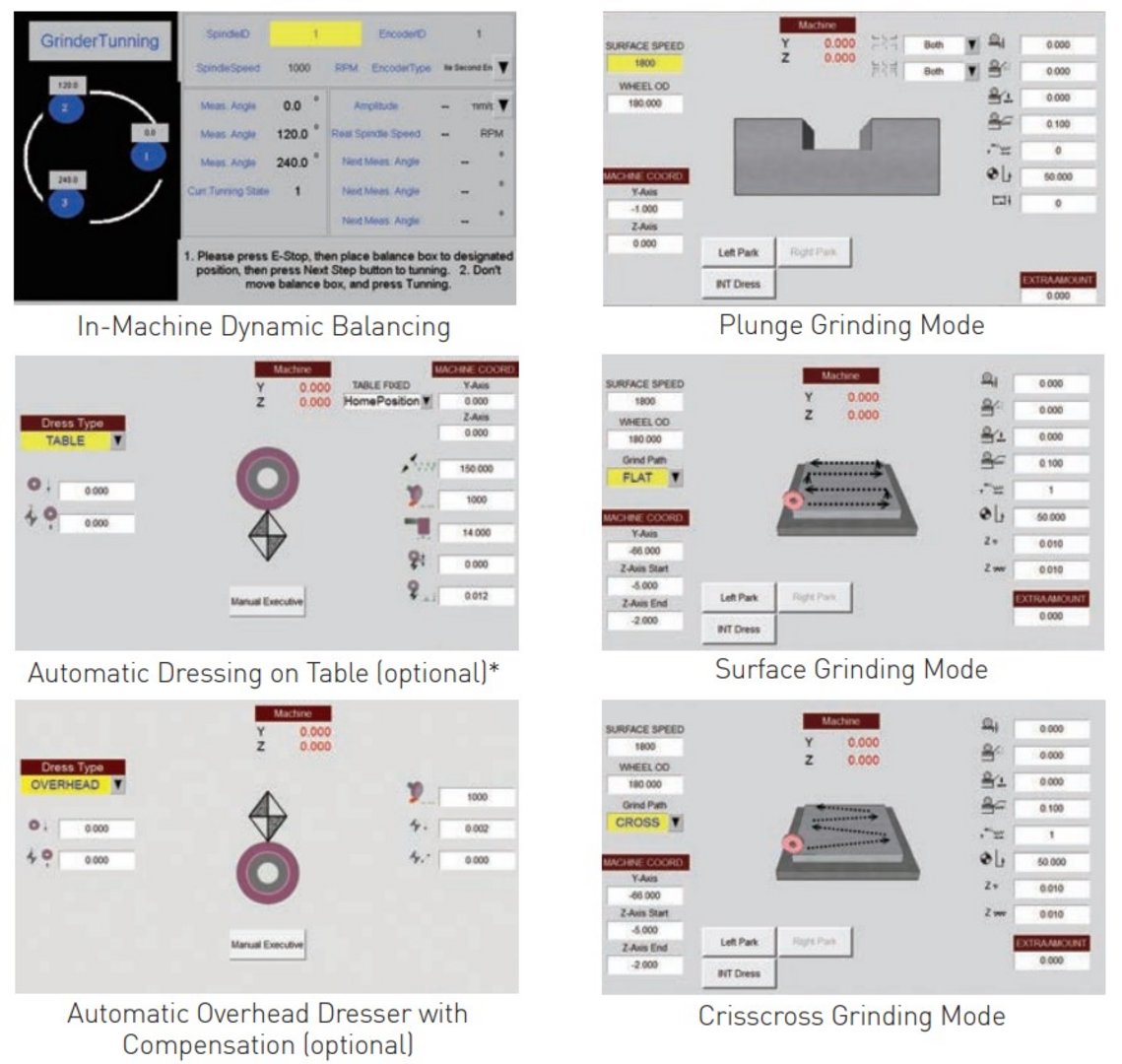

iSurface control with Touch screen for 3 axes fully automatic surface and plunge grinding system
10.4” TFT high resolution color control to ensure ease of operation
Rough increment, finish increment, spark out (0-9 times), and automatic grinding cycle
Cycle interrupt, flip over for part inspection & final dimensions set
Wheelhead will rise up to end, start or reference position nd table parks at left or right side after cycle is completed
Display accuracy 0.0001mm
Max. table speed (X axis) 30 m/min
vertical feed by servo drive and ballscrew spindle
transversal feed by servo motor and ballscrew spindle
double V-slide wasy (turcite-B) for table longitudinal move
grinding wheel spindle on 6 high precision angular contact bearings
electro-magnetic chuck
coolant equiptment with aut. paper filter and magnetic separator
autom. dressing attachment table mounted with compensation *
grinding wheel
grinding wheel flange
grinding wheel balancing stand
balance arbor
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
* The exact configuration of the dresser must be clarified before ordering
Further information
Brochures
Product video

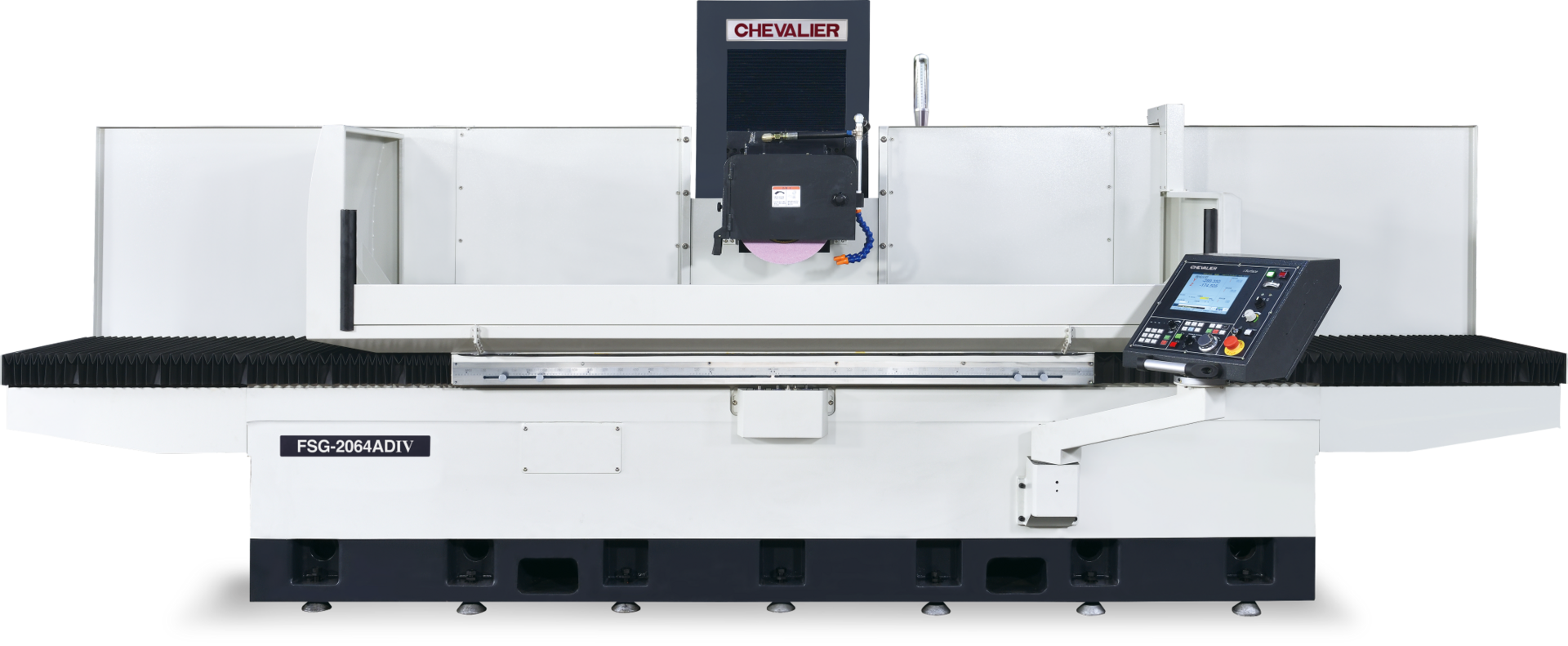

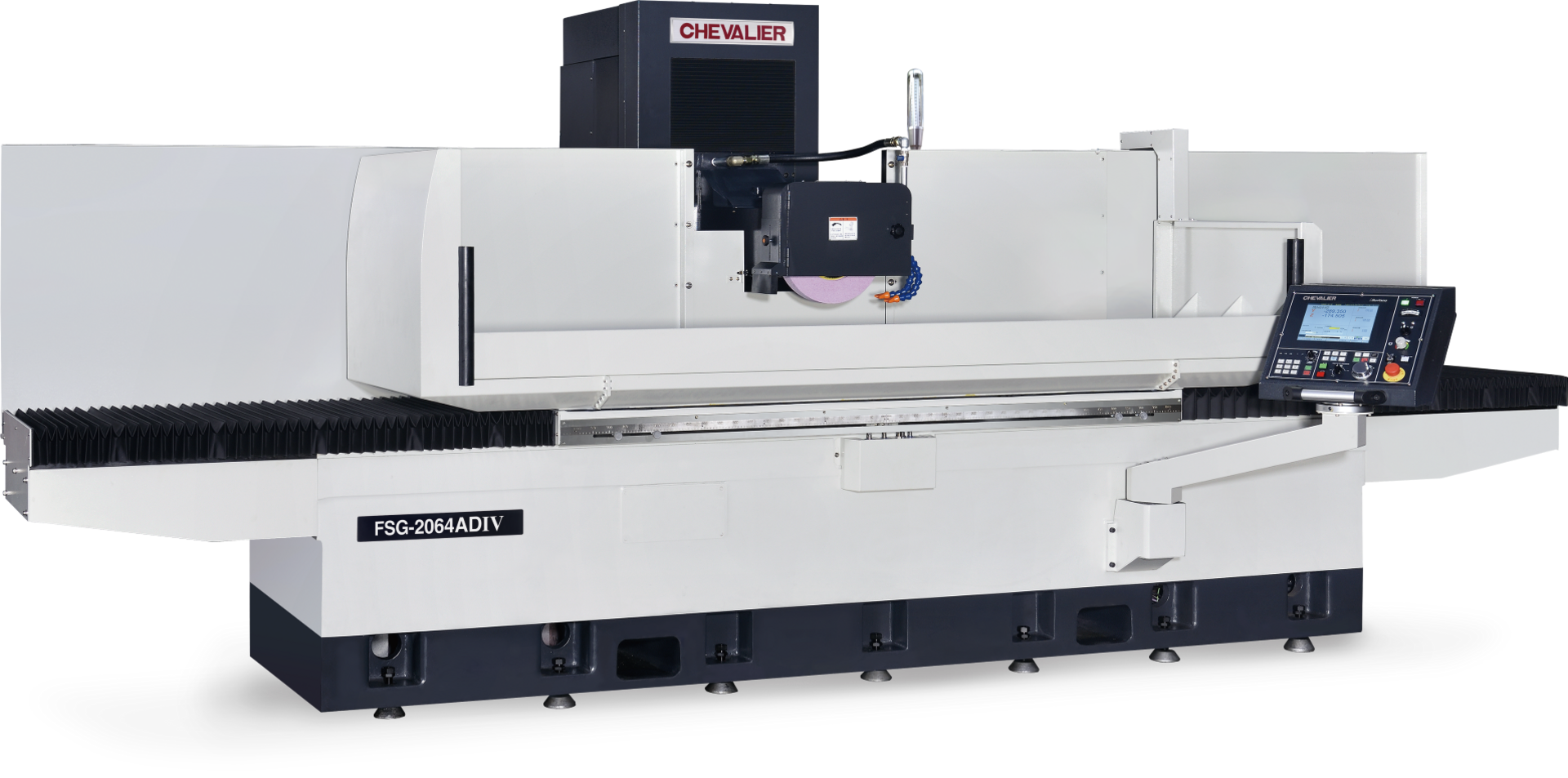

Flat grinding machine FSG-2048ADIV
