General characteristics
| Grinding lenght | 1015 mm |
| Distance spindle - table | 600 mm |
| Table | 400 x 1000 mm |
| Grinding area | 1.015 x 405 x 610 mm |
| Magnetic table | 1000 x 400 mm |
| Max. work piece weight | 670 kg |
| Table movement hydraulic | 1100 mm |
| Table speed | 5 - 25 m/min |
| Cross feed | 0 - 2,250 m/min |
| Cross feed incremental | 3 - 32 mm |
| Max. cross feed | 450 mm |
| Automatic vertical feed | 440 mm |
| Vertical feed | 0 - 675 mm/min |
| Vertical feed incremental | 0.001 - 0.04 mm |
| Spindle revs | 500 - 2.000 rpm |
| Spindle motor | 5 kW |
| Hydraulic motor | 1.5 kW |
| Cross feed motor | 1.1 kW |
| Feed motor grinding wheel | 1.1 kW |
| Max. workpiece weight on magnetic table | 423 kg |
| Max. workpiece weight on t-slot table | 670 kg |
| Grinding wheel dimensions | 355 x 50 x 127 mm |
Dimensions and weight
| Length | 3630 mm |
| Width | 2682 mm |
| Height | 2200 mm |
| Transport dimensions | 4550 x 2280 x 2530 mm mm |
| Weight | 4800 kg |
Description

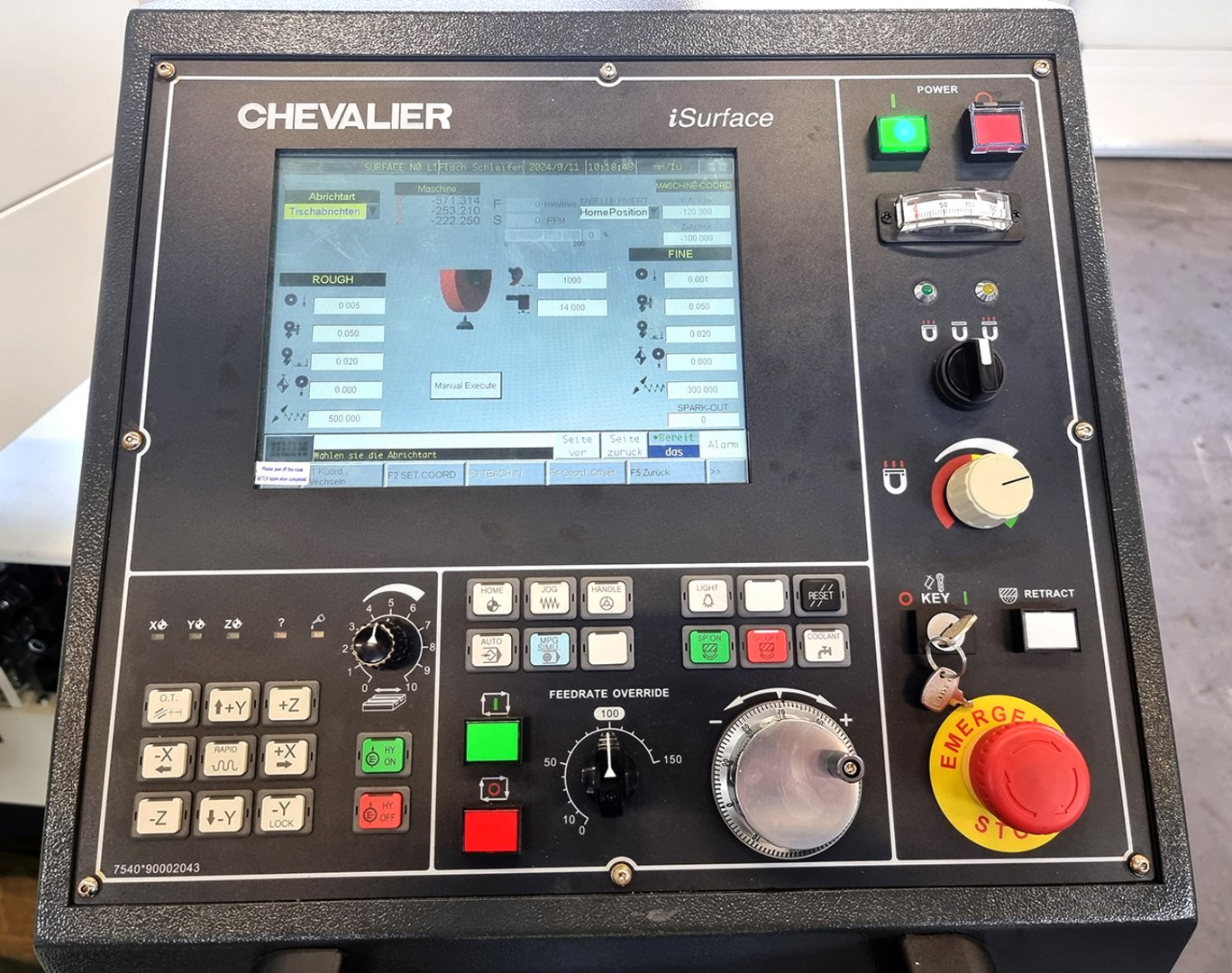

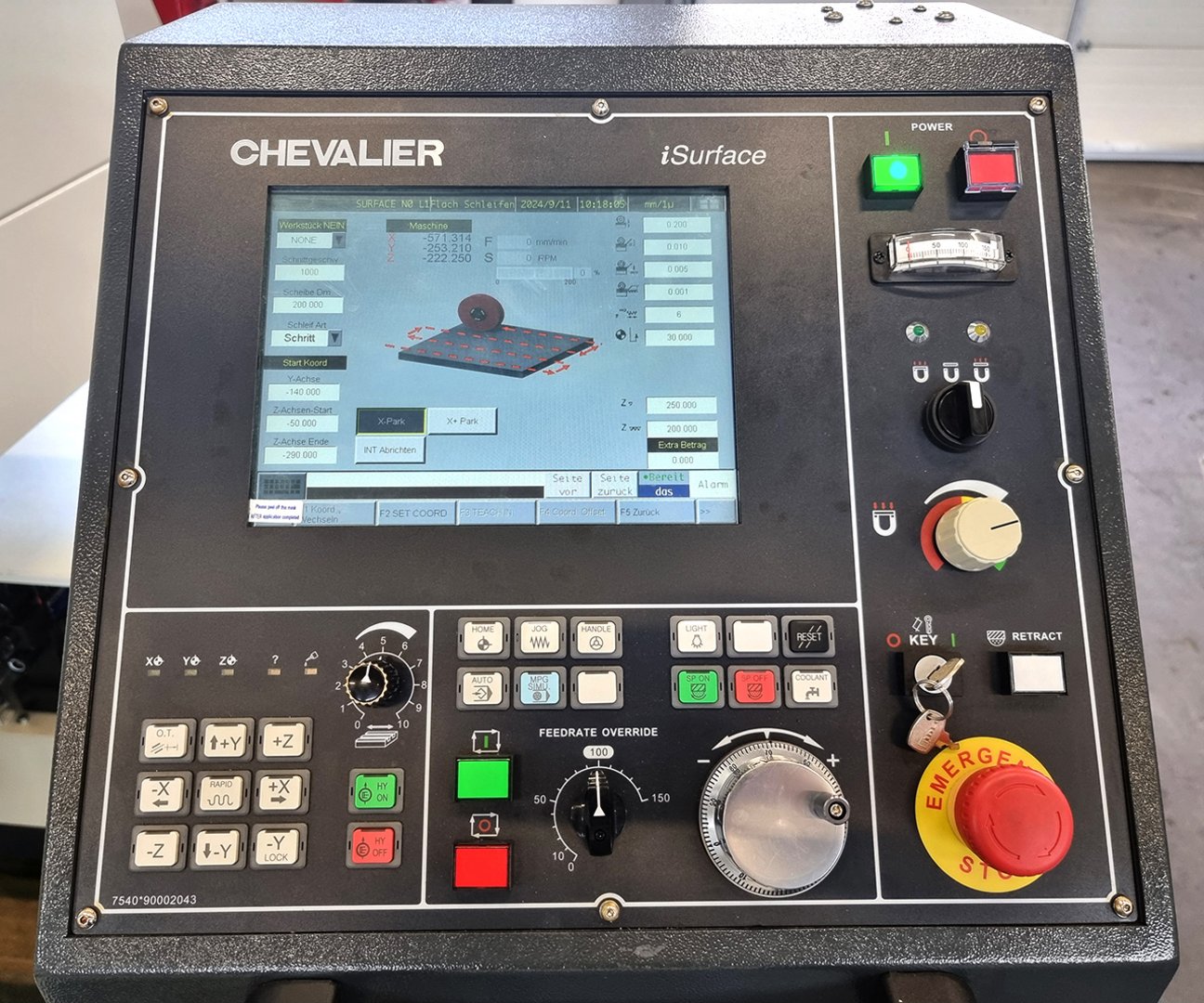

10,4" grafic NC-control on swiveling arm with touch screen for:
- seletion of working mode, program creation, graphic condition control, alarm list
aut. vertical feed
servo drive for grinding wheel feed and table cross feed
hardened slide ways in all 3 axes with needle rollers
electro-magnetic chuck

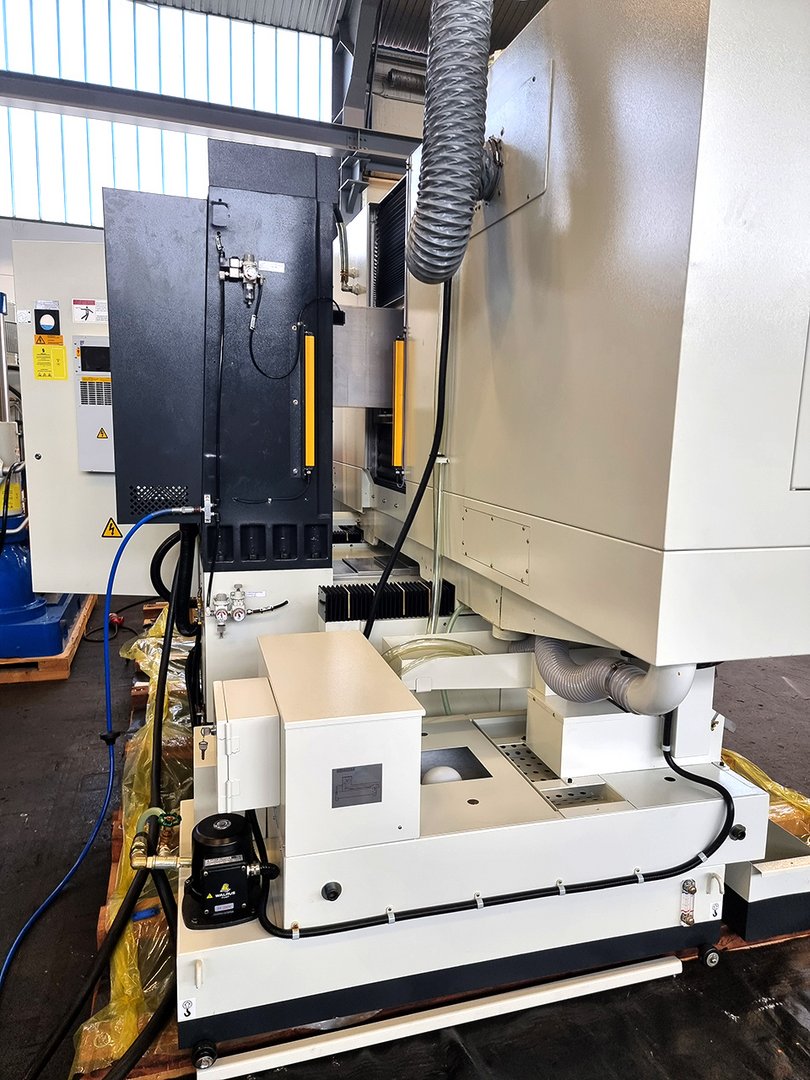

coolant equiptment with aut. paper filter and magnetic separator
oil mist collector
autom. dressing attachment table mounted with compensation

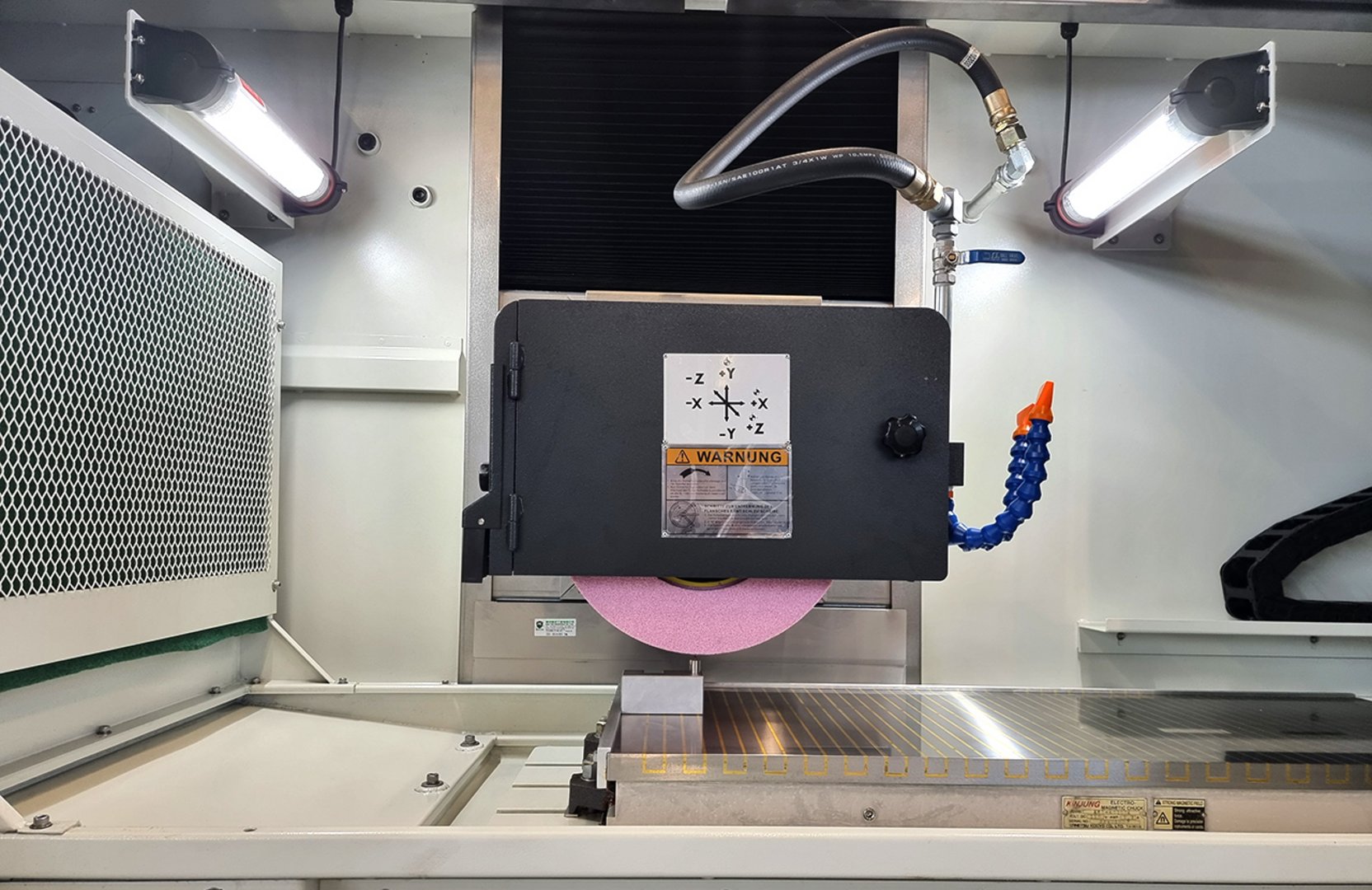

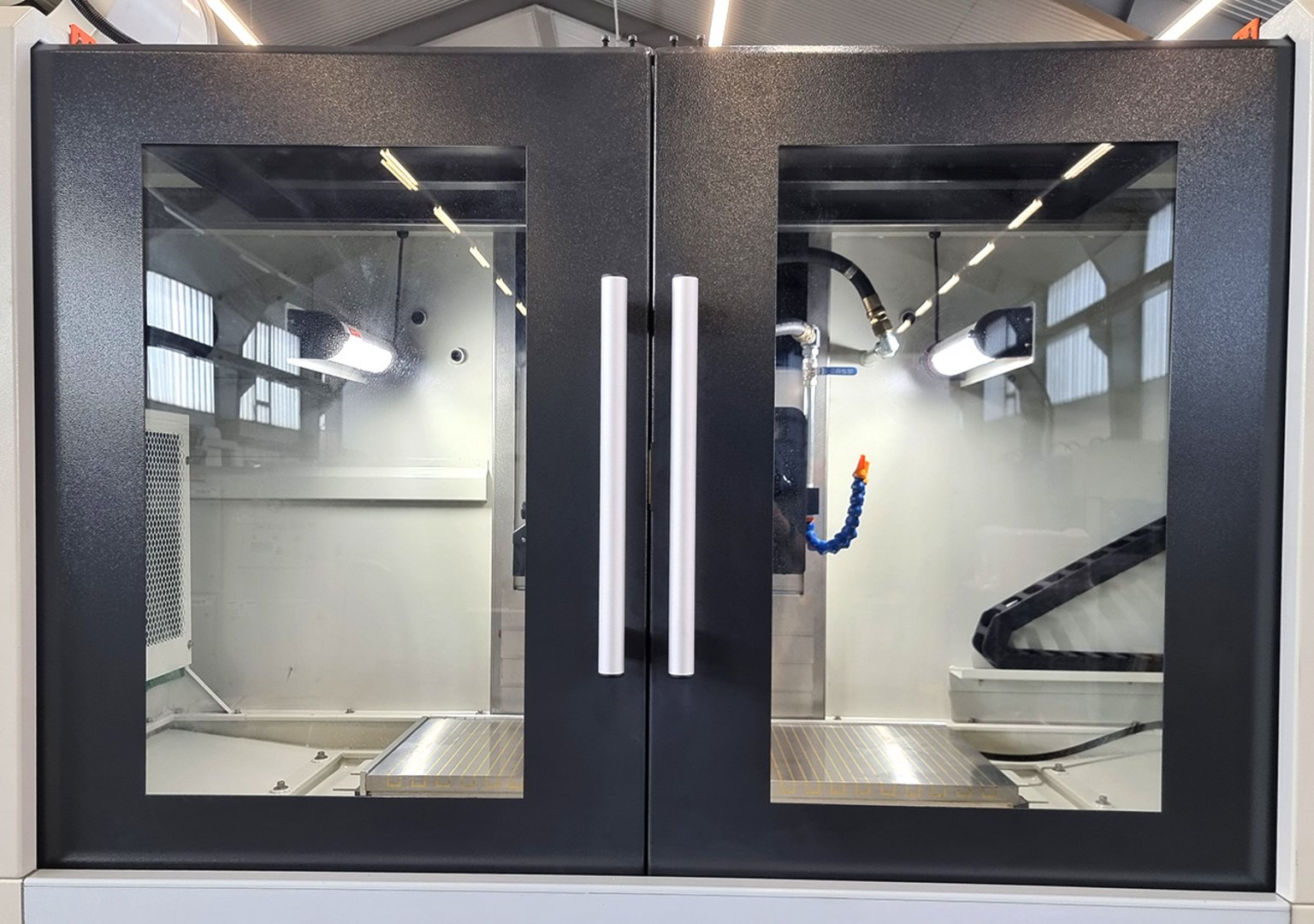

fully enclosed splash guard protection of working area

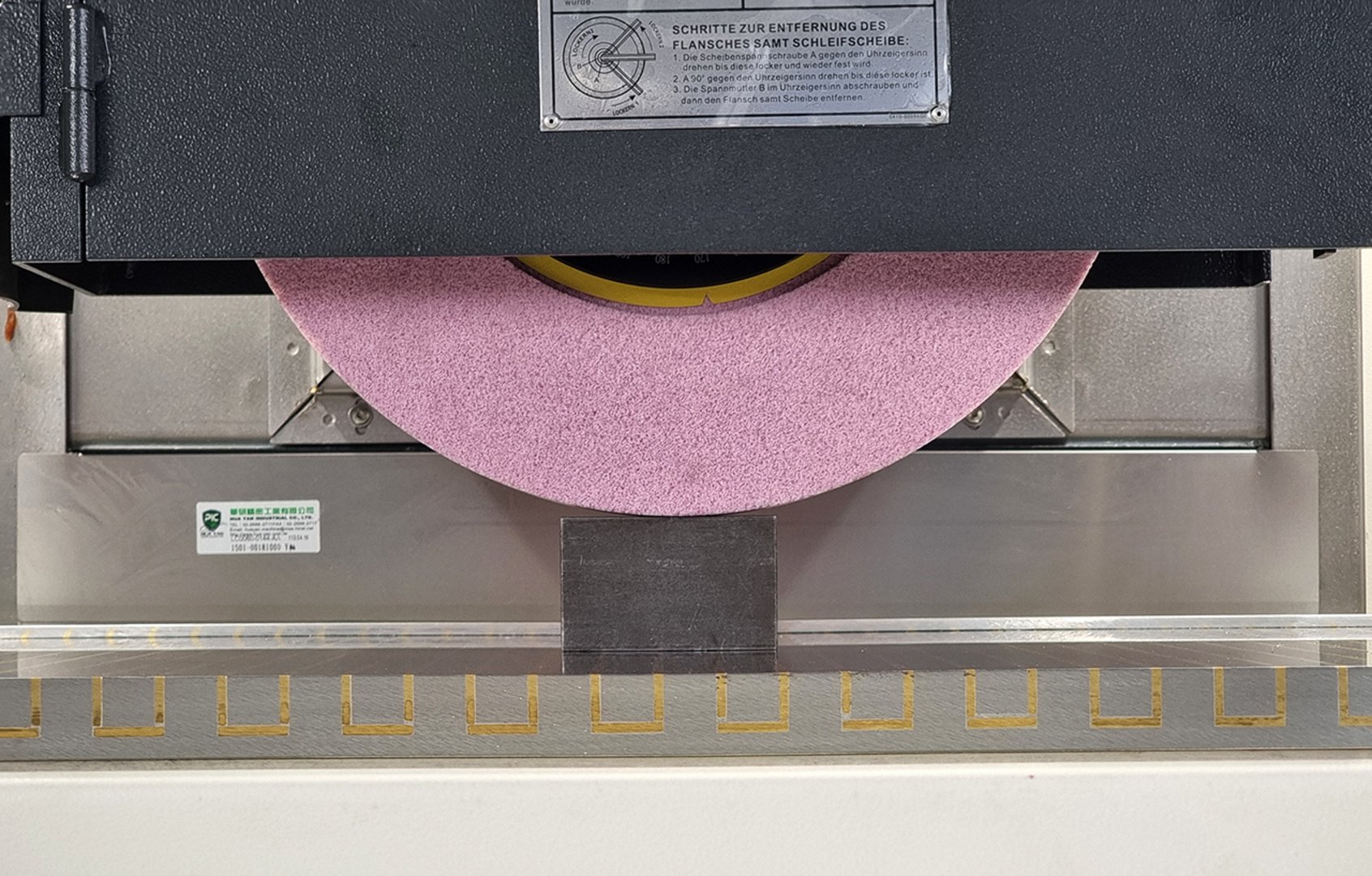

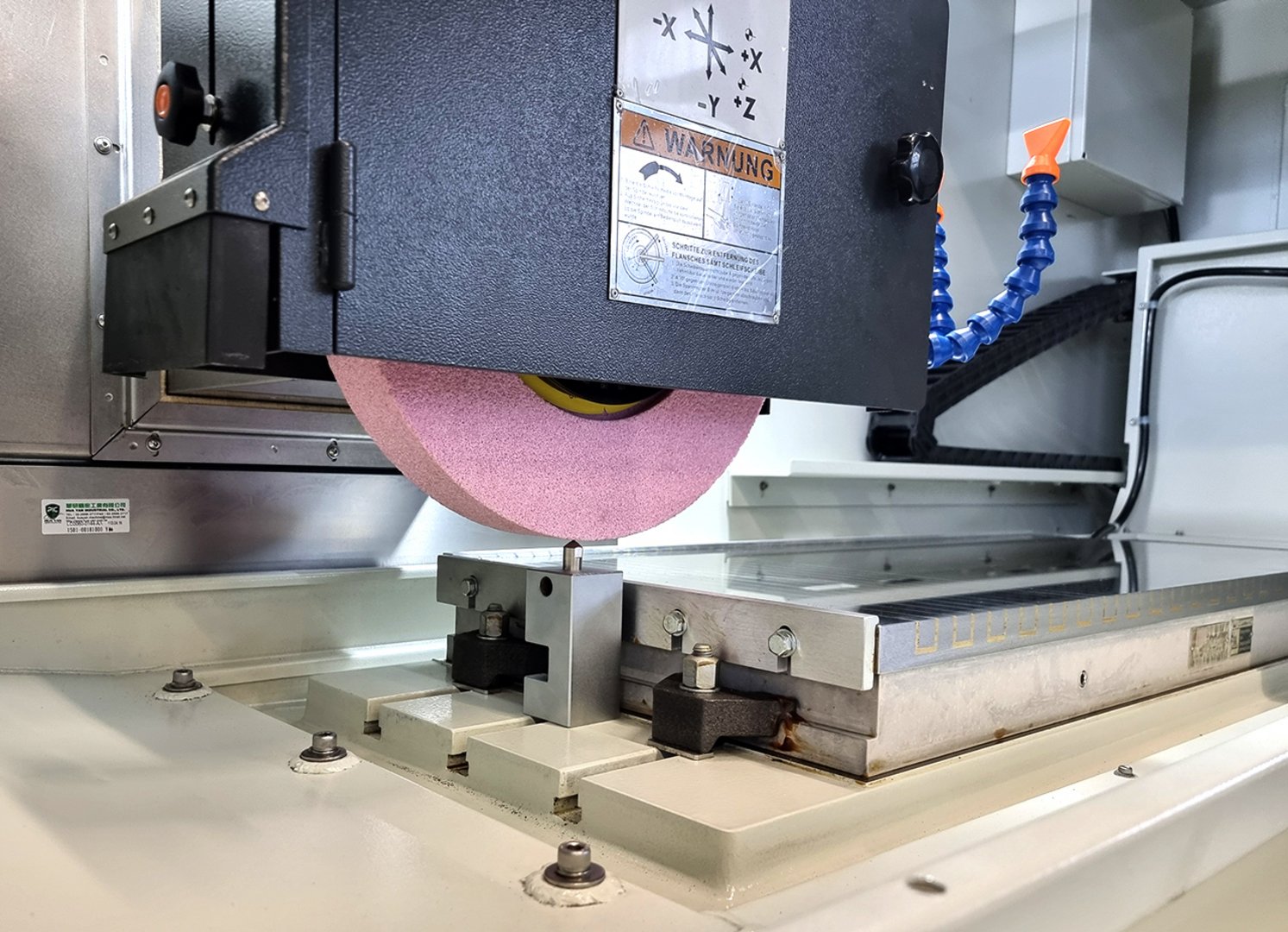

grinding wheel
grinding wheel flange
grinding wheel balancing stand (roller type)
balance arbor
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
Further information
Brochures
Product video

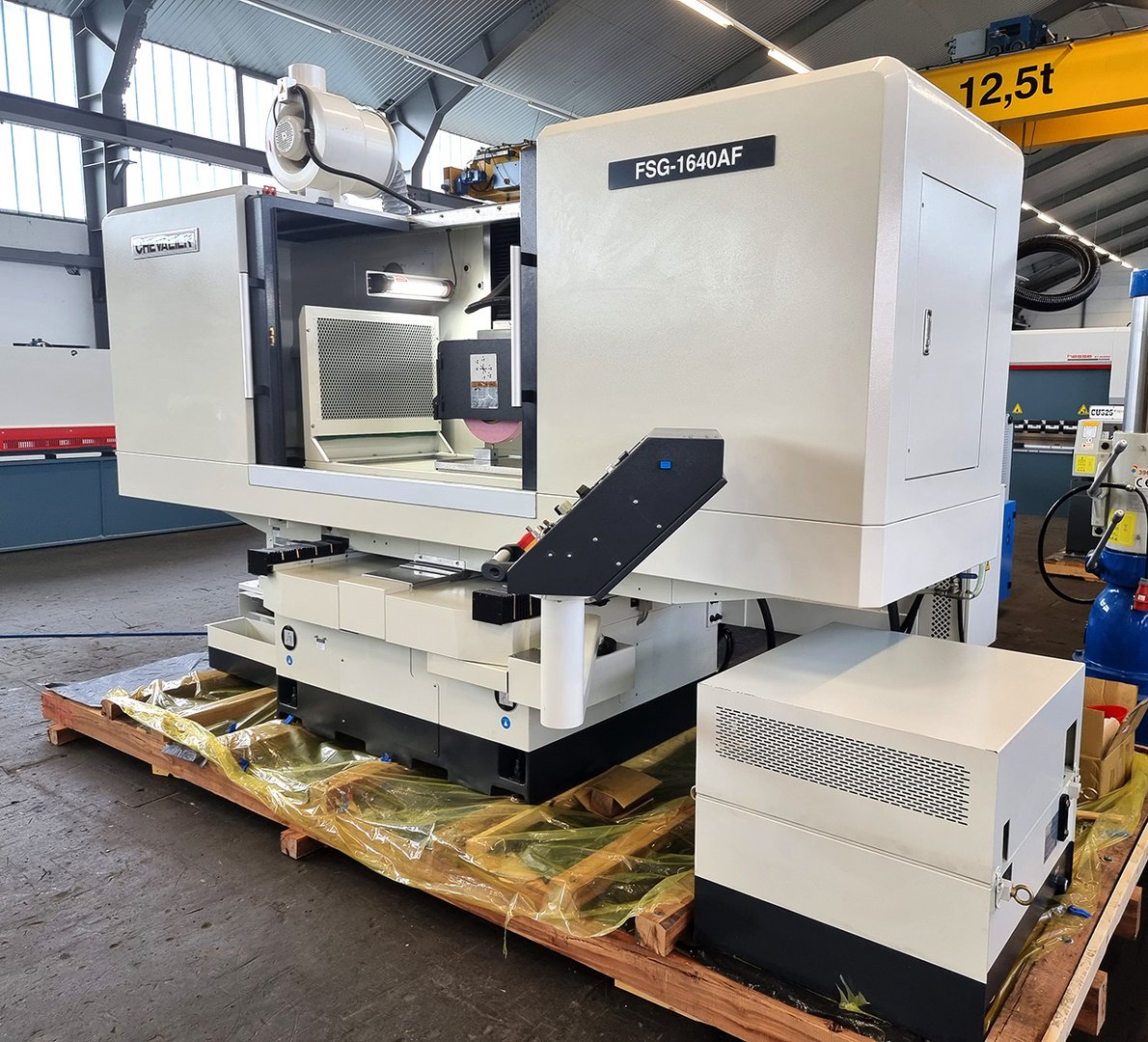

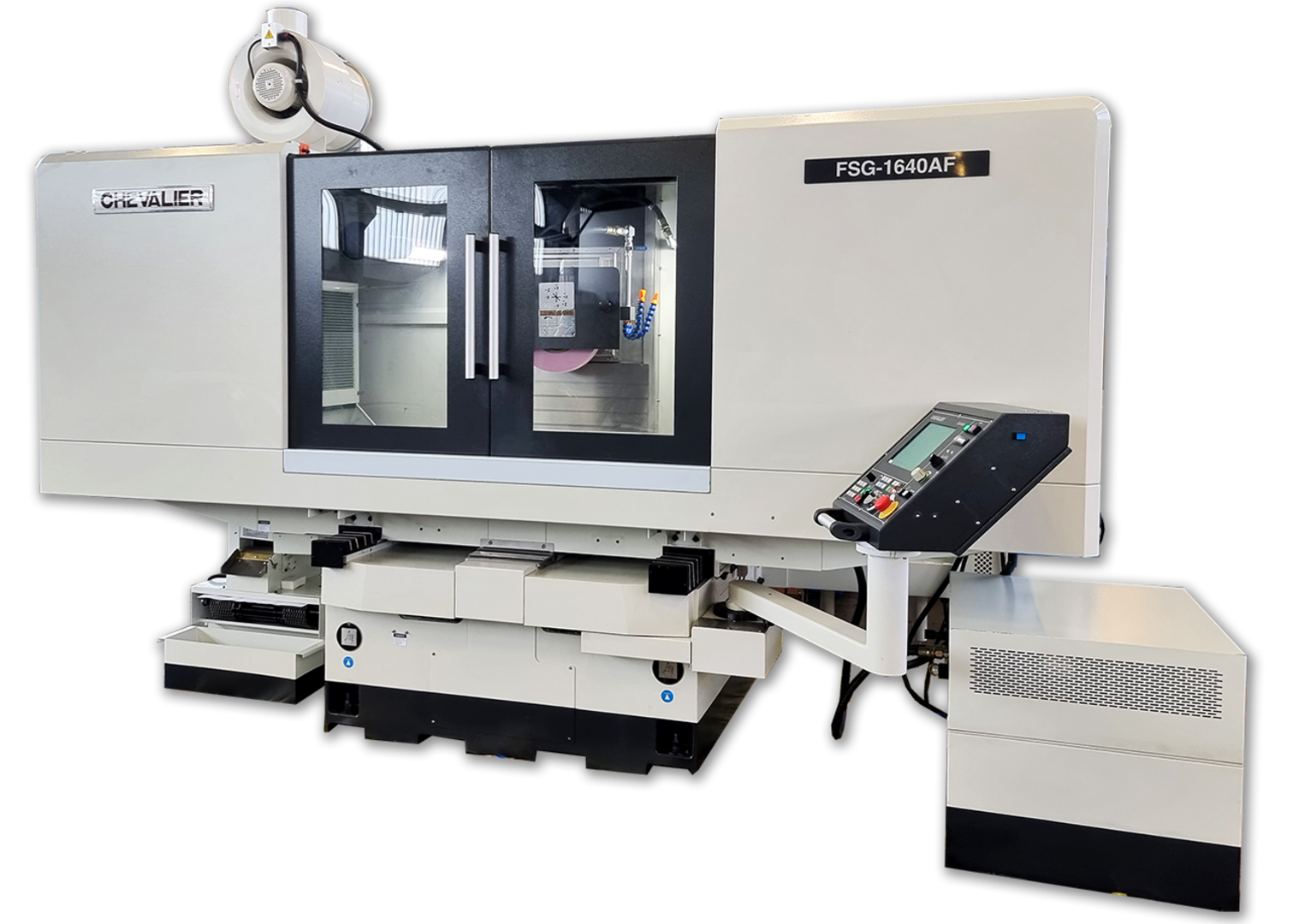

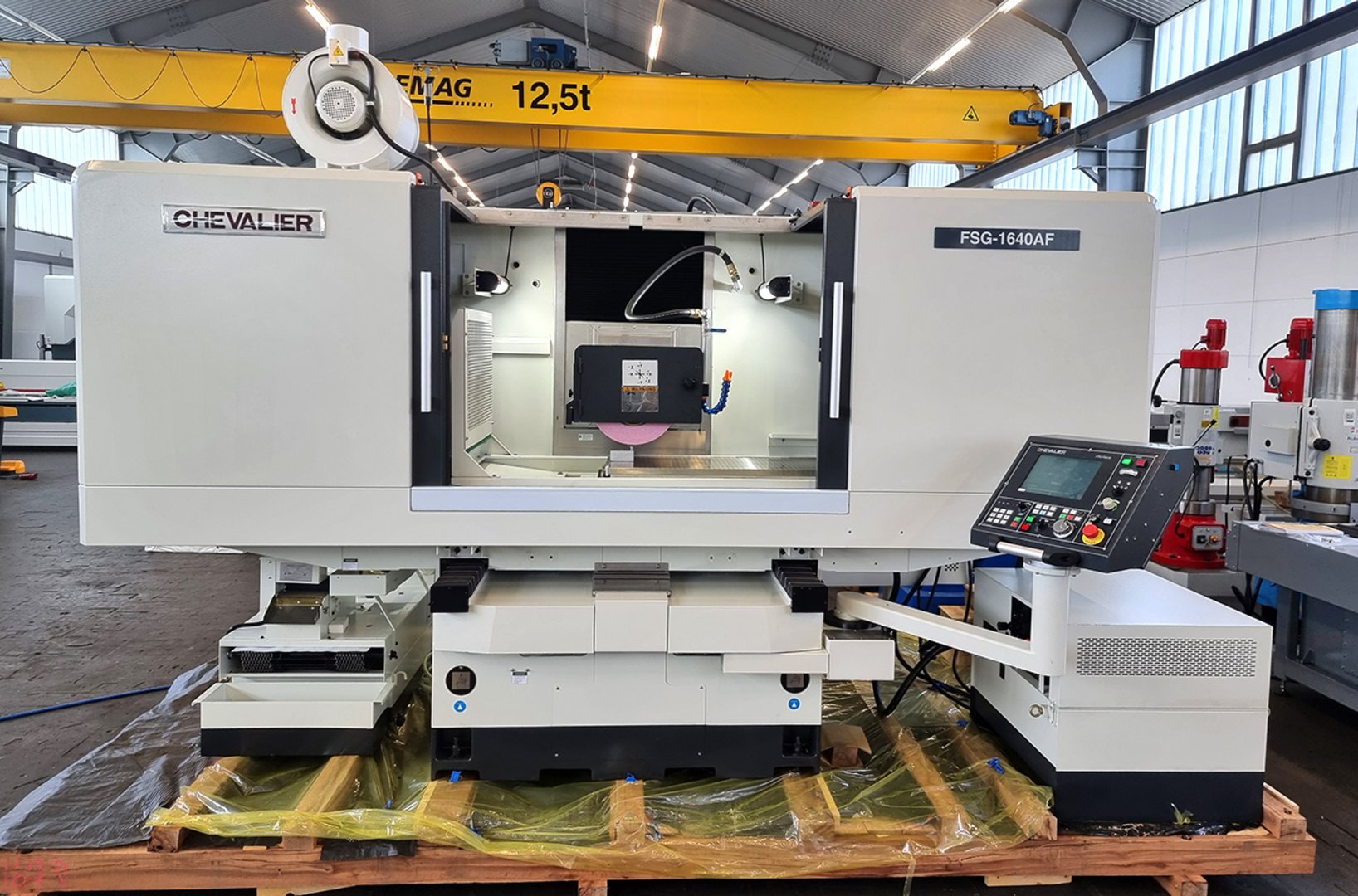

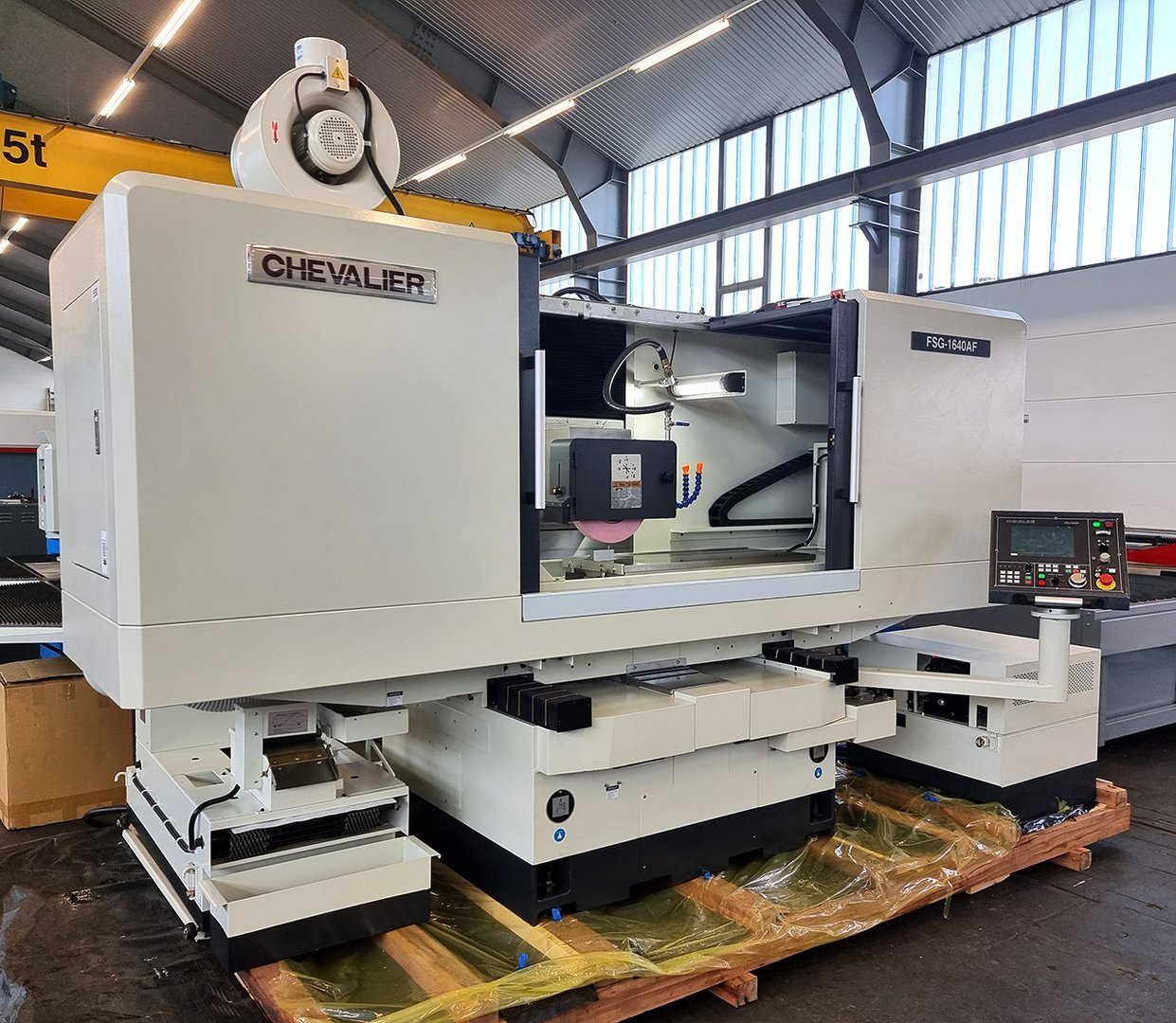

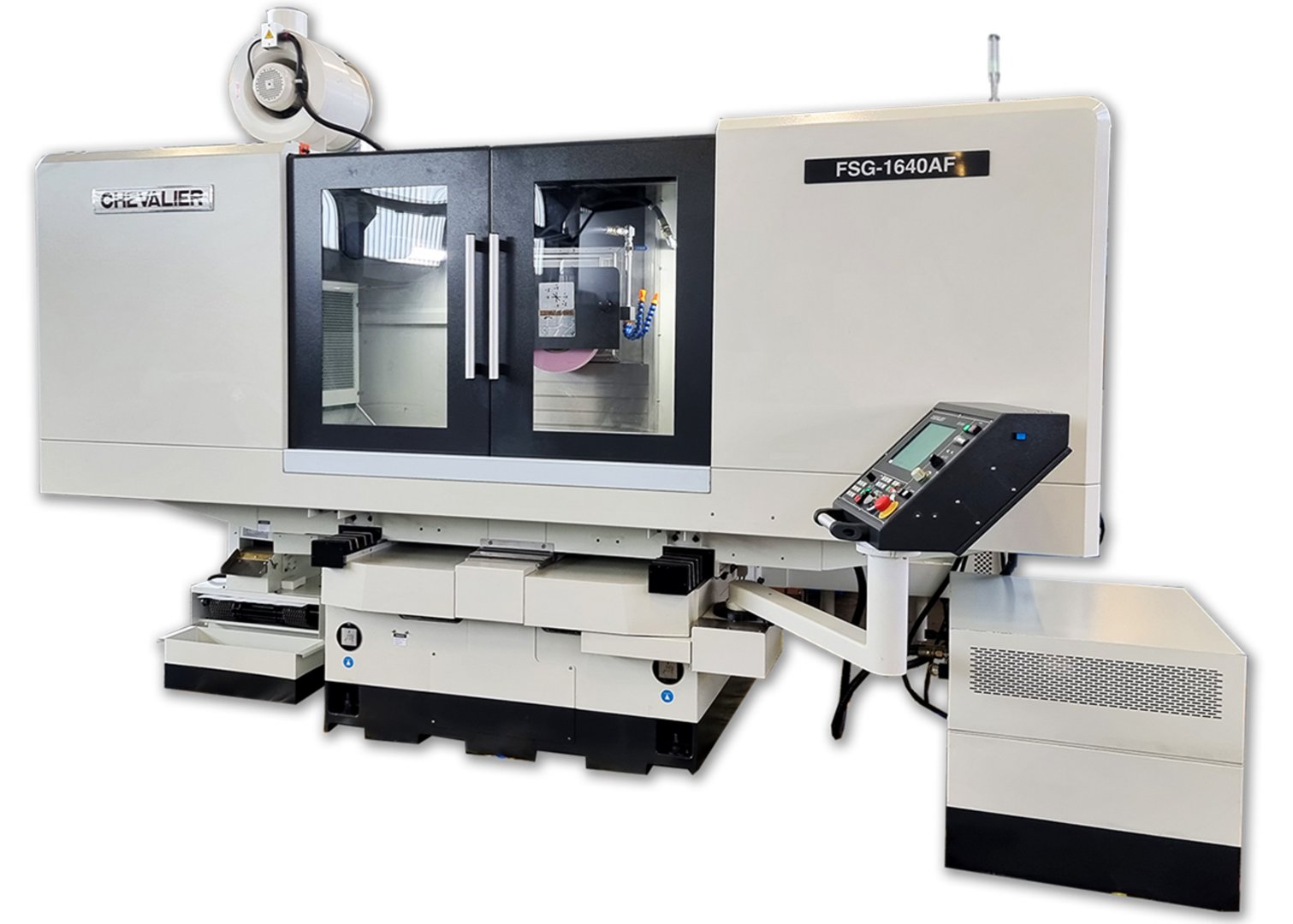

Flat grinding machine FSG-1640AF
