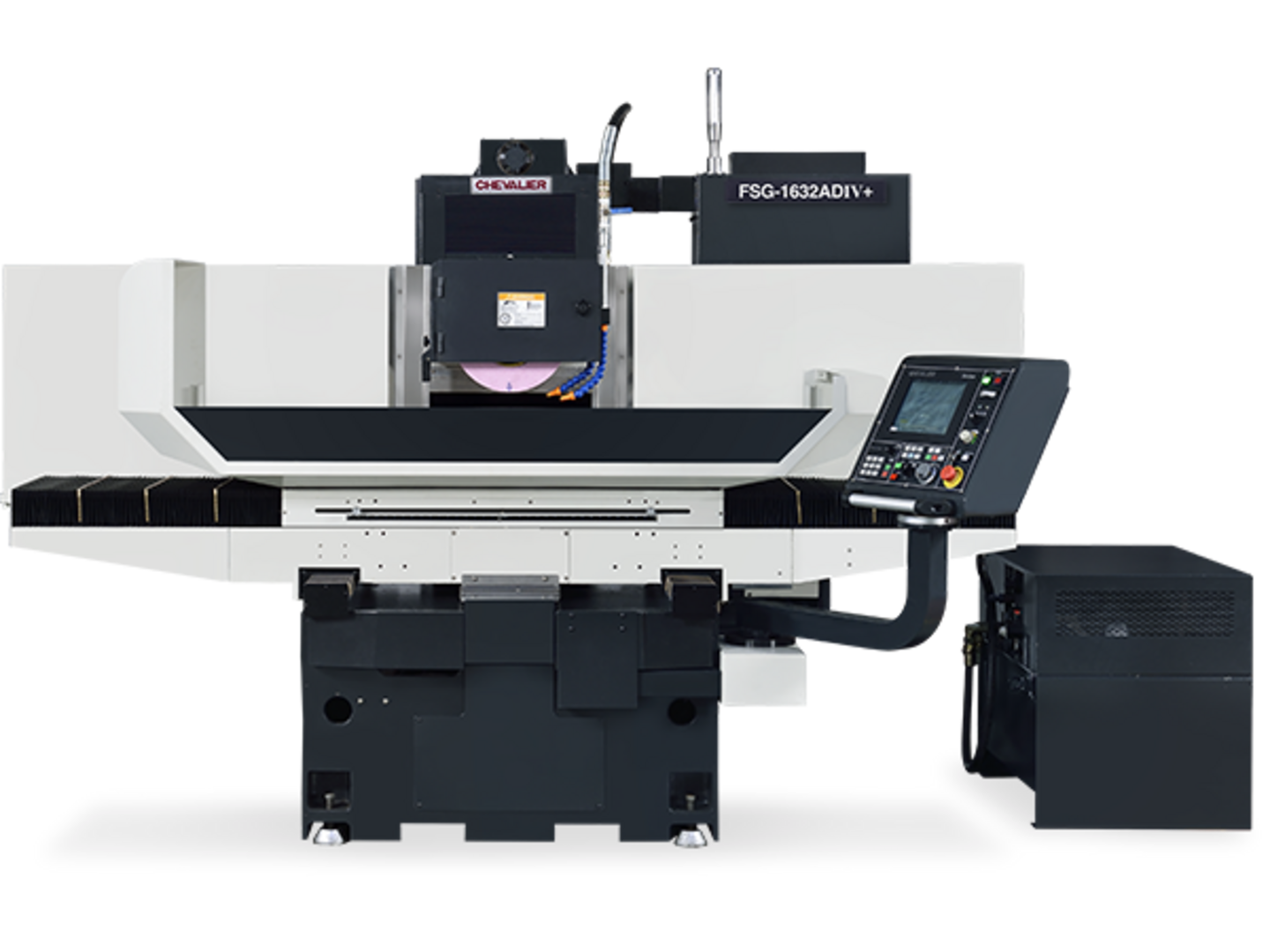

Flat grinding machine CHEVALIER FSG-1632ADIV+
| Model | FSG-1632ADIV+ |
| Brand | CHEVALIER |
| Condition | new |
| Table | 800 x 400 mm |
| Origin | Taiwan |
General characteristics
| Grinding lenght | 810 mm |
| Distance spindle - table | 610 mm |
| Table | 800 x 400 mm |
| Magnetic table | 800 x 400 mm |
| Table speed | 5 - 25 m/min |
| Cross feed | 0 - 2.250 m/min |
| Max. cross feed | 450 mm |
| Vertical feed | 0 - 675 mm/min |
| Max. elevating movement | 480 mm |
| Spindle revs | 500 - 2200 rpm |
| Spindle motor | 3,75 (optional 5,5 / 7,5) kW |
| Hydraulic motor | 1.5 kW |
| Max. workpiece weight on magnetic table | 175 kg |
| Max. workpiece weight on t-slot table | 350 kg |
| Grinding wheel dimensions | 355 x 50 x 127 mm |
| Servo-axis motors Y/Z | 1 |
Dimensions and weight
| Length | 3250 mm |
| Width | 3075 mm |
| Height | 2250 mm |
| Weight | 2900 kg |
Description

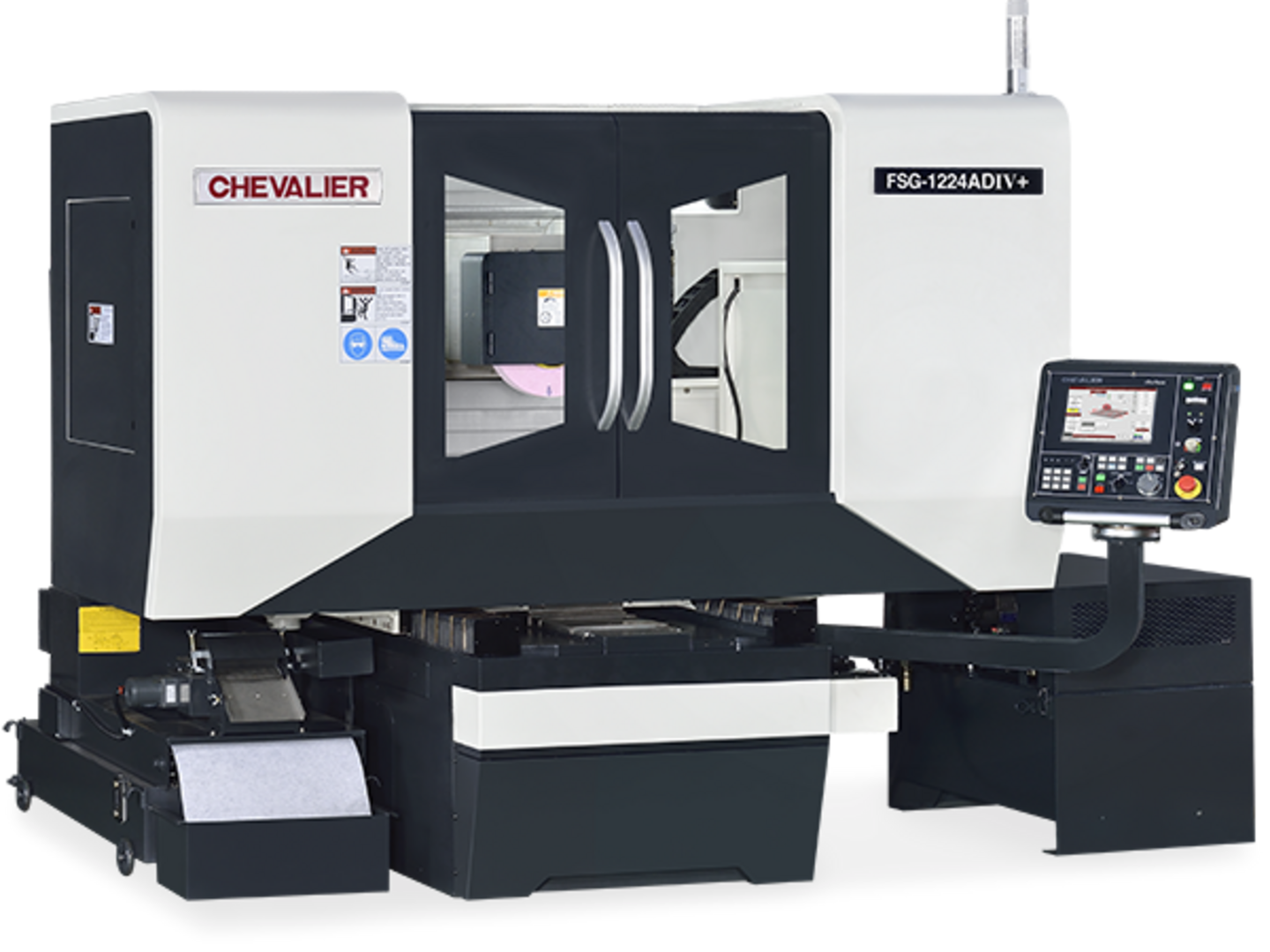

Fully enclosed splash guard
10.4" graphic NC control on a swivel arm with touchscreen for:
Operating mode selection
Cycle selection and program creation
Surface grinding
Cross grinding
Plunge grinding
Dressing with automatic compensation
Semi-automatic balancing in the machine
Automatic spindle speed for constant surface speed
Spindle load visualization
Unbalance control
Graphical status monitoring
Alarm list
automatic vertical feed
servo drive for grinding wheel feed and table cross feed
heavy duty spindle with 2 sets (4) of class P4 super precision angular contact ball bearings
hardened and ground C2 grade ballscrew on crossfeed and elevation
hardened slide ways
electro-magnetic chuck
coolant equiptment with aut. paper filter and magnetic separator
oil mist collector
autom. dressing attachment table mounted with compensation
grinding wheel
grinding wheel flange
grinding wheel balancing stand
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
Options (prices on request):
autom. dressing attachment mounted over the wheel
version without fully enclosed splash guard
Further information
Product video
Flat grinding machine FSG-1632ADIV+
