General characteristics
| Grinding lenght | 400 mm |
| Distance spindle - table | 600 mm |
| Table | 400 mm |
| Max. grinding radius | 225 mm |
| Magnetic table | 400 mm |
| Max. work piece weight | 50 kg |
| Automatic vertical feed | 450 mm |
| Spindle revs | 500 - 2200 rpm |
| Spindle motor | 5 kW |
| Total power | 19 kW |
| Grinding wheel dimensions | Dm. 355 x 38 x Dm. 127 mm |
| Spindle speed | 500 - 2200 U/min |
| Servo-axis motors Y/Z | 1.7 |
| Rotary table motor | 2.4 kW |
| Rotary table speed | 10 - 150 1/min |
| Positioning accuracy | 0.005 mm |
| Repeat accuracy | 0.003 mm |
Dimensions and weight
| Length | 2800 mm |
| Width | 2800 mm |
| Height | 2610 mm |
| Transport dimensions | 2850 x 2000 x 2470 mm |
| Weight | 3450 kg |
Description
iSurface control with 10,4" touchscreen for fully automatic grinding

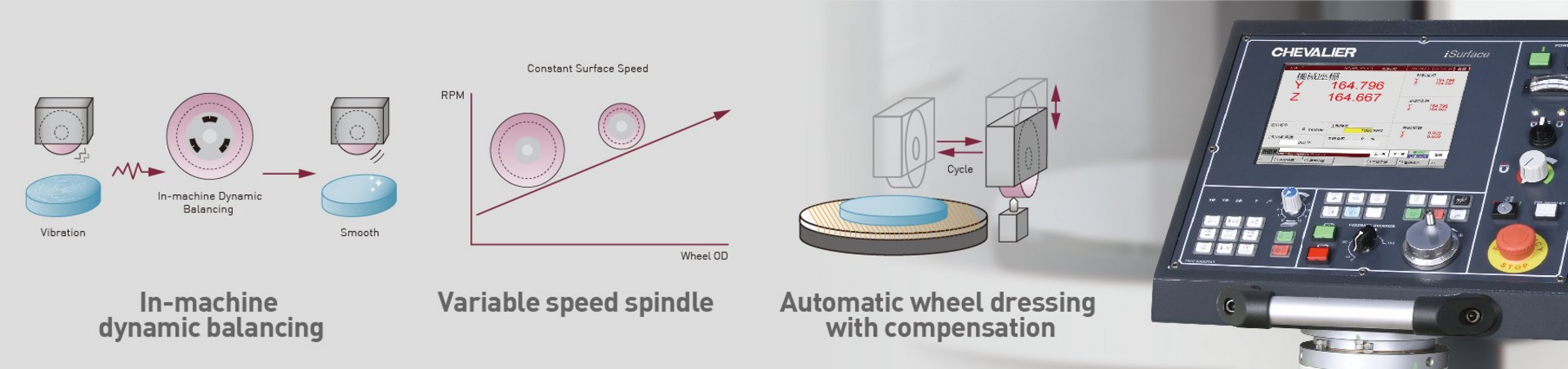

in machine manual wheel balancing

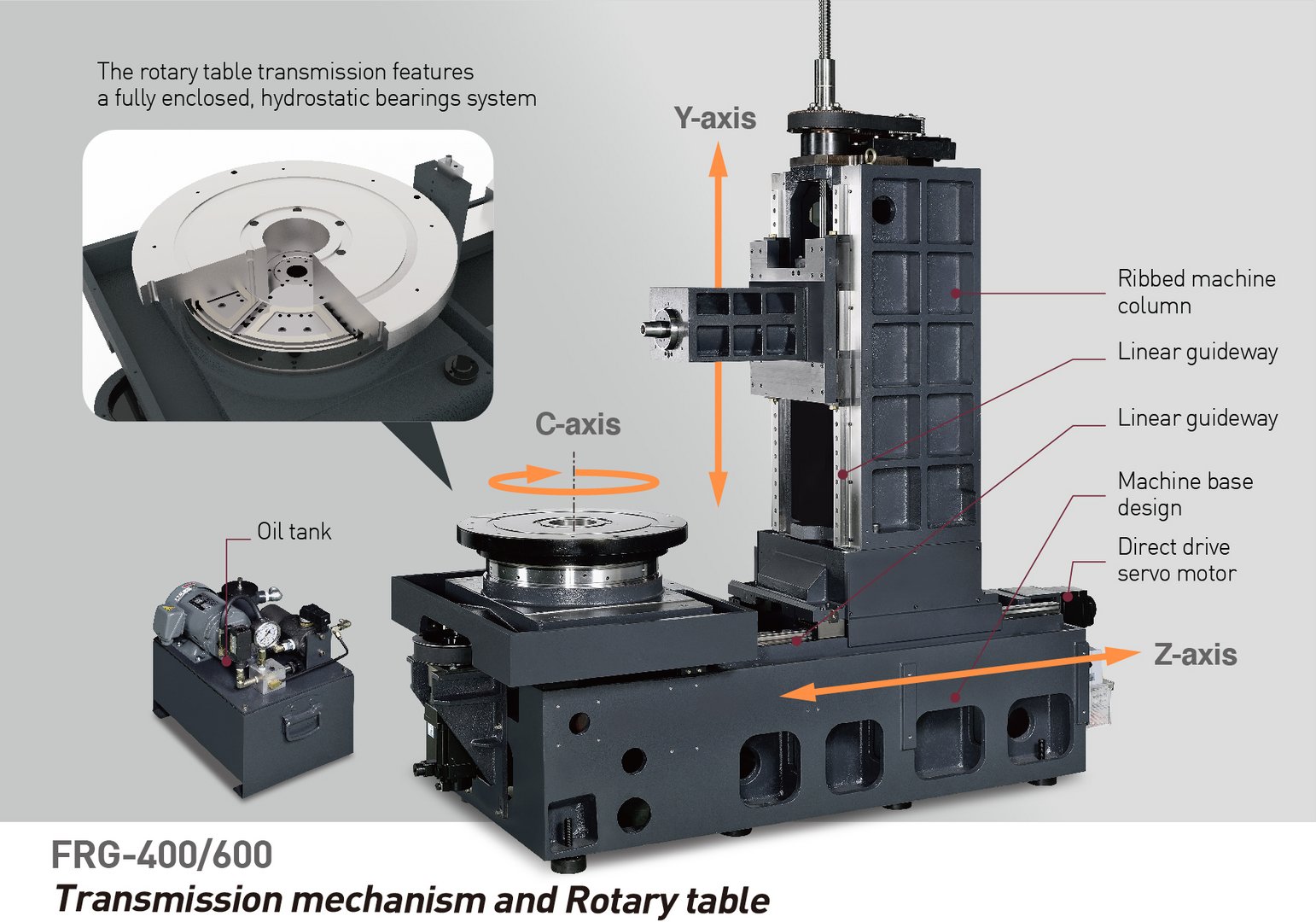

traveling column rib structure
AC servo motors für Y/Z axes and rotary table
1 pc. wheel flange
1 pc. grinding wheel Dm. 355 x 38 x Dm. 127 mm
Coolant equipment with automatic paper filter and magnetic separator
automatic dresser on the table, with compensation
fully enclosed splash guard
linear scale Fagor (0,001 mm) for downfeed axis
electromagnetic round chuck, fine pole pitch (1+3 mm)
working lamp
warning lamp
operating manual in German and English
Alternative:
model version FRG-400S with Smart iControl for profile grinding Moreprice € 3.100,00

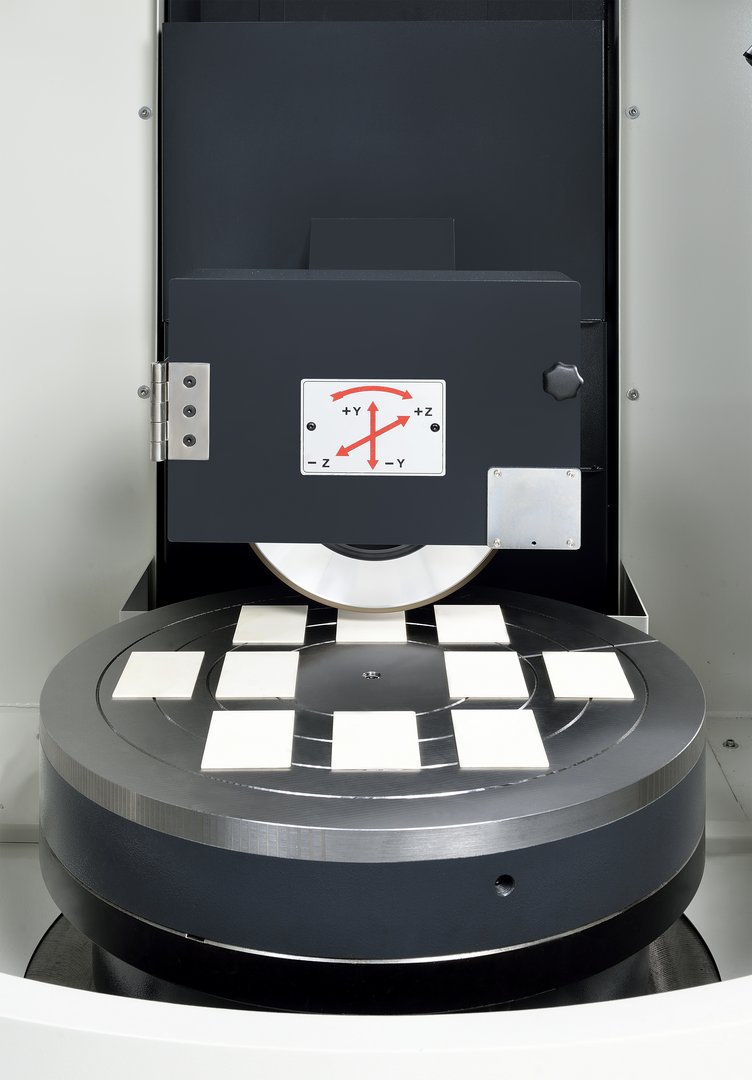

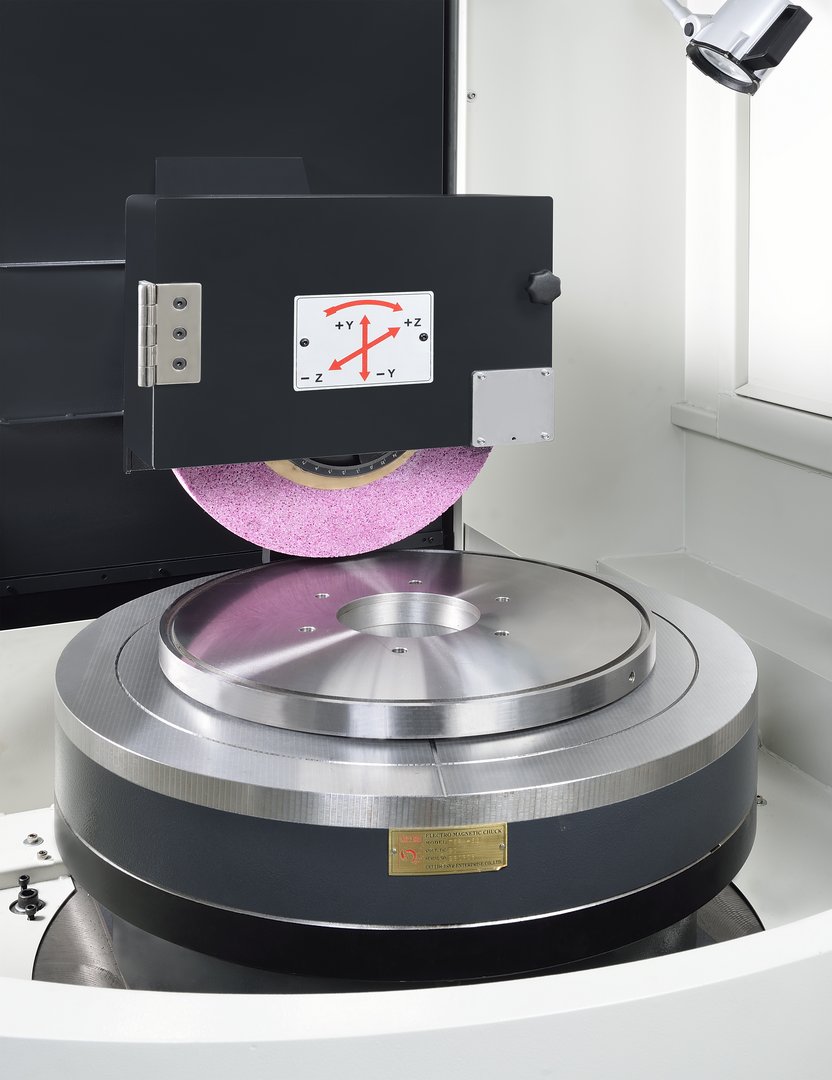

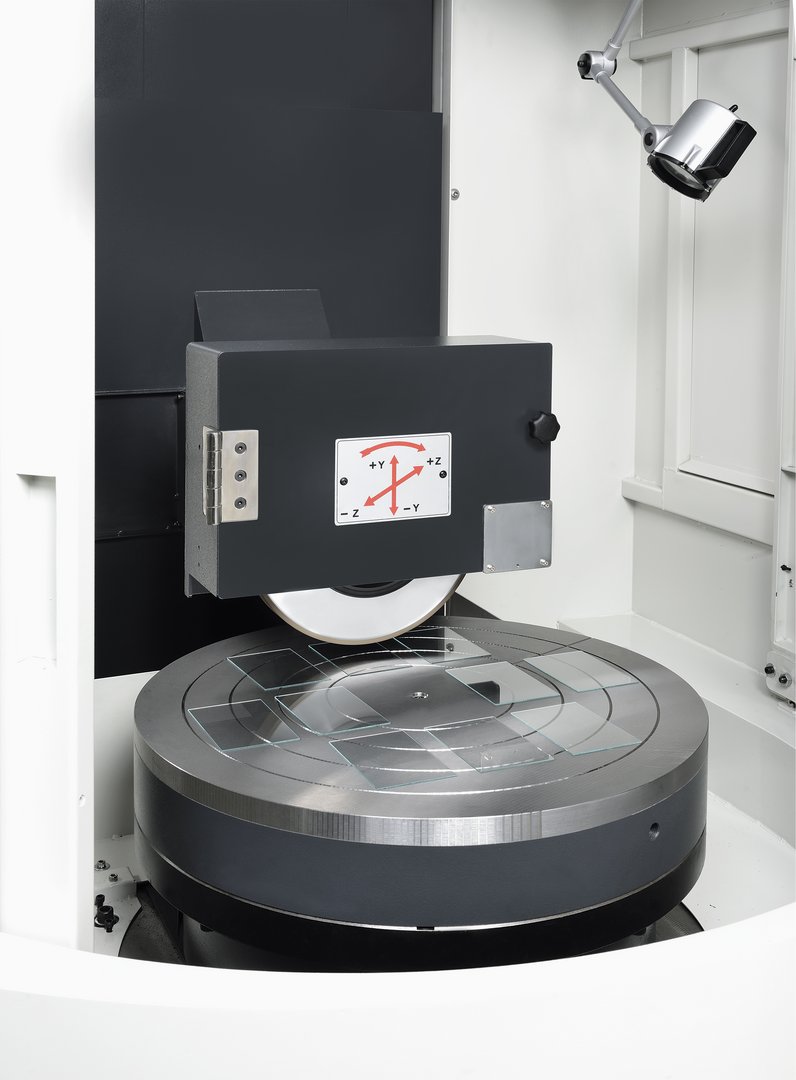

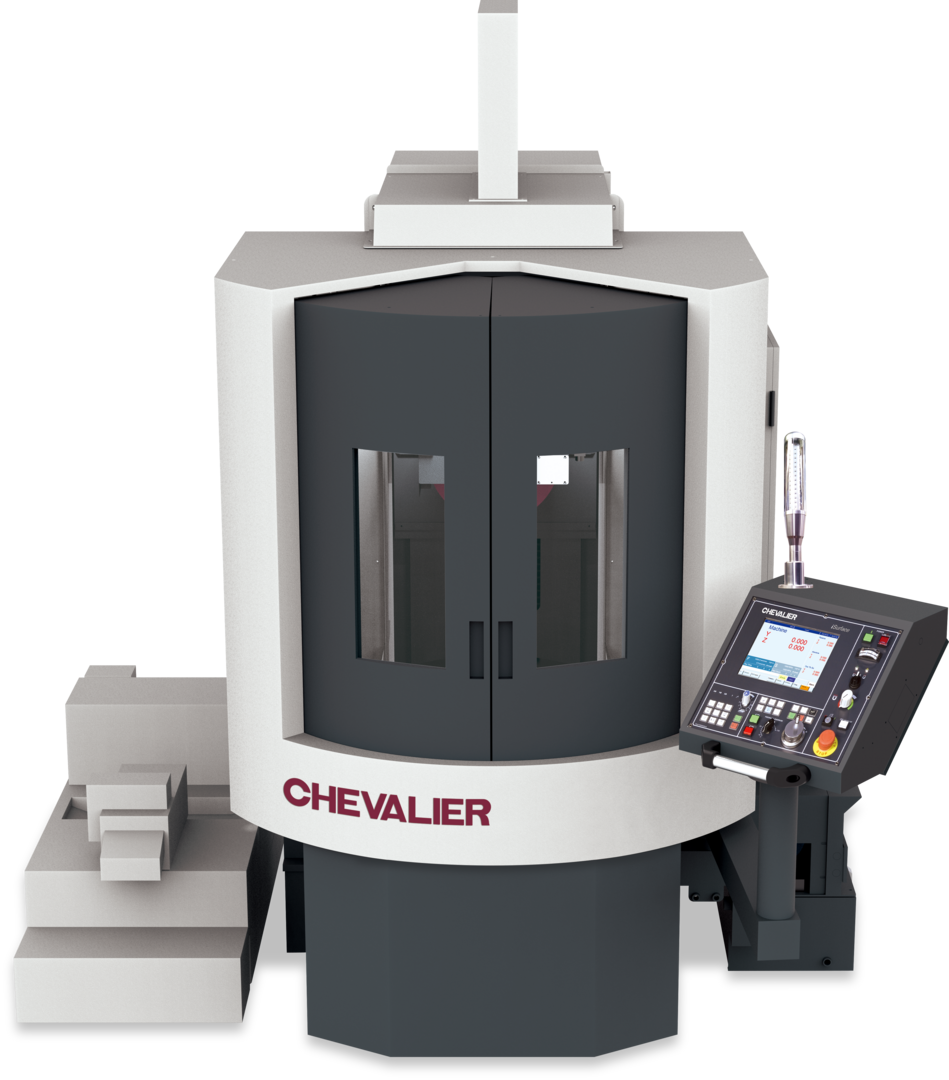

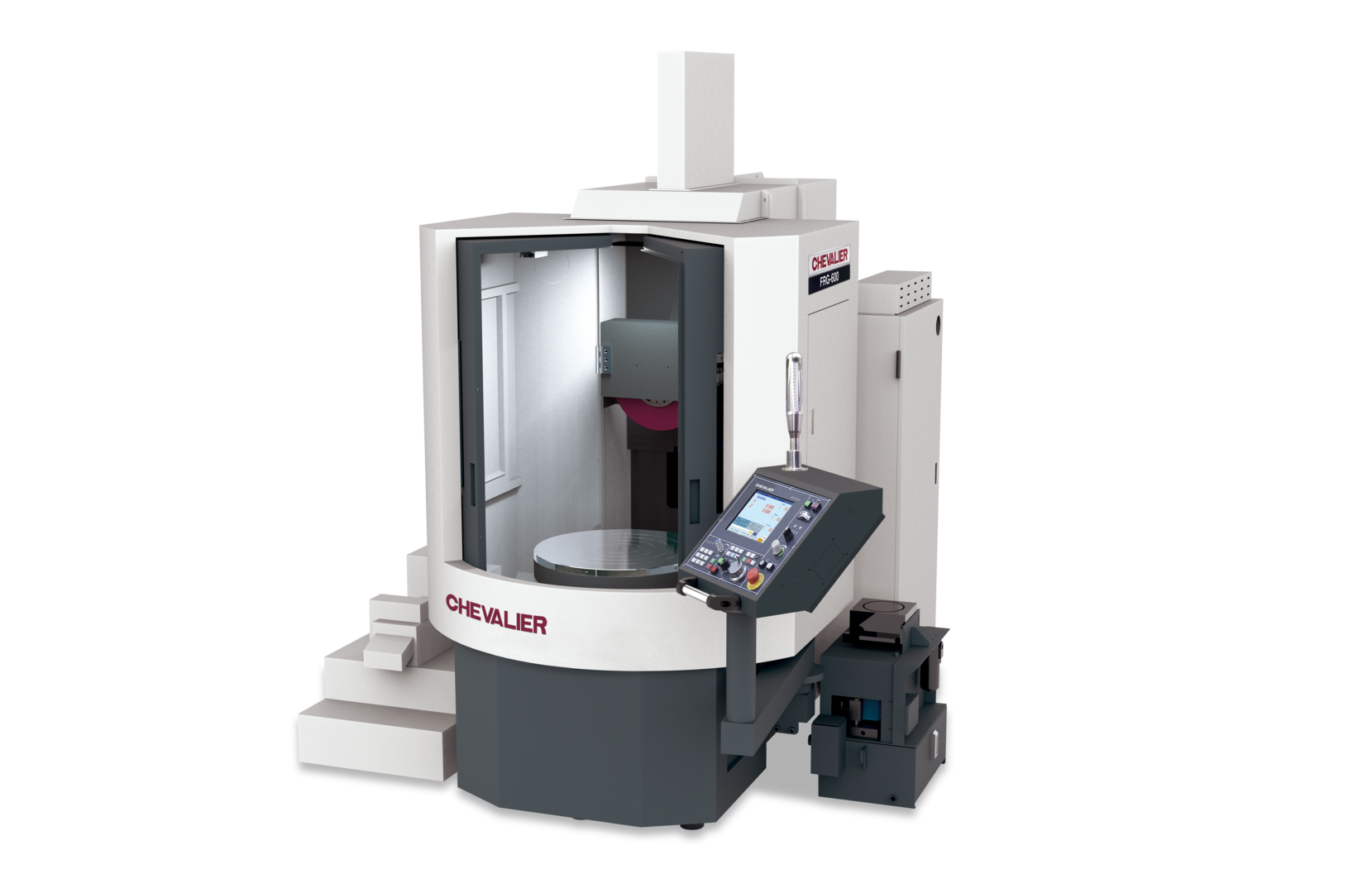

(symbol photos - showing model FRG-600)
Further information
Product video
Rotary flat grinder FRG-400
