General characteristics
| Grinding lenght | 600 mm |
| Distance spindle - table | 600 mm |
| Table | 600 mm |
| Max. grinding radius | 325 mm |
| Magnetic table | 600 mm |
| Max. work piece weight | 205 kg |
| Automatic vertical feed | 450 mm |
| Spindle revs | 500 - 2200 rpm |
| Spindle motor | 5 kW |
| Total power | 19 kW |
| Table height | 820 mm |
| Grinding wheel dimensions | Dm. 355 x 38 x Dm. 127 mm |
| Servo-axis motors Y/Z | 1.7 |
| Rotary table motor | 2.4 kW |
| Rotary table speed | 10 - 150 1/min |
| Positioning accuracy | 0.005 mm |
| Repeat accuracy | 0.003 mm |
Dimensions and weight
| Length | 2800 mm |
| Width | 2800 mm |
| Height | 2610 mm |
| Transport dimensions | 2850 x 2000 x 2470 mm |
| Weight | 3500 kg |
Description
iSurface control with 10,4" touchscreen for fully automatic grinding

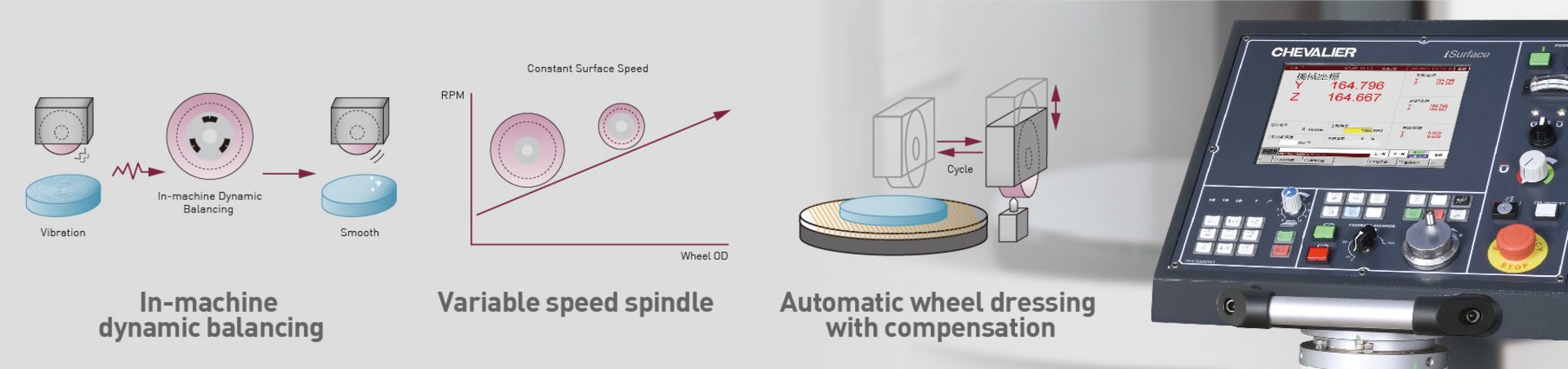

in machine manual wheel balancing

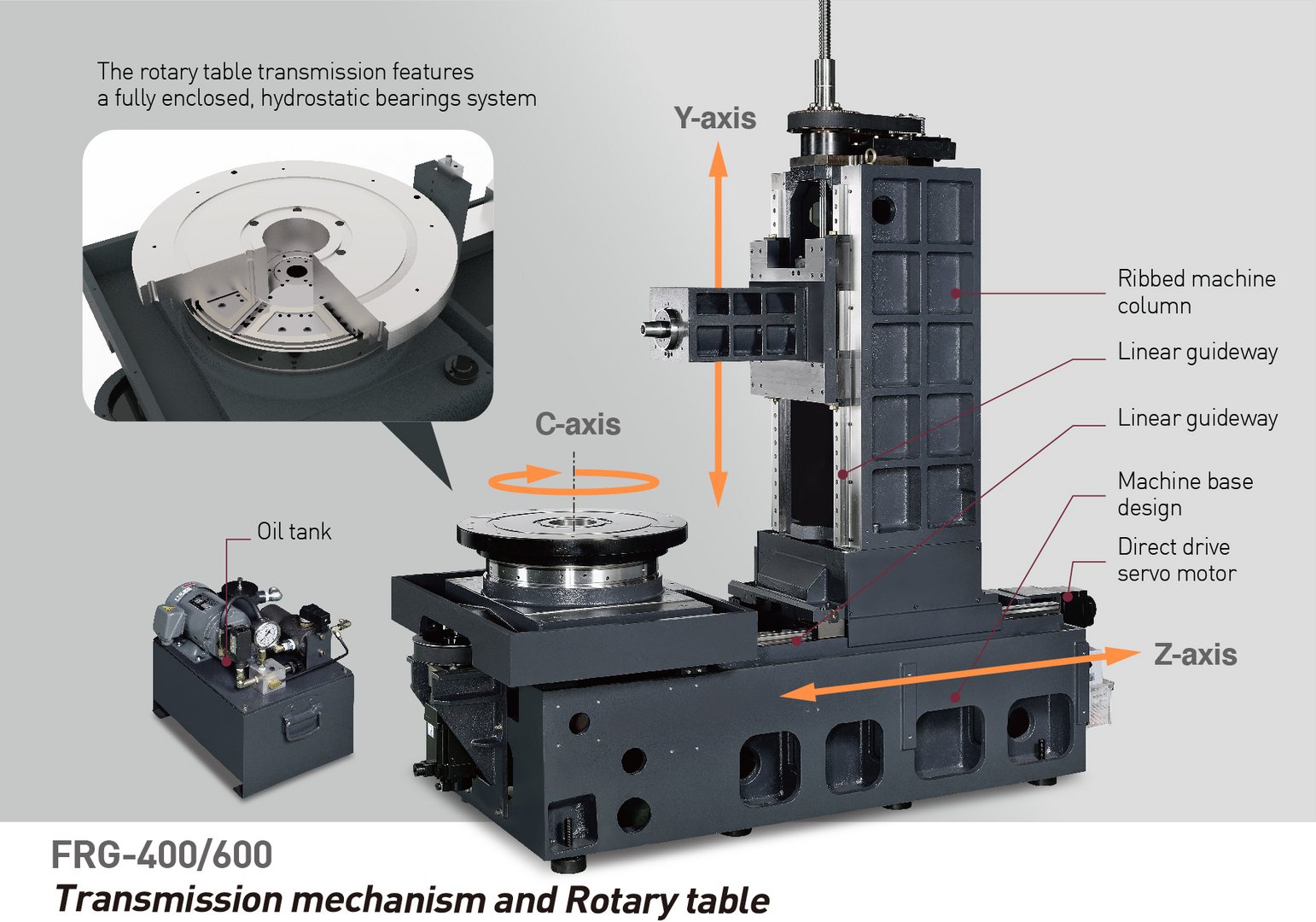

traveling column rib structure
AC servo motors für Y/Z axes and rotary table
1 pc. wheel flange

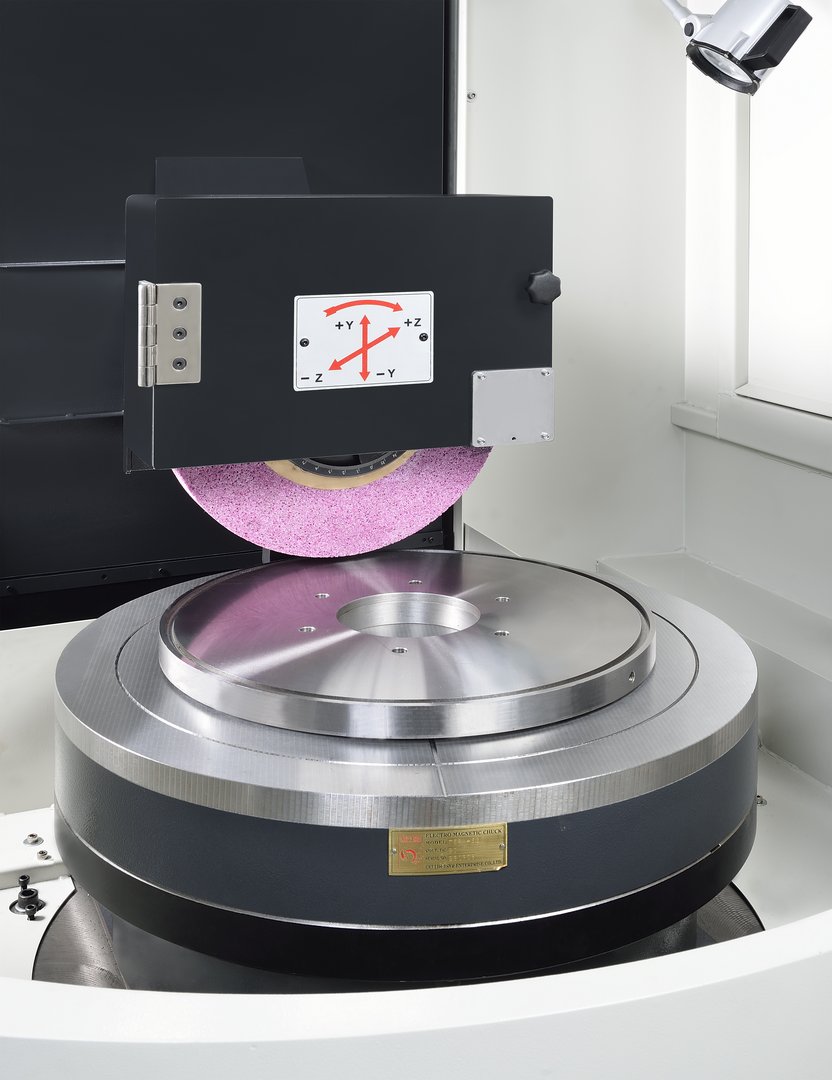

1 pc. grinding wheel Dm. 355 x 38 x Dm. 127 mm
Coolant equipment with automatic paper filter and magnetic separator
automatic dresser on the table, with compensation
fully enclosed splash guard
linear scale Fagor (0,001 mm) for downfeed axis

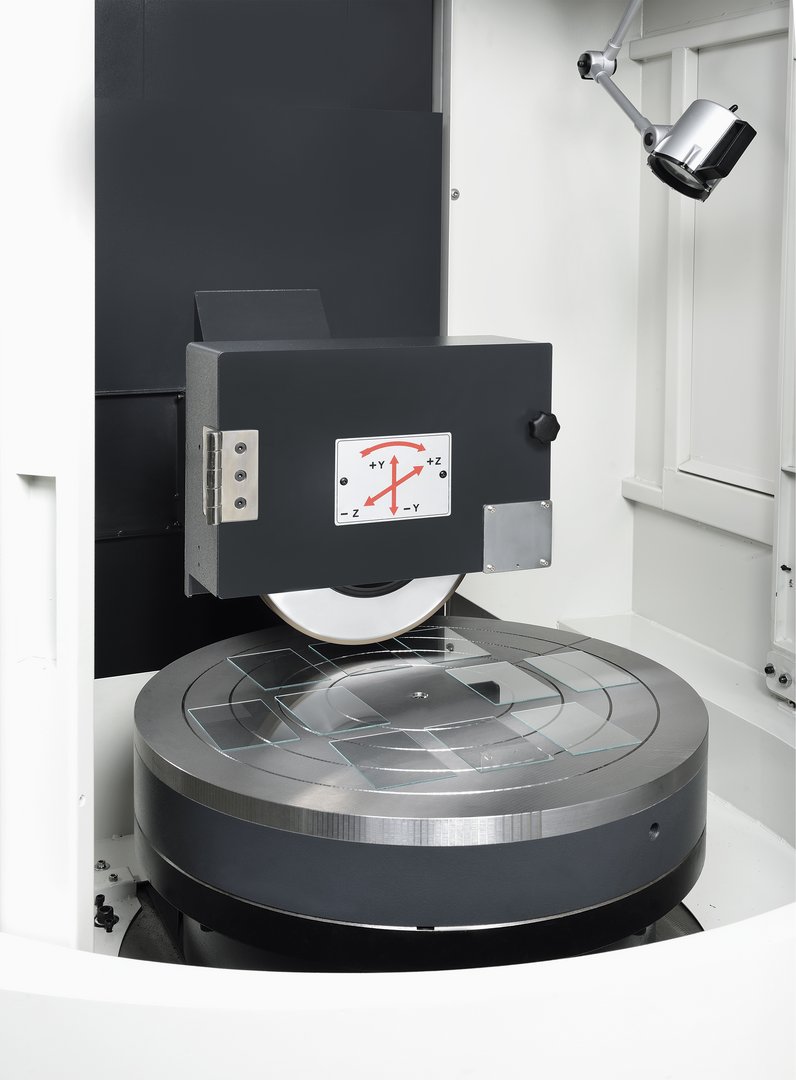

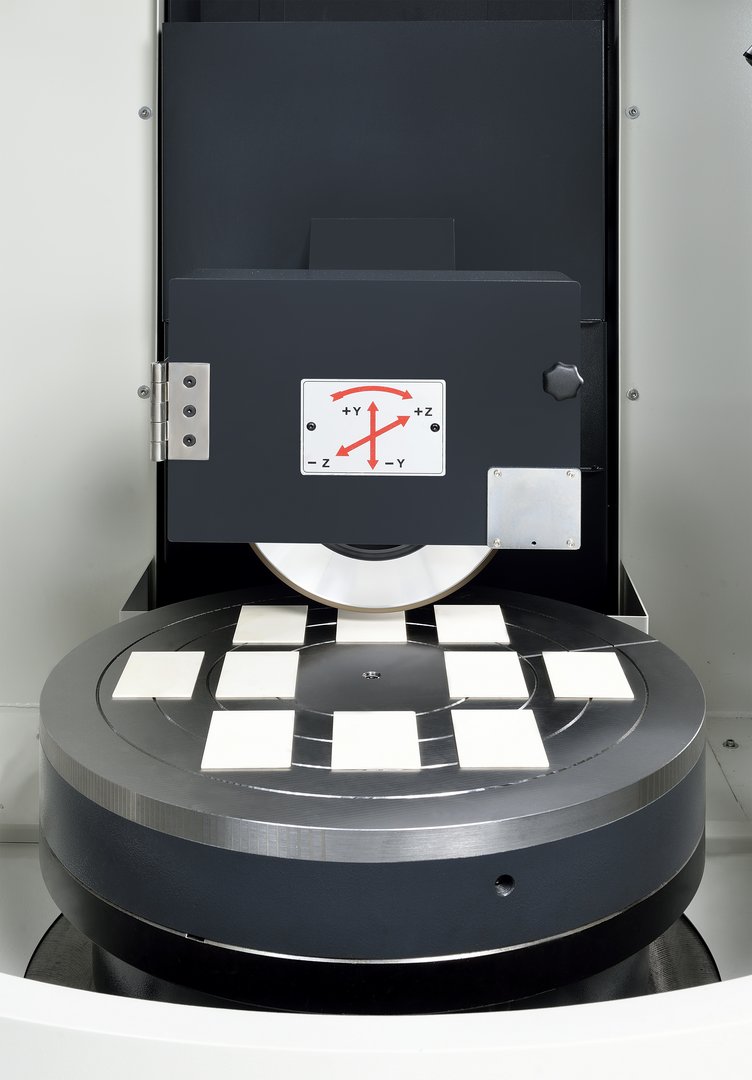

electromagnetic round chuck, fine pole pitch (1+3 mm)
working lamp
warning lamp
operating manual in German and English
Alternative:
model version FRG-600S with Smart iControl for profile grinding moreprice € 3.600,00
Further information
Product video

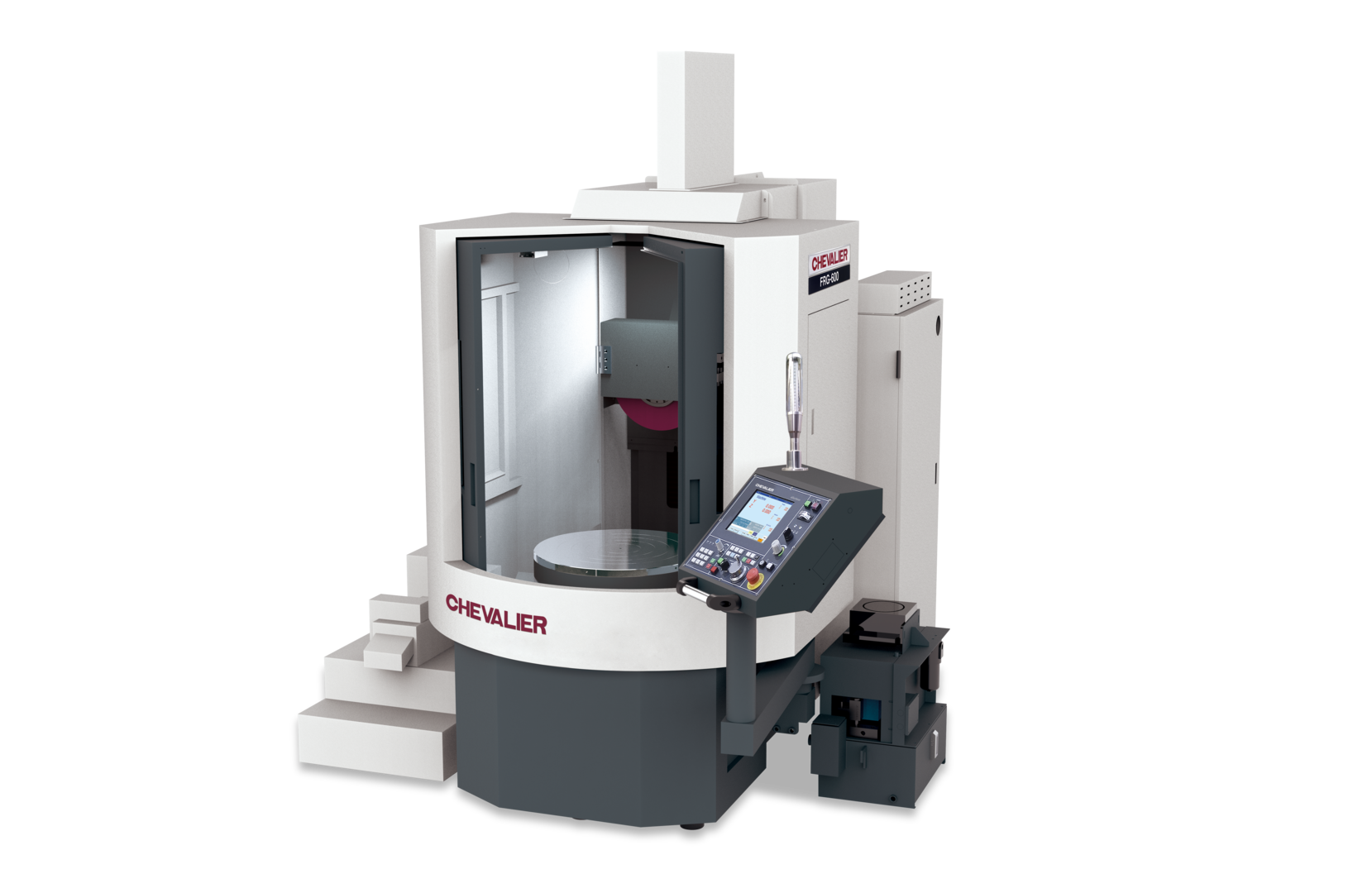

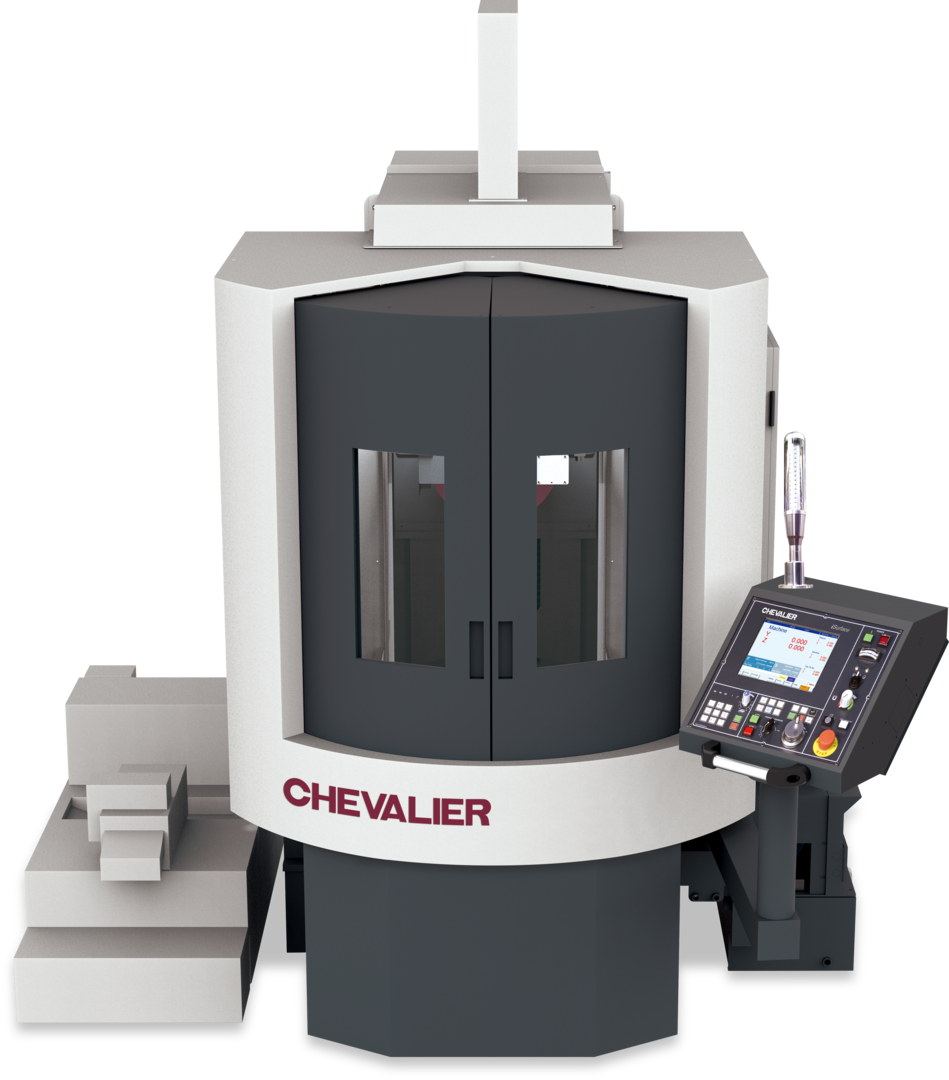

Rotary flat grinder FRG-600
