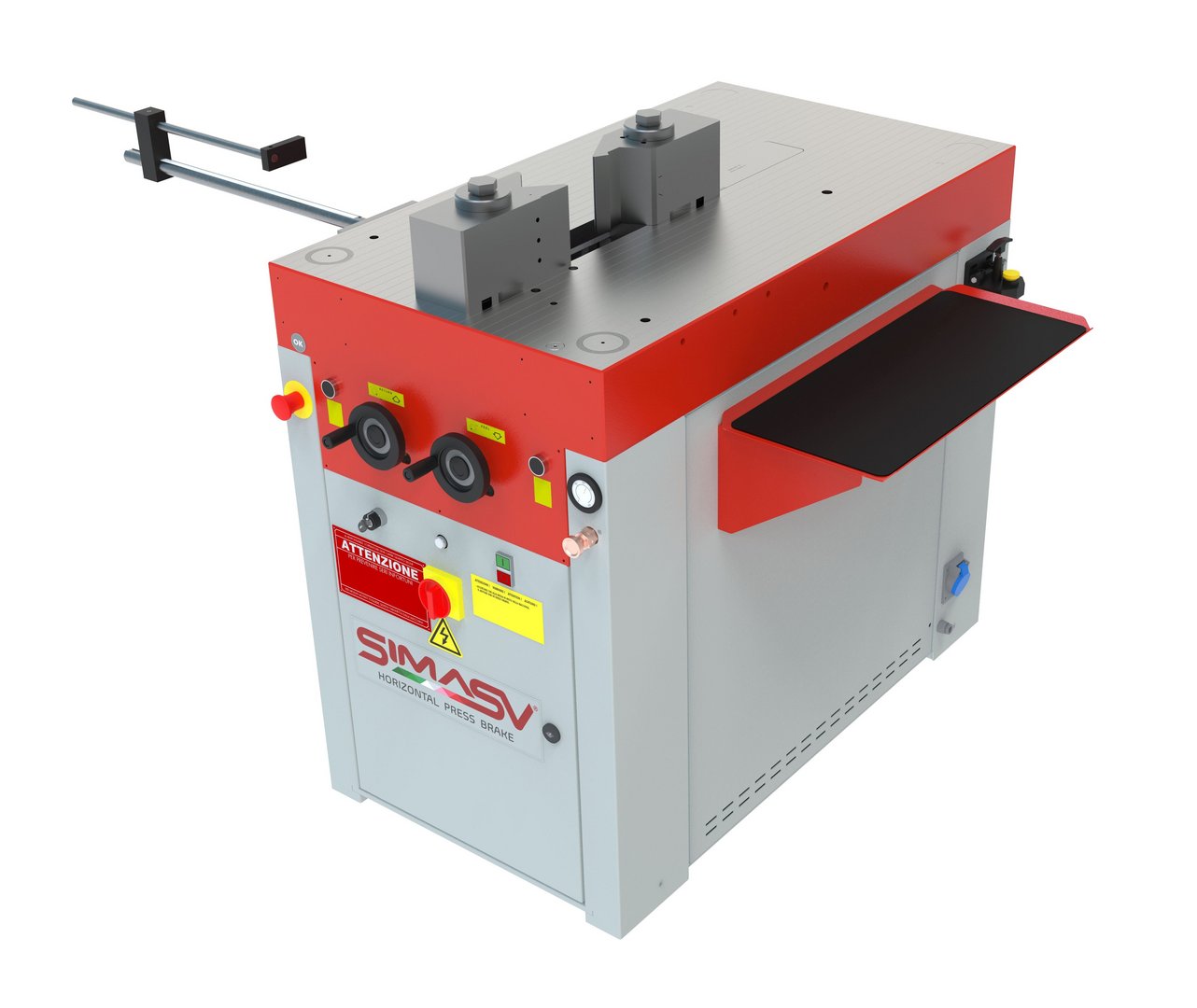

Horizontal bending machine SIMASV T 40 Super
| Model | T 40 Super |
| Brand | SIMASV |
| Condition | new |
| pressing capacity | 40 to |
| Stroke | 250 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 40 to |
| Stroke | 250 mm |
| Max. bending capacity - mild steel | 200 x 20 mm |
| Table | 1100 x 620 mm |
| Pin diameter | 55 mm |
| Working speed | 4,7 - 9,1 mm/s |
| Retraction speed | 45 mm/s |
| Oiltank | 45 l |
| Motor | 3 kW |
| Working height | 950 mm |
Dimensions and weight
| Length | 1250 mm |
| Width | 900 mm |
| Height | 1000 mm |
| Weight | 750 kg |
Description
2 holder pins, height 110 mm (higher ones on request)
Manual stop 500 mm with millimeter scale
Adjustable speed
2 handwheels for adjusting the stroke and retraction point
Precise hydraulic stroke adjustment, even under pressure
Two-hand operation

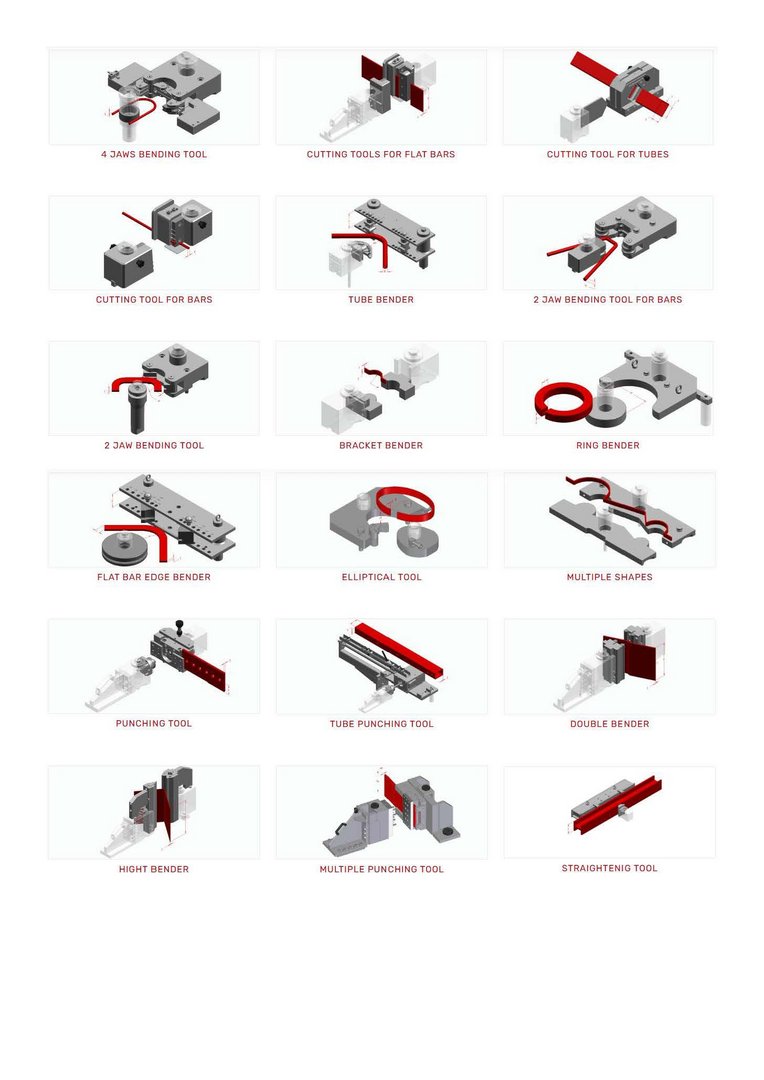

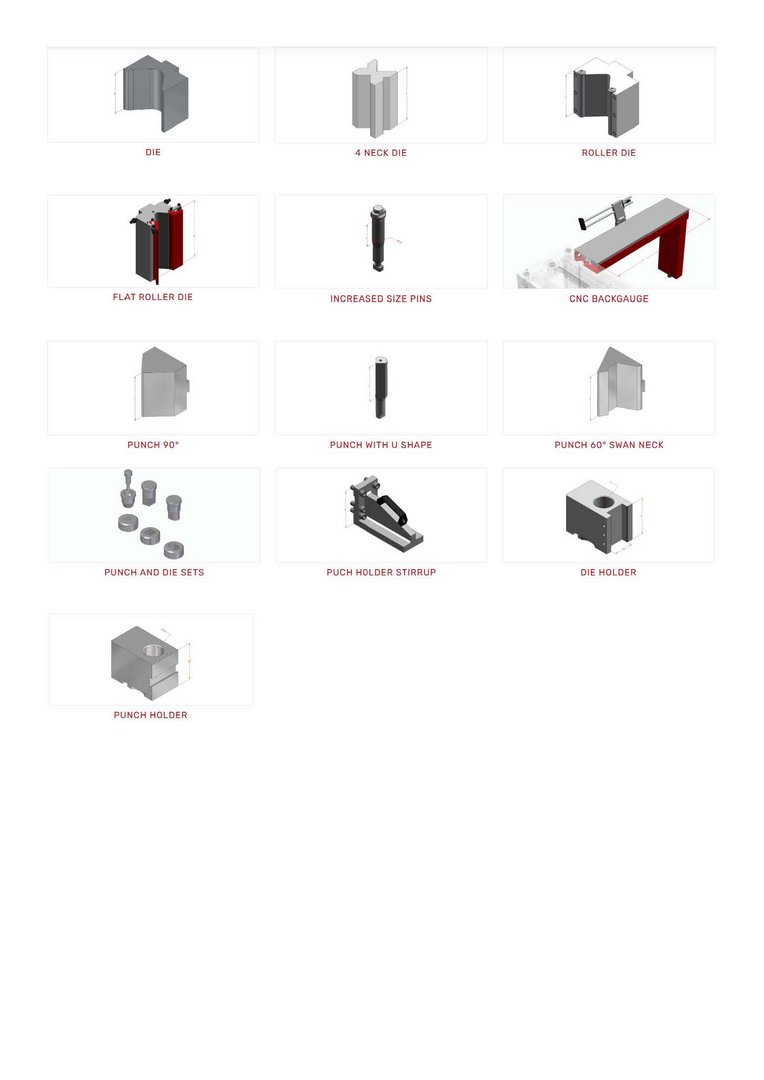

Huge range of tools, prices on request
Alternative:

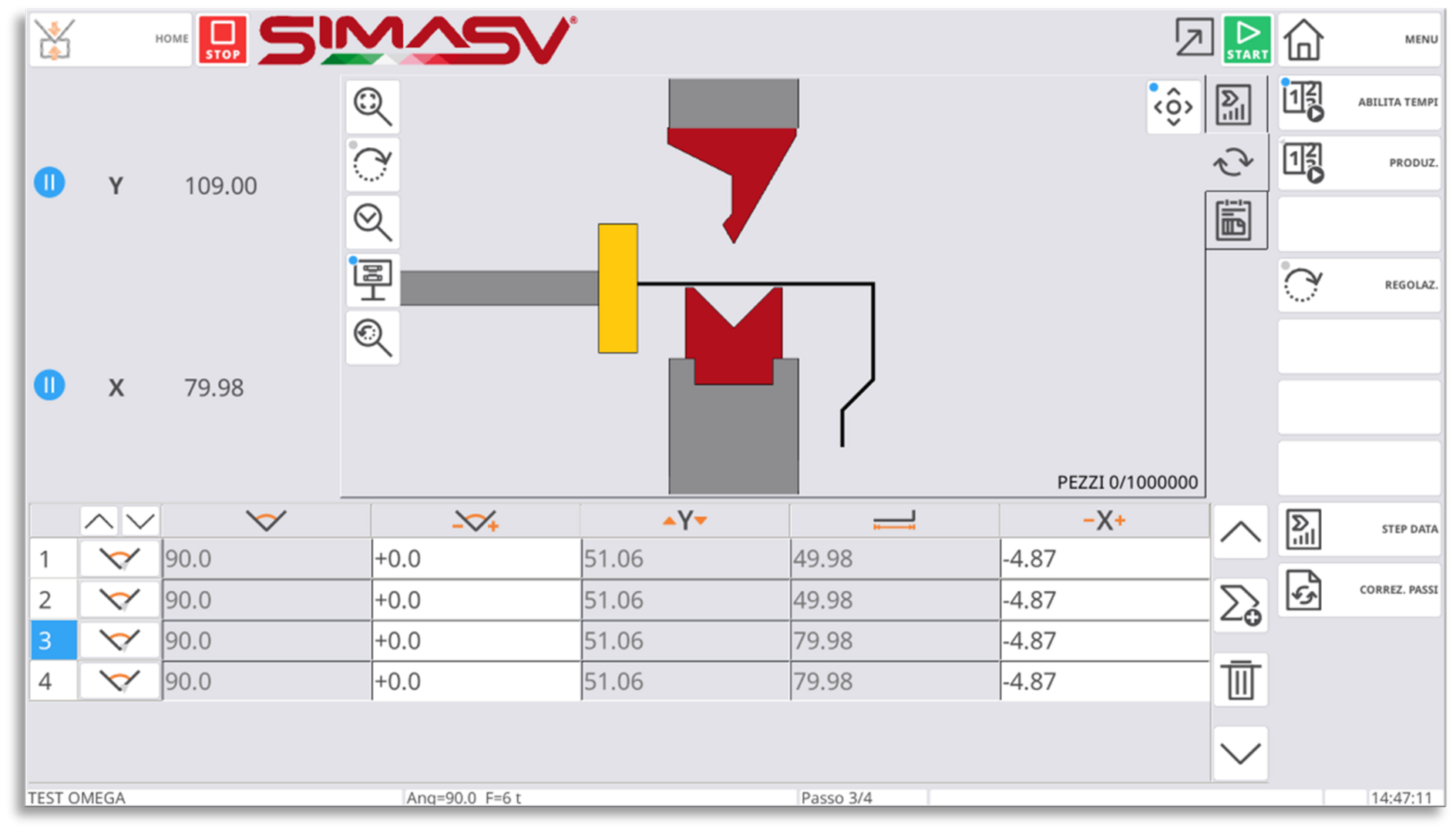

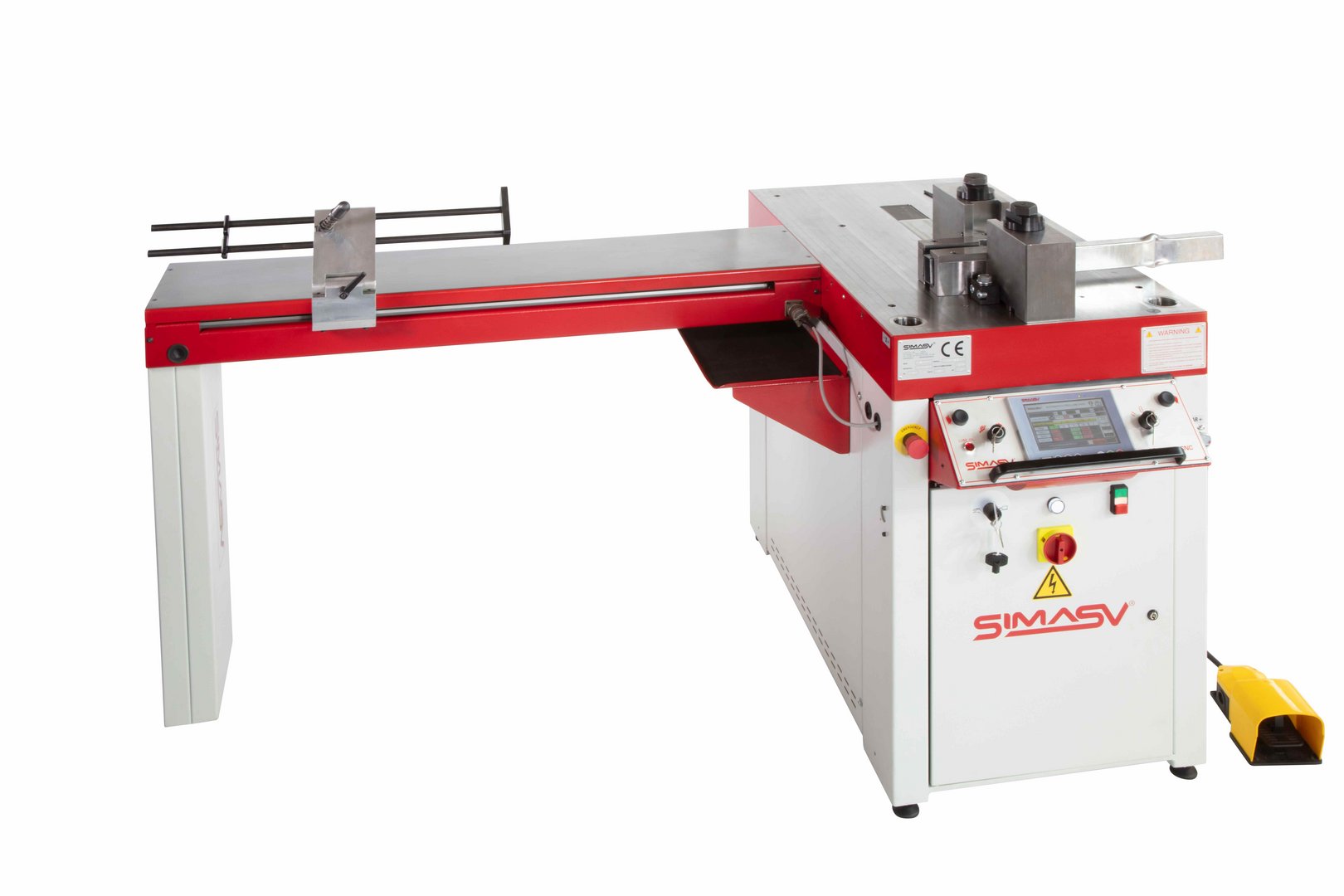

Version with CNC control
Further information
Brochures
Product video
Horizontal bending machine T 40 Super
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
