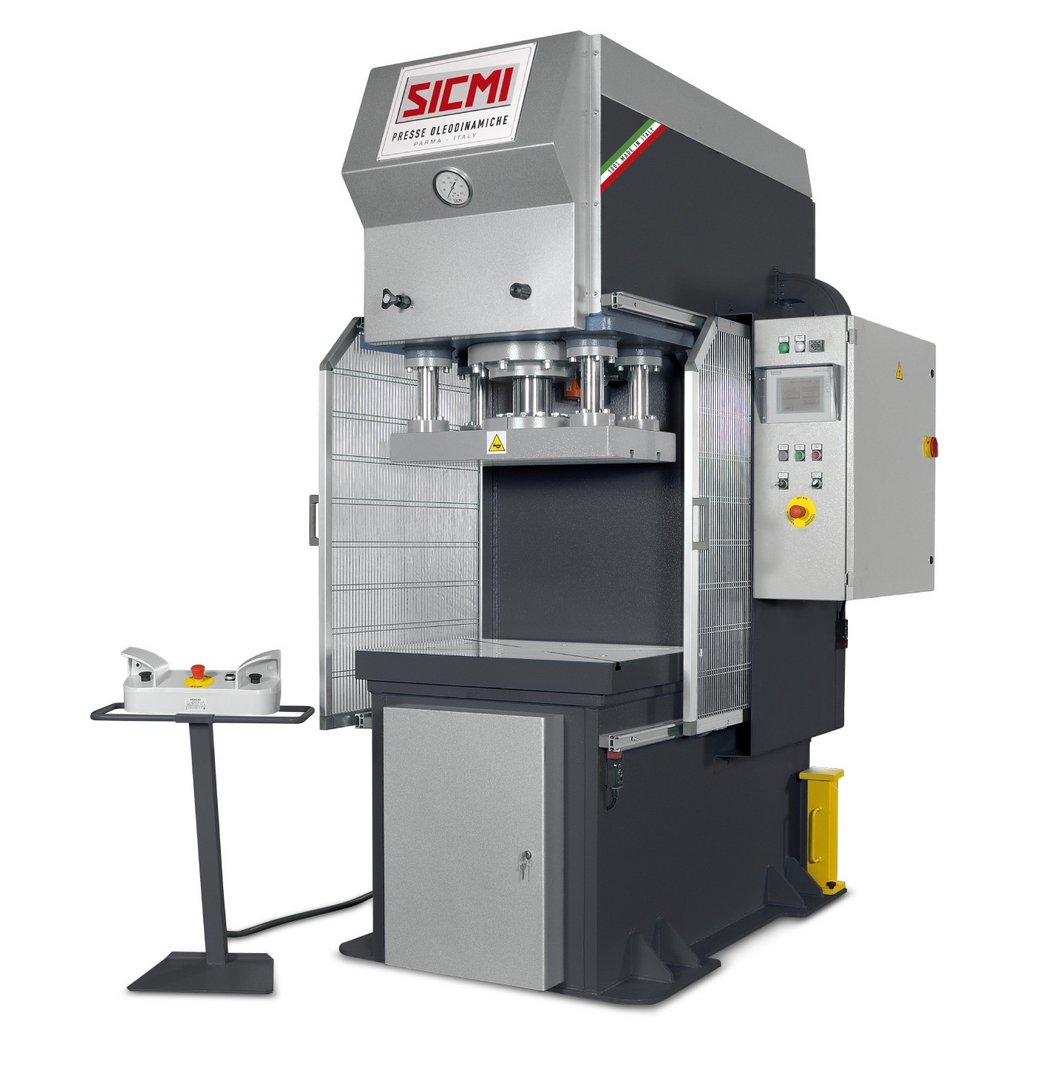

General characteristics
| pressing capacity | 60 to |
| Stroke | 500 mm |
| Ram | 700x350 mm |
| Table | 700x500 mm |
| Daylight | 600 mm |
| Throat depth | 250 mm |
| Rapid speed | 120 mm/s |
| Reduced speed | 38 mm/s |
| Working speed | 8 mm/s |
| Retraction speed | 58 mm/s |
| Motor | 5.5 kW |
Dimensions and weight
| Length | 1100 mm |
| Width | 1500 mm |
| Height | 2350 mm |
Description
4 guides for the slide
T-slots in the table
Rexroth hydraulic unit
Monitored electrovalves
Air/oil heat exchanger
Pressure switch
Double pushbuttons control
Stroke adjustment by limit switch microns
Siemens CPU
Lateral fixed protrection grates
CE certification following "IV enclosure"
Options (prices on request):
Blank holder
Prismatic guides
Frontal light curtain
CNC control Siemens with touchscreen
Hydraulic pump with variable flow
Proportional valves
Lateral sliding guides with security microns
