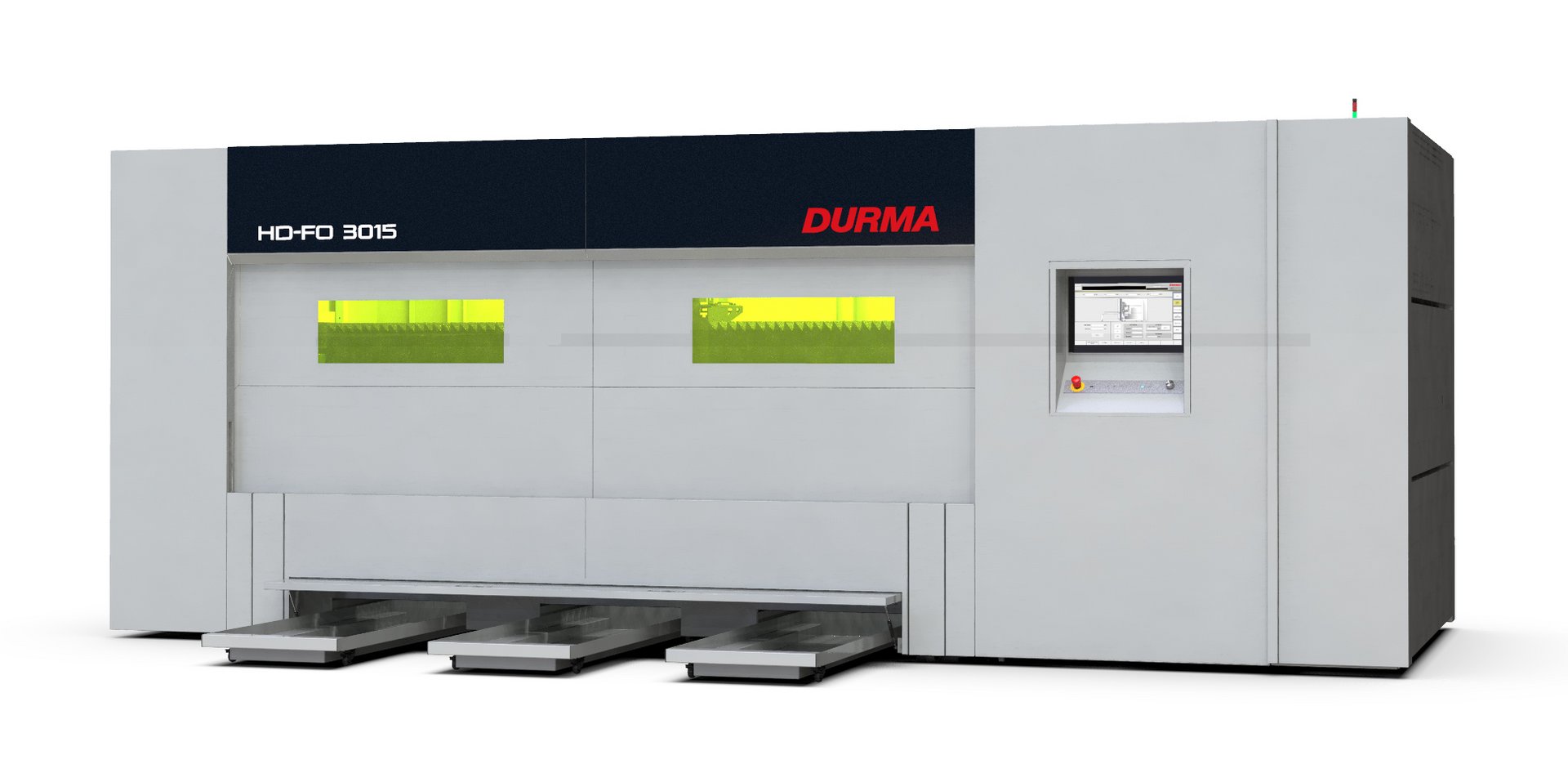

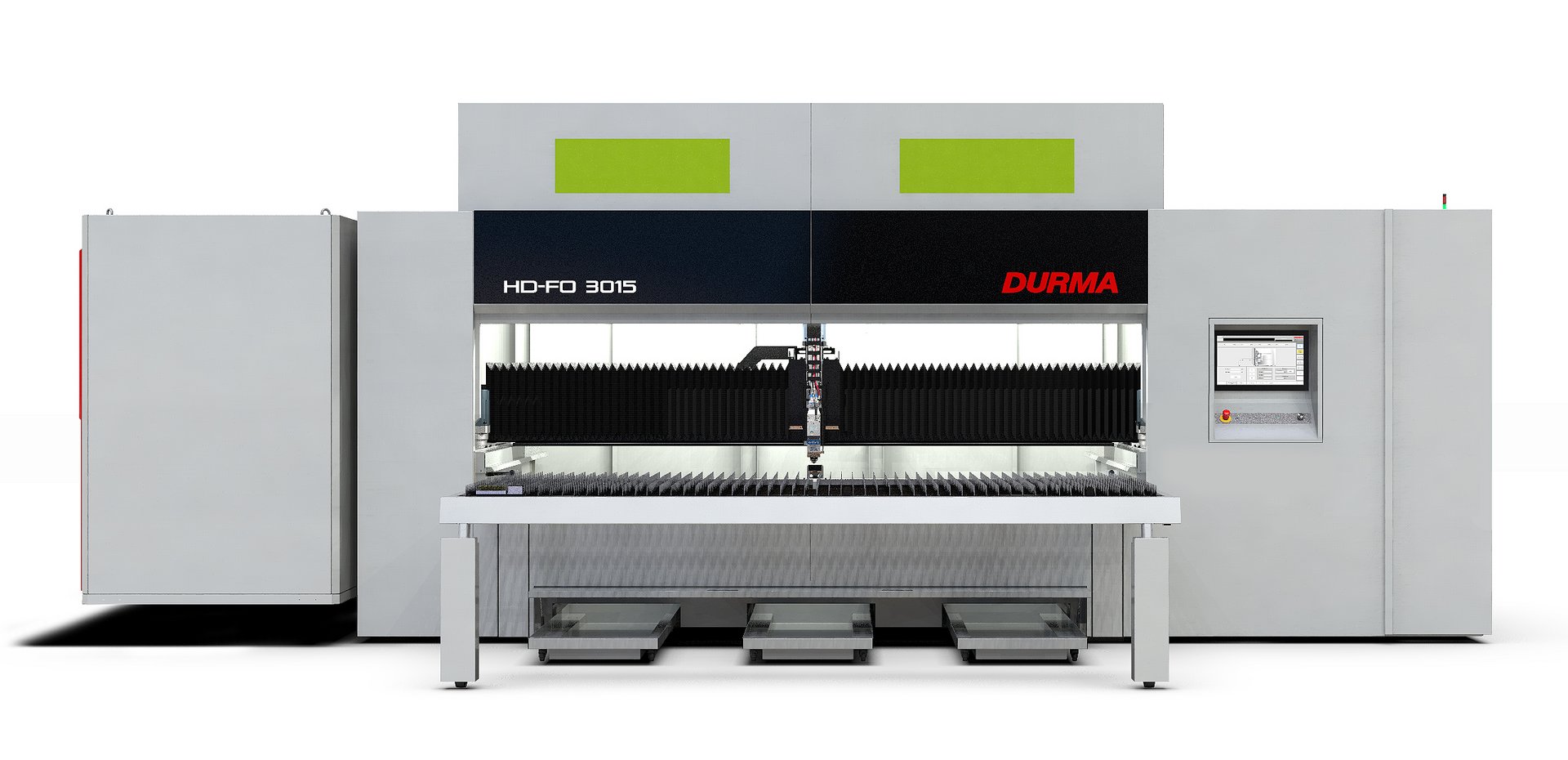

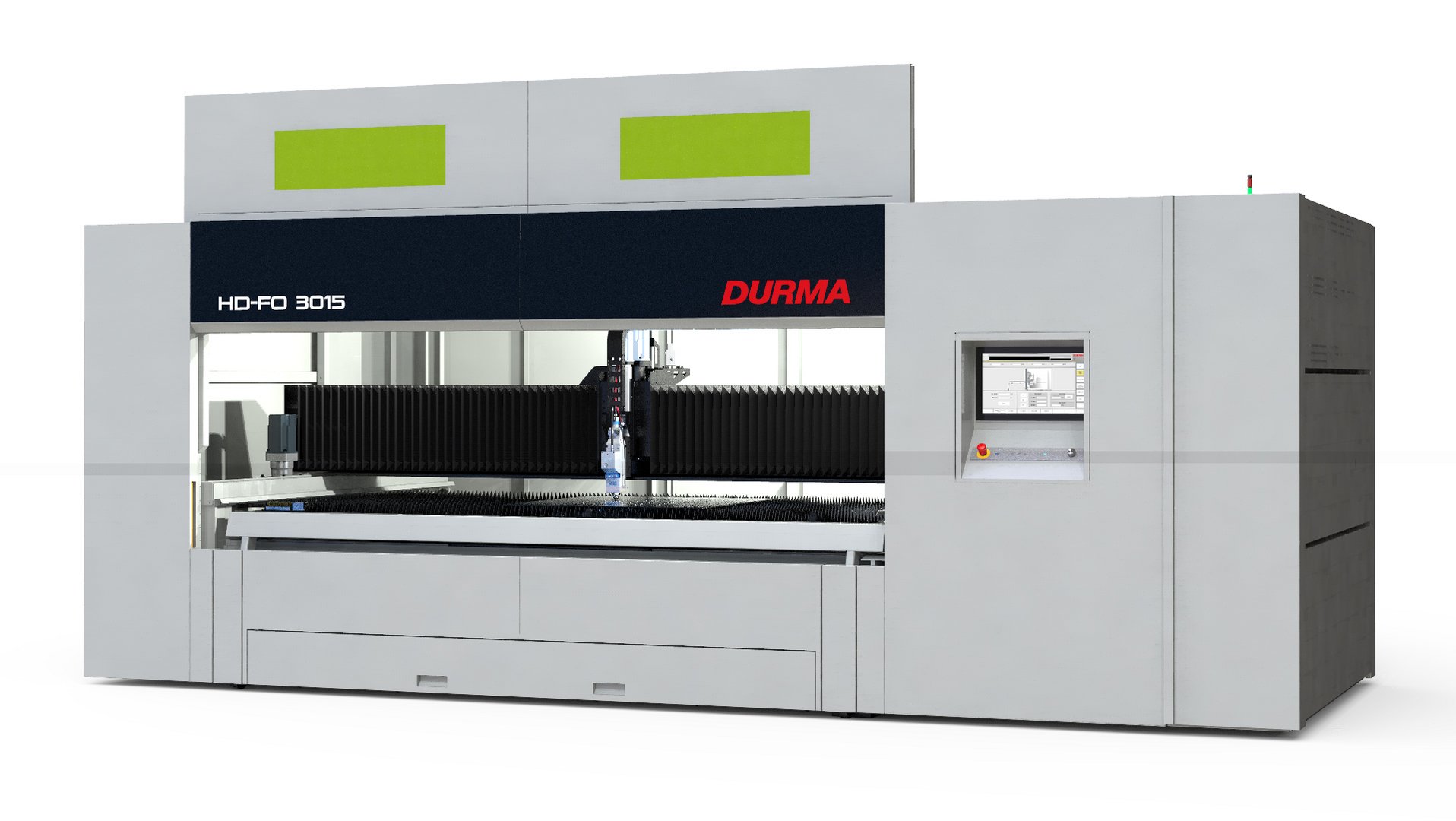

Fiber laser HESSE by DURMA HD-FO 3015
| Model | HD-FO 3015 |
| Brand | HESSE by DURMA |
| Condition | new |
| Cutting area | 3060 x 1530 mm |
| Laser power | 3 kW |
| Origin | Türkiye |
General characteristics
| Laser power | 3 kW |
| Manual table / shuttle table | Manual table |
| Max. sheet thickness - mild steel | 16 mm |
| Max. thickness - stainless steel | 8 mm |
| Max. thickness - aluminium | 8 mm |
| Max. Application Range - Copper | 5 mm |
| Max. Application Range - Brass | 8 mm |
| Cutting area | 3060 x 1530 mm |
| X-axis | 3060 mm |
| Y-axis | 1530 mm |
| Z-Axis | 140 mm |
| Max. Sheet size | 3048 x 1524 mm |
| Max. sheet weight | 160 kg/m² |
| Max speed x-axes | 90 m/min |
| Max speed y-axes | 90 m/min |
| Max. speed simultaneous | 127 m/min |
| Max. acceleration | 14 m/s² |
| Positioning accuracy | +/- 0,05 mm |
| Repeat accuracy | +/- 0,05 mm |
Dimensions and weight
Description
The HD-FO is our compact entry-level model. Control, laser source and cooling are integrated into the system to keep the overall dimensions as small as possible.
The manually extendable table is moved out of the side of the machine for loading and unloading.
The cutting head has automatic focus adjustment.
This makes the system a particularly economical, fast and very easy to operate production machine.
The system consists of the following components:
Manual loading and unloading table
Encapsulated cutting room with protective glazing
CNC graphic control with touchscreen
Laser source Brilase Premium DRM-8 F150
Cutting head with automatic focus adjustment
Integrated cooling unit for cutting head and laser source
CAD/CAM software LANTEK for programming including autonesting
Positioning laser
Sheet check system (automatic detection of sheet position and dimensions)
Automatic nozzle cleaning
Slug box
Working area lighting
Multi-chamber suction system
Remote maintenance access
Aircondition for electrical cabinet
Equipped according to CE guidelines
Alternative laser sources:
| Material | 4 kW | 6 kW |
| Mild steel S235 | 20 | 25 |
| Stainless steel (304) | 10 | 15 |
| Aluminium (5083) | 12 | 20 |
| Copper | 6 | 10 |
| Brass (CuZn39 Pb3) | 10 | 12 |
Options:
Suction unit with filter
Shuttle table
Further information
Product video
Fiber laser HD-FO 3015
