General characteristics
| Swing over bed | 600 mm |
| Distance between centers | 2000 mm |
| Centre height | 300 mm |
| Spindle bore | 80 mm |
| swing over cross slide | 400 mm |
| Width of bed | 400 mm |
| Spindle nose / DIN55027 | 8 |
| Spindle taper | 90 M |
| Spindle speed steps | 21 |
| Spindle revs | 20 - 2000 rpm |
| Number of feeds | 120 |
| Longitudinal feed range | 0.04 - 12 mm/r |
| Cross feed range | 0.02 - 6 mm/r |
| Number of threads | 64 |
| Metric thread range | 0.5 - 120 mm |
| Inch thread range | 60 - 1/4 Tpi |
| Module thread range | 0.125 - 30 |
| Cross slide travel | 315 mm |
| Top slide travel | 130 mm |
| Tailstock quill diameter | 90 mm |
| Tailstock quill taper | 5 MK |
| Tailstock travel | 230 mm |
| Motor power | 7.5 kW |
Dimensions and weight
| Length | 3600 mm |
| Width | 1250 mm |
| Height | 1400 mm |
| Weight | 3110 kg |
Description

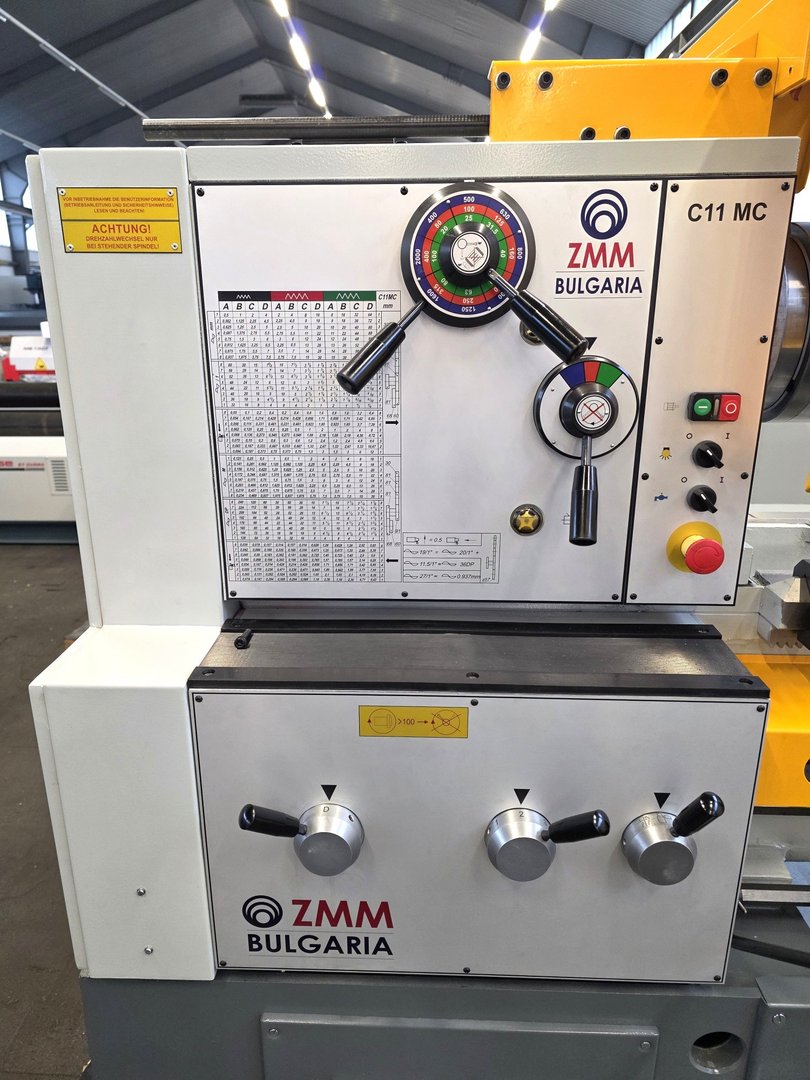

driven by conventional gearbox

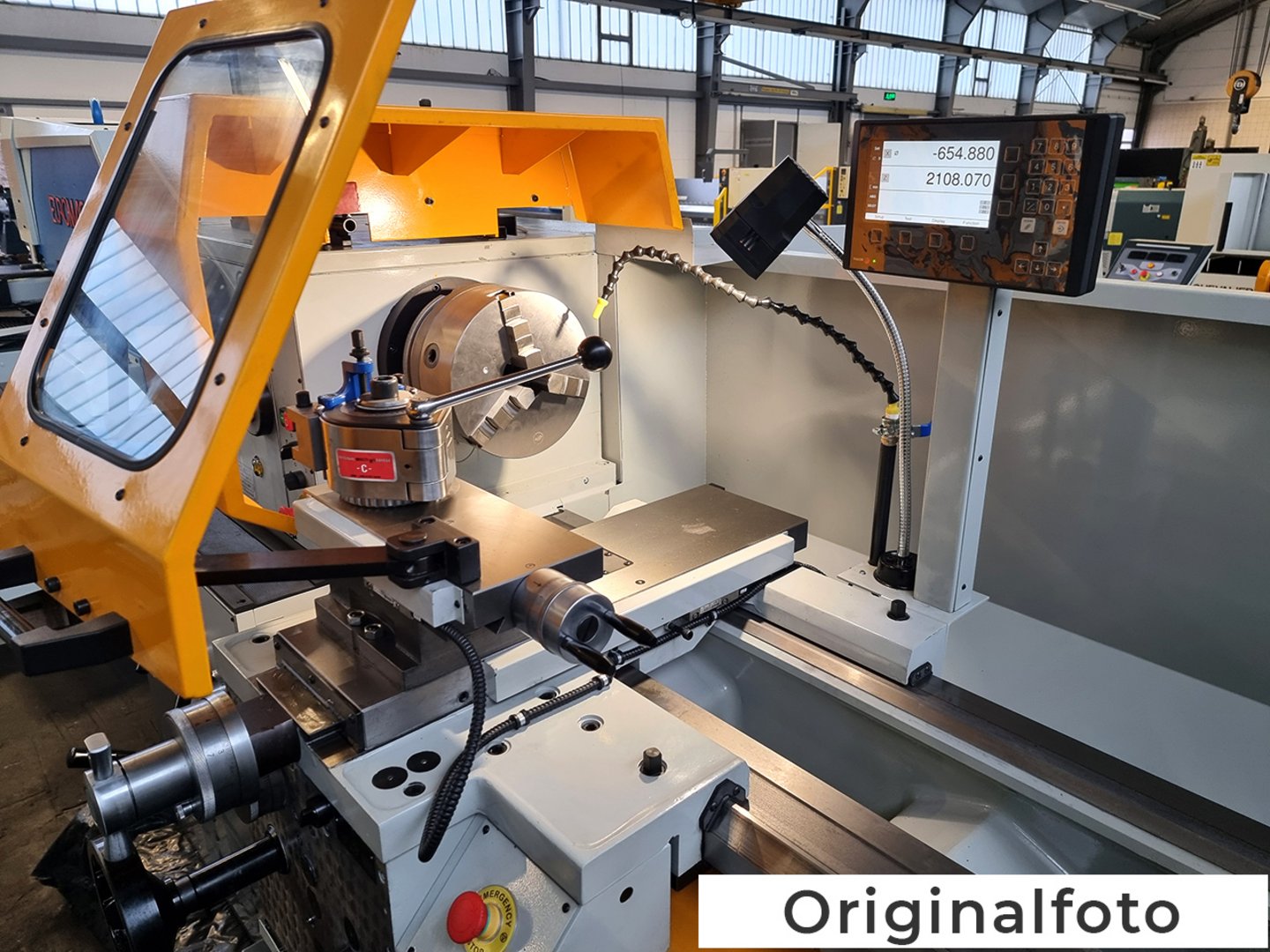

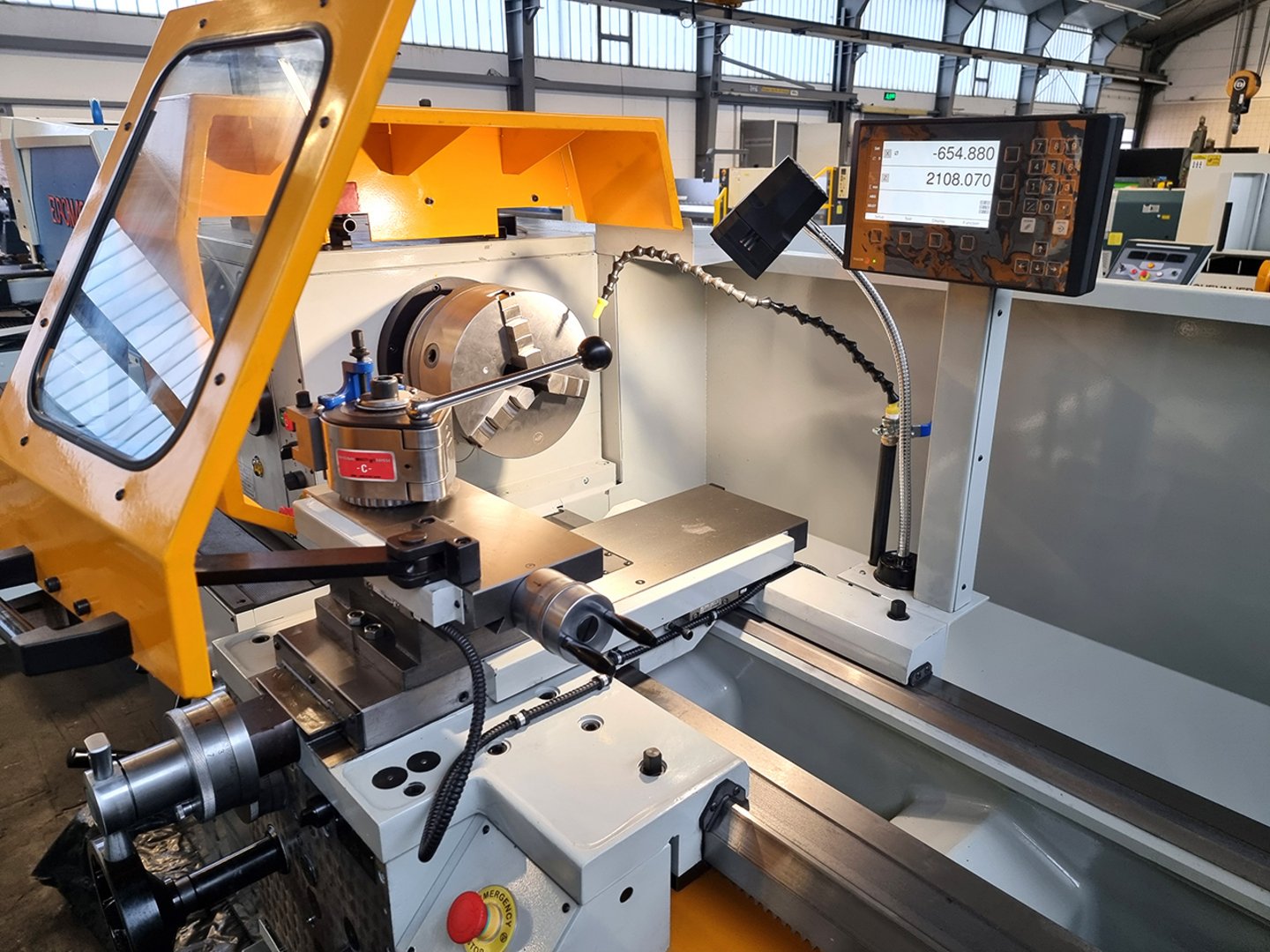

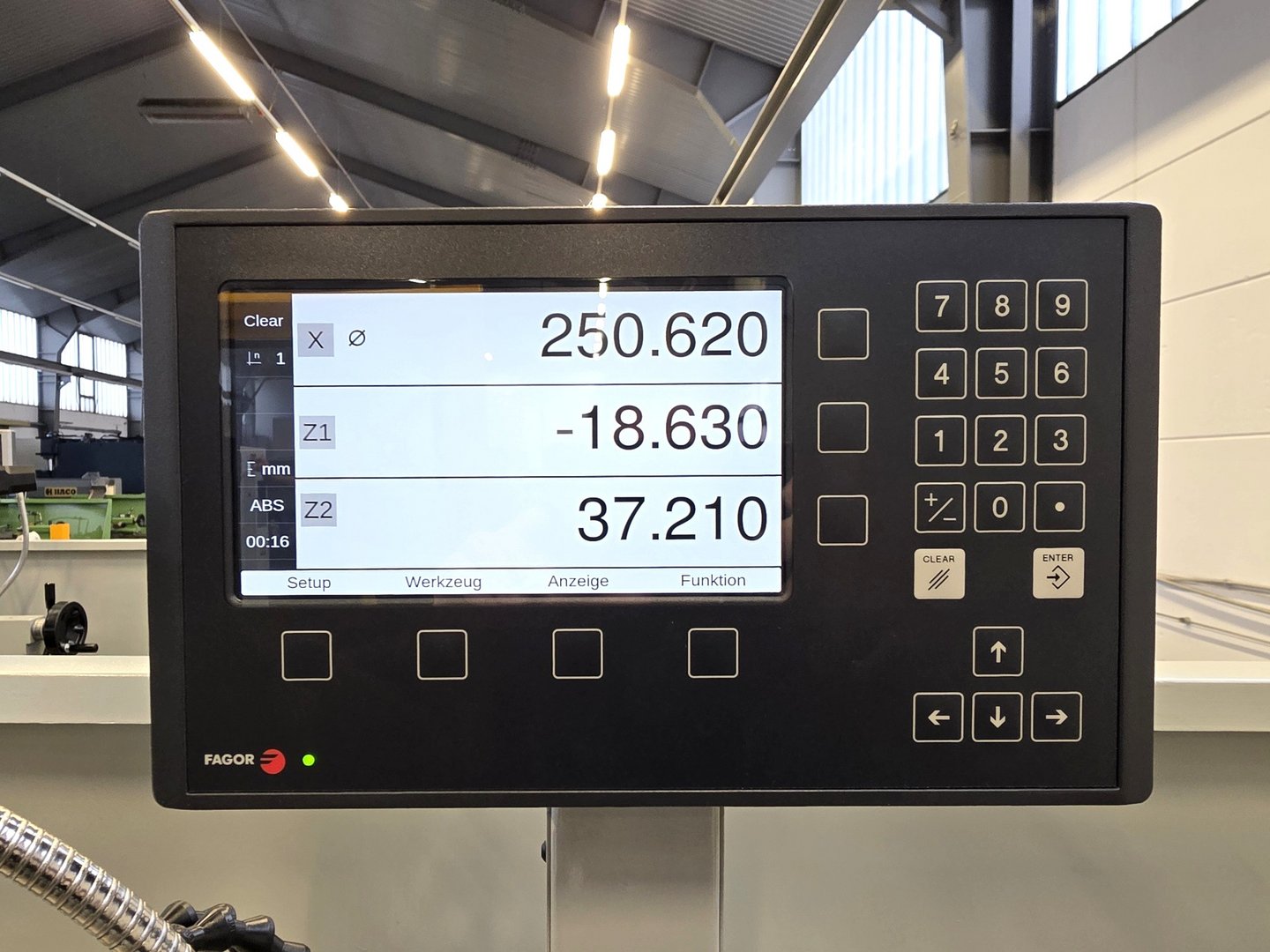

3-axes digital readout Fagor 40i

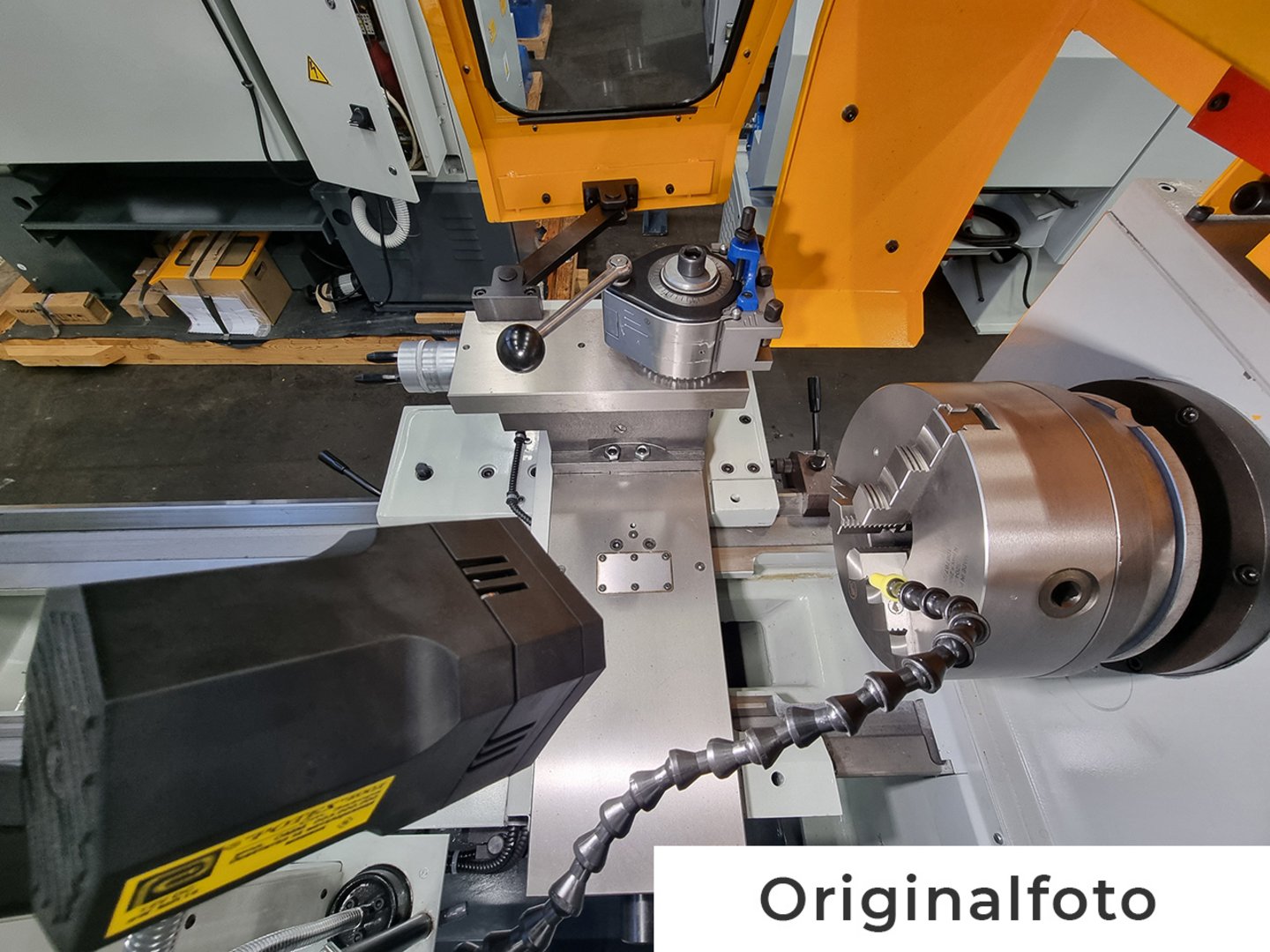

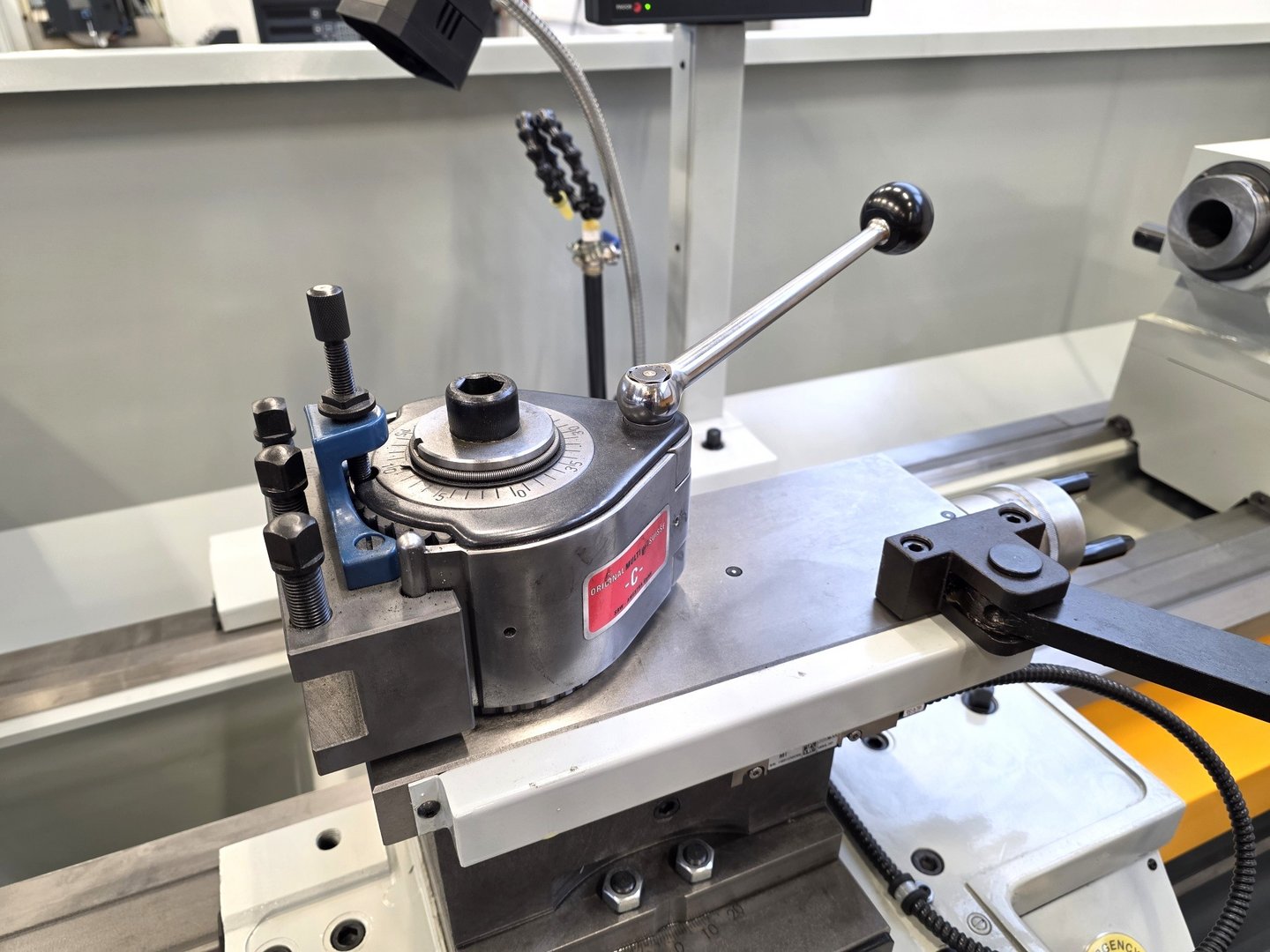

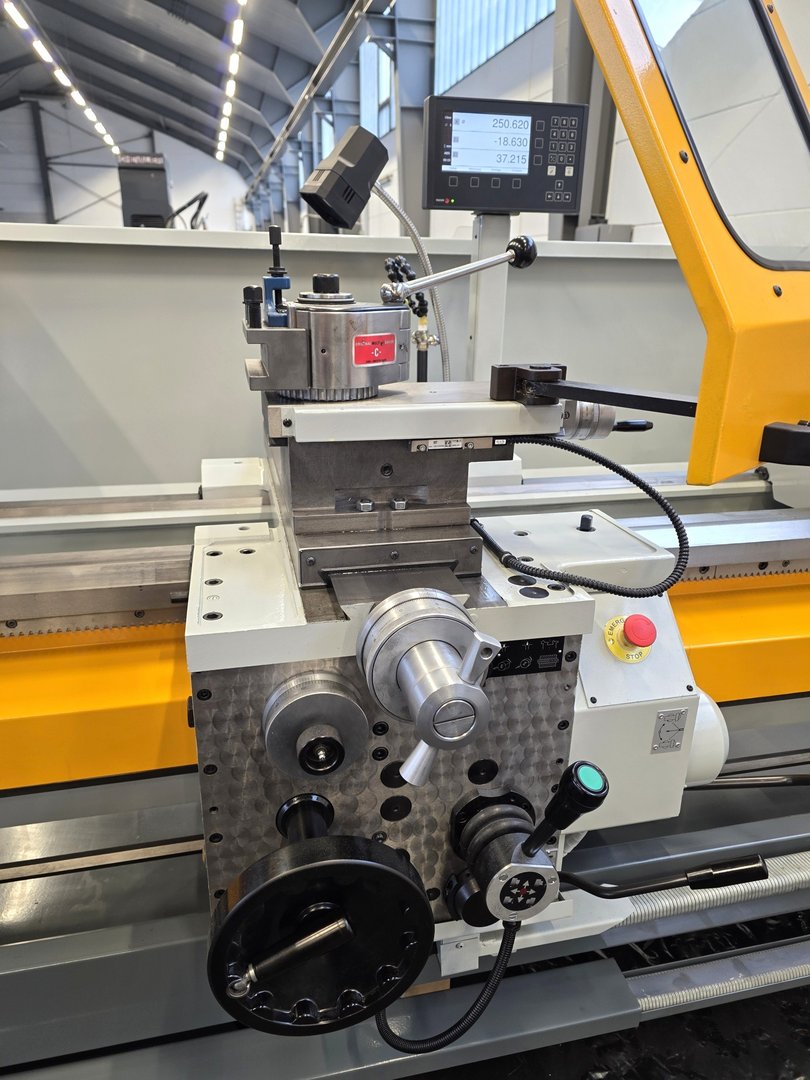

quick change toolpost Amestra Multisuisse type C with 4 holders (3 square, 1 round)

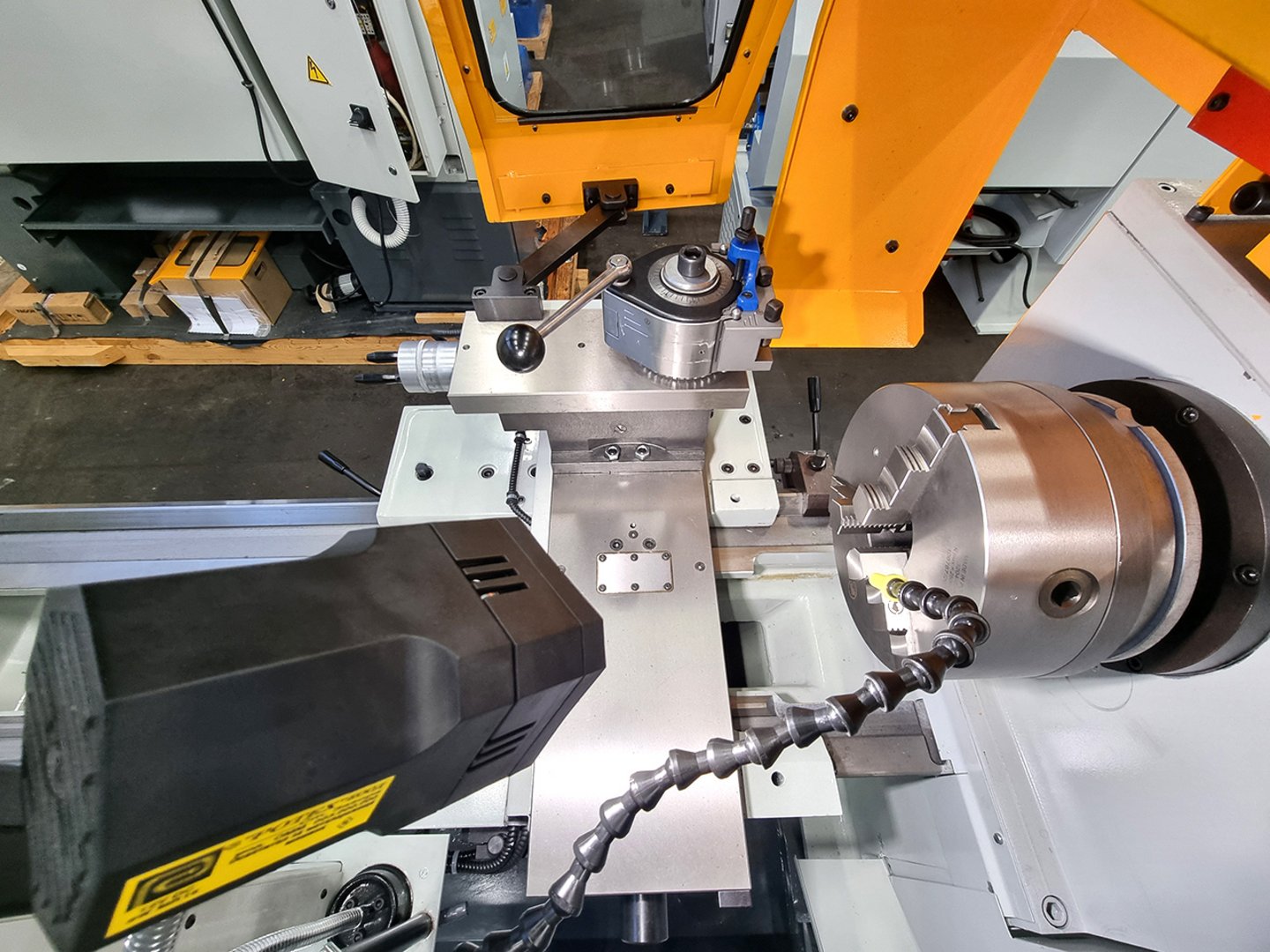

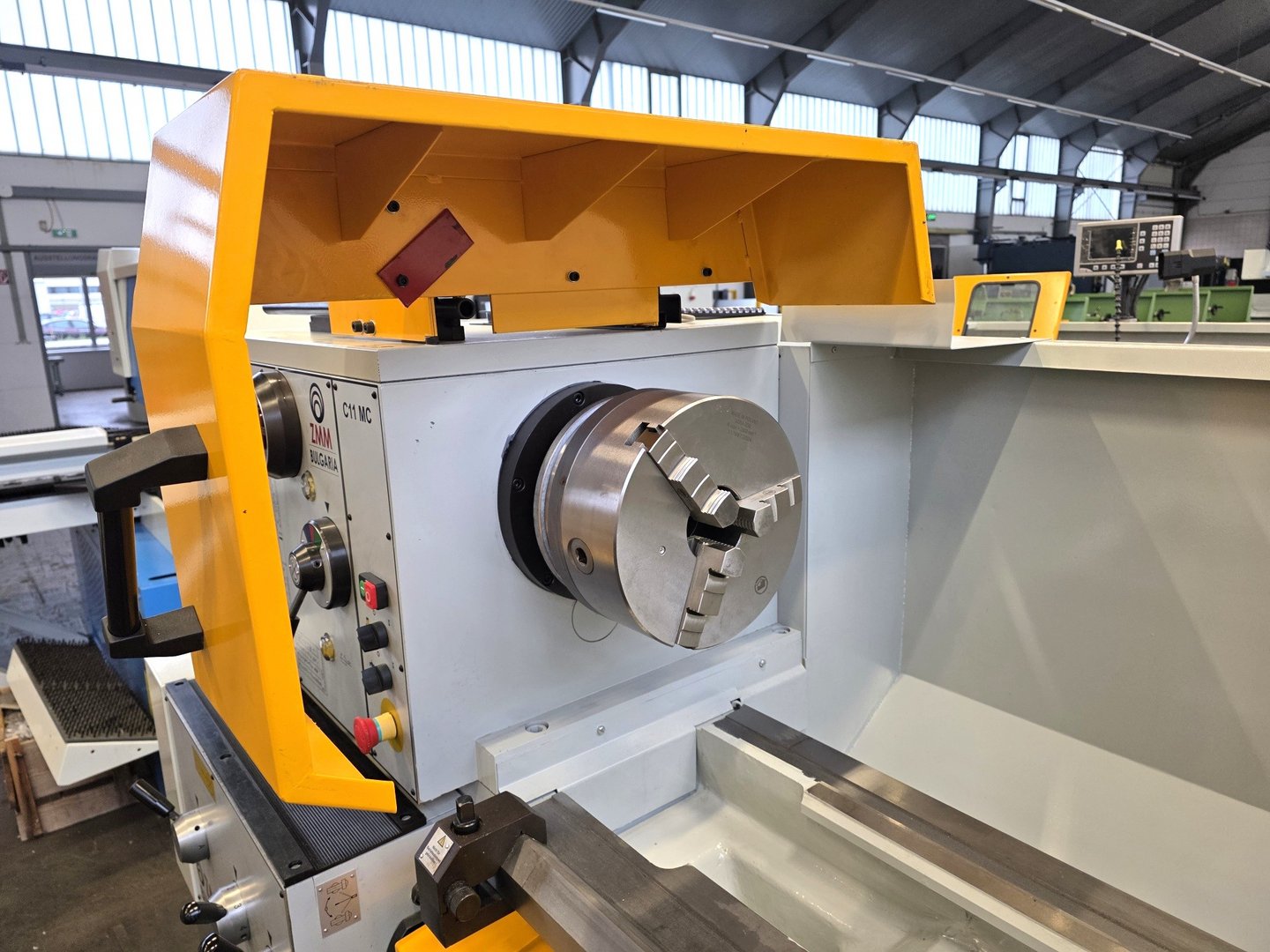

3-jaw chuck Bison 3204/DIN6350, Ø 250 mm
spindle dead center
four way rapid traverse device
electromagnetic brake
longitudinal stop for 1 position
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates

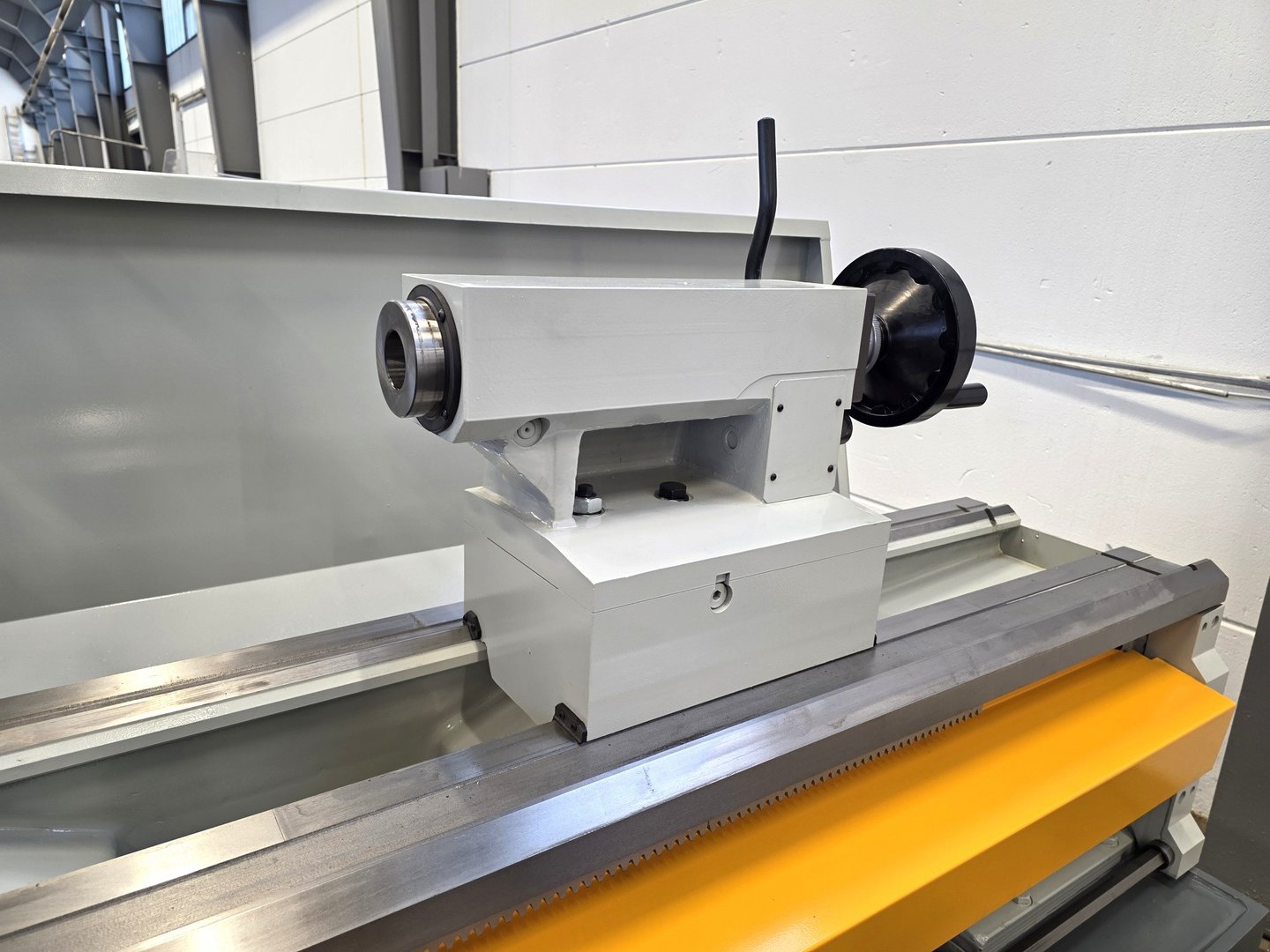

quick release tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further turning lengths:
| turning length 1.000 mm | € 42 .660,- |
| turning length 1.500 mm | € 43.640,- |
| turning length 3.000 mm | € 49.780,- |
| turning length 4.000 mm | € 54.870,- |
| turning length 5.000 mm | € 69.240,- |
Further information
Product video

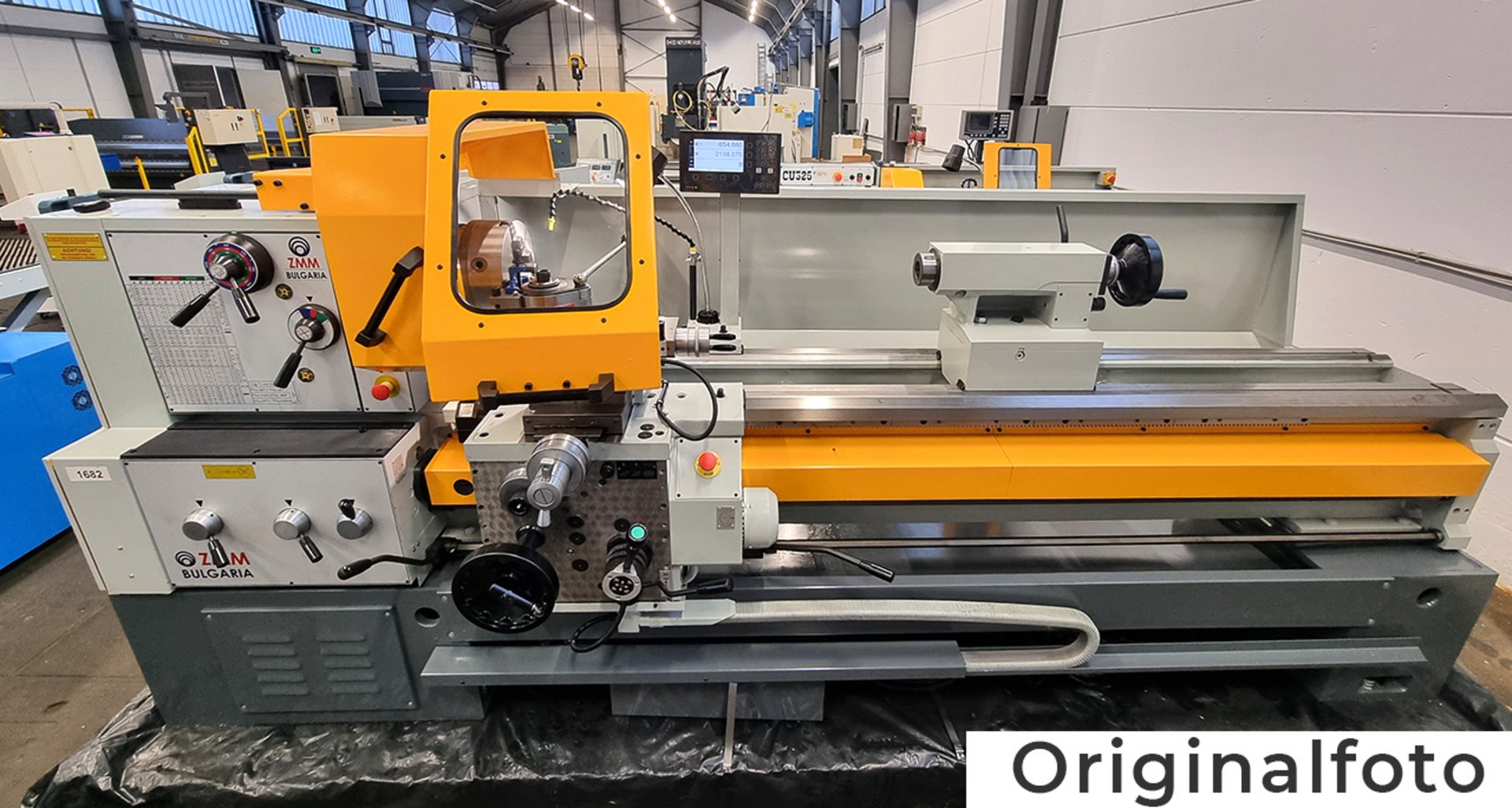

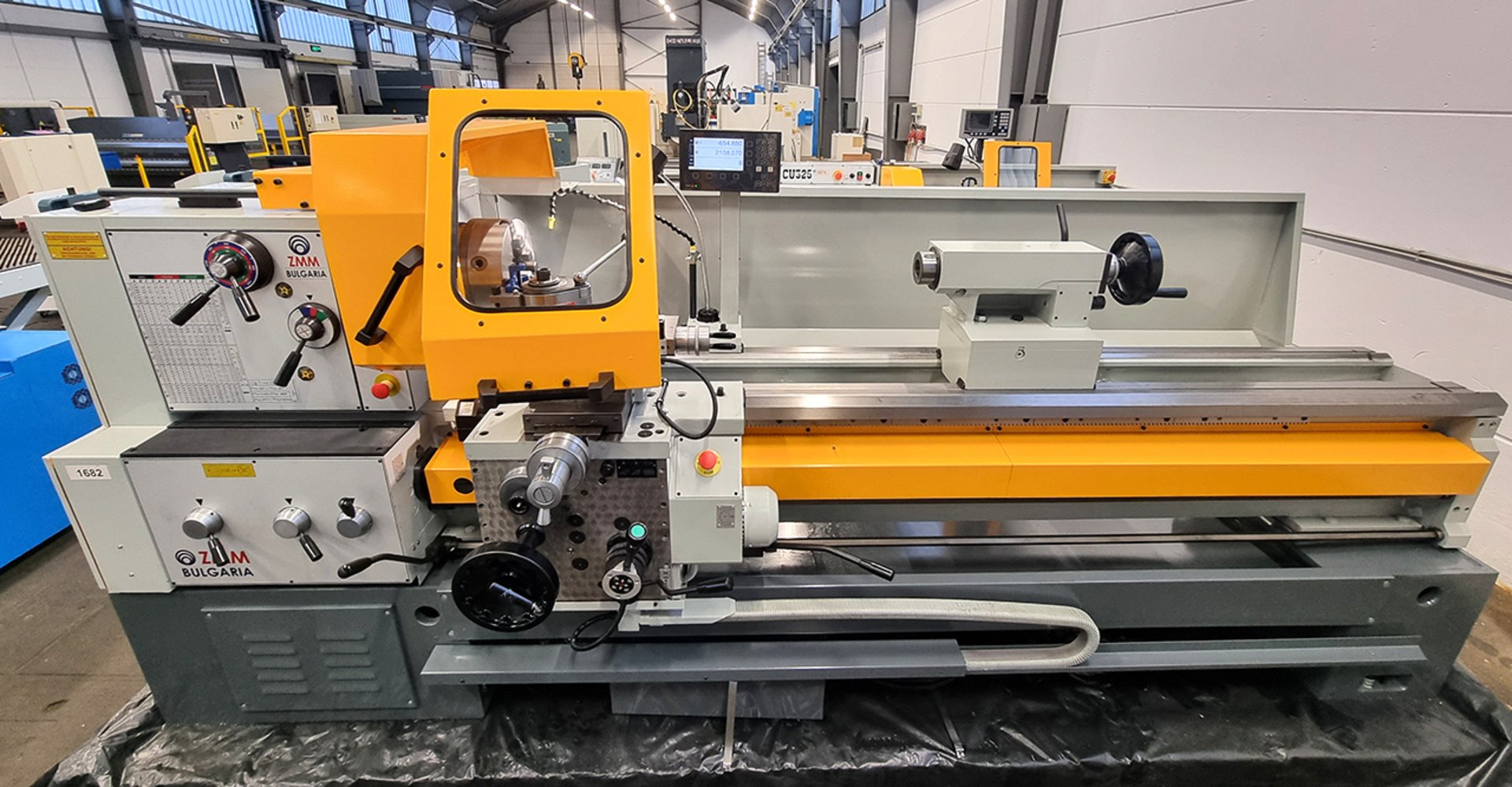

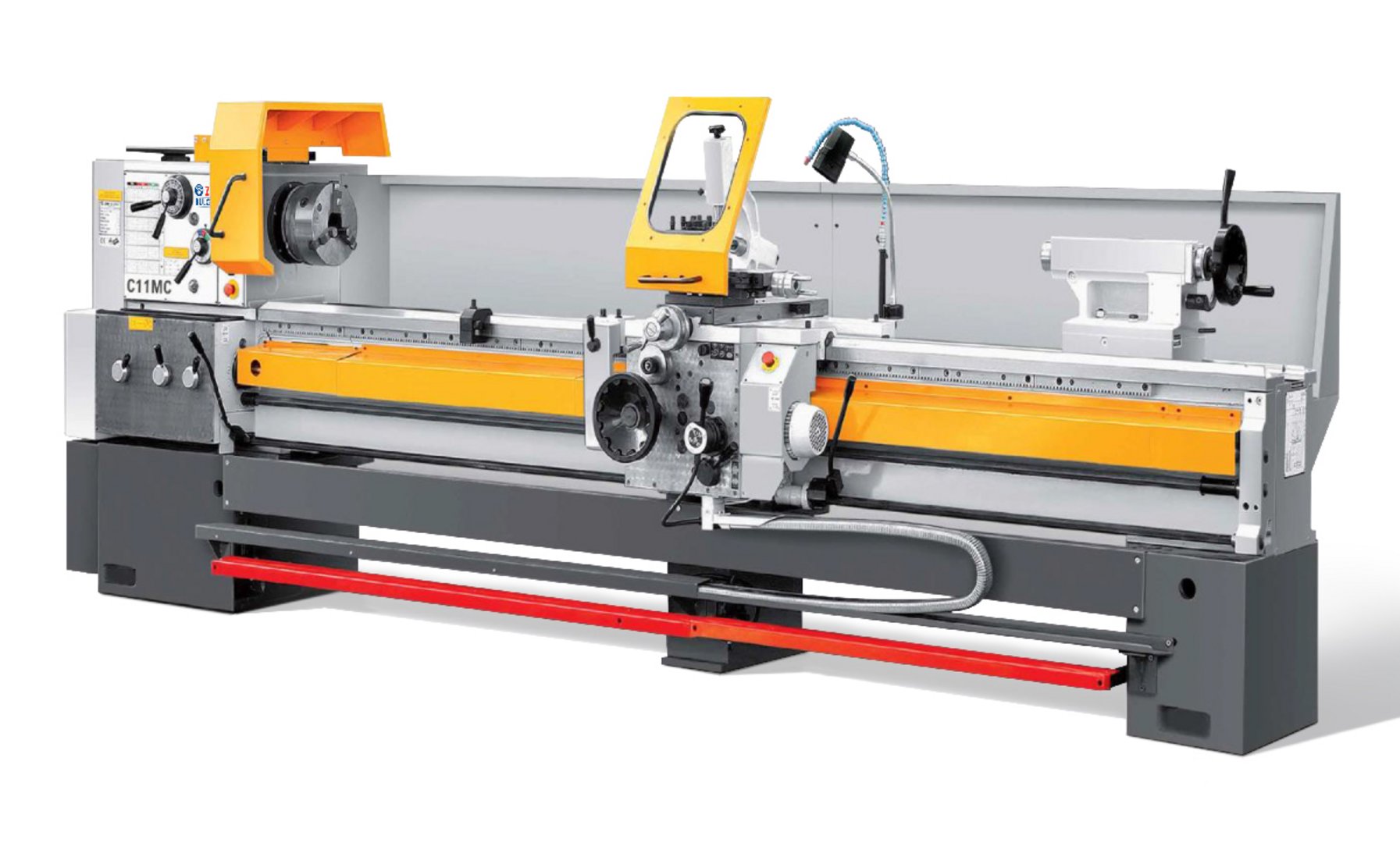

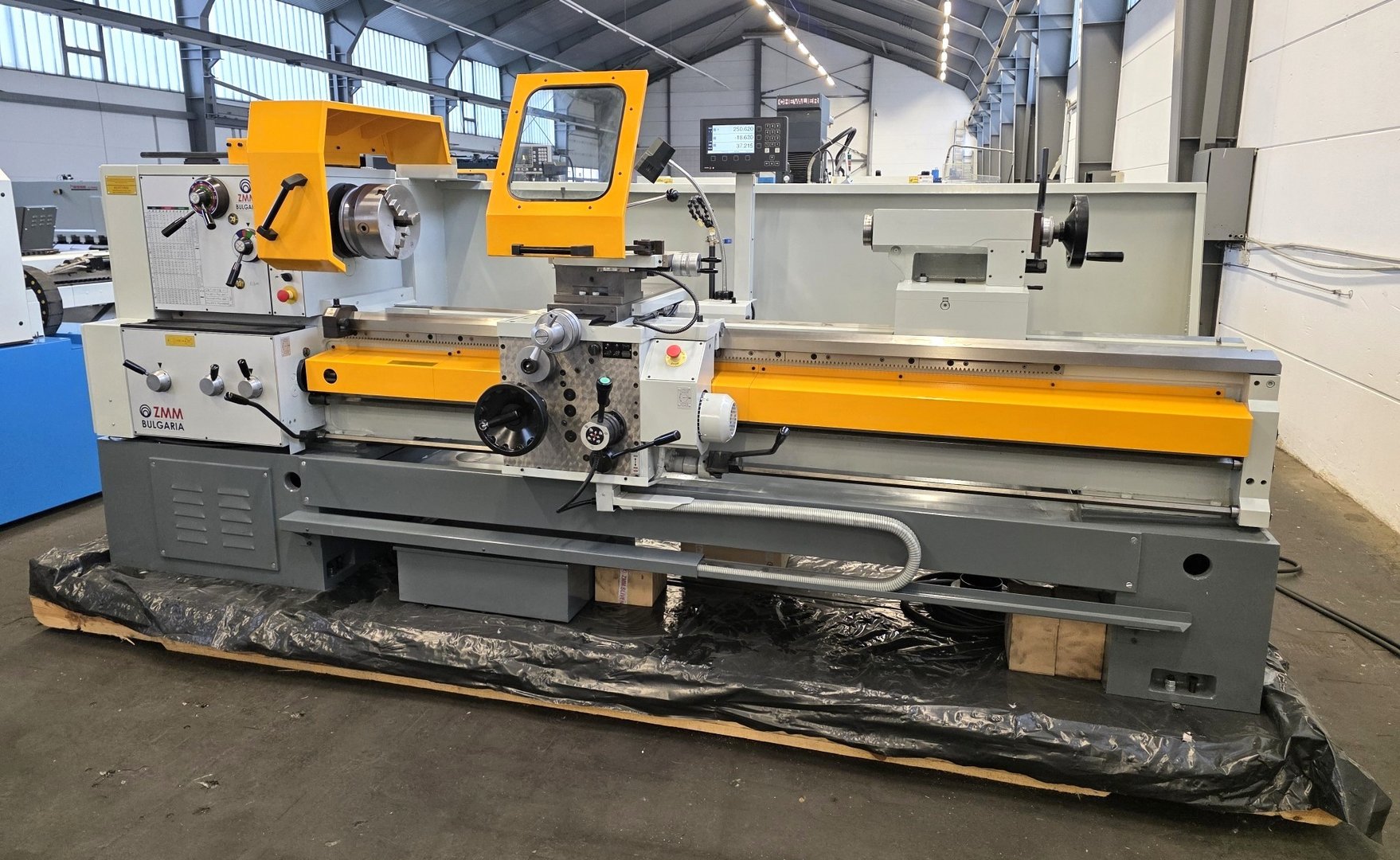

Centre lathe C 11 MC
