General characteristics
| Swing over bed | 600 mm |
| Distance between centers | 2000 mm |
| Centre height | 300 mm |
| Spindle bore | 80 mm |
| swing over cross slide | 400 mm |
| Width of bed | 400 mm |
| Spindle nose / DIN55027 | 8 |
| Spindle taper | 90 M |
| Revs continuous variable in gear steps | 3 |
| Revs continuous variable | 8-62; 62-500; 250-2.000 rpm |
| Number of feeds | 160 |
| Number of threads | 64 |
| Metric thread range | 0.5 - 120 mm |
| Inch thread range | 120 - 1/4 Tpi |
| Module thread range | 0.125 - 30 |
| Cross slide travel | 315 mm |
| Top slide travel | 130 mm |
| Tailstock quill diameter | 90 mm |
| Tailstock quill taper | 5 MK |
| Tailstock travel | 230 mm |
| Motor power | 11 kW |
Dimensions and weight
| Length | 3600 mm |
| Width | 1500 mm |
| Height | 1650 mm |
| Weight | 3110 kg |
Description
In contrast to the universal lathes, here the adjustment of the revolutions is infinitely variable by means of a frequency inverter.
It is possible to ensure a "constant cutting speed" (V-const), i.e. when changing the diameter to be machined, the speed remains unchanged and thus a higher accuracy and smoothness of the surface is achieved. At the customer's request, the machines can be manufactured with a reading of the linear displacement and positioning by mounting a digital display.

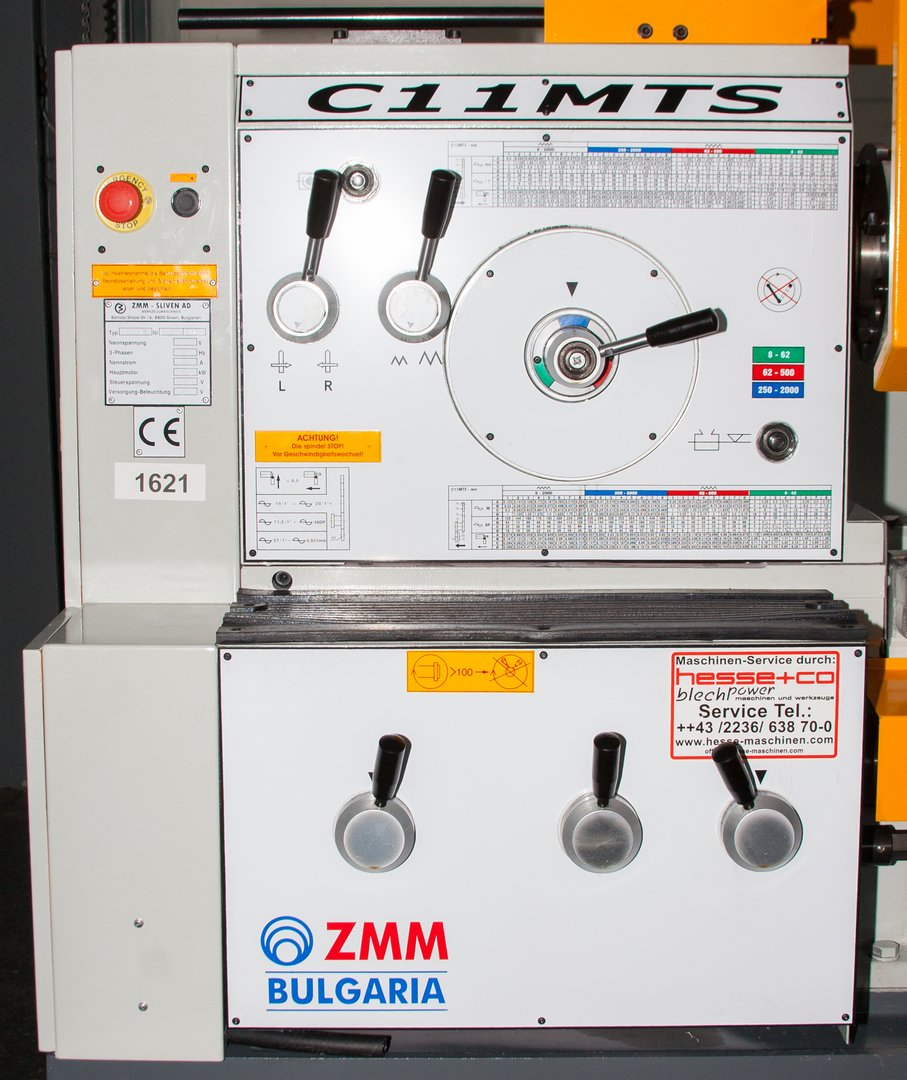

driven by variable speed control (3 steps)

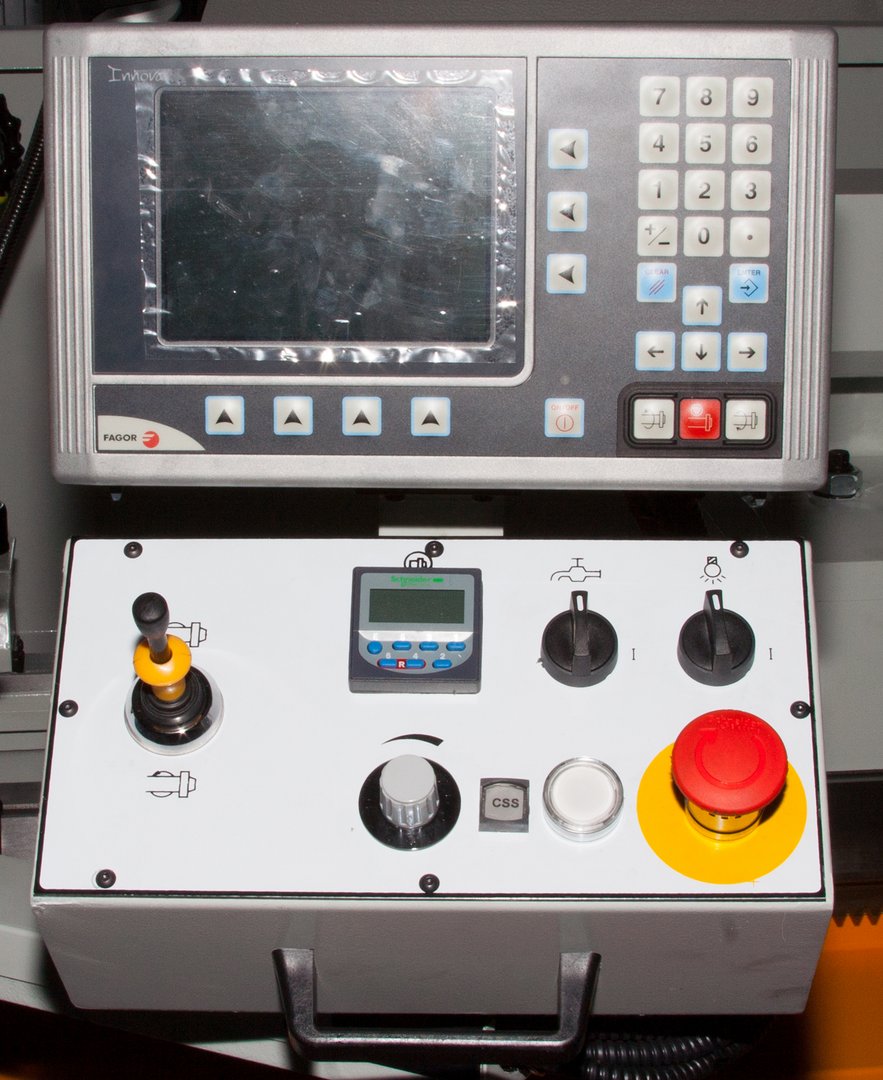

3-axes digital readout Fagor with CSS (constant surface speed)
quick change toolpost Amestra type Multifix with 4 holders (3 square, 1 round)

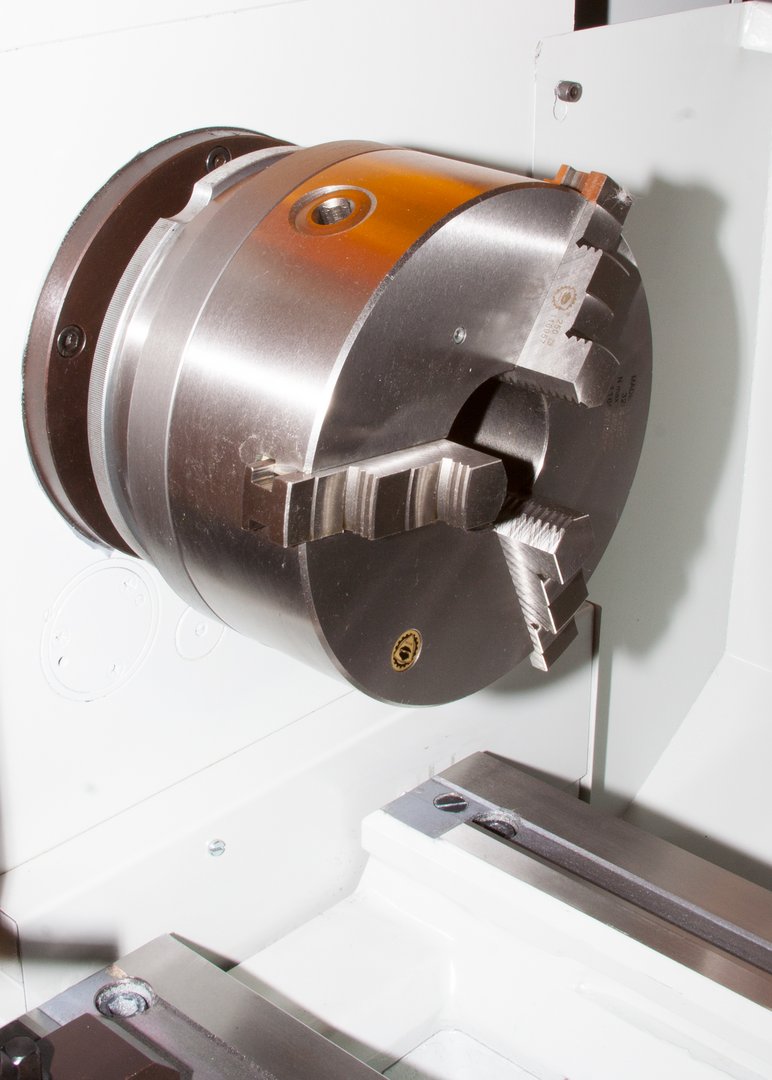

3-jaw chuck Bison 3204/DIN6350, Ø 250 mm
spindle dead center
main motor with frequency invertor
four way rapid traverse device
longitudinal stop for 1 position
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates
quick release tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further turning lengths:
| turning length 1.000 mm | € 49.990,- |
| turning length 1.500 mm | € 51.030,- |
| turning length 3.000 mm | € 57.530,- |
| turning length 4.000 mm | € 62.880,- |
| turning length 5.000 mm | € 77.500,- |
Further information
Brochures
Product video

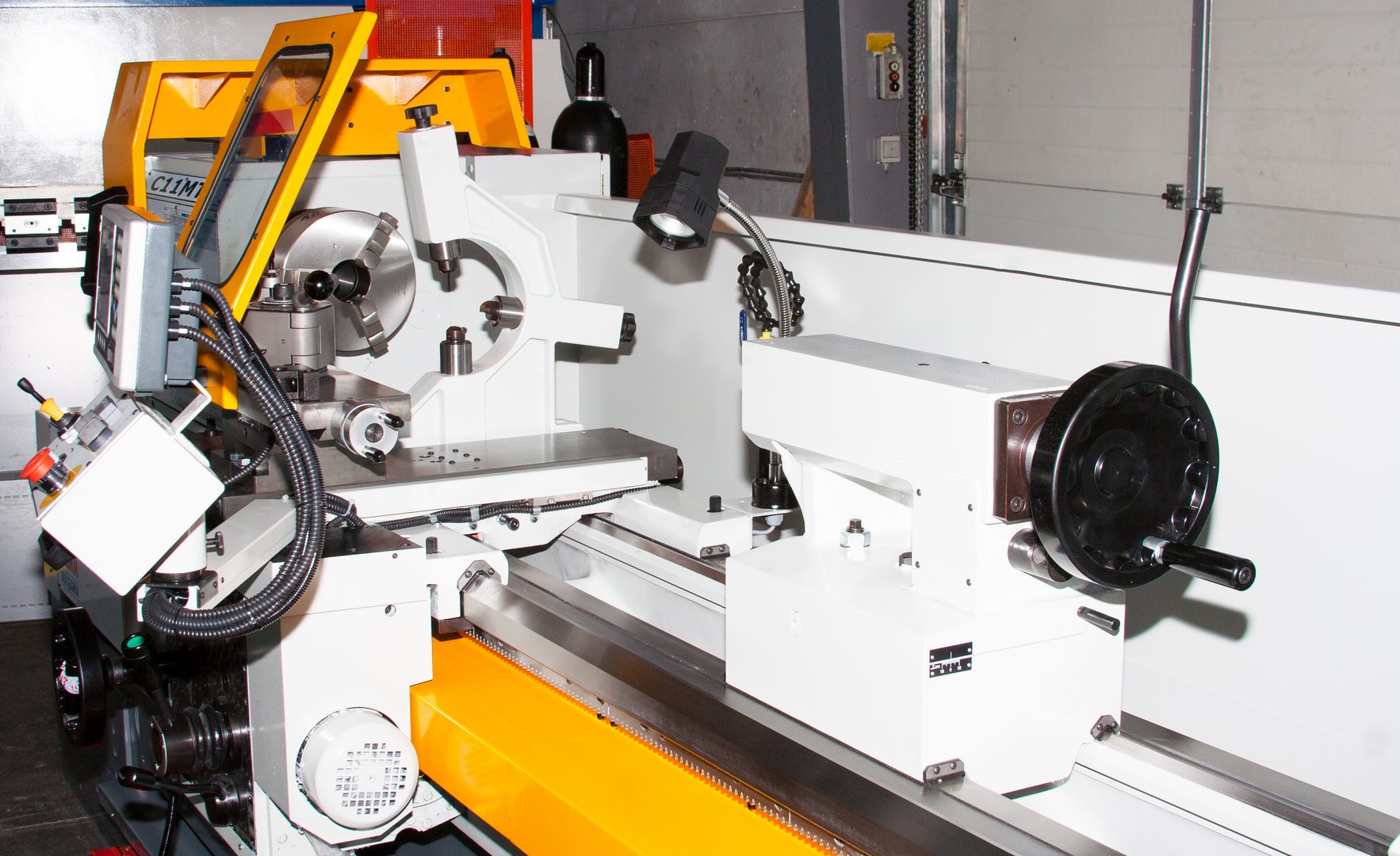

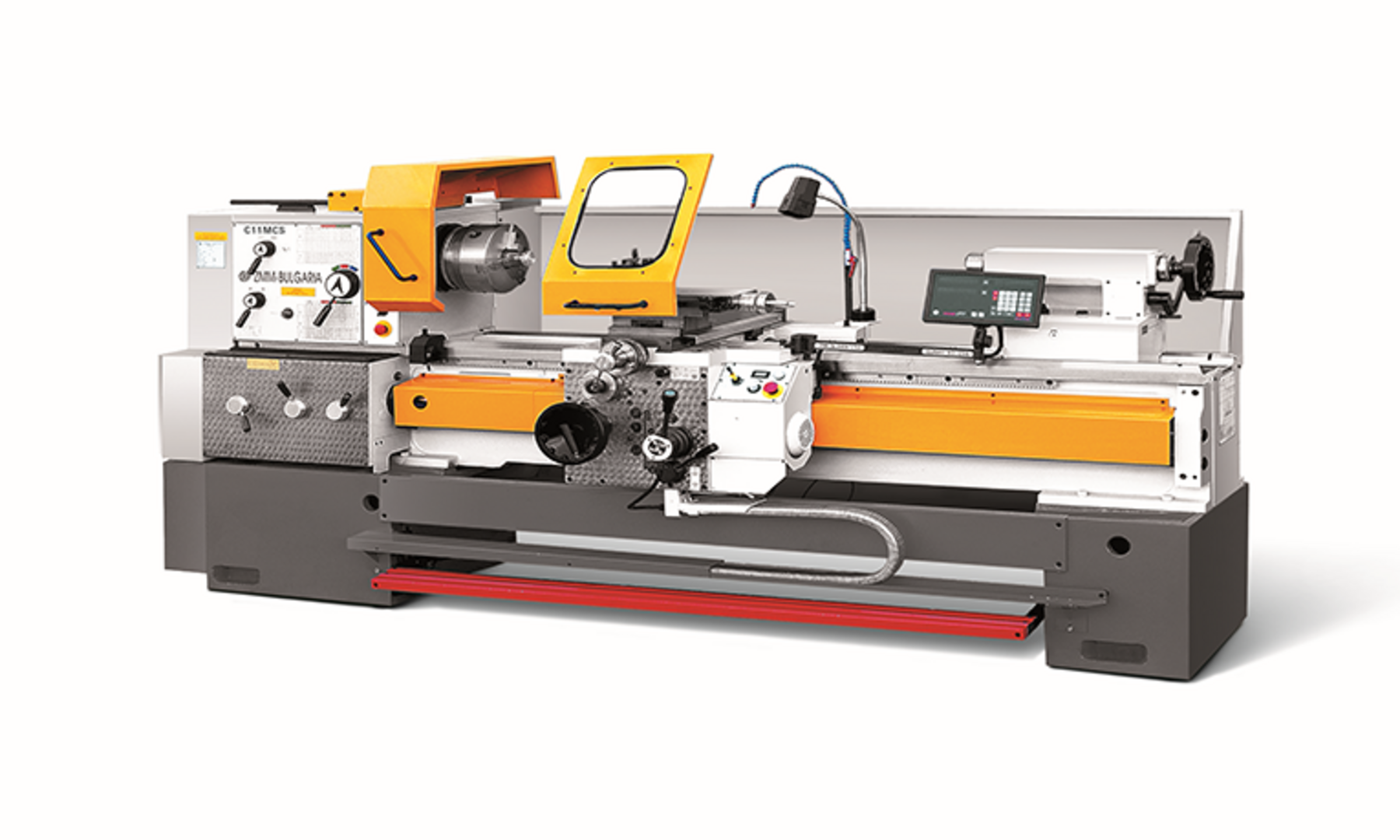

Centre lathe C 11 MCS
