General characteristics
| Swing over bed | 460 mm |
| Distance between centers | 1000 mm |
| Spindle bore | 56 mm |
| swing over cross slide | 230 mm |
| Width of bed | 350 mm |
| Spindel nose type | D1-6 |
| Spindle taper | 1/20 M |
| Spindle speed steps | 3 |
| Spindle revs | 33 - 3100 rpm |
| Cross feed | 5000 m/min |
| Rapid traverse Z-axis | 8000 mm/min |
| Cross slide travel | 280 mm |
| Tailstock quill diameter | 75 mm |
| Tailstock quill taper | 5 MK |
| Tailstock travel | 190 mm |
| Motor power | 9 / 13,5 (S1/S6-40%) kW |
| Positioning accuracy | 0.02 mm |
| Repeat accuracy | 0.01 mm |
| Accuracy standard | ISO3655 |
Dimensions and weight
| Length | 2840 mm |
| Width | 1905 mm |
| Height | 2235 mm |
| Weight | 2900 kg |
Description
Three operating modes: CNC / teach-in / manual
Siemens 828D CNC control
• 12-inch colour screen
• Linear interpolation
• Circular interpolation
• Helical interpolation
• Skip function
• Workpiece coordinate system
• Coordinate system rotation
• Rigid tapping
• Mirror image, scaling and rotation
• Turning cycle
• ShopTurn software
With precision bearings ensuring spindle runout of less than 0.005 mm,
for high accuracy and consistent cutting stability.

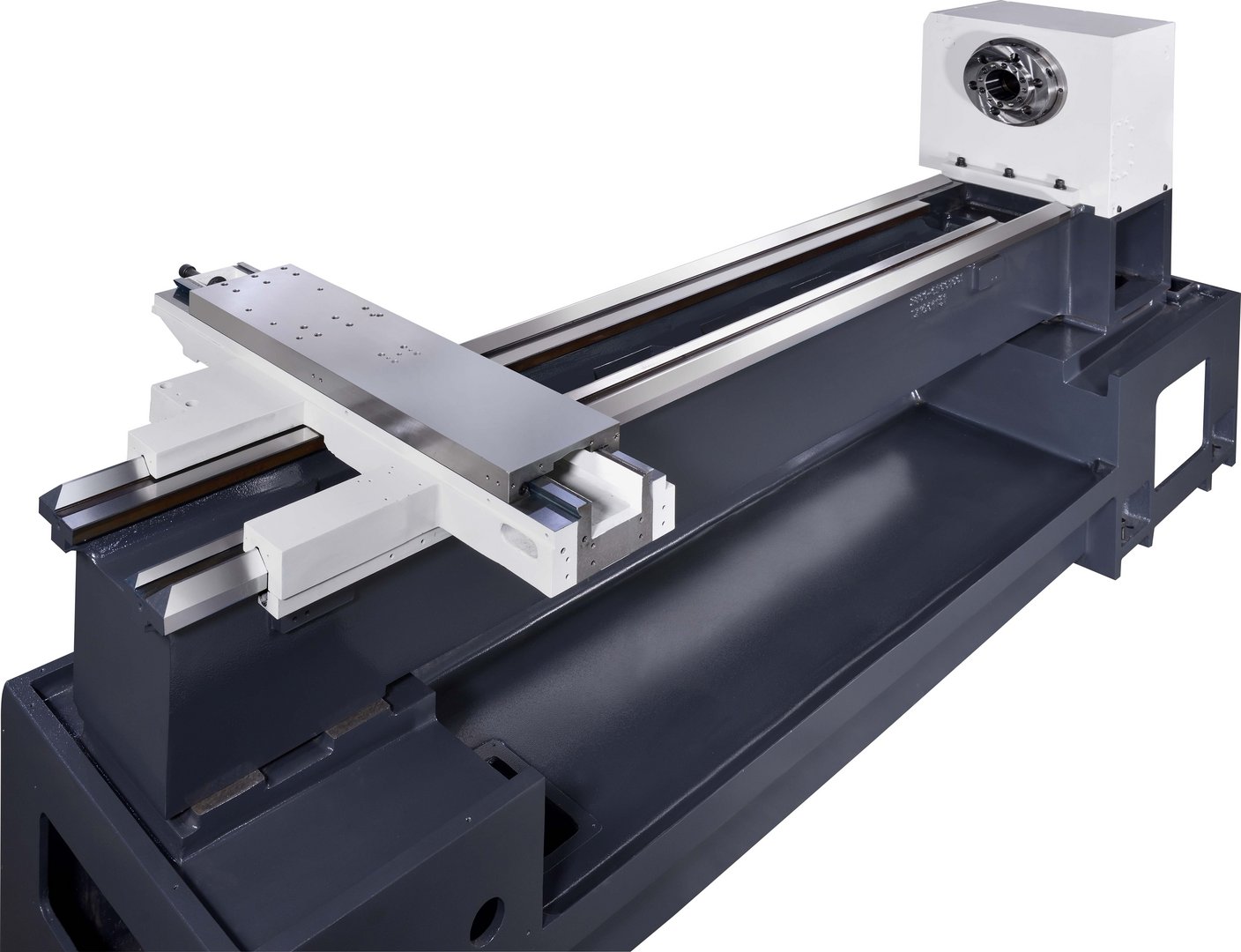

Precision ball screw Ø 40 mm (class C5) on the Z-axis and ball screw Ø 25 mm (class C3) on the X-axis.
2-axis AC servo motors
20–160 mm roller-type tailstock.

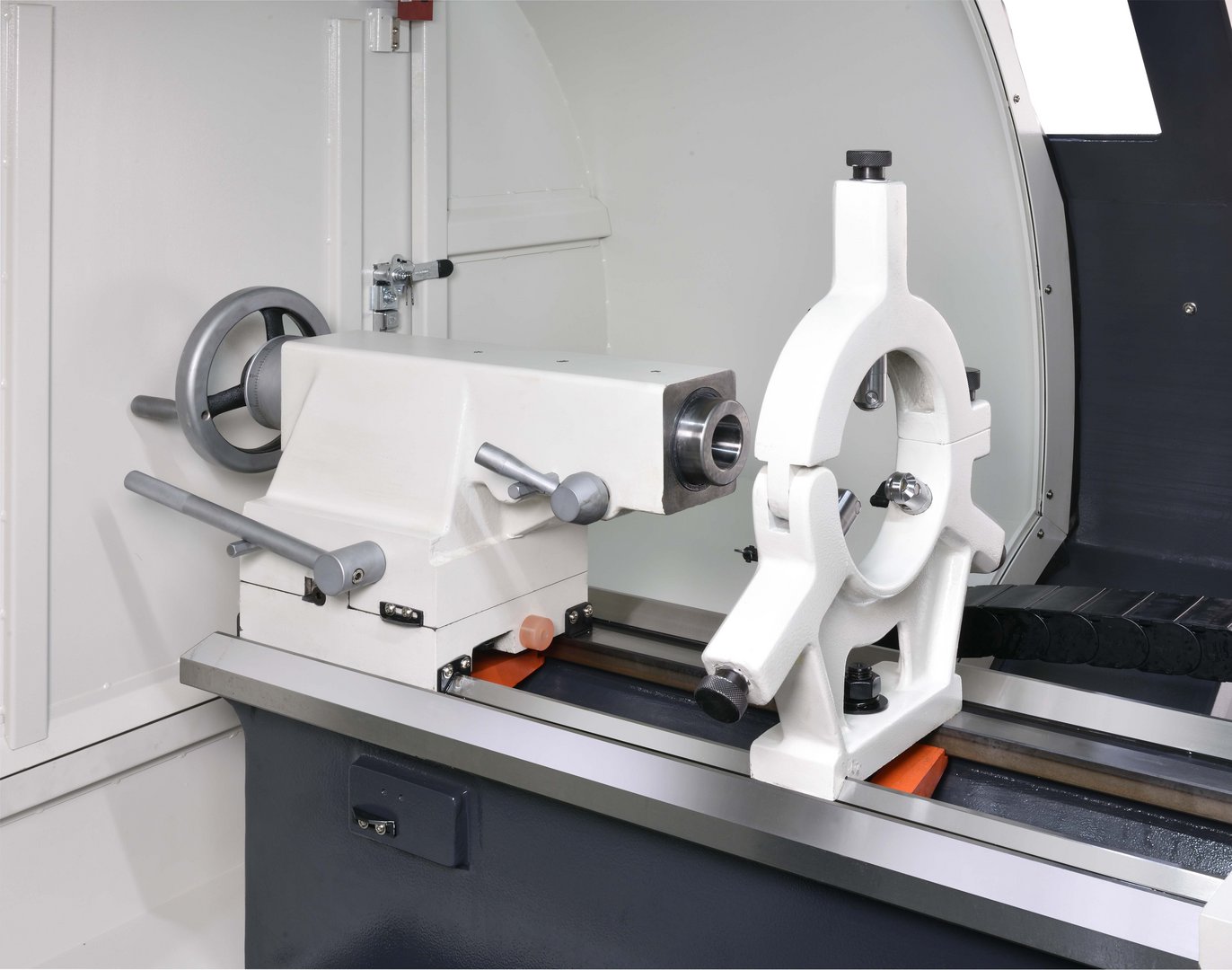

Manual tailstock quill, diameter 75 mm (MK5), travel 190 mm.
Programming and operating instructions.

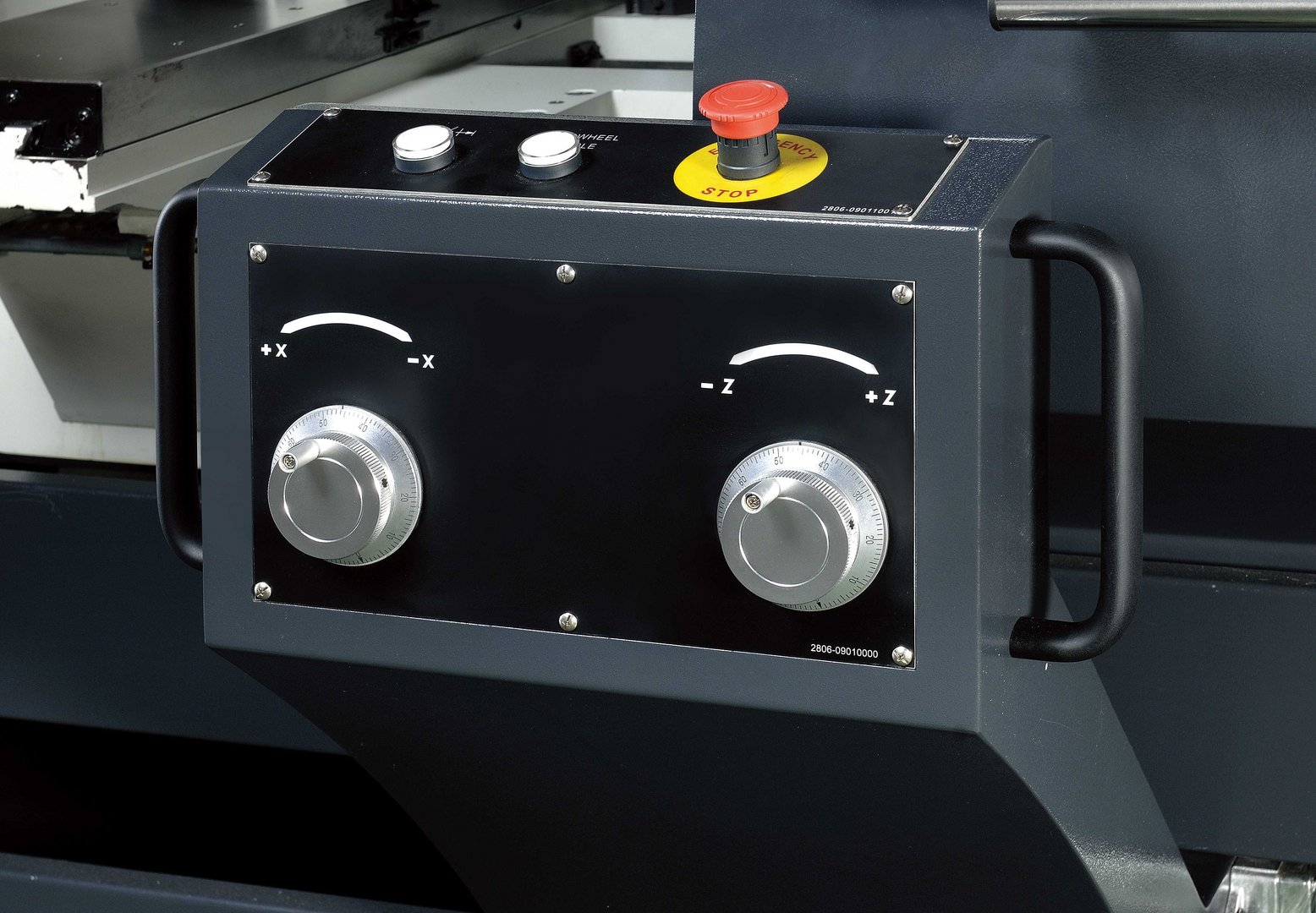

Electronic handwheel for X and Z axes
Manual 4-station tool holder (25 x 25 mm)
Automatic lubrication system
Fully enclosed splash guard.
Chip container with coolant tank
Inspection report
LED work light
Coolant system
Preparation for oil cooling system
Options (prices on request):
Fagor control system instead of Siemens

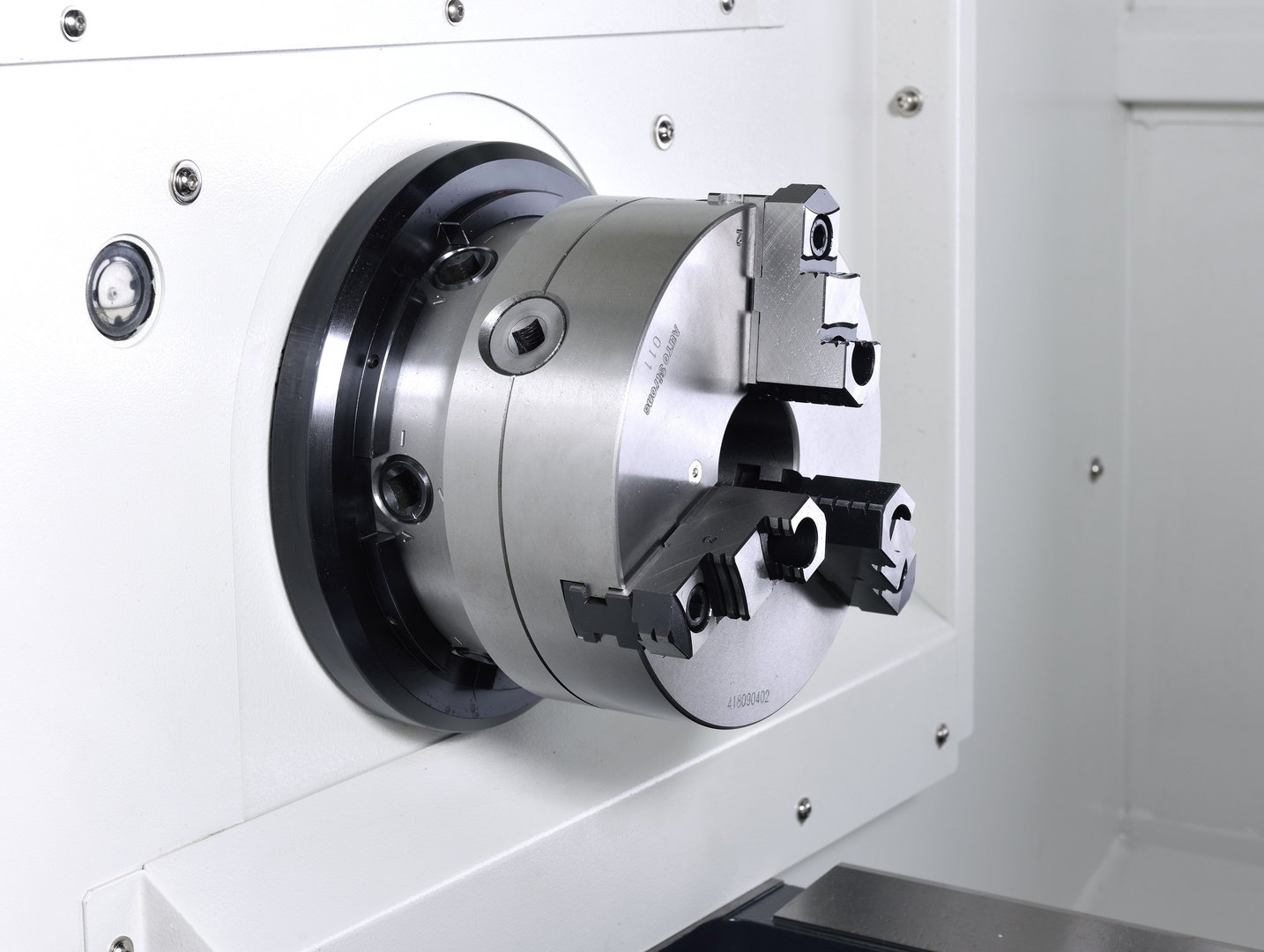

Manual or hydraulic chuck

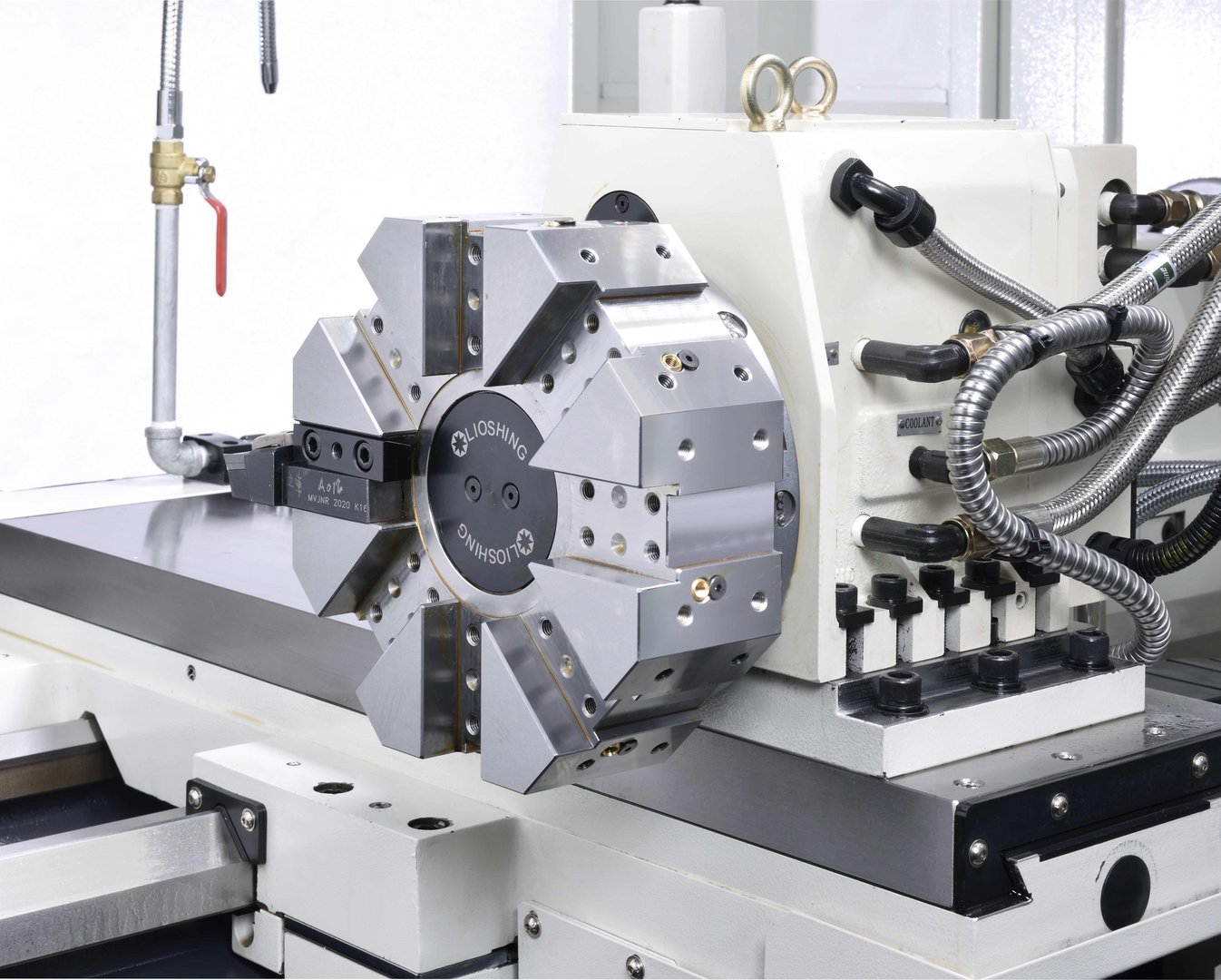

8-station turret
Chip conveyor
High-pressure coolant pump
Alternative:
FCL-1860 variant with 1500 mm centre distance
Further information
Product video

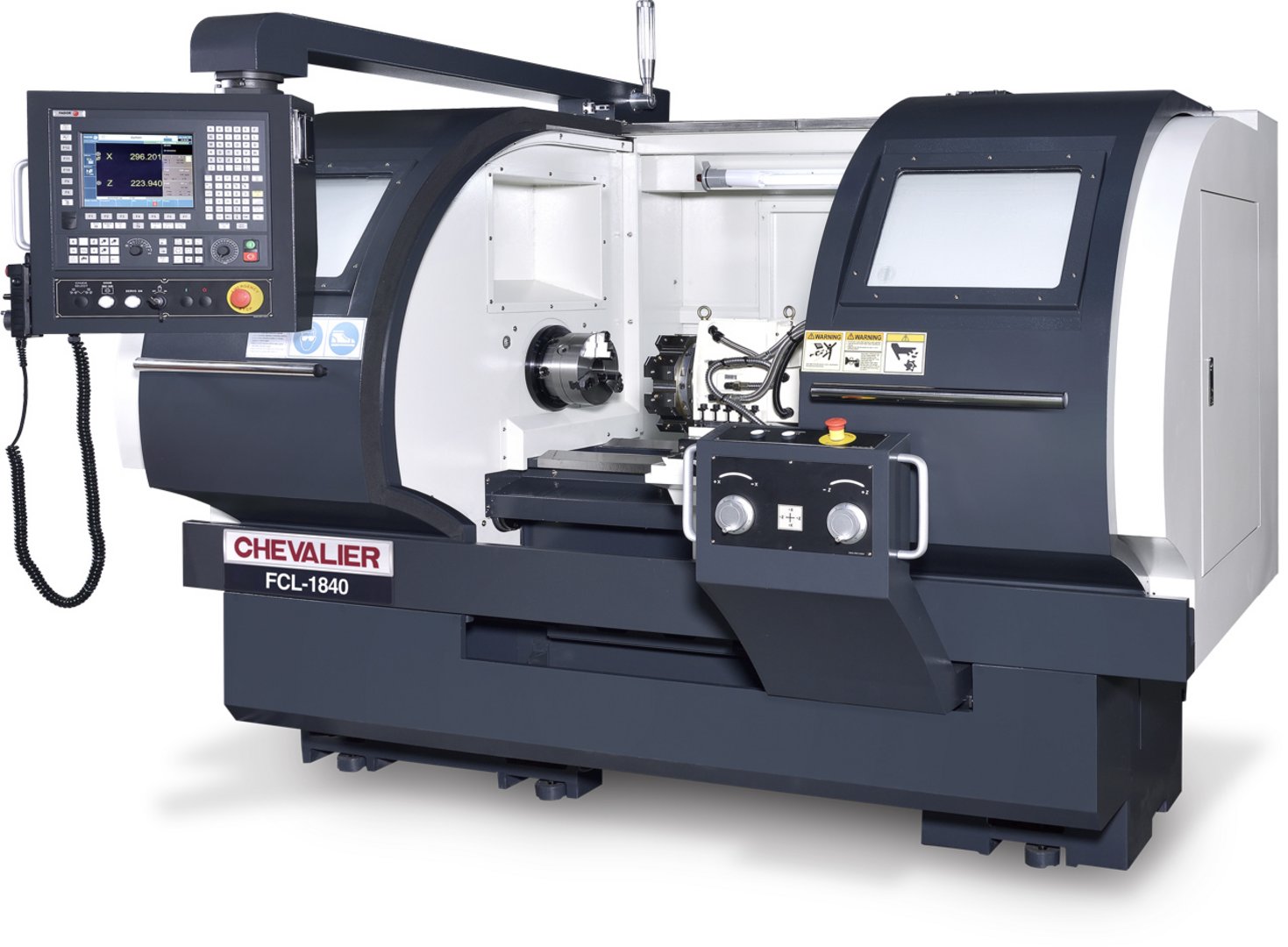

Multifunctional CNC lathe FCL-1840
