General characteristics
| Swing over bed | 540 mm |
| Distance between centers | 1500 mm |
| Spindle bore | 85 mm |
| swing over cross slide | 310 mm |
| Width of bed | 350 mm |
| Spindel nose type | D1-8 |
| Spindle taper | 1/20 M |
| Spindle speed steps | 3 |
| Spindle revs | 27 - 2250 rpm |
| Cross feed | 5000 m/min |
| Rapid traverse Z-axis | 8000 mm/min |
| Cross slide travel | 280 mm |
| Tailstock quill diameter | 75 mm |
| Tailstock quill taper | 5 MK |
| Tailstock travel | 190 mm |
| Motor power | 9 / 13,5 (S1 / S6 40%) kW |
| Positioning accuracy | 0.02 mm |
| Repeat accuracy | 0.016 mm |
| Accuracy standard | ISO3655 |
Dimensions and weight
| Length | 3340 mm |
| Width | 1905 mm |
| Height | 2235 mm |
| Weight | 3400 kg |
Description
Three operating modes: CNC / teach-in / manual

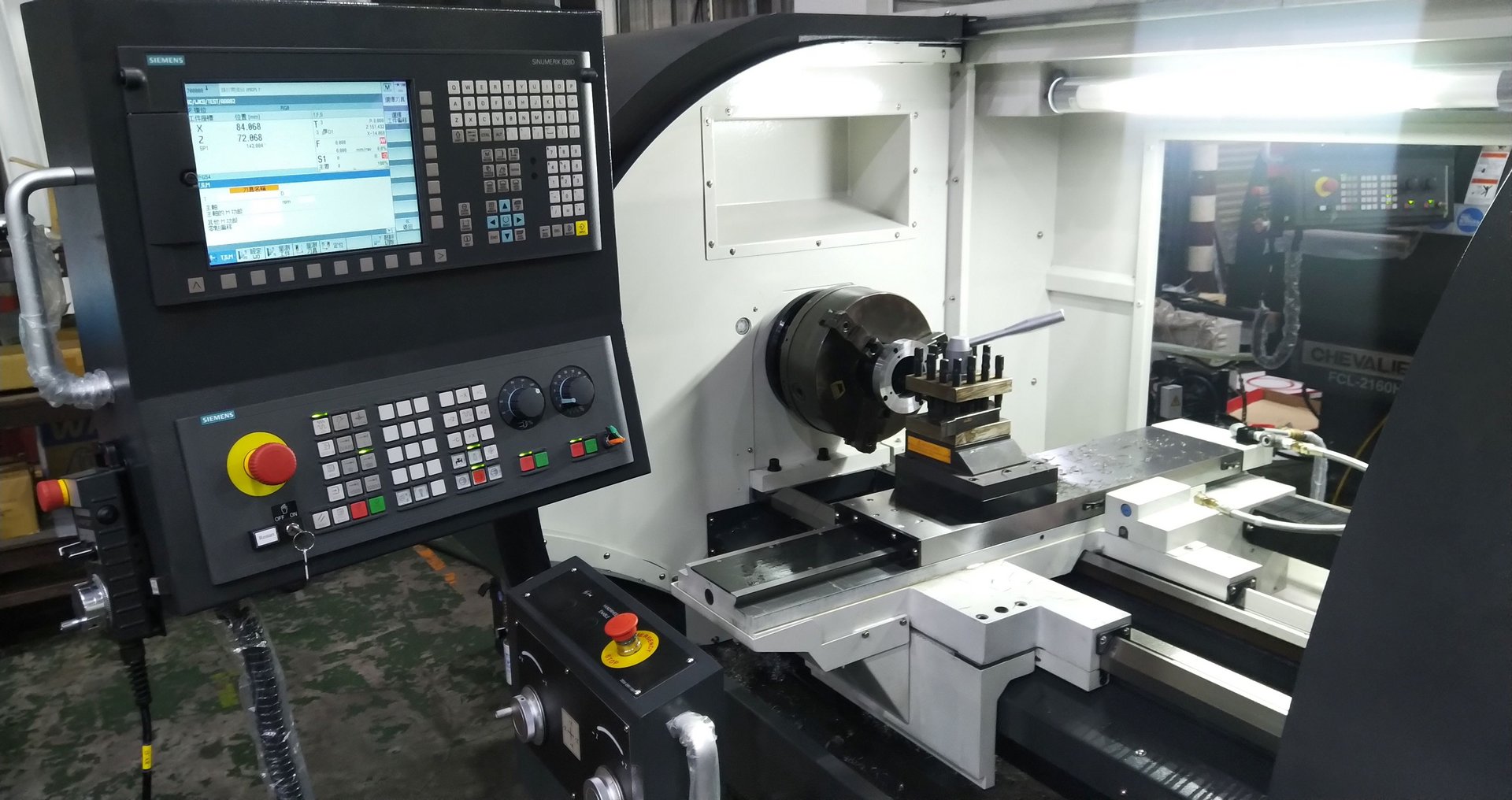

Siemens 828D CNC control
• 12-inch colour screen
• Linear interpolation
• Circular interpolation
• Helical interpolation
• Skip function
• Workpiece coordinate system
• Coordinate system rotation
• Rigid tapping
• Mirror image, scaling and rotation
• Turning cycle
• ShopTurn software

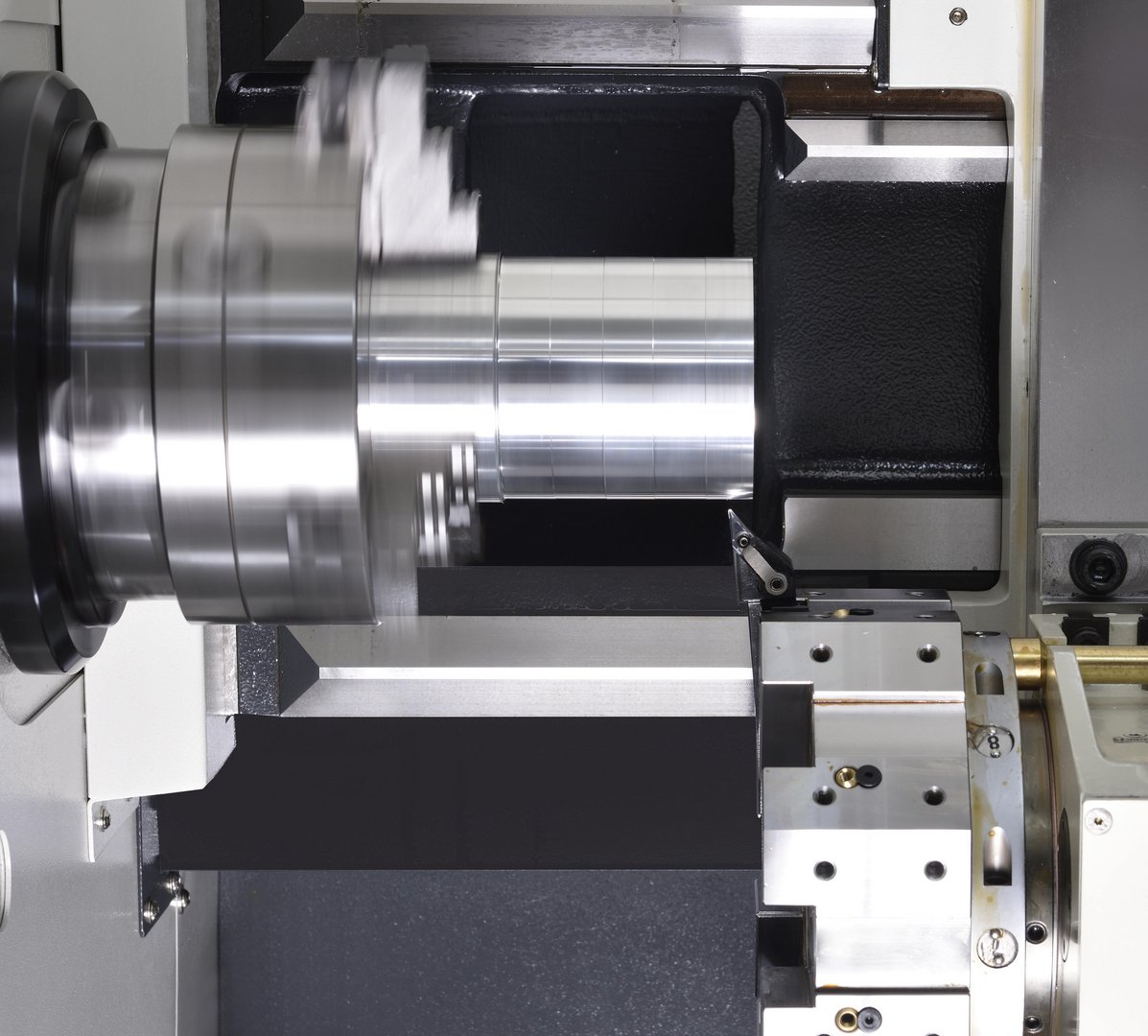

Large spindle bore, with precision bearings for high accuracy and consistent cutting stability.

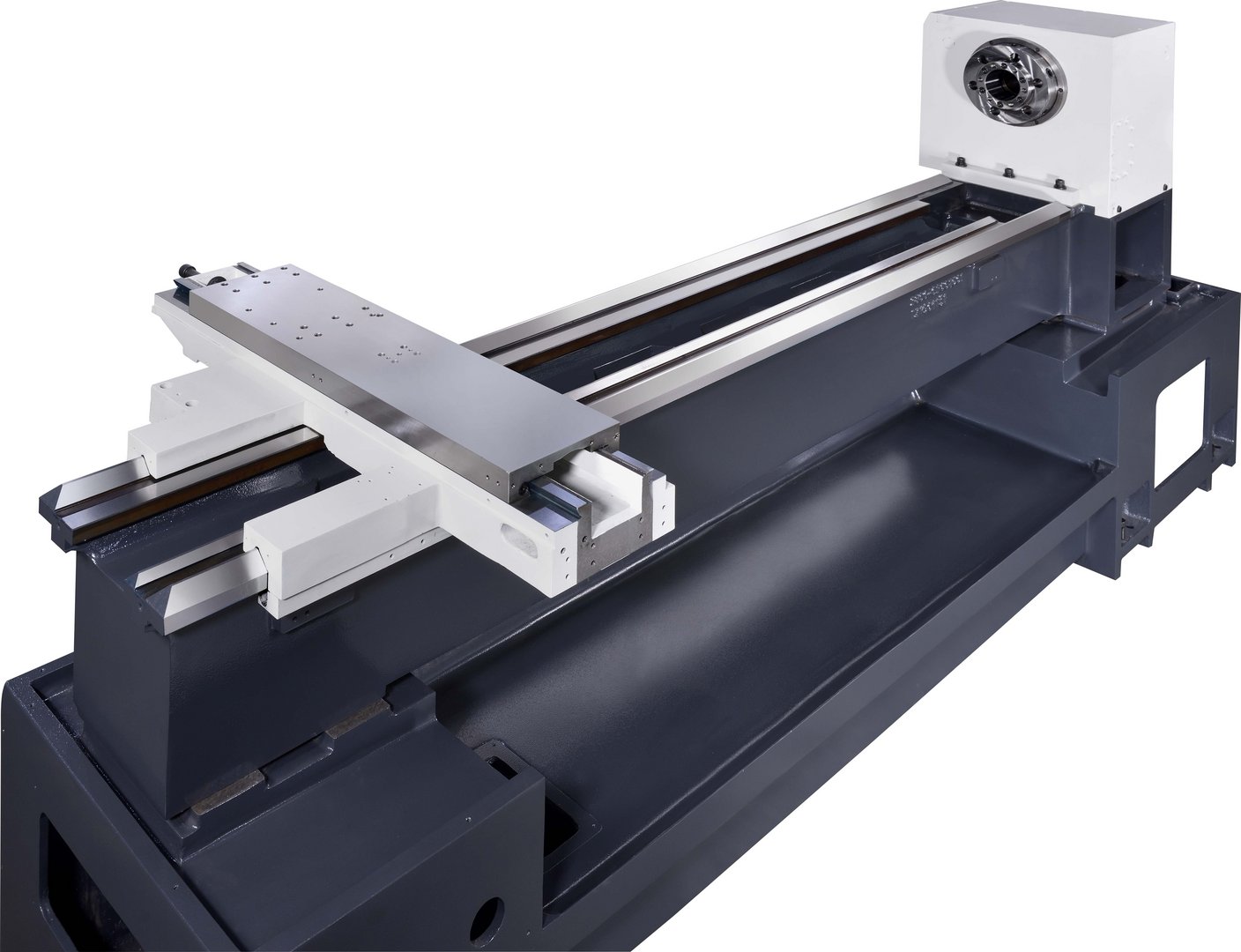

Precision ball screw Ø 40 mm (Class C5) on the Z-axis and ball screw Ø 25 mm (Class C3) on the X-axis.
2-axis AC servo motors
50–300 mm roller-type tailstock.

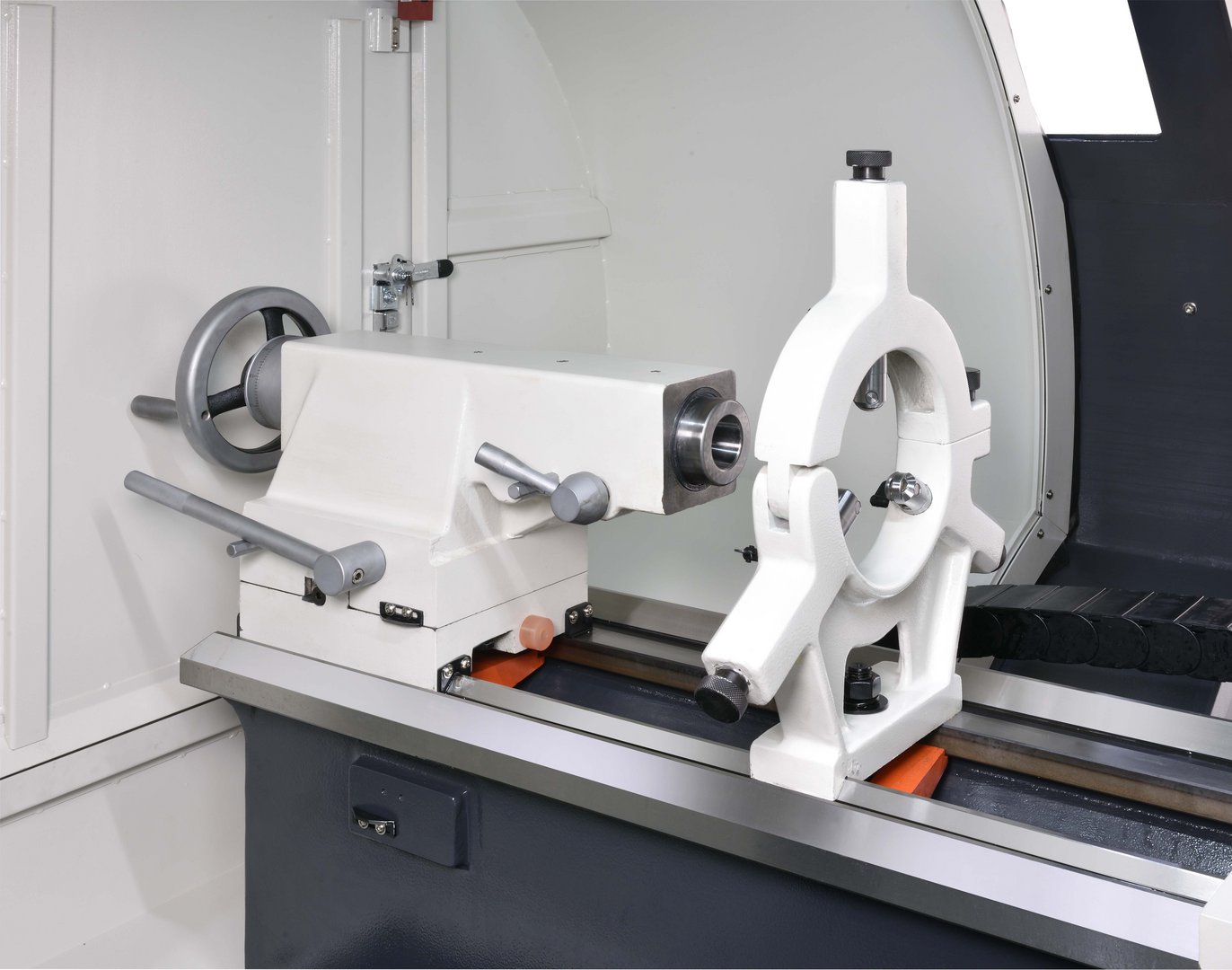

Manual tailstock quill, diameter 75 mm (MK5), travel 190 mm.
Programming and operating instructions.

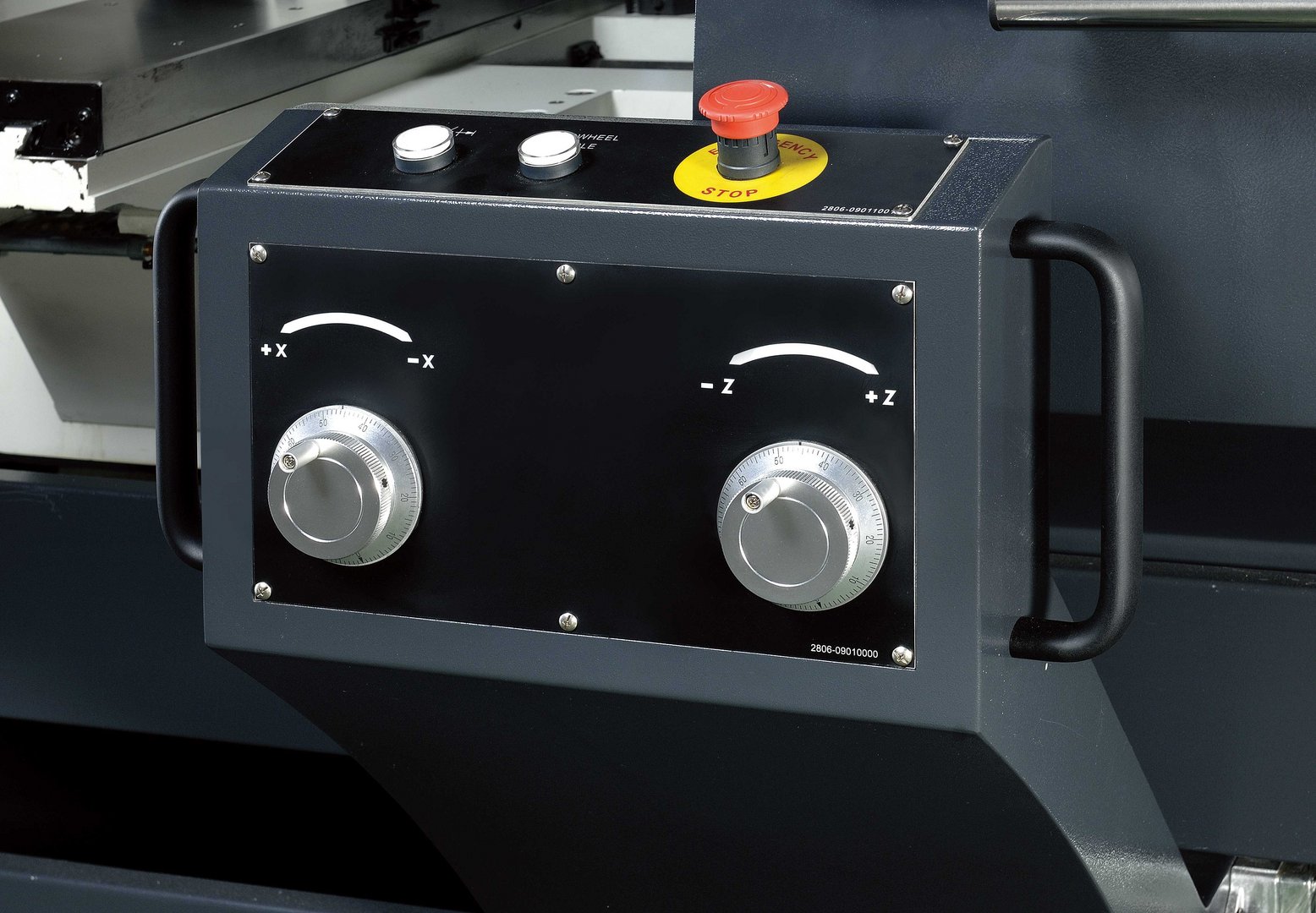

Electronic handwheel for X and Z axes

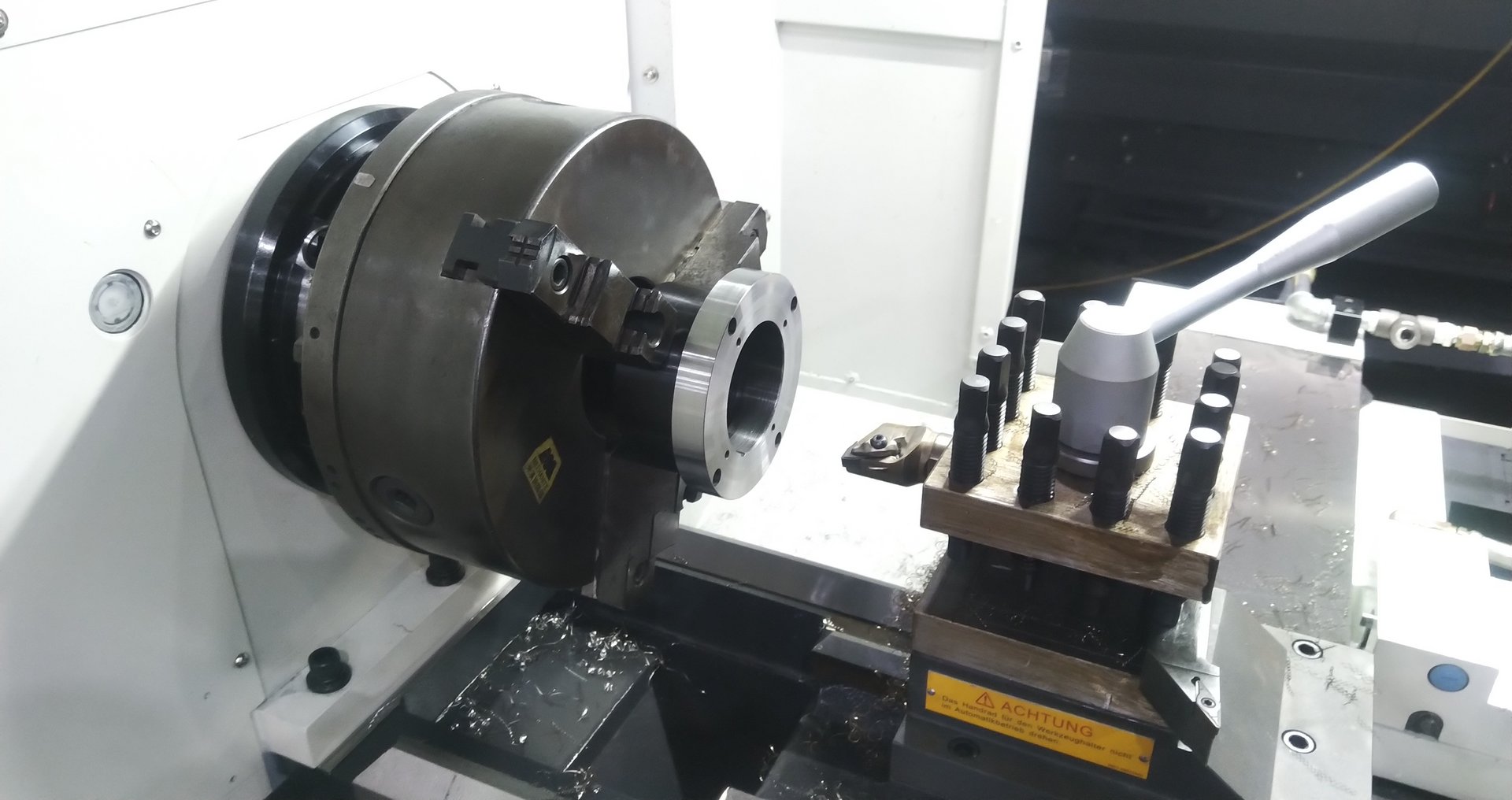

Manual 4-station tool holder (25 x 25 mm)
Automatic lubrication system
Fully enclosed splash guard with sliding door and window
Chip container with coolant tank
Inspection report
LED work light
Coolant system
Preparation for oil cooling system
Options (prices on request):
Fagor control system instead of Siemens

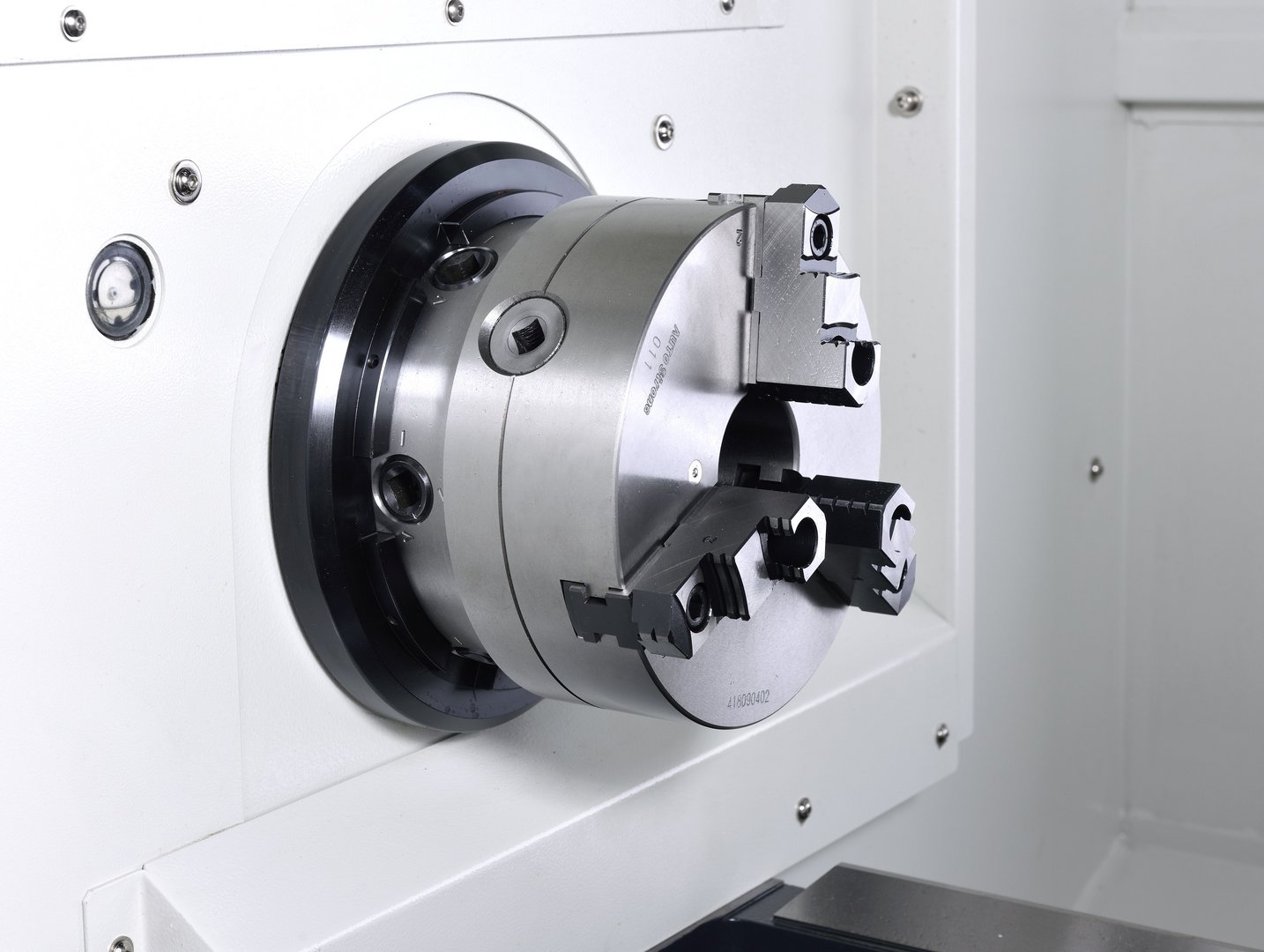

Manual or hydraulic chuck

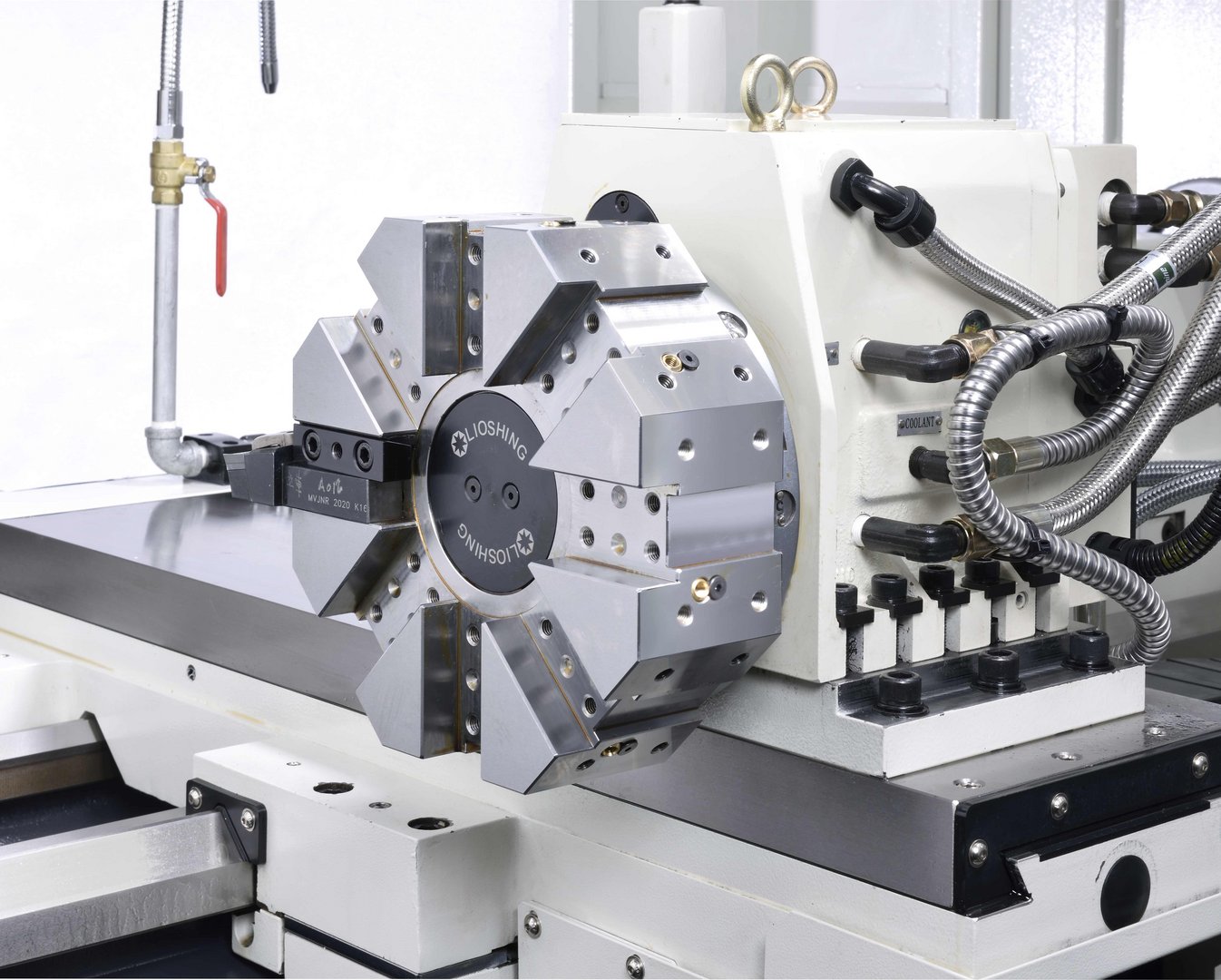

8-station turret, optionally with driven tools
Electrically rotatable 4-station tool holder
Chip conveyor
High-pressure coolant pump
Further options on request
Alternative:
FCL-2140 variant with 1000 mm centre distance
FCL-2180 variant with 2000 mm centre distance
Further information
Product video

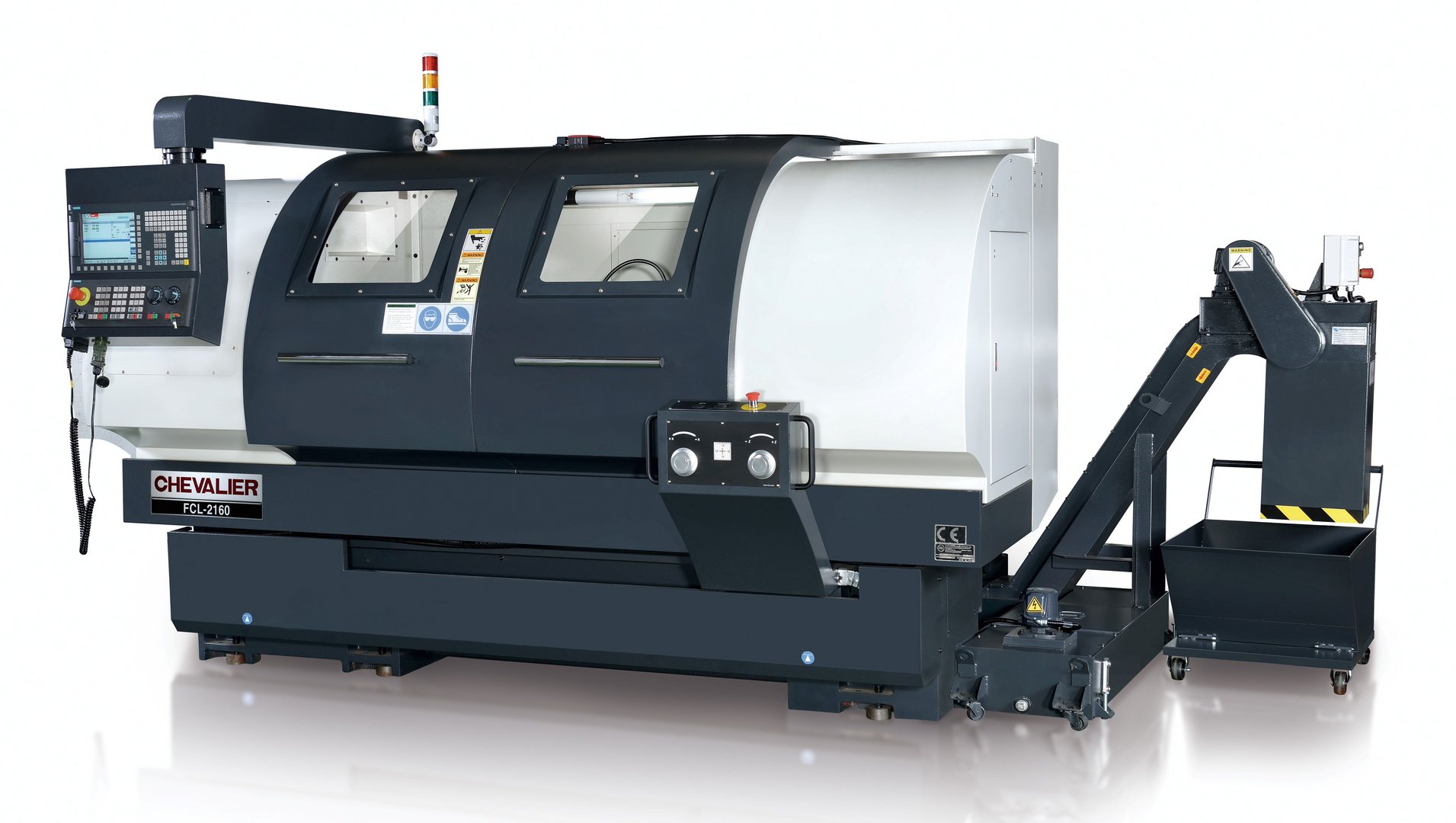

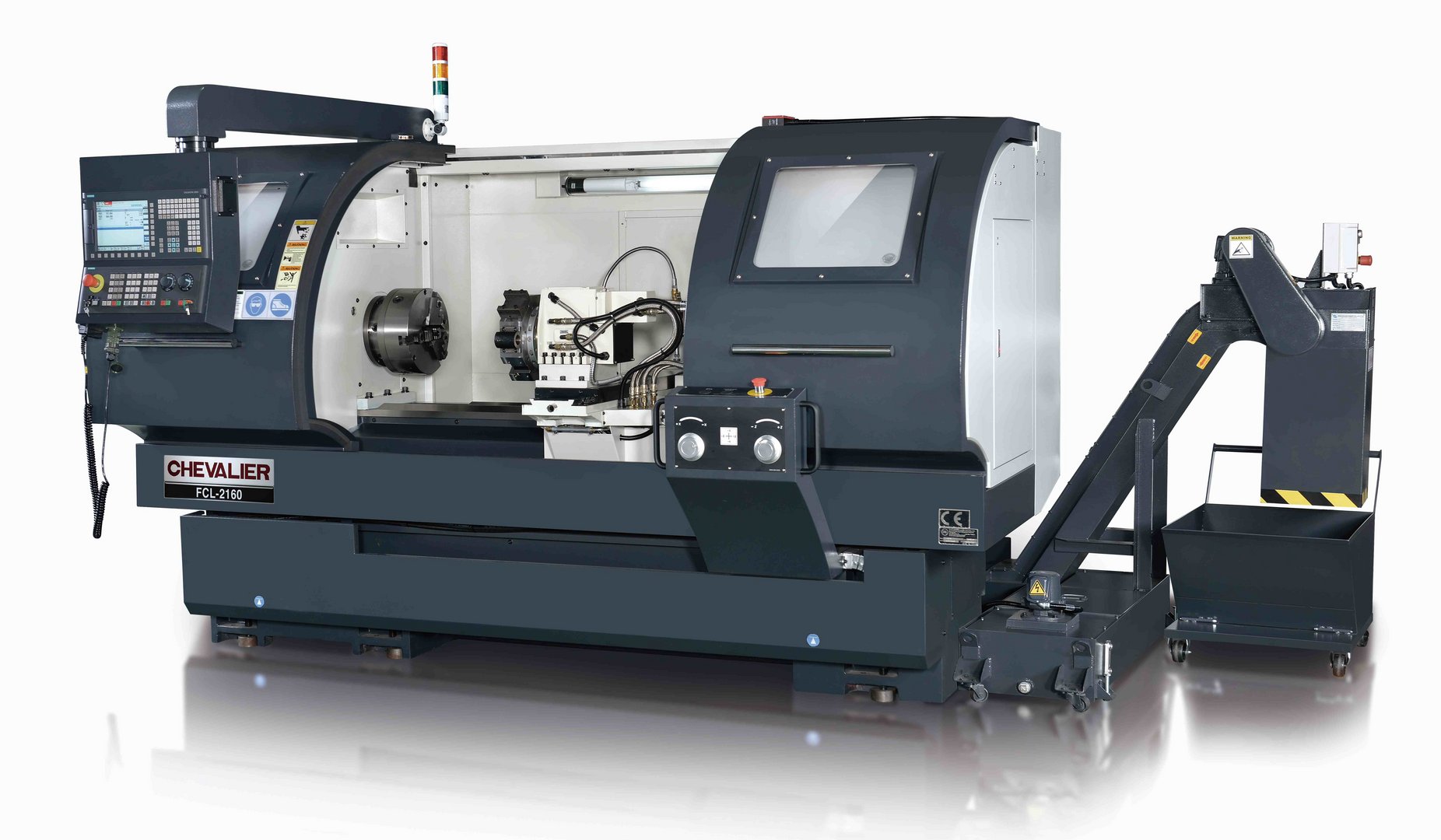

Multifunctional CNC lathe FCL-2160
