General characteristics
| Swing over bed | 730 mm |
| Distance between centers | 2000 mm |
| Centre height | 365 mm |
| Spindle bore | 155 mm |
| swing over cross slide | 500 mm |
| Width of bed | 400 mm |
| Spindle taper | 160 M |
| Spindle speed steps | 12 |
| Spindle revs | 16 - 800 rpm |
| Number of feeds | 152 |
| Longitudinal feed range | 0.039 - 9 mm/r |
| Cross feed range | 0.02 - 4.5 mm/r |
| Number of threads | 76 |
| Metric thread range | 0.5 - 90 mm |
| Inch thread range | 60 - 1/3 Tpi |
| Module thread range | 0.125 - 22.5 |
| DP thread range | 240 - 1 1/3 |
| Cross slide travel | 390 mm |
| Top slide travel | 130 mm |
| Tailstock quill diameter | 90 mm |
| Tailstock quill taper | 5 MK |
| Tailstock travel | 225 mm |
| Motor power | 11 kW |
Dimensions and weight
Description

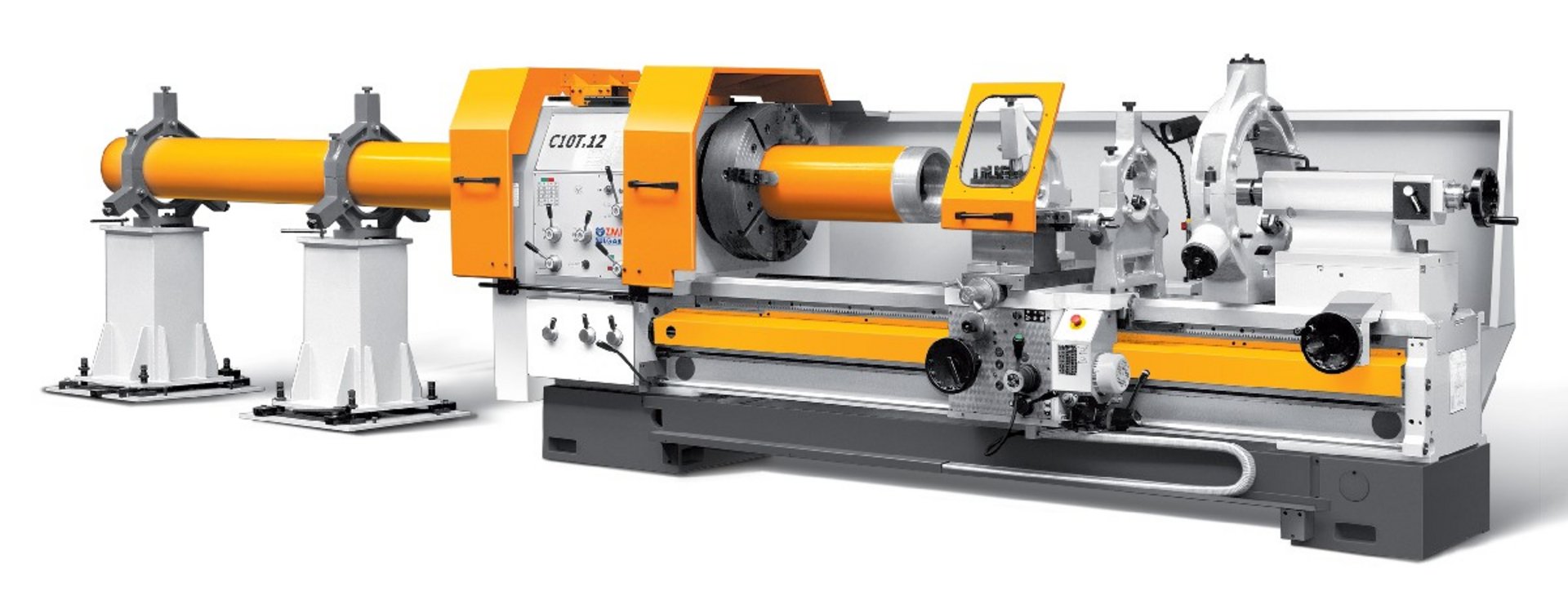

Their main purpose is to process pipes. Accordingly, this type of machines is widely used in the oil industry.
Oil country lathes have large capabilities of processing inner and outer cylindrical and conical threads on pipes with large diameters.

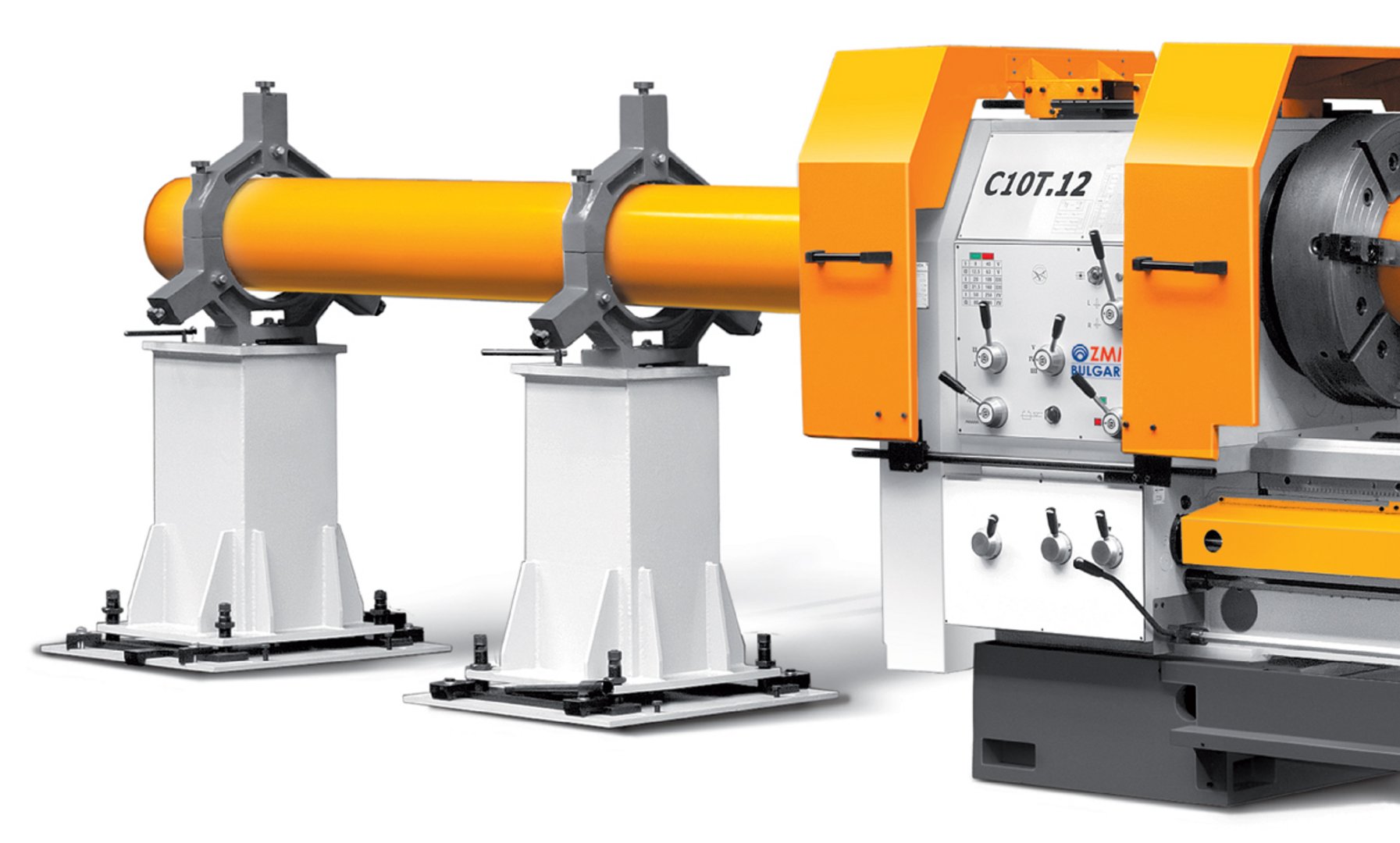

The clamping of the pipes with two universals and stands allows the processing of long pipes.
These lathes are suitable for producing elements and equipment for the oil industry, as well as for maintaining such facilities.
Drive via gearbox
Electrodynamic brake
3-axis digital display Fagor
Quick-change tool holder Amestra type C, system like Multifix including 4 holders (3x rectangular, 1 round)

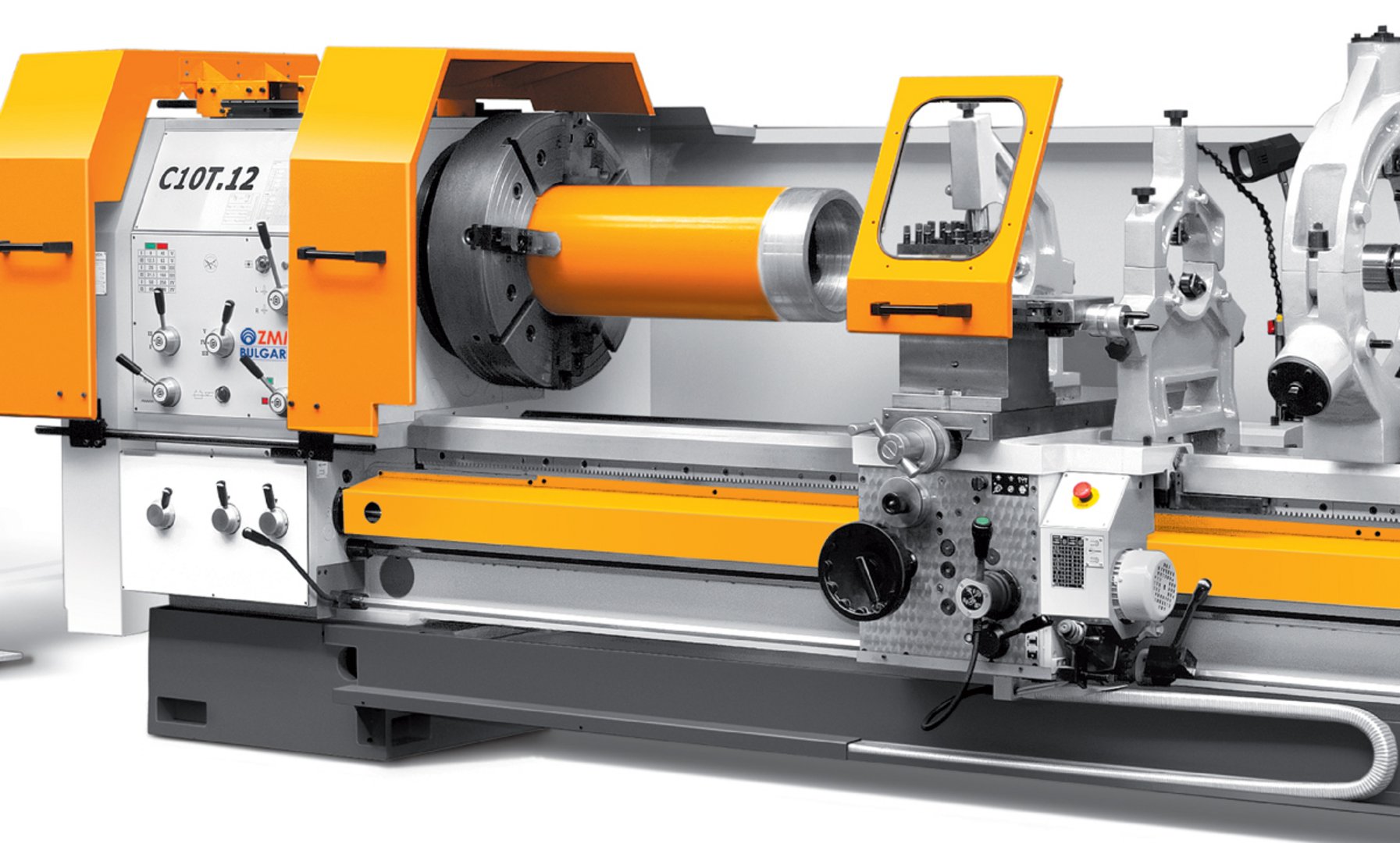

2 pcs. 3-jaw chuck Bison 3204 Dm. 500 mm on both sides of the spindle,
gripping range with outside jaws - 20 -235 mm
2 pcs. steady rests on supports Dm. 15 - 200 mm with rollers
Rapid traverses (4)
Longitudinal stop for one position
Taper turning device
Coolant device
Full length rear splash guard
Lead and feed spindle cover
Lathe chuck protection
Tool holder protection
Leveling bolts and plates
Tailstock with quick release
Mechanical movement of the tailstock with handwheel
Low voltage machine light
Operating instructions
Equipment according to "CE" regulations
Further models with spindle bore from 155 to 358 mm, centre distances from 1000 to 6000 mm and with turning diameters from 730 to 1020 mm are available on request.
