General characteristics
| Swing over bed | 320 mm |
| Distance between centers | 650 mm |
| Centre height | 160 mm |
| Spindle bore | 40 mm |
| swing over cross slide | 192 mm |
| Width of bed | 205 mm |
| Spindle nose / DIN55027 | 5 |
| Spindle taper | 5 M |

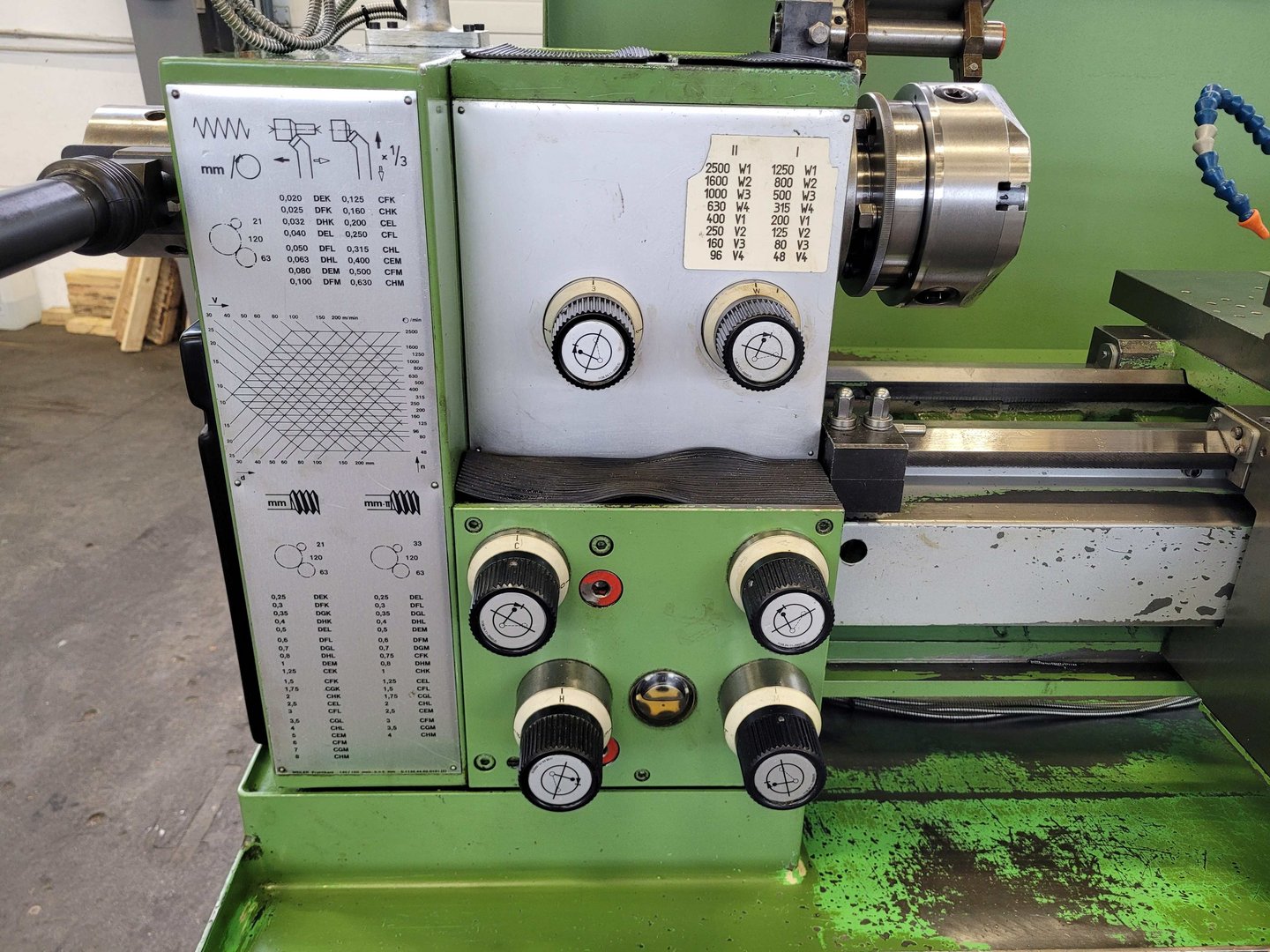

| Spindle speed steps | 16 |
| Spindle revs | 48 - 2500 rpm |
| Number of feeds | 24 |
| Longitudinal feed range | 0.02 - 0.63 mm/r |
| Cross feed range | 0.006 - 0.2 mm/r |
| Metric thread range | 0.25 - 8 mm |
| Module thread range | 0.2 - 4 |
| Cross slide travel | 150 mm |
| Top slide travel | 100 mm |
| Tailstock quill diameter | 40 mm |
| Tailstock quill taper | 3 MK |
| Tailstock travel | 85 mm |
| Motor | 2,4 / 3 kW |
Dimensions and weight
| Length | 1582 mm |
| Width | 715 mm |
| Height | 1245 mm |
| Weight | 680 kg |
Description

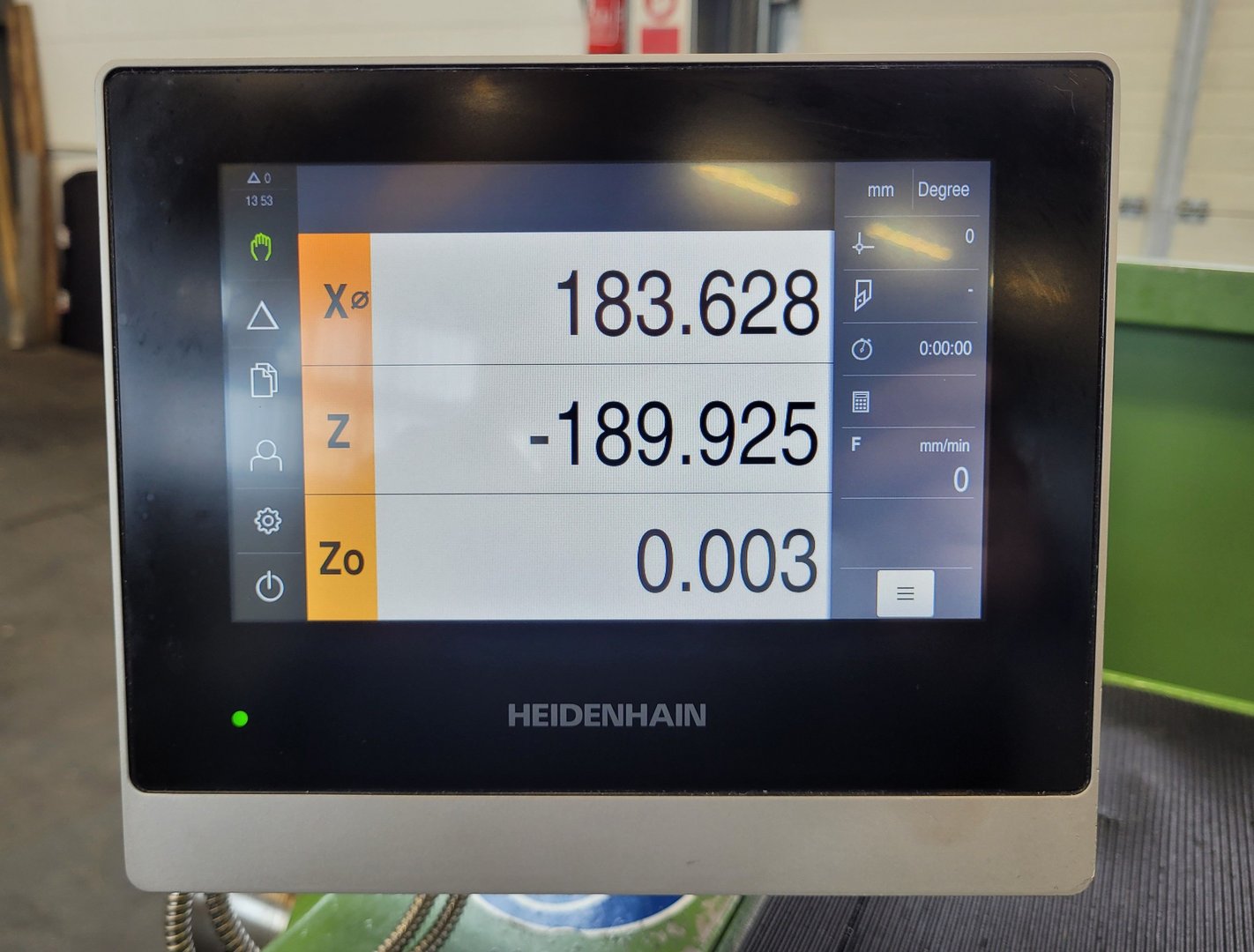

Heidenhain 3-axis digital readout

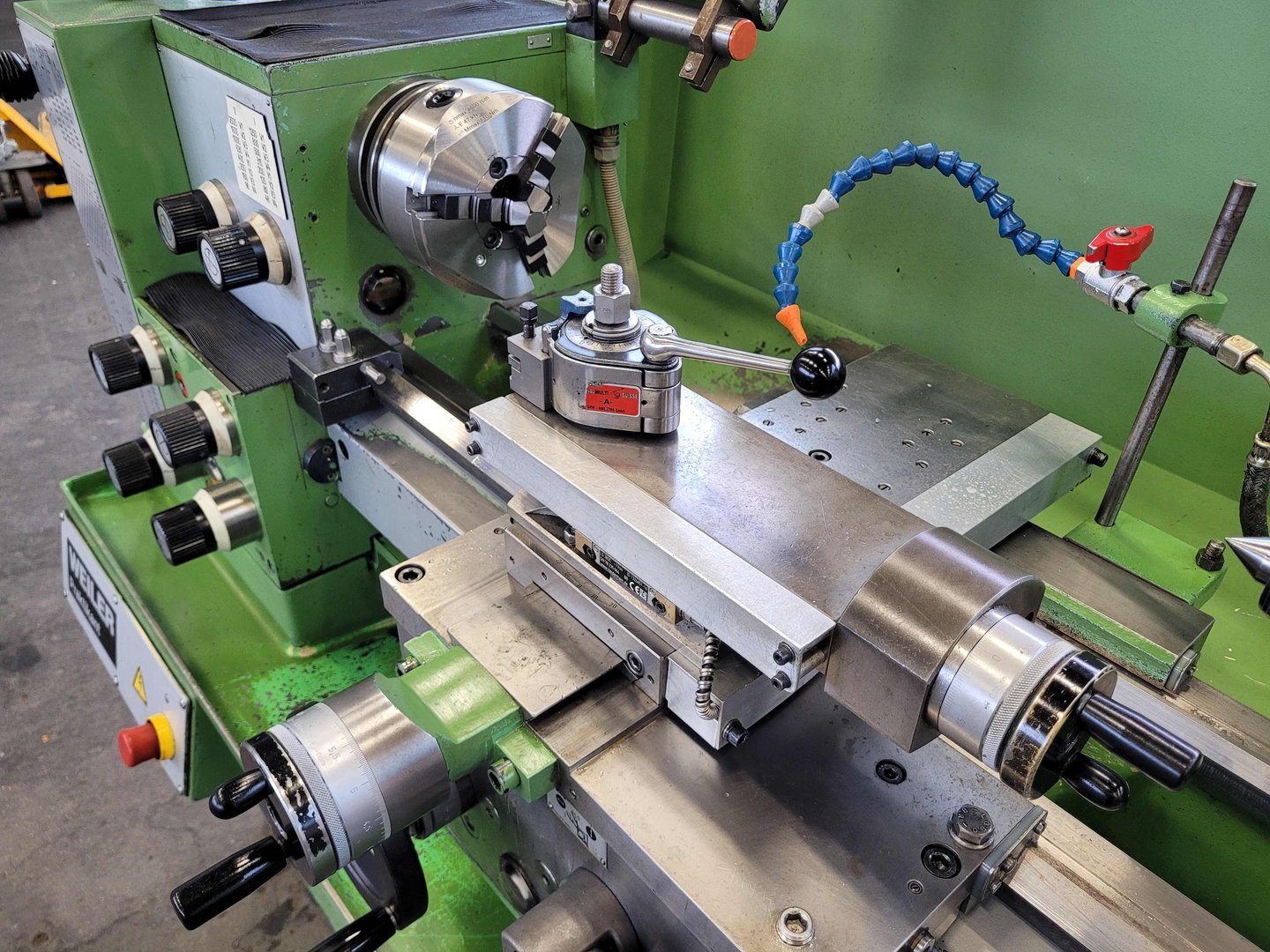

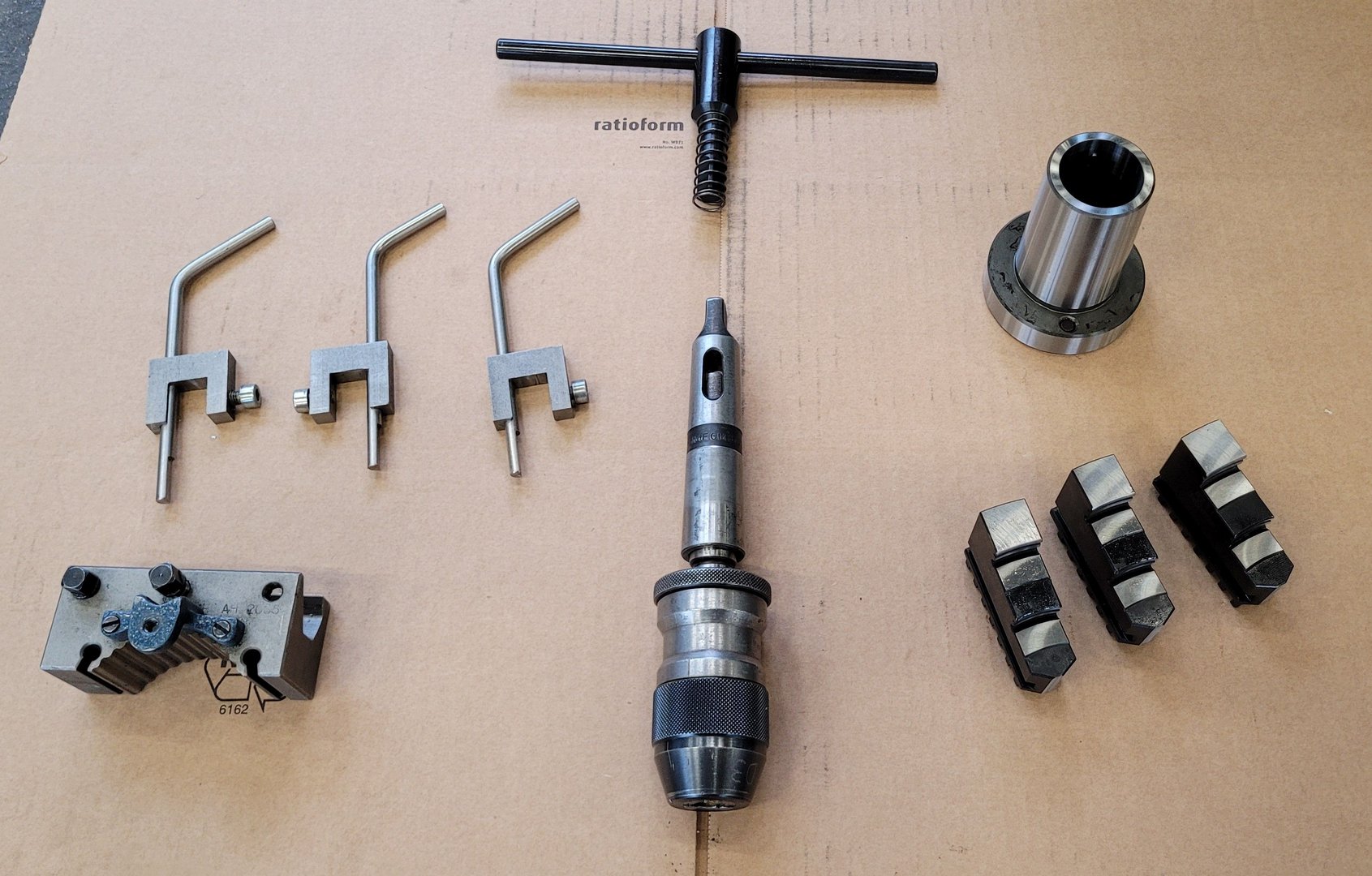

New Röhm 3-jaw chuck, 160 mm diameter, with internal and external jaws
Quick-change tool post with one rectangular insert and one round insert

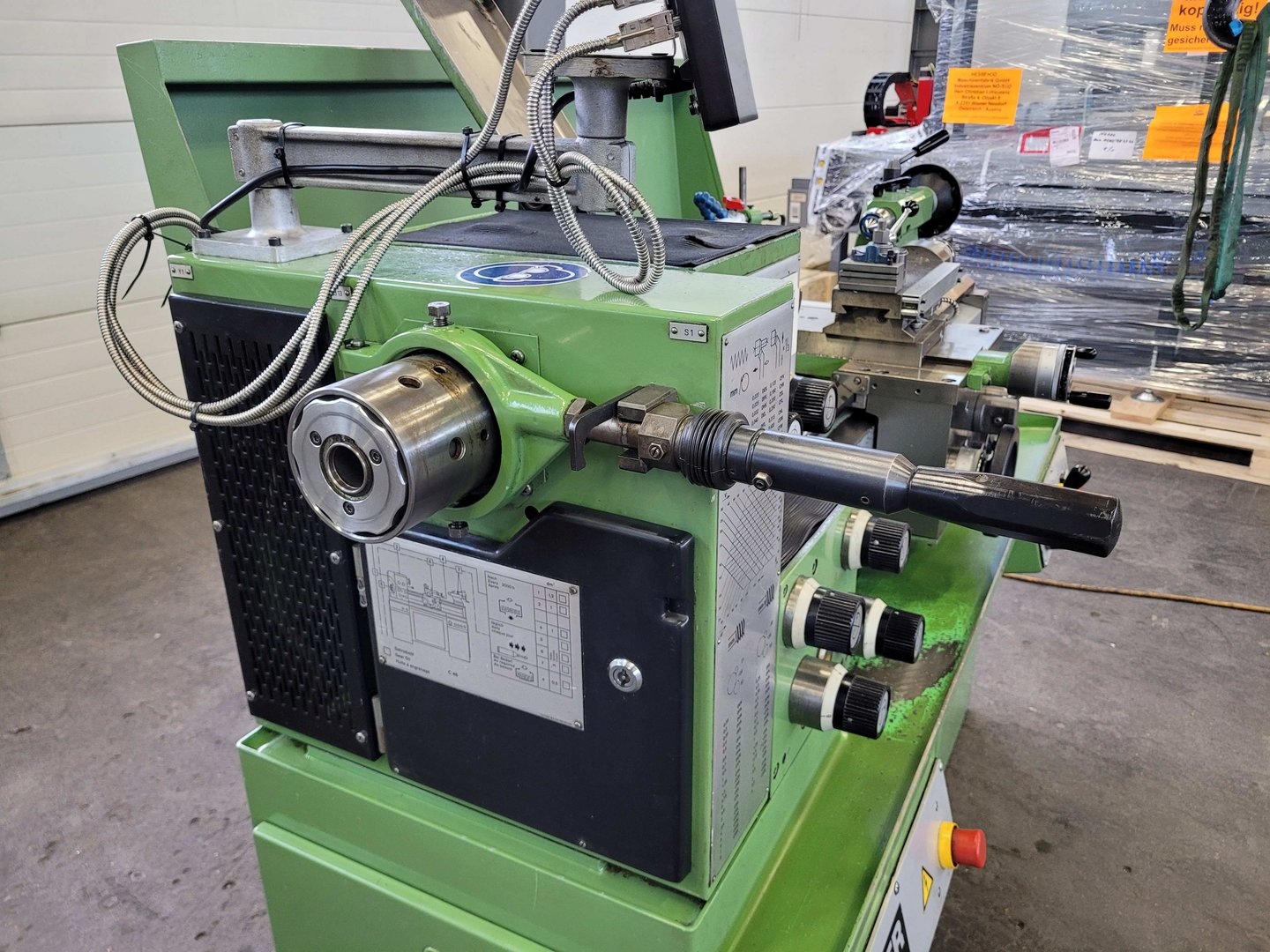

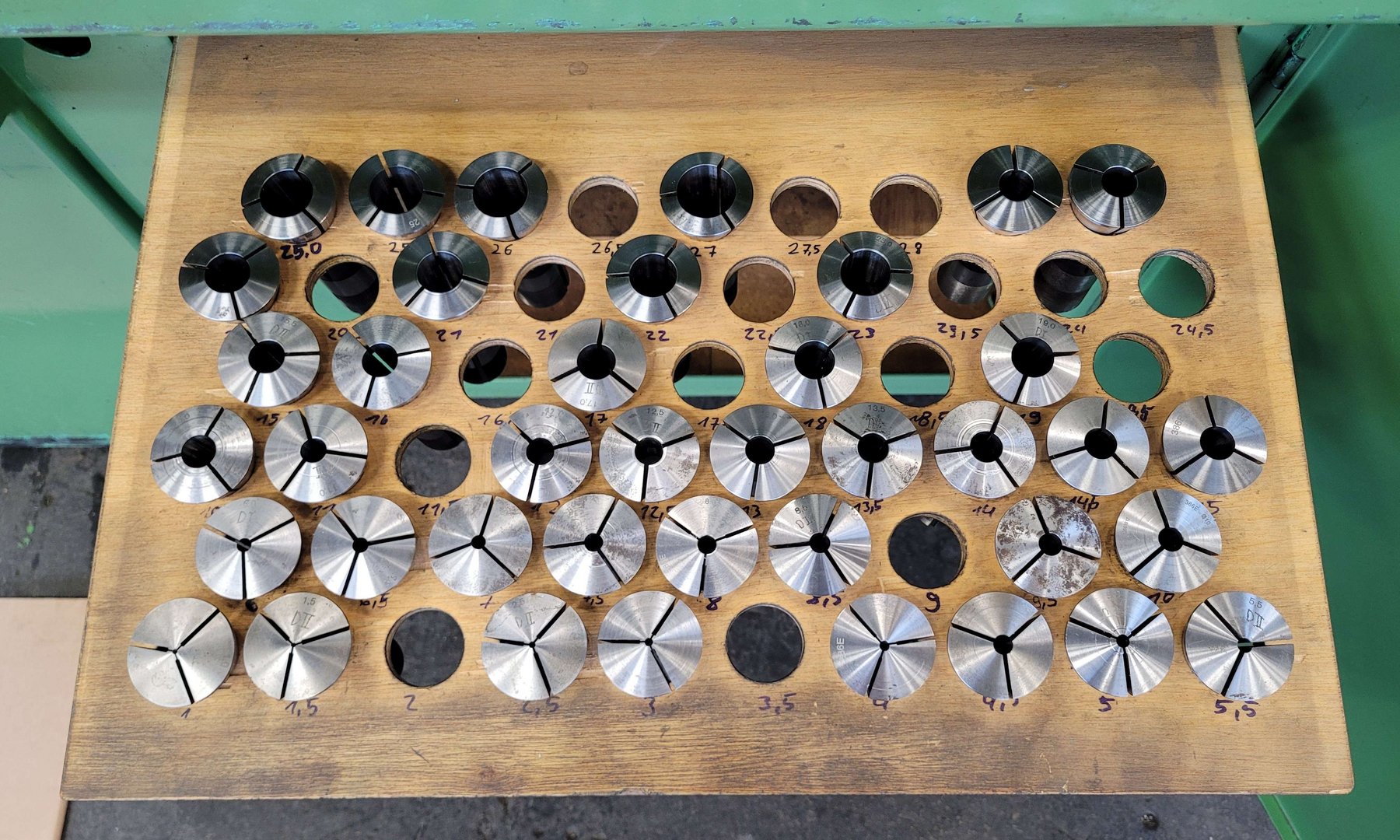

Quick-release collet chuck with various collets from 1 to 27 mm
Live centre
Drill chuck
Chuck guard
Lead and feed screw guard
Motor brake
Coolant system
Mounting feet
Operating instructions in German
Further information
Brochures
Product video

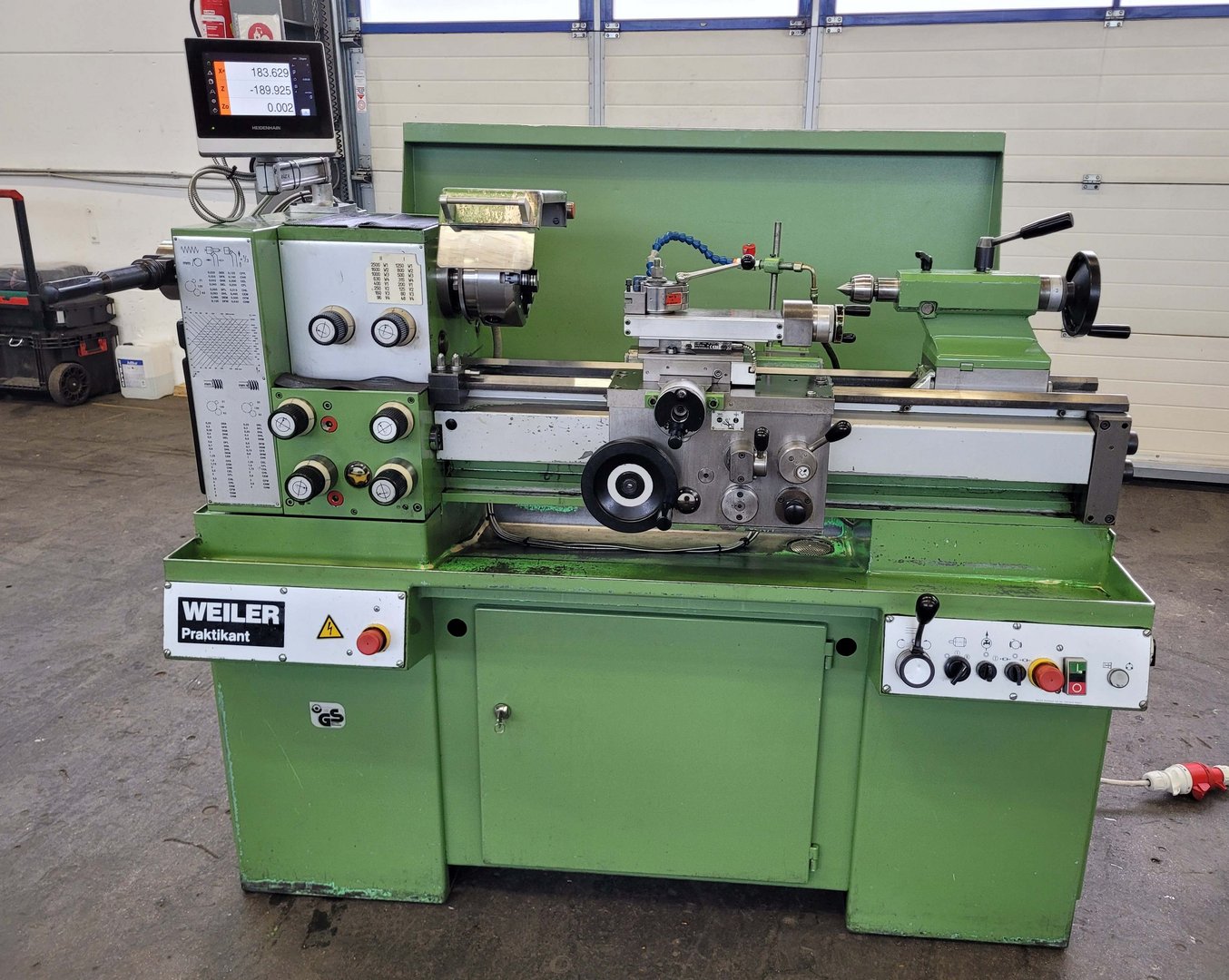

Precision-centre lathe WEILER Praktikant 160
