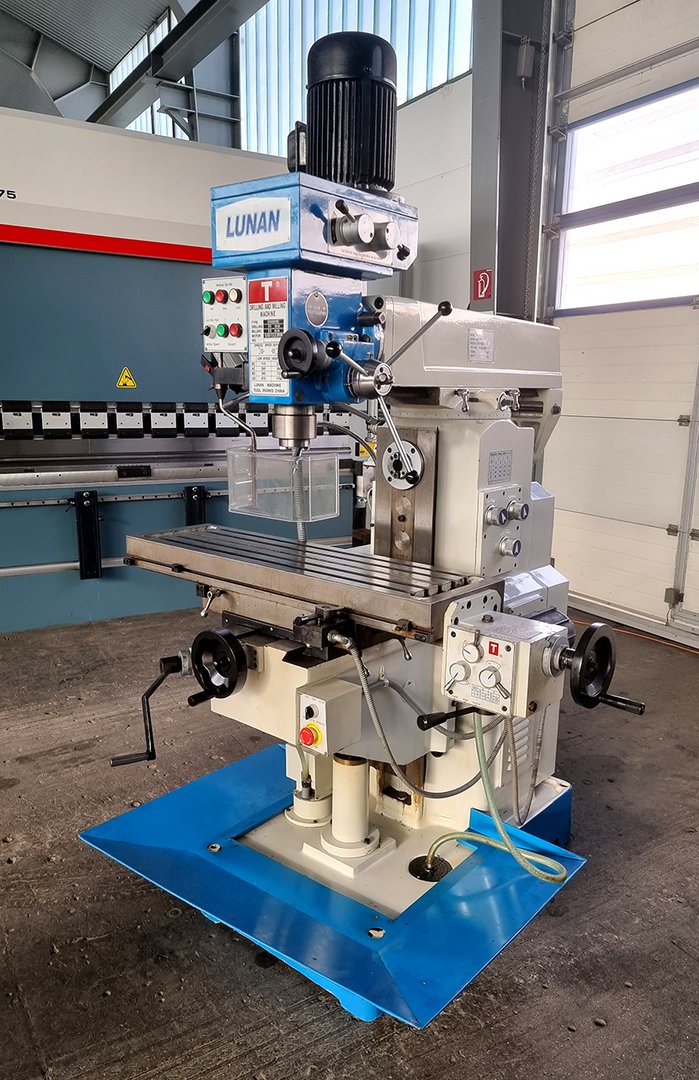

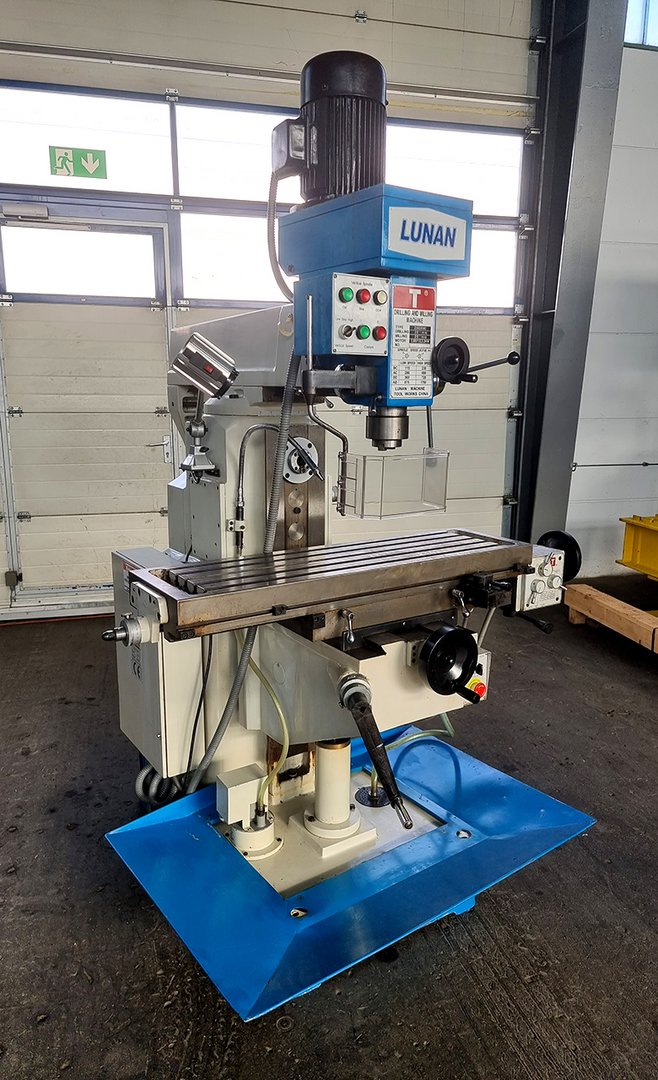

General characteristics
| Revs | 40 – 1.300 r.p.m. |
| Taper | ISO 30 |
| Working area | 465 x 230 x 380 mm |

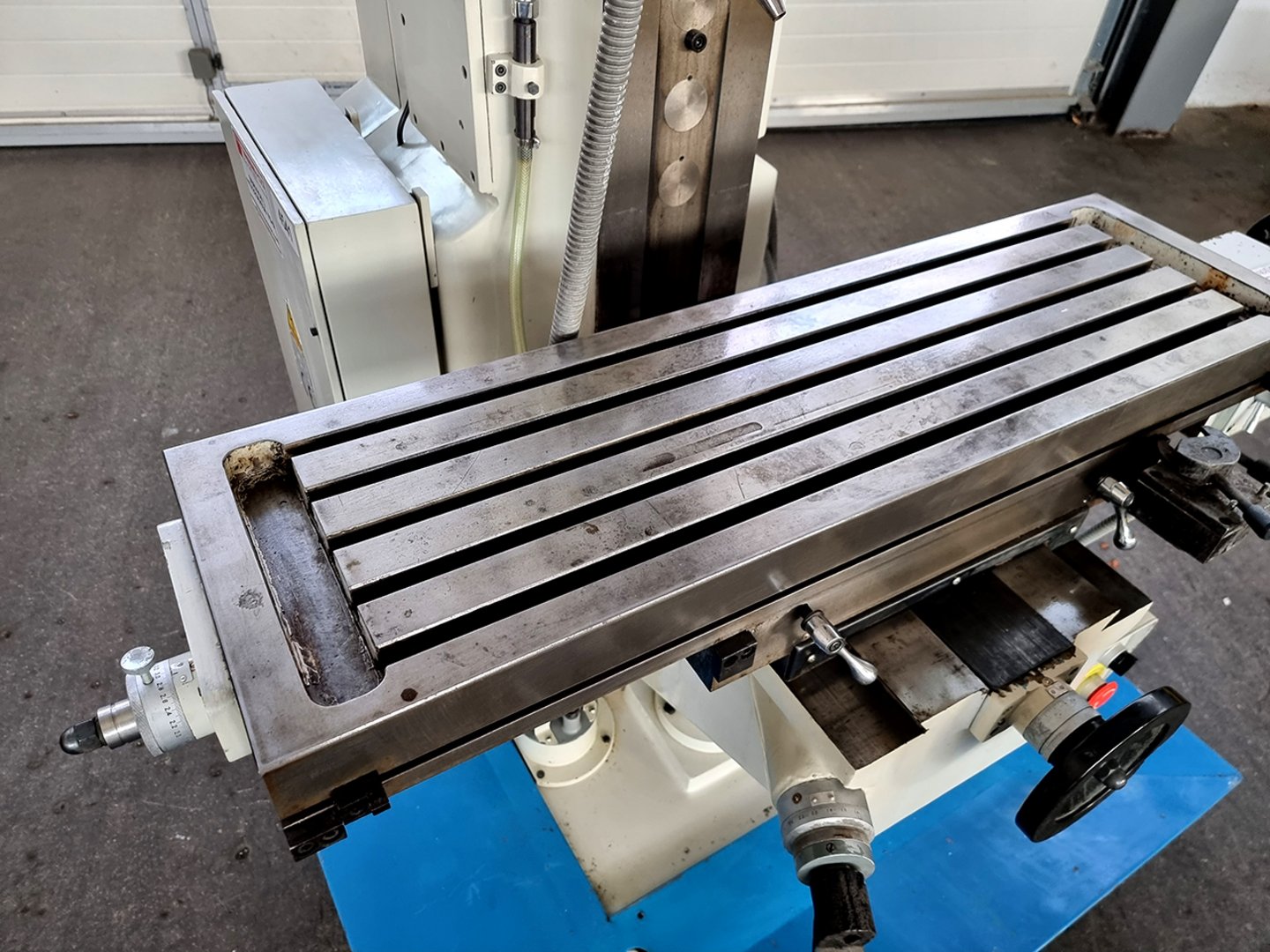

| Table | 1000 x 280 mm |
| Motor | 2.2 kW |
| Spindle head tiltable left-right | 90 ° |
| Spindle speed (load-free) | 115 – 1.750 (115, 230,290,360,580,720,875,1.750) rpm |
Dimensions and weight
| Length | 1400 mm |
| Width | 1300 mm |
| Height | 2200 mm |
| Weight | 1120 kg |
Description

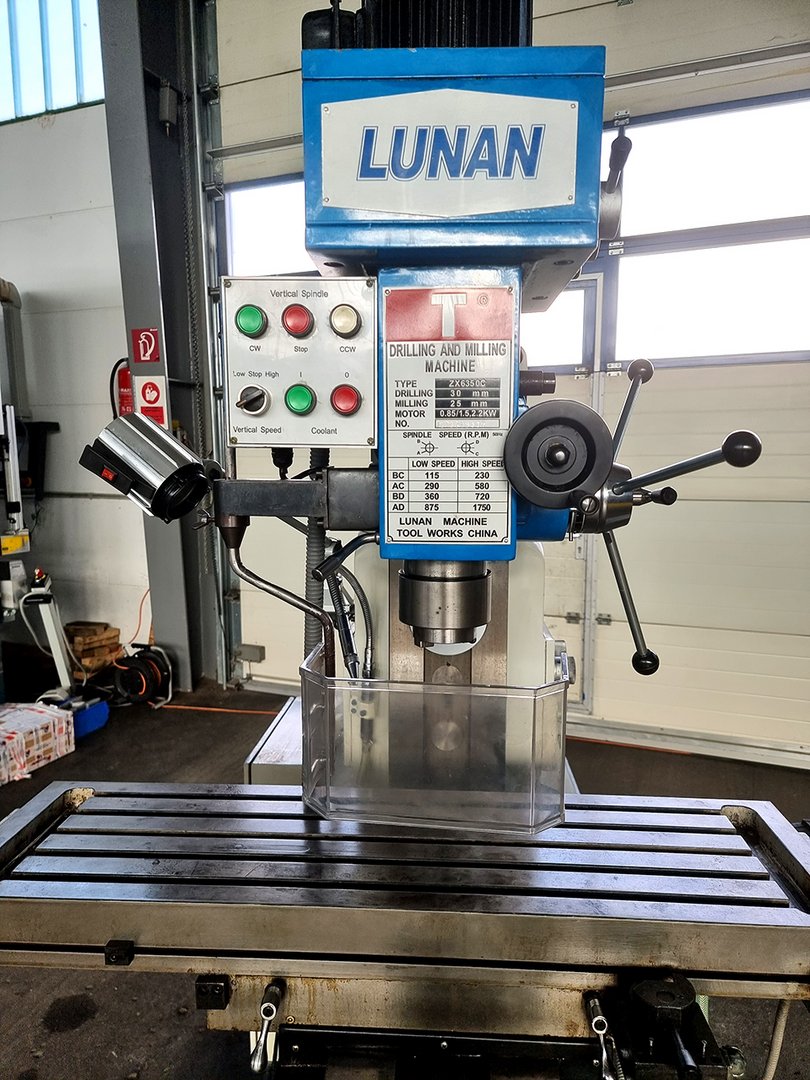

Milling head rotatable and swivellable +/- 90°
with manual quill 120 mm travel range
Spindle sleeve feed takes place via a turnstile or with the fine feed by means of a handwheel
Spindle head 350 mm manually traversable
Max. drilling capacity 30 mm
Manual tool clamping vertical/horizontal by means of tightening screw
Automatic feed in X Axis,(8) 12 – 370 mm/min
Coolant unit
Chip tray
Lighting
1x Collet chuck set
1 Stk Drill chuck with mounting
4 Milling cutter holders
User Manual in ENGLISH
Does not comply with the German UVV & Austrian AMVO
