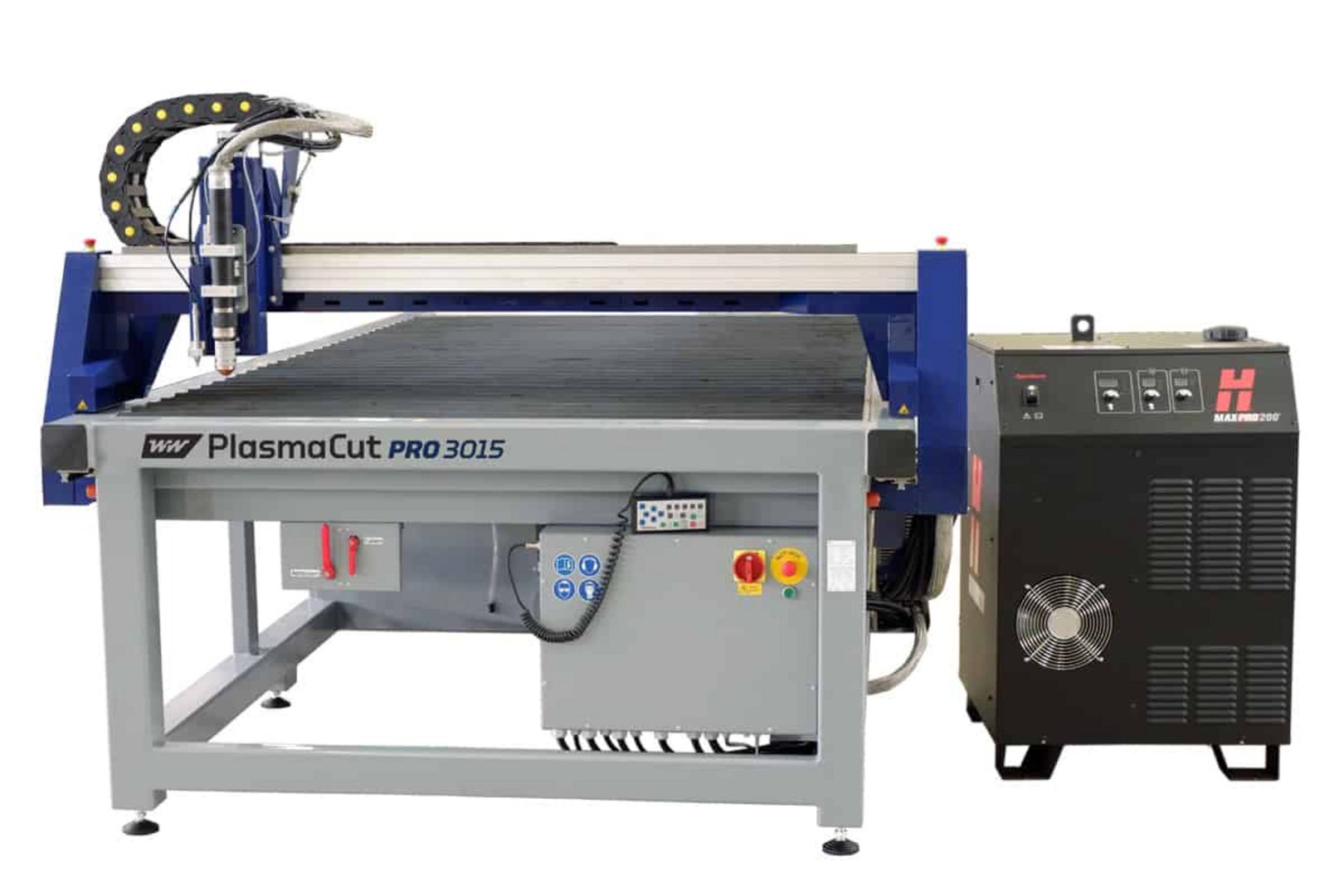

General characteristics
| Working area | 3020 x 1520 mm |
| Plasma source | Kjellberg Smart Focus 300 |
| Max. thickness - mild steel | 80 mm |
| Max. piercing thickness - mild steel | 40 mm |
| Recommended thickness (unalloyed steel): | 60 mm |
| Current | 300 A |
| Current / power-on time | 100 % A |
| Positioning speed | 24 m/min |
| Repeat accuracy | < 1/10 mm |
| Max. weight on table | 400 kg/m² |
Dimensions and weight
Description

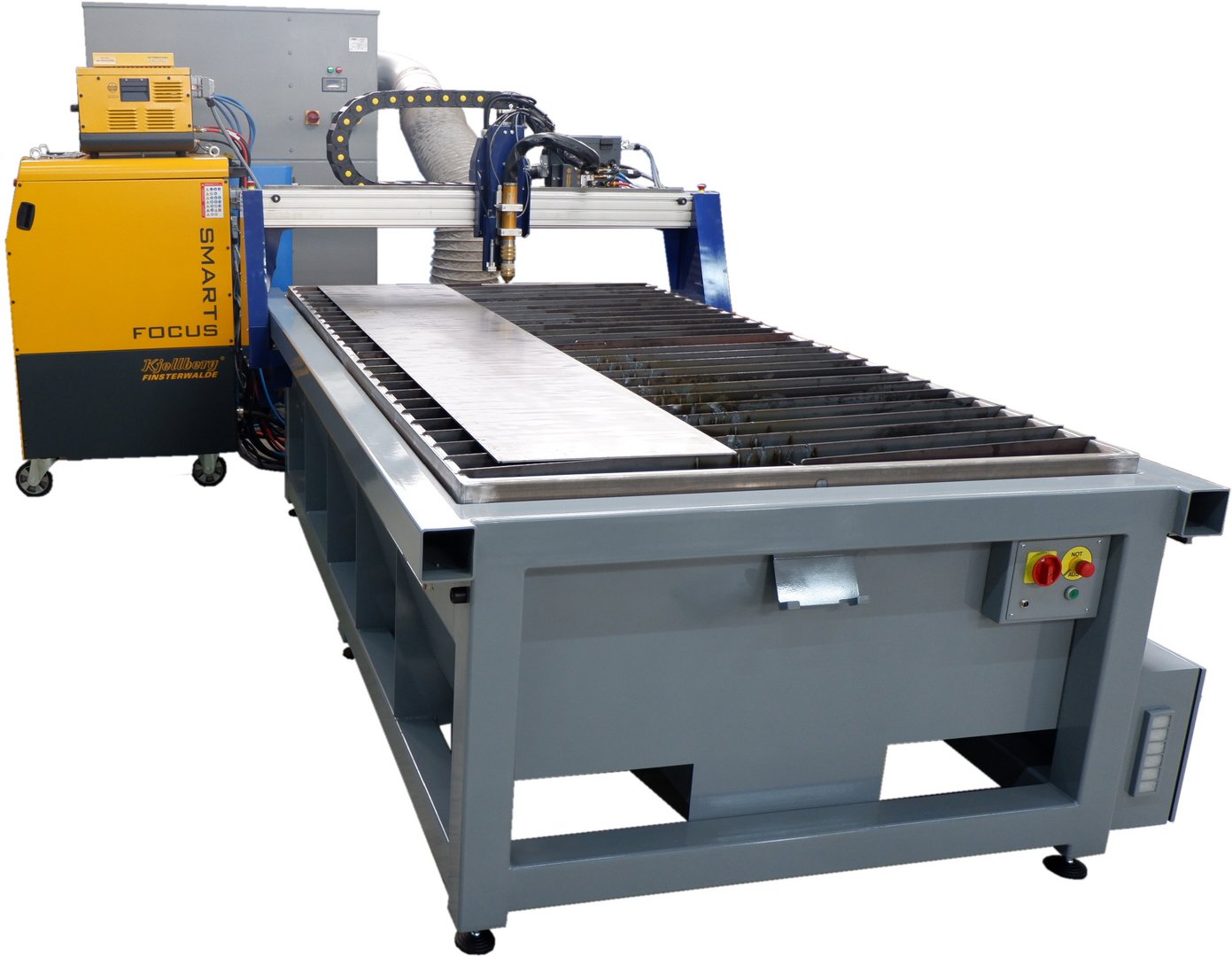

KJELLBERG Smart Focus 300 plasma source
- Manual gas console
- Torch: PerCut 4000
- Process gases: Air and oxygen, nitrogen, argon, hydrogen, F5 forming gas
- Required hoses and connection cables
- Including initial equipment recommended by Kjellberg
CNC Workbench software (external PC not included)
Cutting table with guide and drive system including flap-controlled extraction table with support grid
Handheld control unit
CAD-CAM control software cnc-workbench plasma
Serial connection cable
Operating manual

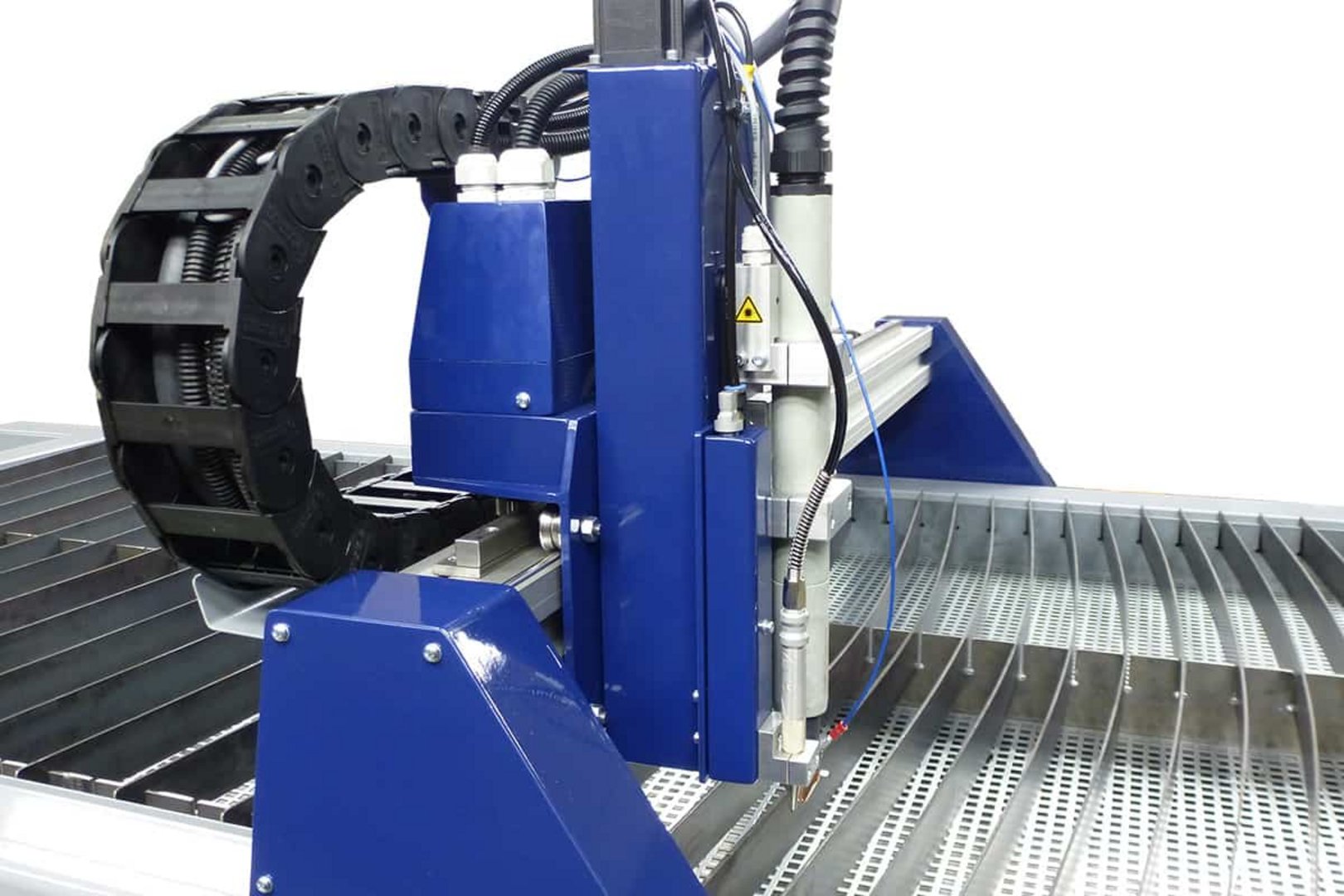

Guide system and drive
- Hardened precision round steel guides with adjustable V-shaped rollers on the X-axis
- Bosch Rexroth profile rail guides on the Y-axis
- Drive via hardened racks and pinions
- Closed-loop stepper motor drive
- Positioning speed 24 m/min
- Repeatability better 1/10 mm
Software

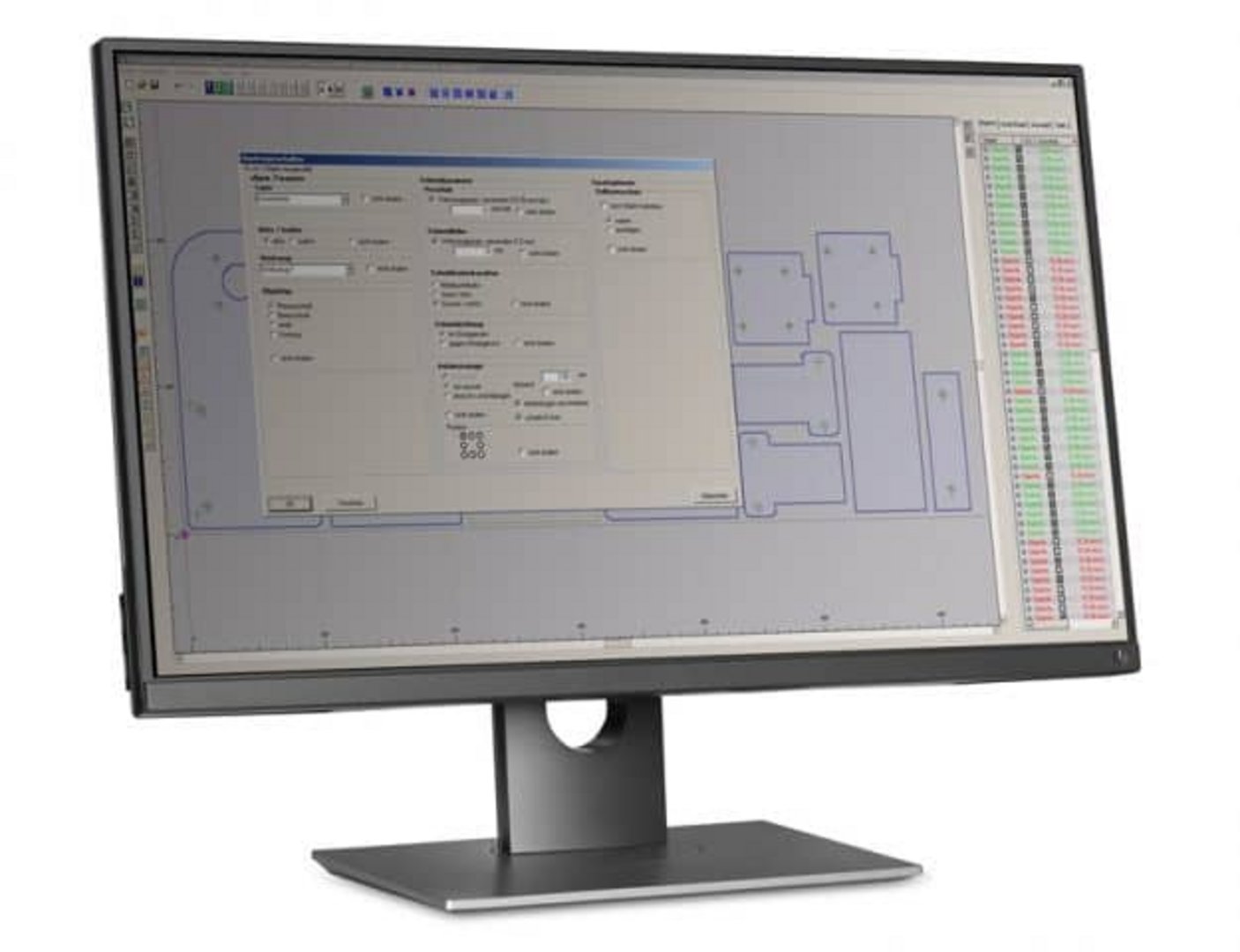

The all-in-one cnc-workbench Plasma software
enables quick and easy operation. Changes to dimensions and parameters
can be made directly on the machine. The program
can be installed on multiple PCs, allowing cutting job preparation to take place in the office.
Key functions:
- Importing DXF files
- Creating simple geometries (circles, rectangles, polylines, etc.)
- Post-processing, correction, part definition, duplication
- Cutting width correction, lead-in arcs
- Manual nesting
- Setting the sequence
- Parameter database for cutting parameters
A PC with Windows XP/7/8.1/10/11 is required for operation (not included).
Includes the following optional features:

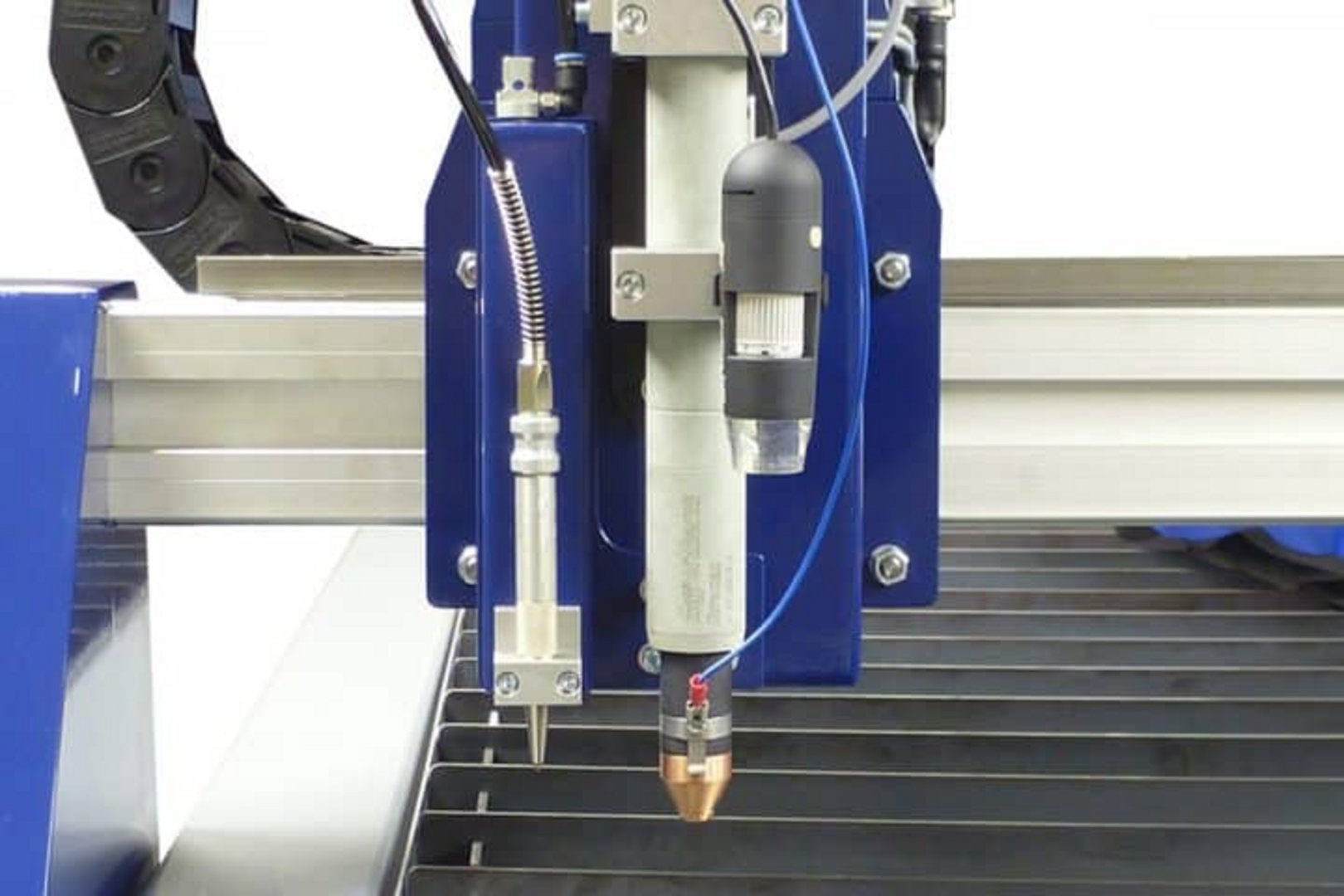

Setup laser pointer,
simplifies workpiece setup,
contour tracking before cutting,
THC torch height control,
fully automatic torch distance control via the
arc voltage,
Option:
Extraction system with filter system
Further information
