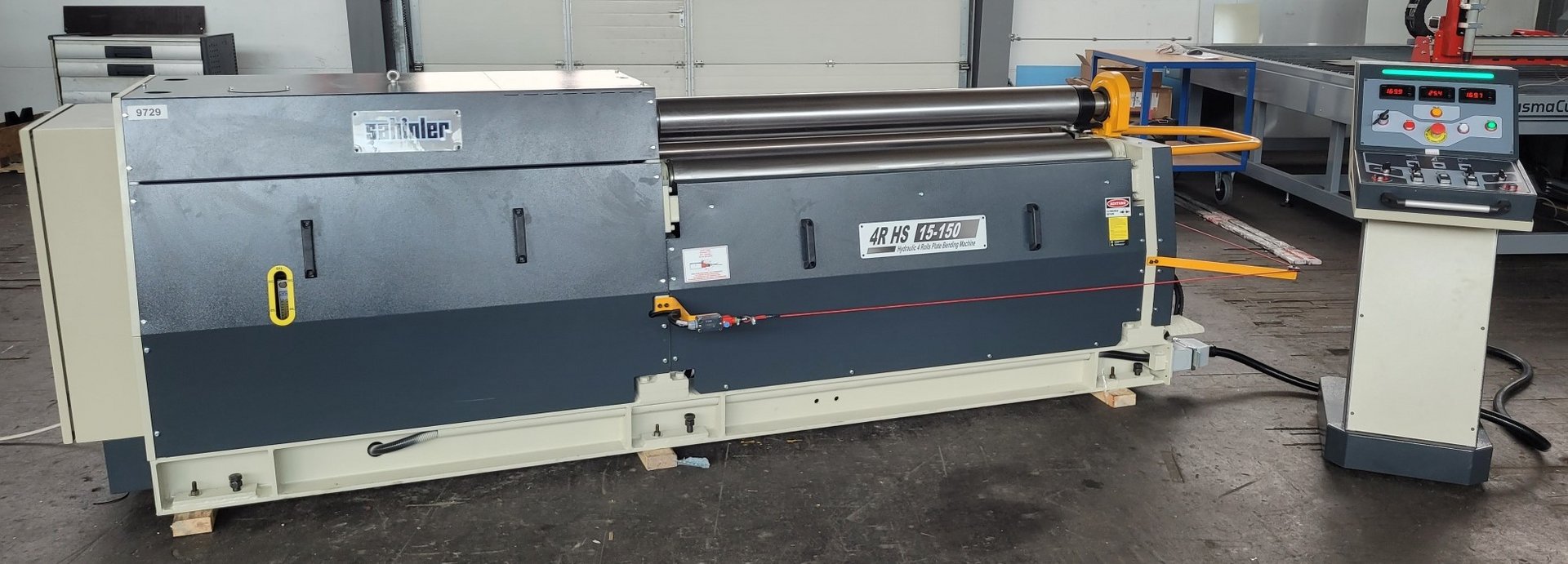

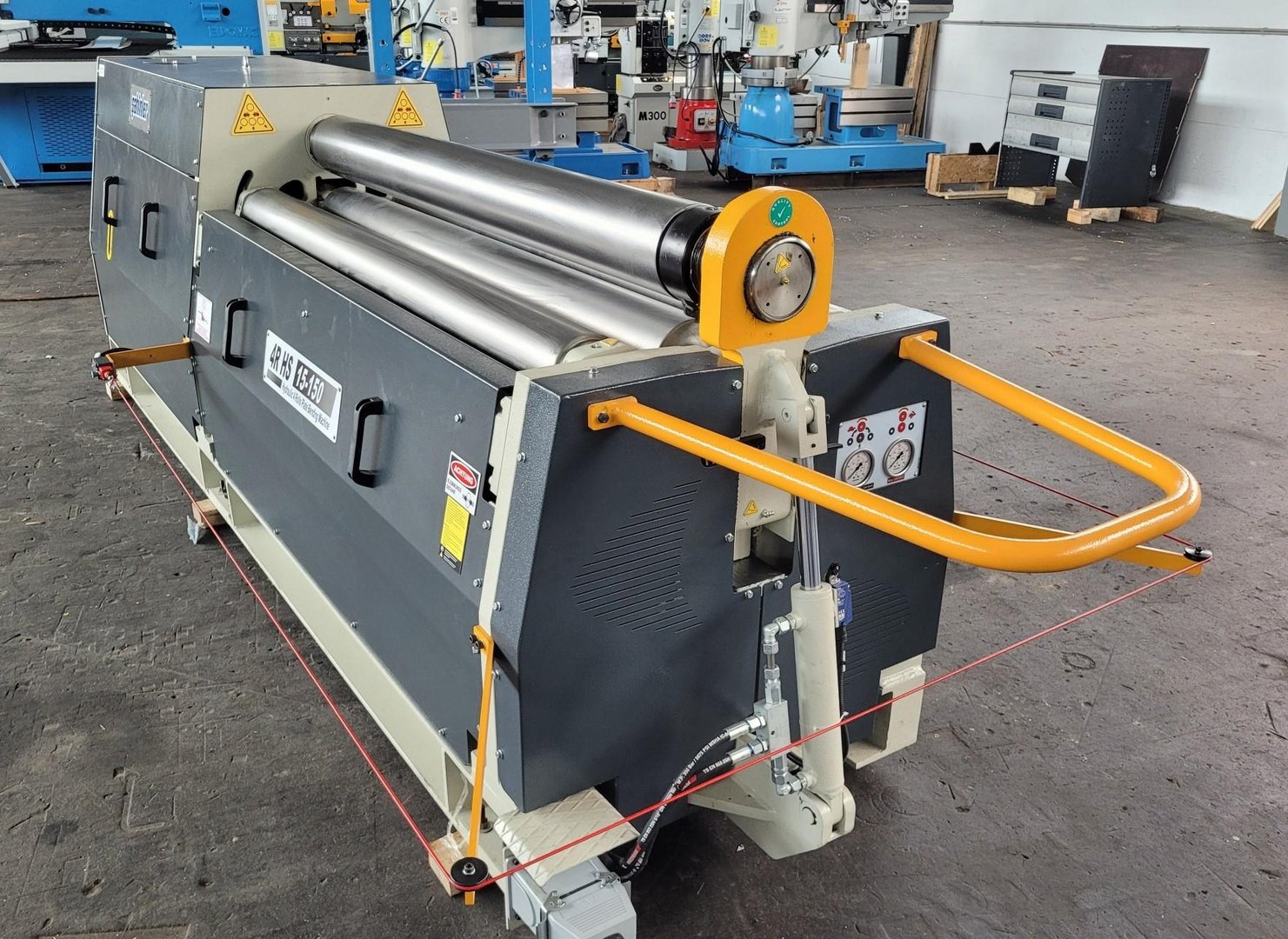

Hydraulic 4-roll plate bending machine HESSE by SAHINLER 4R HSS 20-280
| Model | 4R HSS 20-280 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Bending length | 2050 mm |
| Upper roll diameter | 280 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 2050 mm |
| Max. bending capacity - mild steel | 20 |
| Max. plate thickness without prebending at D=5x upper roll diam. - mild steel | 20 mm |
| Max. plate thickness without prebending at D=1,5x upper roll diam. - mild steel | 16 mm |
| Max. plate thickness with prebending at D=5x upper roll diam. - mild steel | 16 mm |
| Max. plate thickness with prebending at D=1,5x upper roll diam. - mild steel | 12 mm |
| Upper roll diameter | 280 mm |
| Lower roll diameter | 280 mm |
| Lateral roll diameter | 220 mm |
| Bending speed | 1,5 / 5 m/min |
| Motor power | 16 kW |
Dimensions and weight
| Length | 4350 mm |
| Width | 1700 mm |
| Height | 1850 mm |
| Weight | 8550 kg |
Description
4 rolls
full hydraulic drive of upper roll and lower roll
hydraulic infeed of lower and side roll
digital read-out of lower and side rolls position
hardened rolls
conical bending device
hydraulic load relieving of upper roll

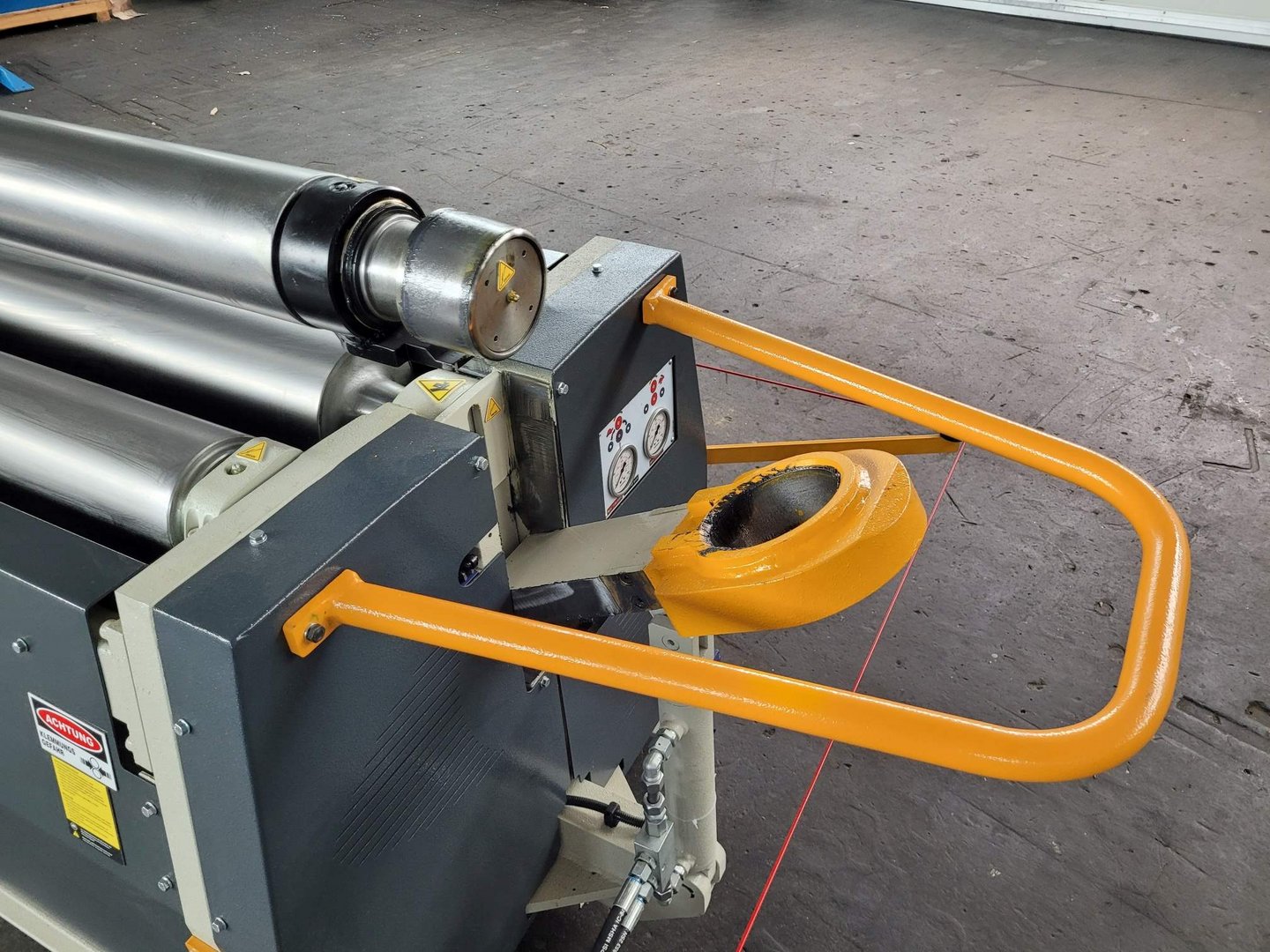

hydraulic drop-end bearing
2 working speeds
central lubrication system
protection against overload

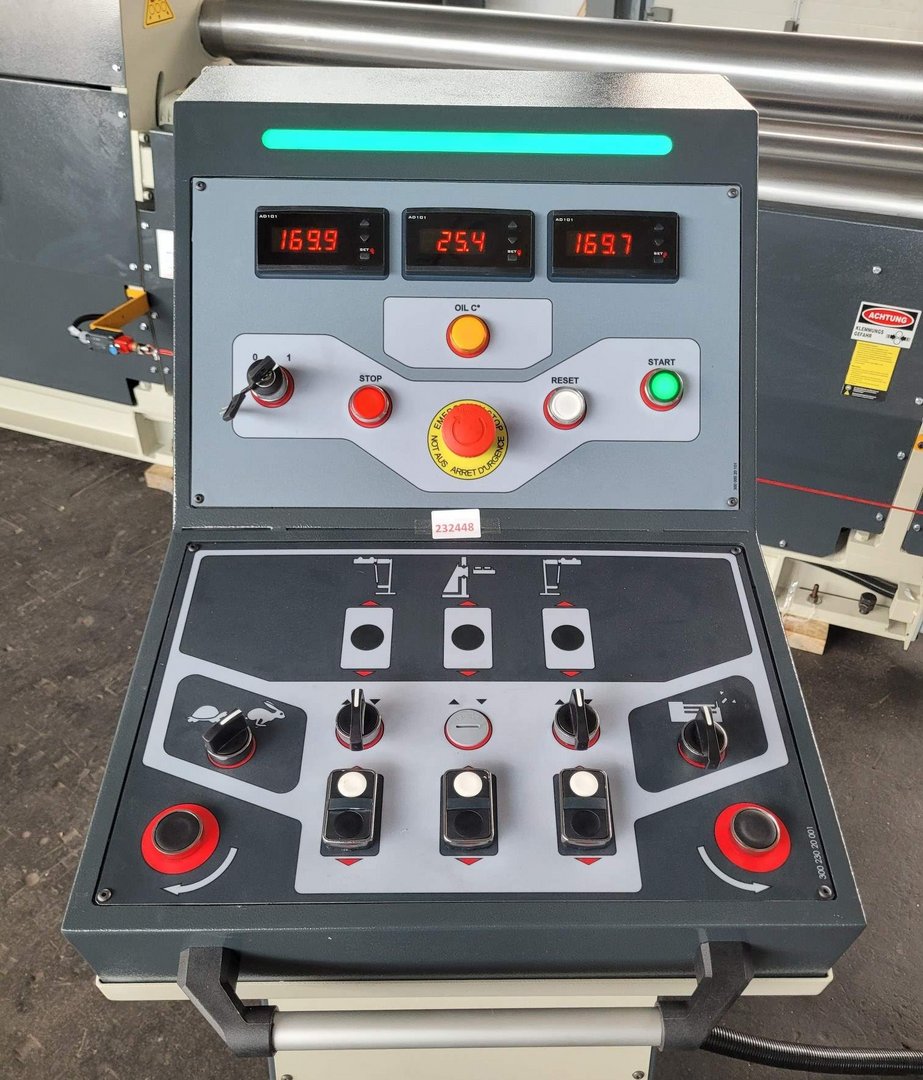

moveable control pane
according to CE rules
optional equipment (prices on request):
infinitely adustable speed of rolls
hydraulic side support
hydraulic top support
important issues at conical bending:
the max. sheet metal thickness is equivalent to 50 % of nominal capacity
the cone length can be max. 30 % ore must be more than 60 % of roll length
hardened rolls are recommended
