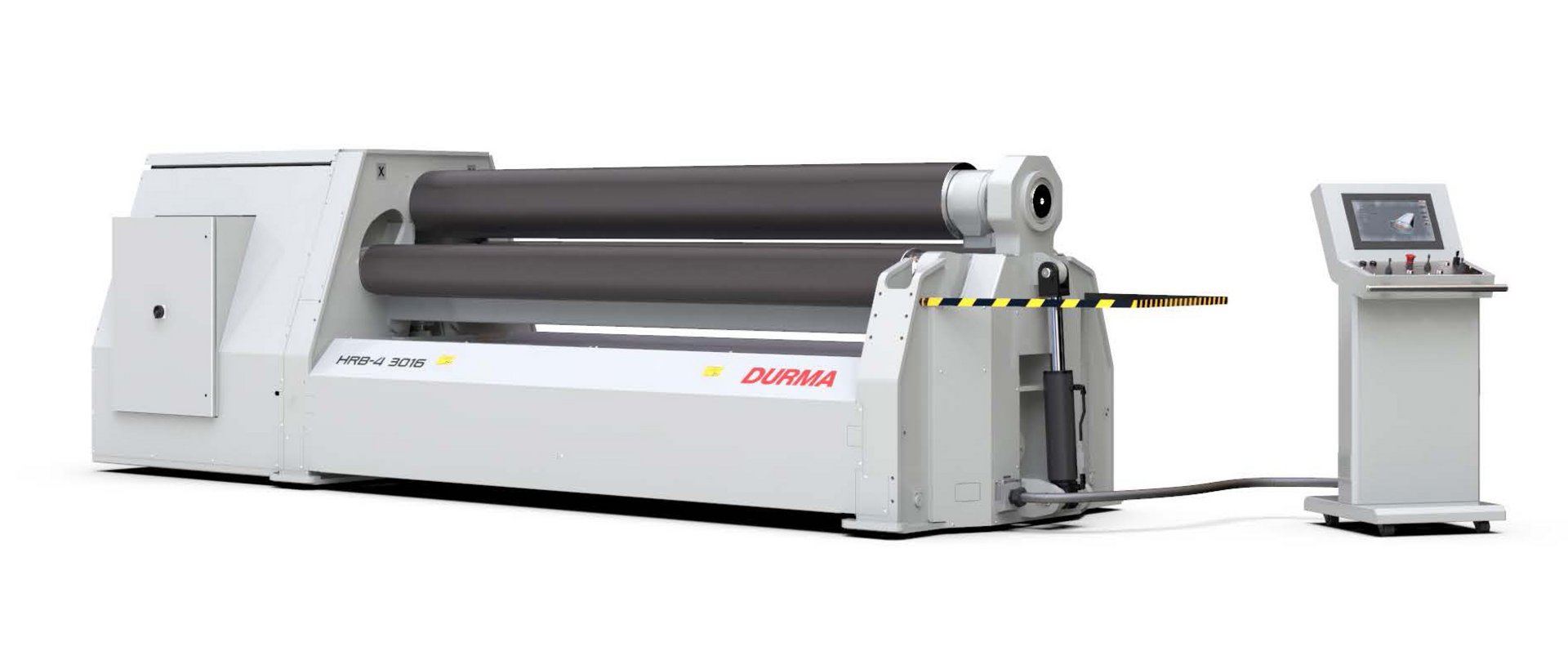

Hydraulic 4-roll plate bending machine HESSE by DURMA HRB-4 25270
| Model | HRB-4 25270 |
| Brand | HESSE by DURMA |
| Condition | new |
| Bending length | 2550 mm |
| Upper roll diameter | 270 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 2550 mm |
| Max. bending capacity - mild steel | 15 |
| Max. plate thickness without prebending at D=5x upper roll diam. - mild steel | 15 mm |
| Max. plate thickness without prebending at D=3x upper roll diam. - mild steel | 13 mm |
| Max. plate thickness without prebending at D=1,5x upper roll diam. - mild steel | 12 mm |
| Max. plate thickness with prebending at D=5x upper roll diam. - mild steel | 12 mm |
| Max. plate thickness with prebending at D=1,5x upper roll diam. - mild steel | 10 mm |
| Upper roll diameter | 270 mm |
| Lower roll diameter | 270 mm |
| Lateral roll diameter | 230 mm |
| Max. opening | 50 mm |
| Working height | 1155 mm |
| Motor power | 15 kW |
Dimensions and weight
| Length | 4760 mm |
| Width | 1660 mm |
| Height | 1155 mm |
| Weight | 8950 kg |
Description
4 rolls
fully hydraulic drive of upper and lower roll (from 30 mm bending capacity all four rolls) by planetary gear box
hydr. side rolls positioning with electronical synchronisation
hydr. lower roll feed with mechanical synchronisation
adjustable pinching pressure
variable rolling speed
hardened rolls
conical bending device
hydraulic drop-end bearing
moveable control panel
overload protection
user manual in GERMAN or ENGLISH
according to CE rules
optional:
NC control
upper and lateral supports
important issues at conical bending:
the max. sheet metal thickness is equivalent to 50 % of nominal capacity
the cone length can be max. 30 % ore must be more than 60 % of roll length
hardened rolls are recommended
