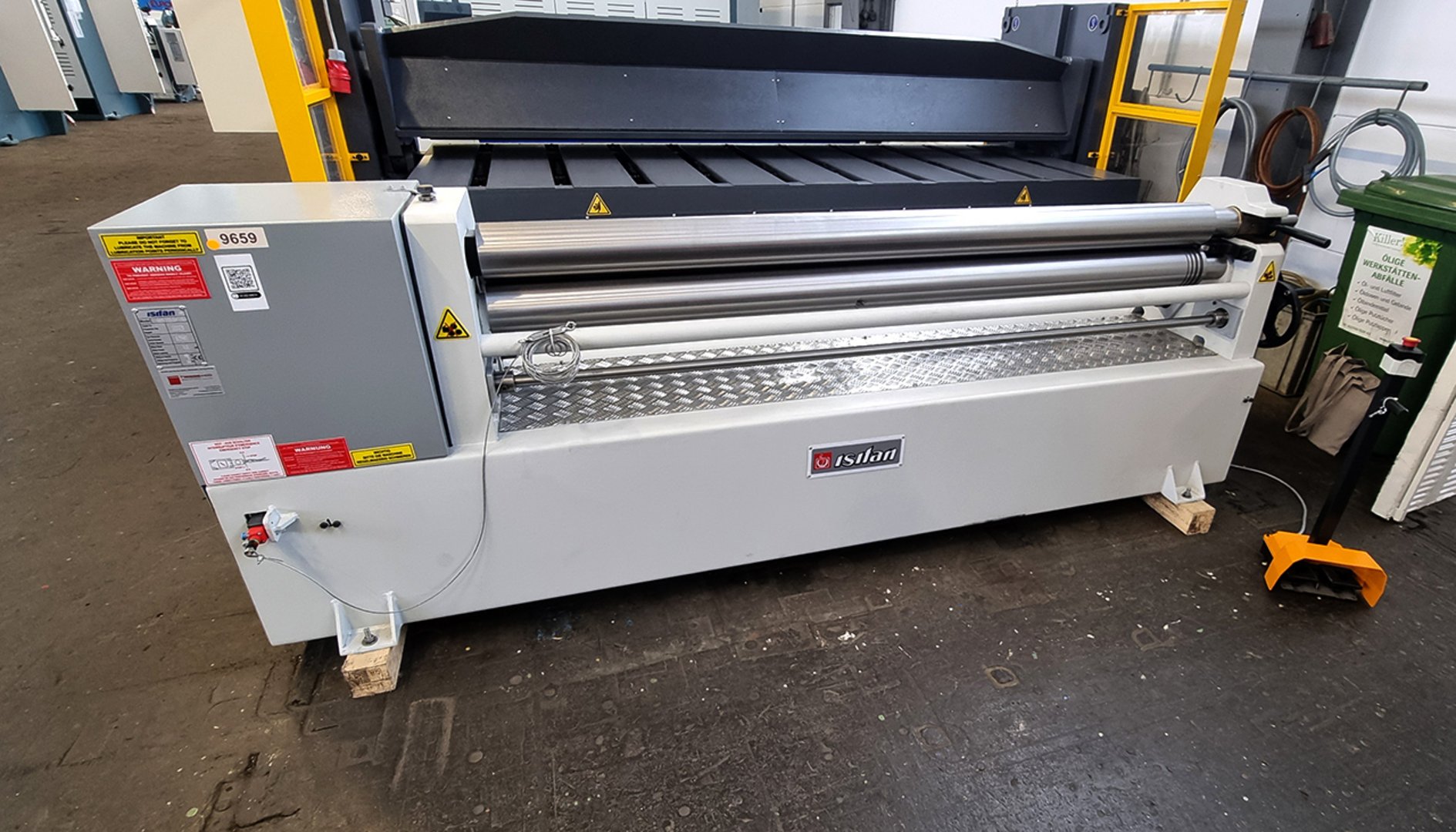

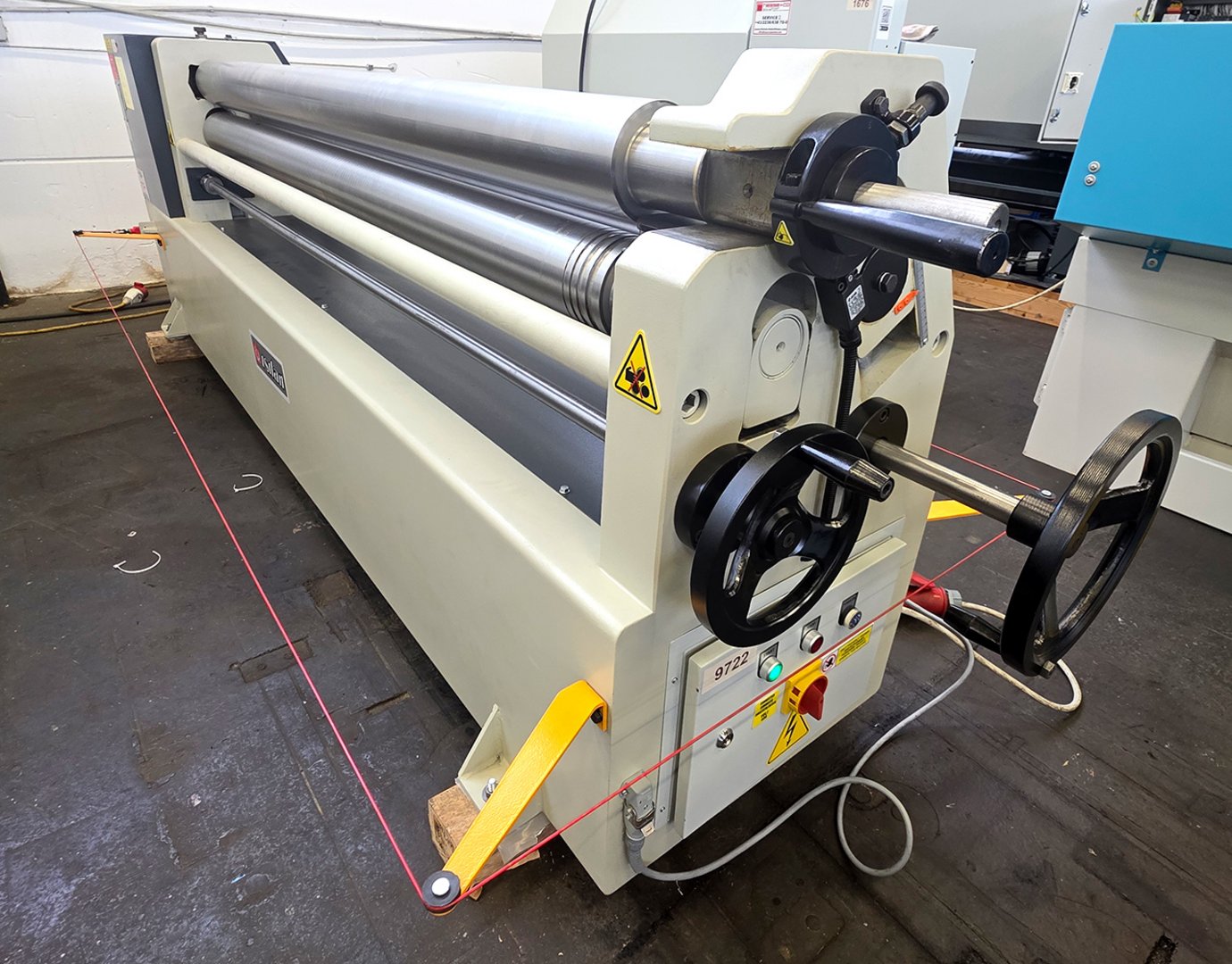

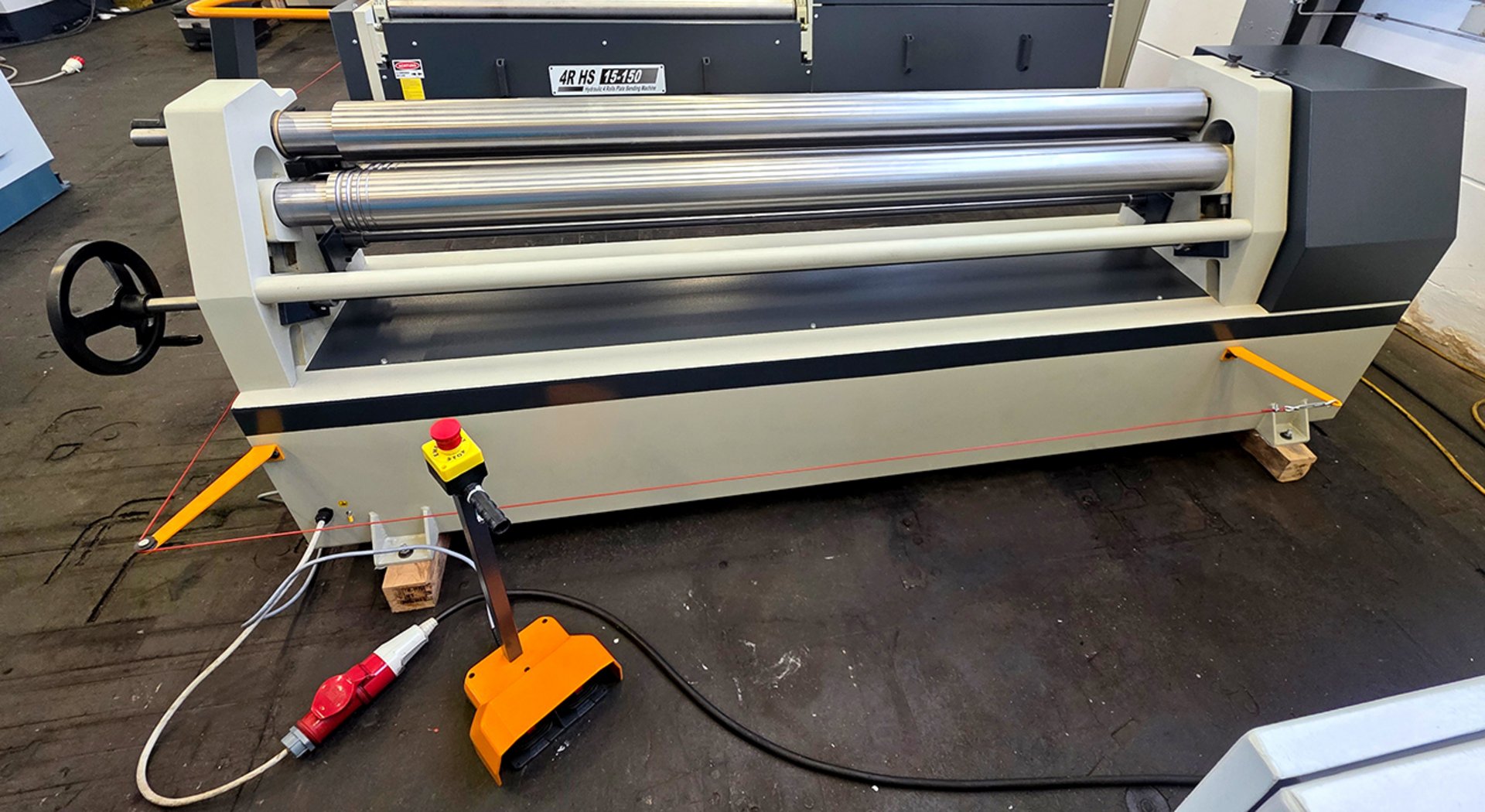

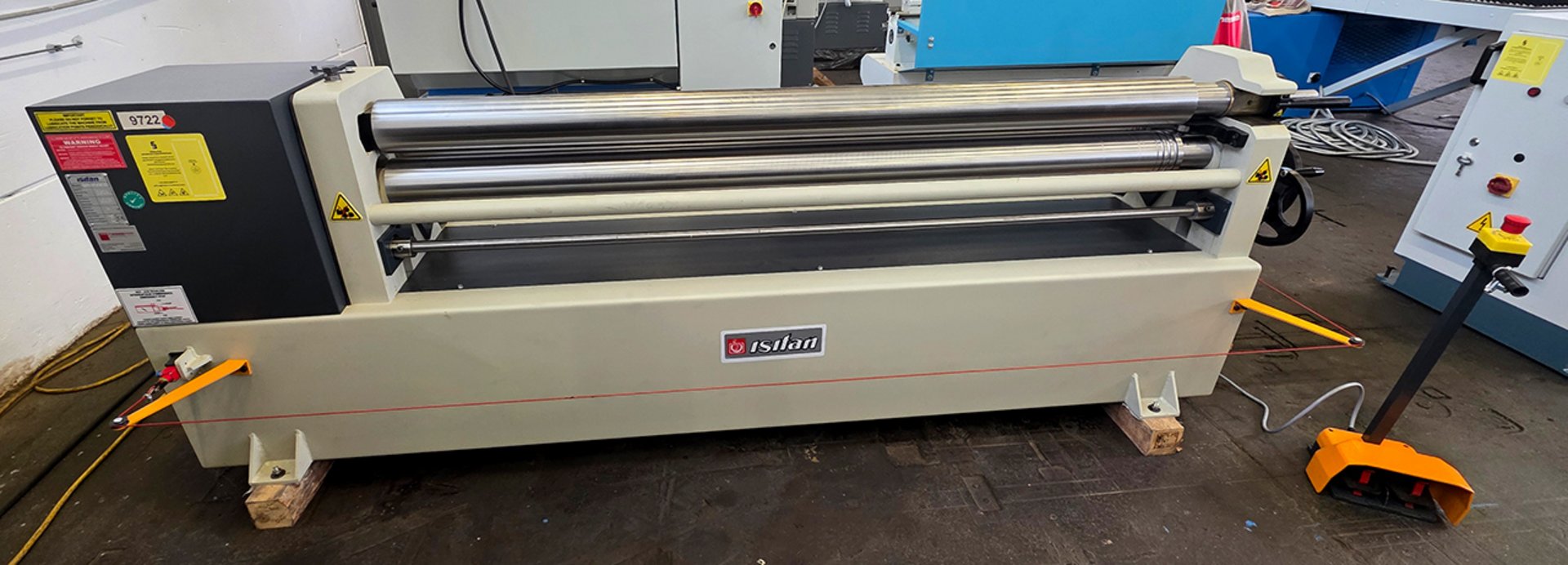

Motorized 3-roll plate bending machine HESSE by ISITAN IRM 2050 x 130
| Model | IRM 2050 x 130 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Year of manufacture | 2024 |
| Bending length | 2050 mm |
| Upper roll diameter | 130 mm |
| Stock number | 9722 |
| Origin | Türkiye |
General characteristics
| Bending length | 2050 mm |
| Max. bending capacity - mild steel | 3 |
| Upper roll diameter | 130 mm |
| Bending speed | 3 m/min |
| Motor power | 2.2 kW |
Dimensions and weight
| Length | 3200 mm |
| Width | 750 mm |
| Height | 1000 mm |
| Weight | 1500 kg |
Description

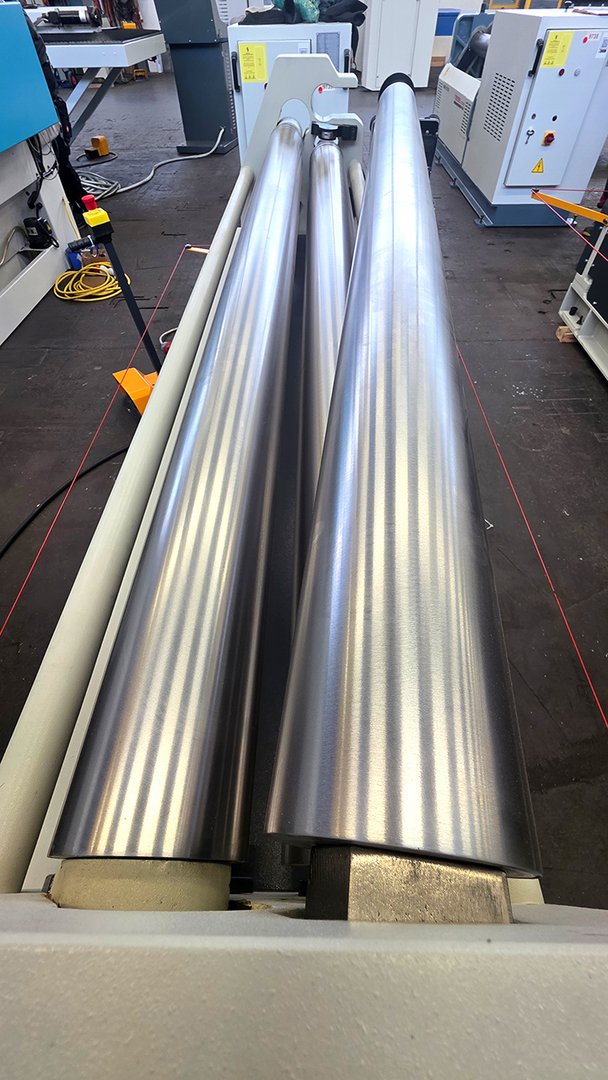

3 rolls
asymmetric rolls - prebending
2 rolls driven by brakemotor
hardened rolls
manual Back Roll
forward tiltable upper roll
forward and reverse revs
conical bending by tilt of backroll

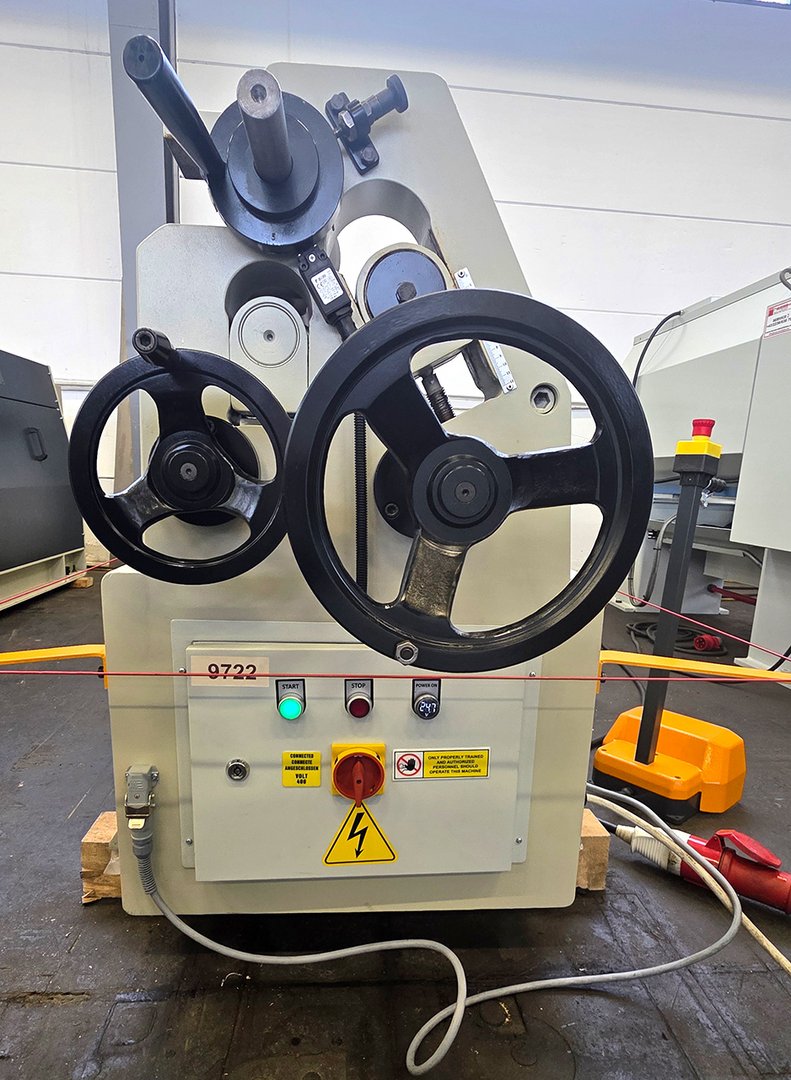

movable control panel
users manual in GERMAN
Options:
(time of delivery with options approx. 8 weeks)
Motorised Back Roll (Power Rear Roll) € 1.200,-
Digital Read-Out € 1.200,-
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
