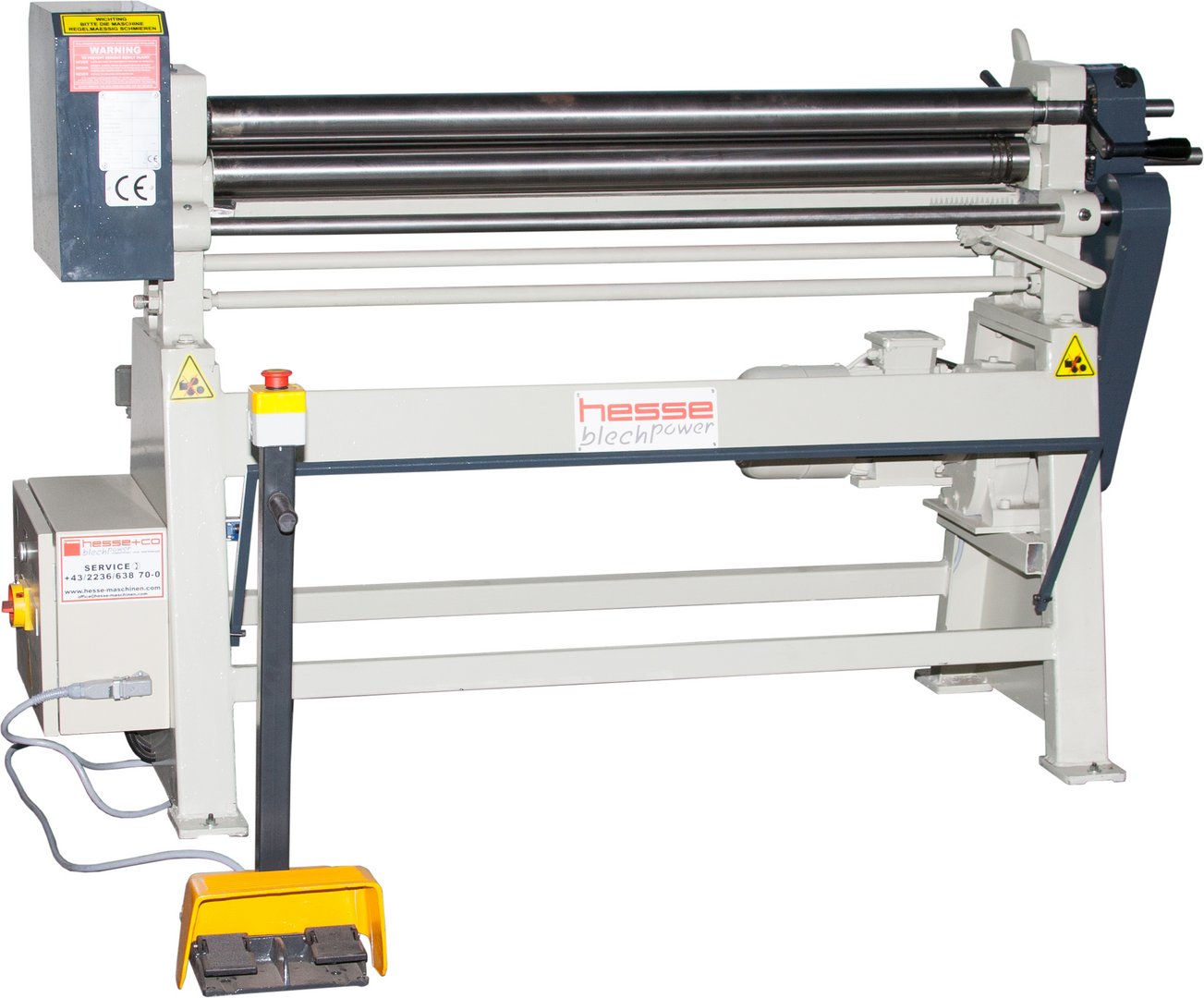

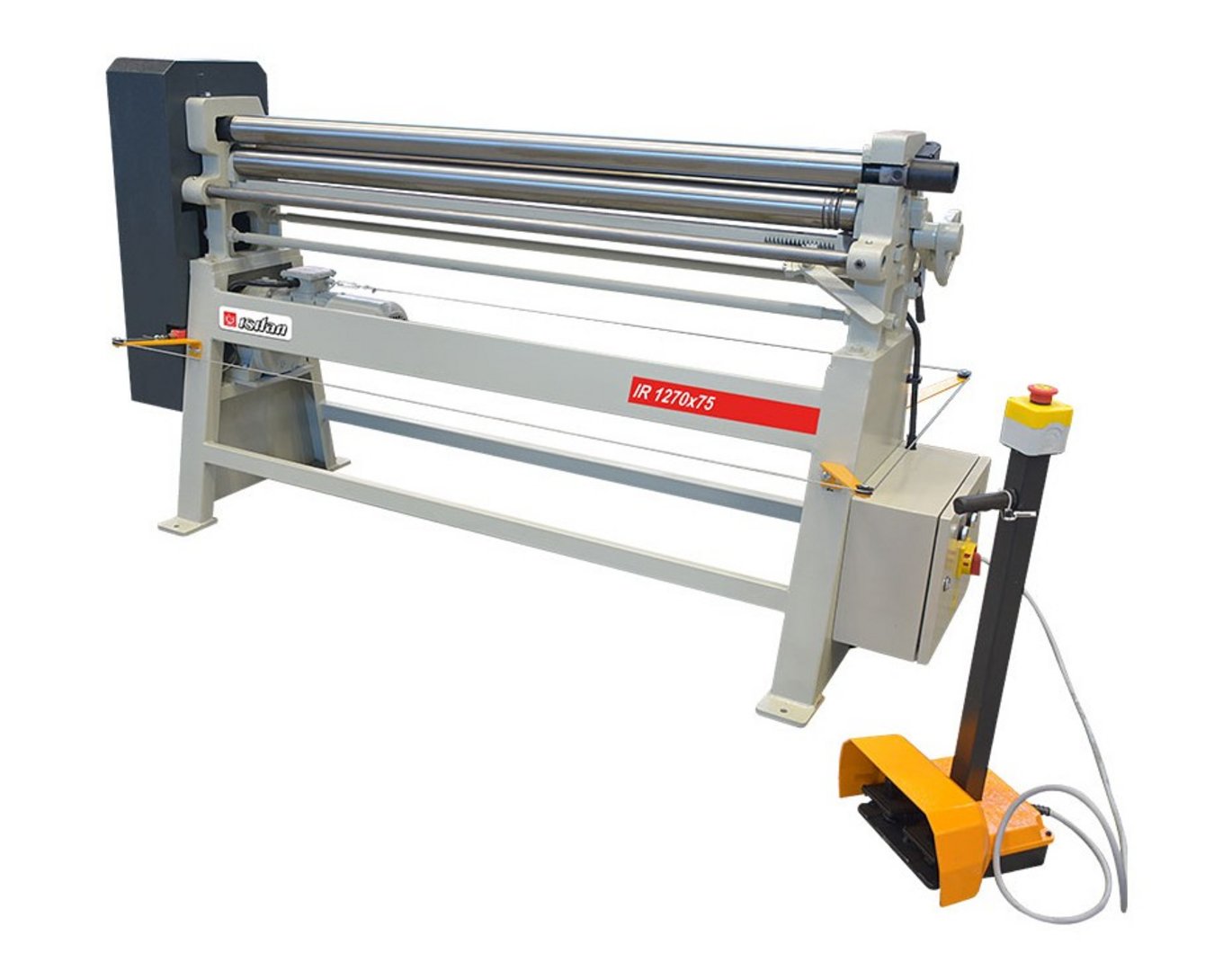

Motorized 3-roll plate bending machine HESSE by ISITAN IR 1270 x 75
| Model | IR 1270 x 75 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 1270 mm |
| Upper roll diameter | 75 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 1270 mm |
| Max. bending capacity - mild steel | 1.5 |
| Upper roll diameter | 75 mm |
| Motor power | 1.5 kW |
Dimensions and weight
| Length | 1830 mm |
| Width | 700 mm |
| Height | 1160 mm |
| Weight | 400 kg |
Description
3 rolls
asymmetric rolls - prebending
2 rolls driven by brakemotor

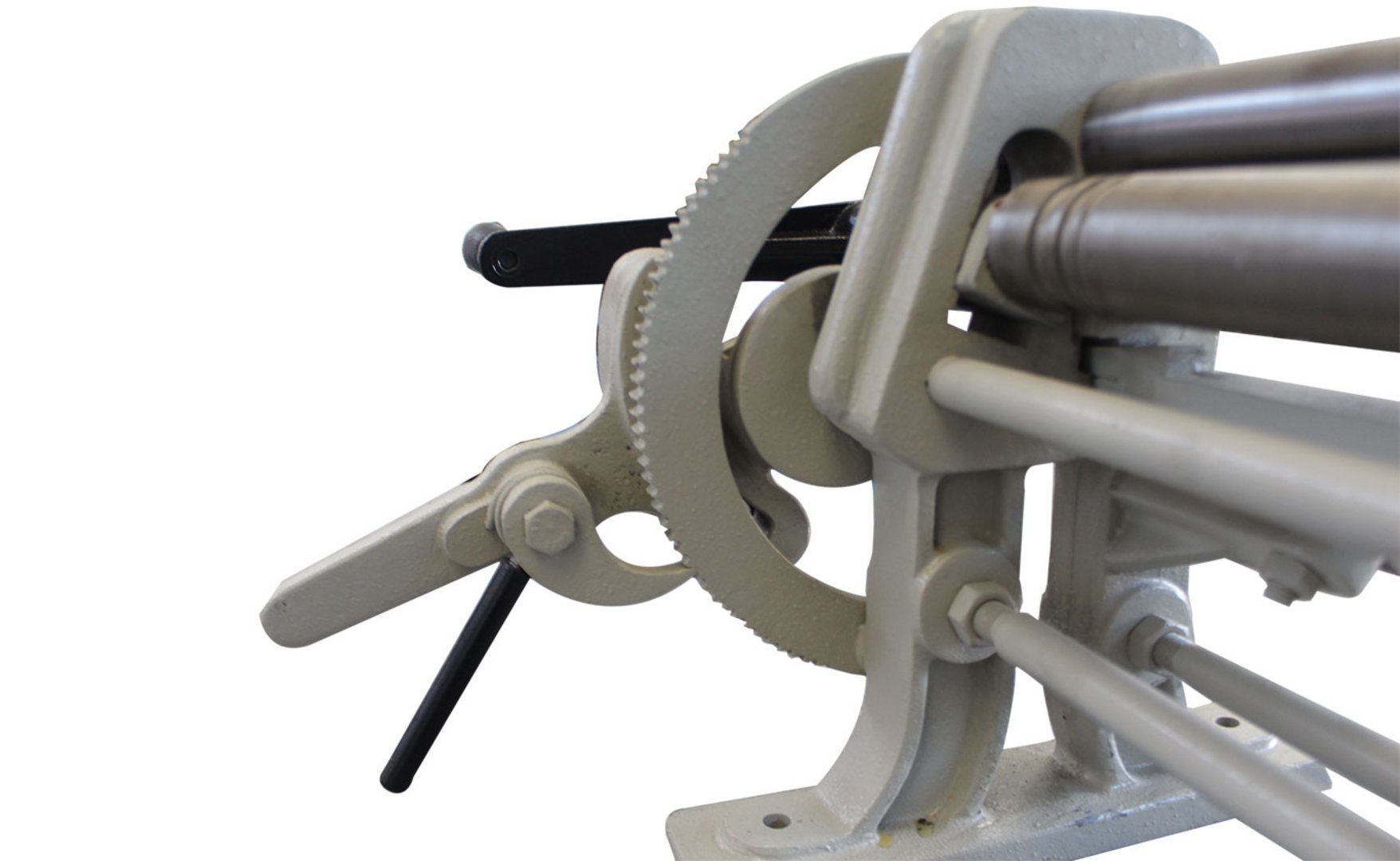

lateral roll adjustable by ratchet lever
longitudinal grooves in lower and lateral roll

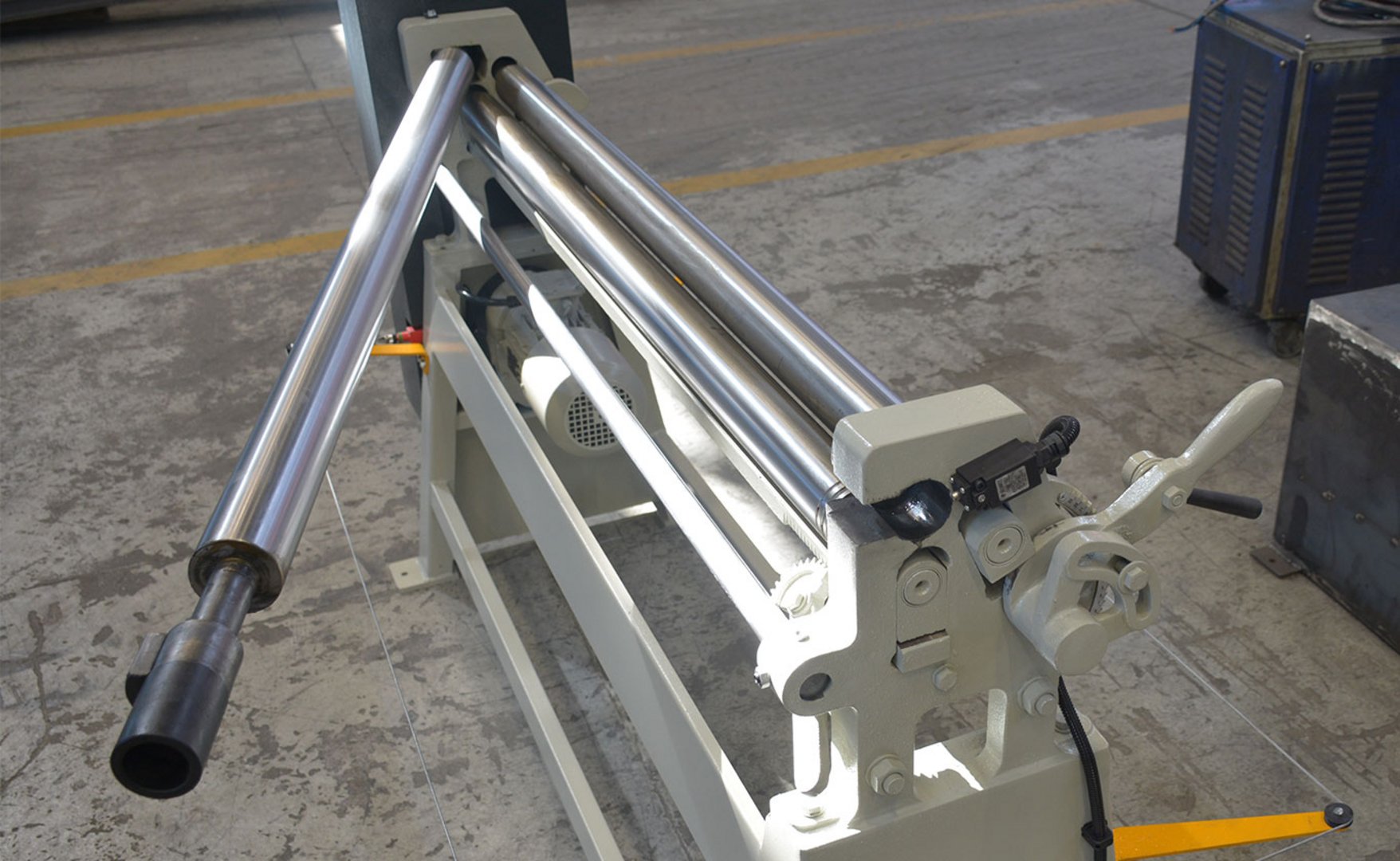

tiltable upper roll
hardened rollers
right / left rotation with double foot switch
user manual in GERMAN or ENGLISH
