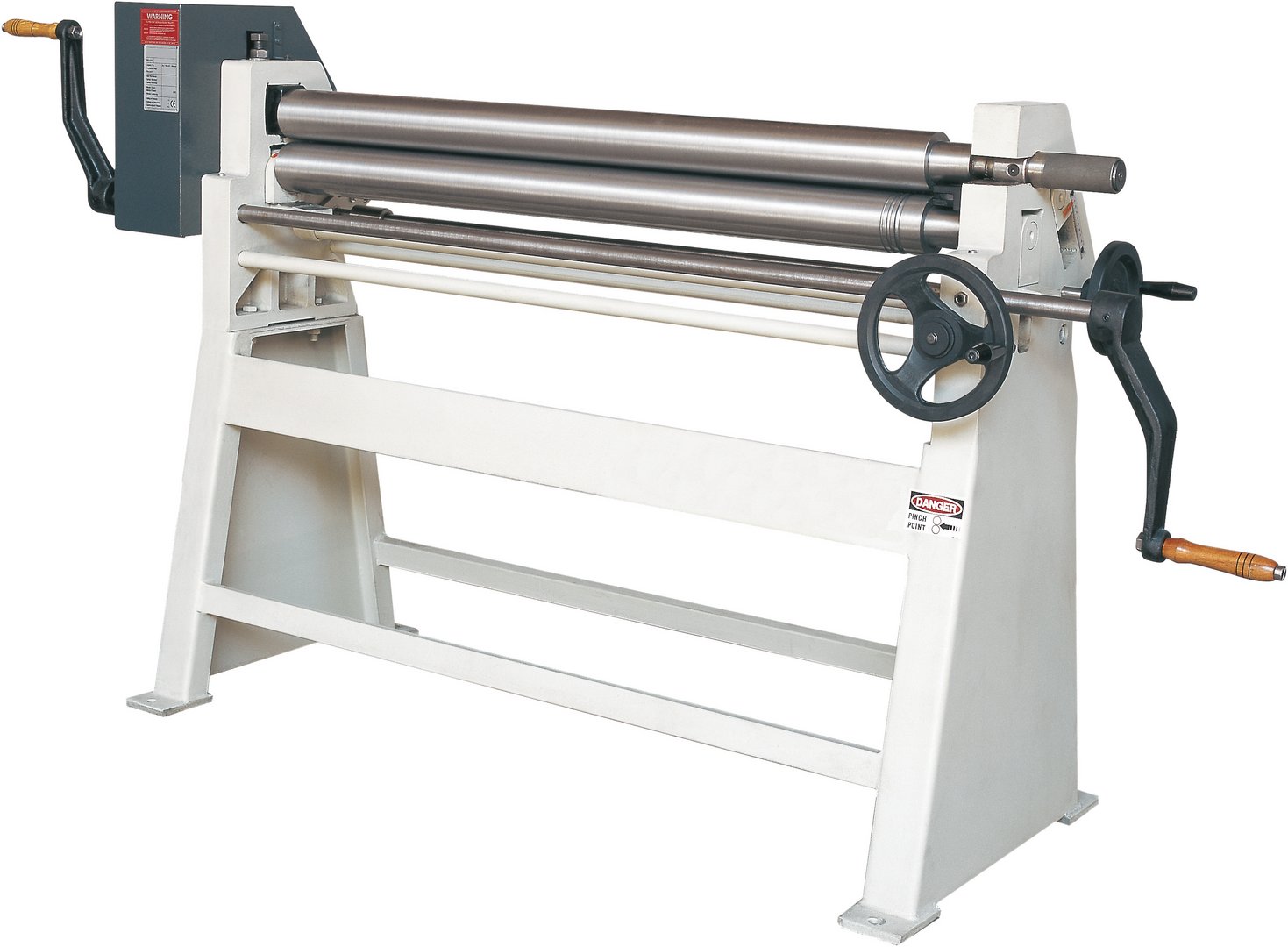

Motorized 3-roll plate bending machine HESSE by ISITAN RS 1050 x 90
| Model | RS 1050 x 90 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 1050 mm |
| Upper roll diameter | 90 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 1050 mm |
| Max. bending capacity - mild steel | 3 |
| Max. plate thickness with prebending - mild steel | 2 mm |
| Upper roll diameter | 90 mm |
Dimensions and weight
| Length | 2080 mm |
| Width | 700 mm |
| Height | 1250 mm |
| Weight | 410 kg |
Description
3 rolls
asymmetric rolls - prebending
2 rolls driven by handwheel
lateral roll adjustable by handwheel
longitudinal grooves in lower and lateral roll
tiltable upper roll
conical rolling device
user manual in GERMAN
