Motorized 3-roll plate bending machine HESSE by DURMA MRB-S 2506
| Model | MRB-S 2506 |
| Brand | HESSE by DURMA |
| Condition | new |
| Bending length | 2530 mm |
| Upper roll diameter | 190 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 2530 mm |
| Max. bending capacity - mild steel | 6 |
| Max. plate thickness without prebending - mild steel | 6 mm |
| Max. plate thickness with prebending - mild steel | 4 mm |
| Upper roll diameter | 190 mm |
| Motor power | 5.5 kW |
Dimensions and weight
| Length | 4250 mm |
| Width | 1200 mm |
| Height | 1150 mm |
| Weight | 3750 kg |
Description
3 rolls
Asymmetrical rolls arrangement - with pre-bending
2 driven rolls
Motorized adjustment of lateral and clamping roll
Digital read-out for lateral and clamping roll
Swiveling top roll to the front
Forward/reverse run
Hardened rolls
Moveable control panel
User manual in GERMAN and ENGLISH

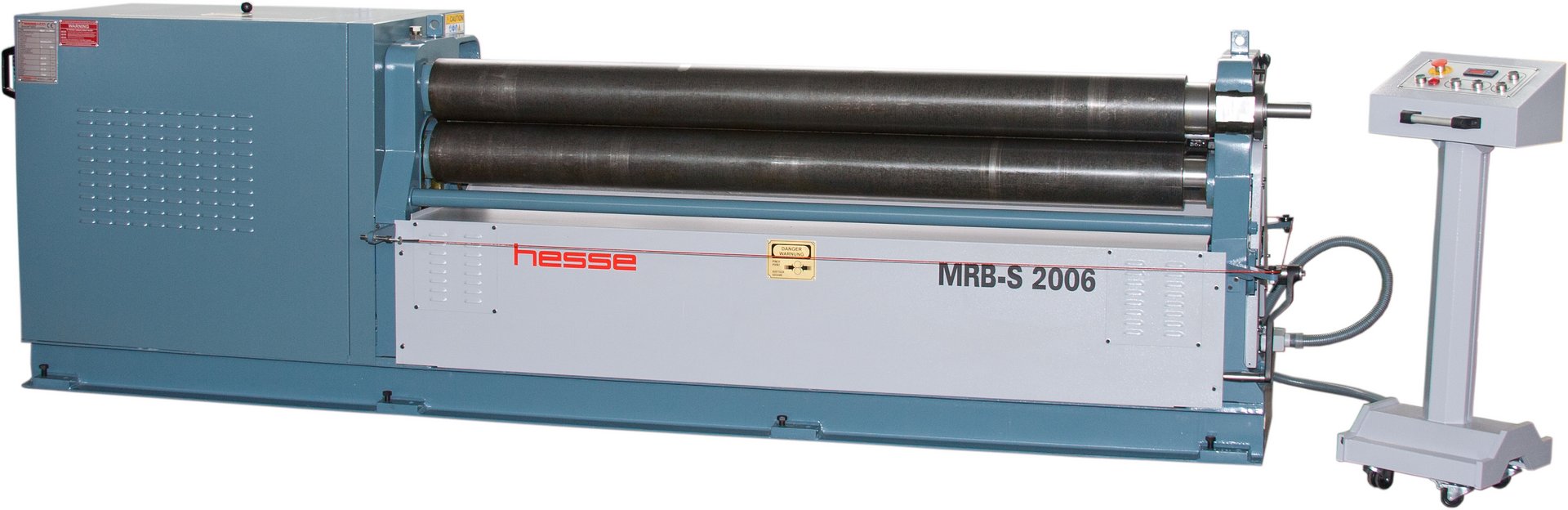

(sample photo)
