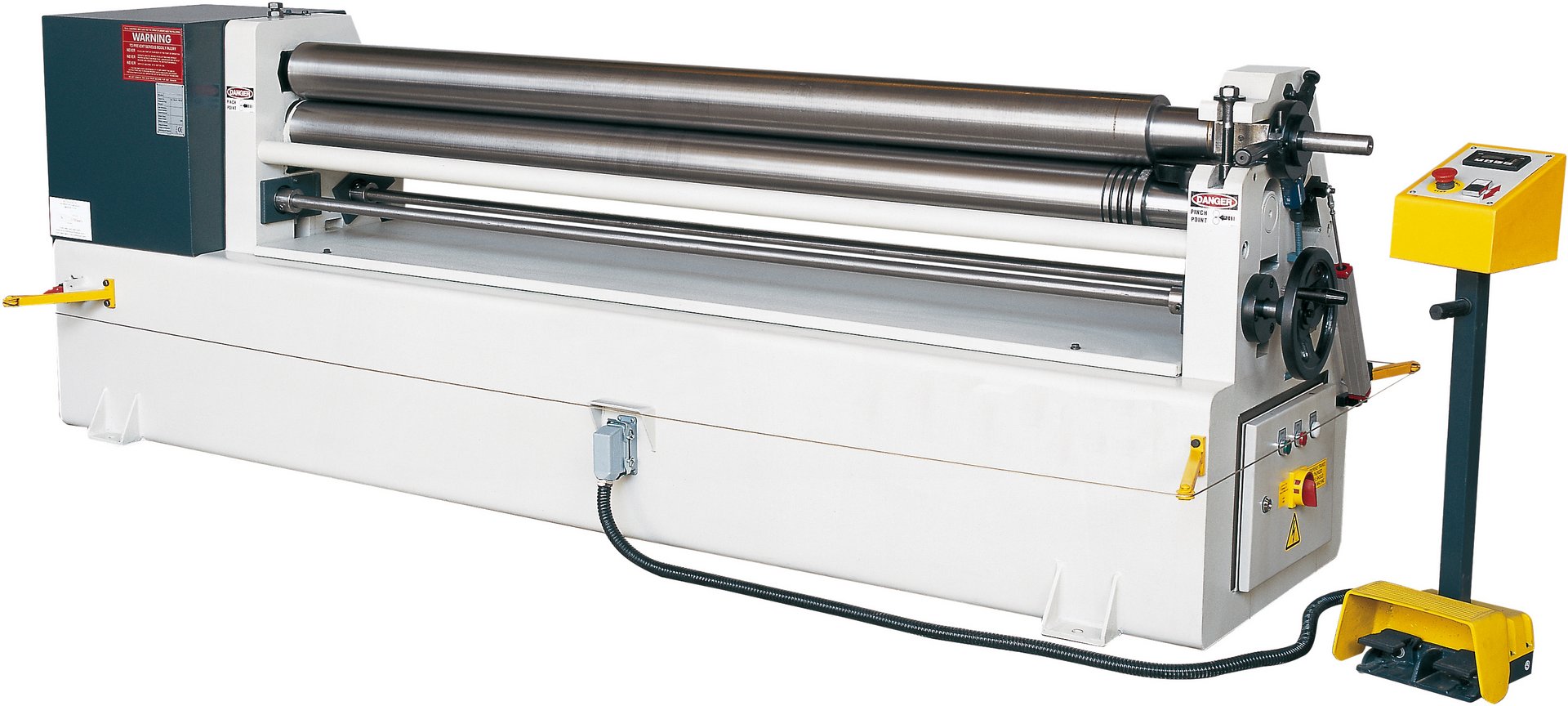

Motorized 3-roll plate bending machine HESSE by ISITAN IRM 1050 x 130
| Model | IRM 1050 x 130 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 1050 mm |
| Upper roll diameter | 130 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 1050 mm |
| Max. bending capacity - mild steel | 5 |
| Upper roll diameter | 130 mm |
| Bending speed | 3 m/min |
| Motor power | 2.2 kW |
Dimensions and weight
| Length | 2200 mm |
| Width | 750 mm |
| Height | 1000 mm |
| Weight | 1200 kg |
Description
3 rolls
asymmetric rolls - prebending
2 rolls driven by brakemotor
manual Back Roll

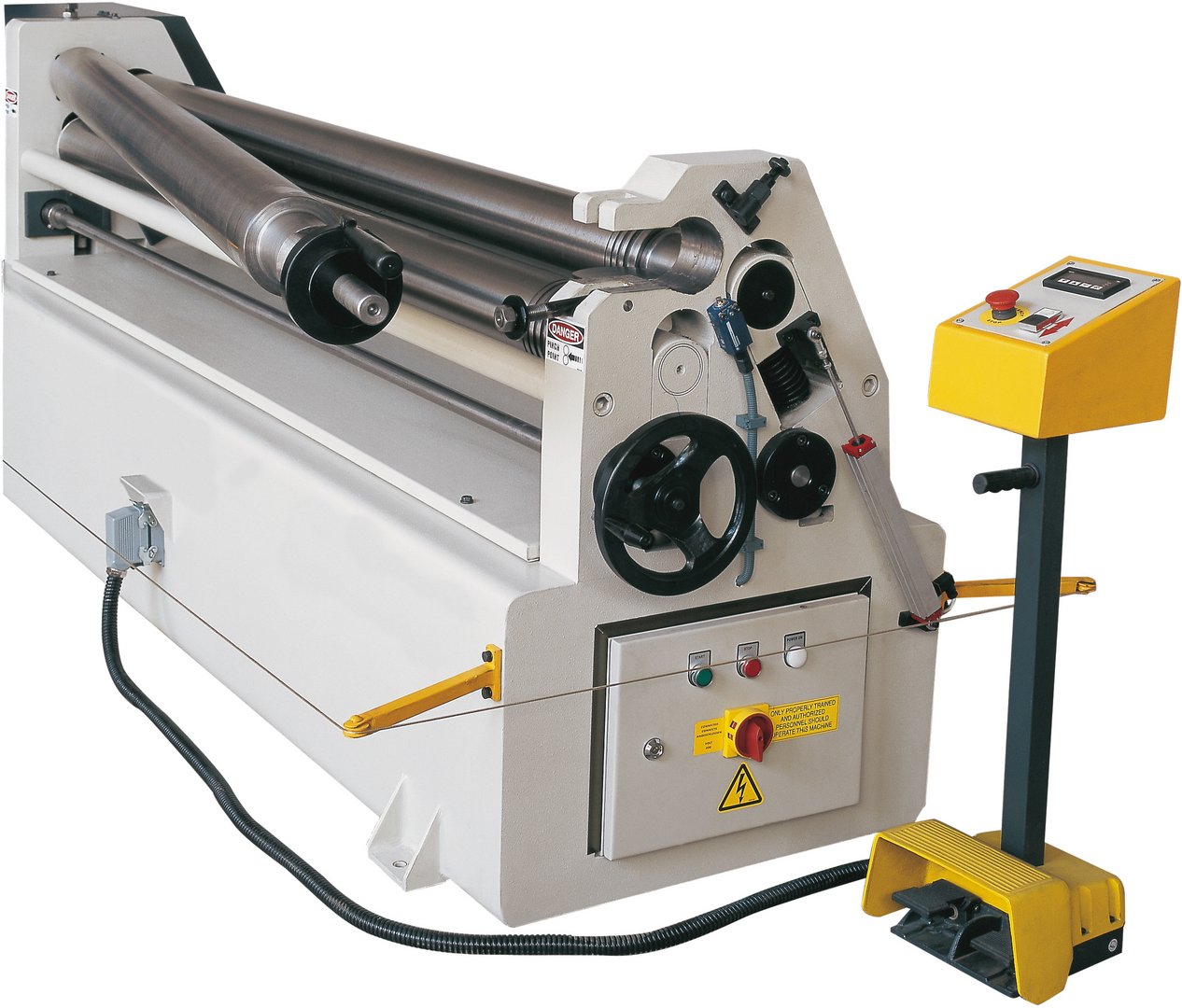

forward tiltable upper roll
forward and reverse revs
conical bending by tilt of backroll
movable control panel
users manual in ENGLISH or GERMAN
Options:
hardened Rolls € 1.250,-
Motorised Back Roll (Power Rear Roll) € 1.200,-
Digital Read-Out € 1.200,-
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
