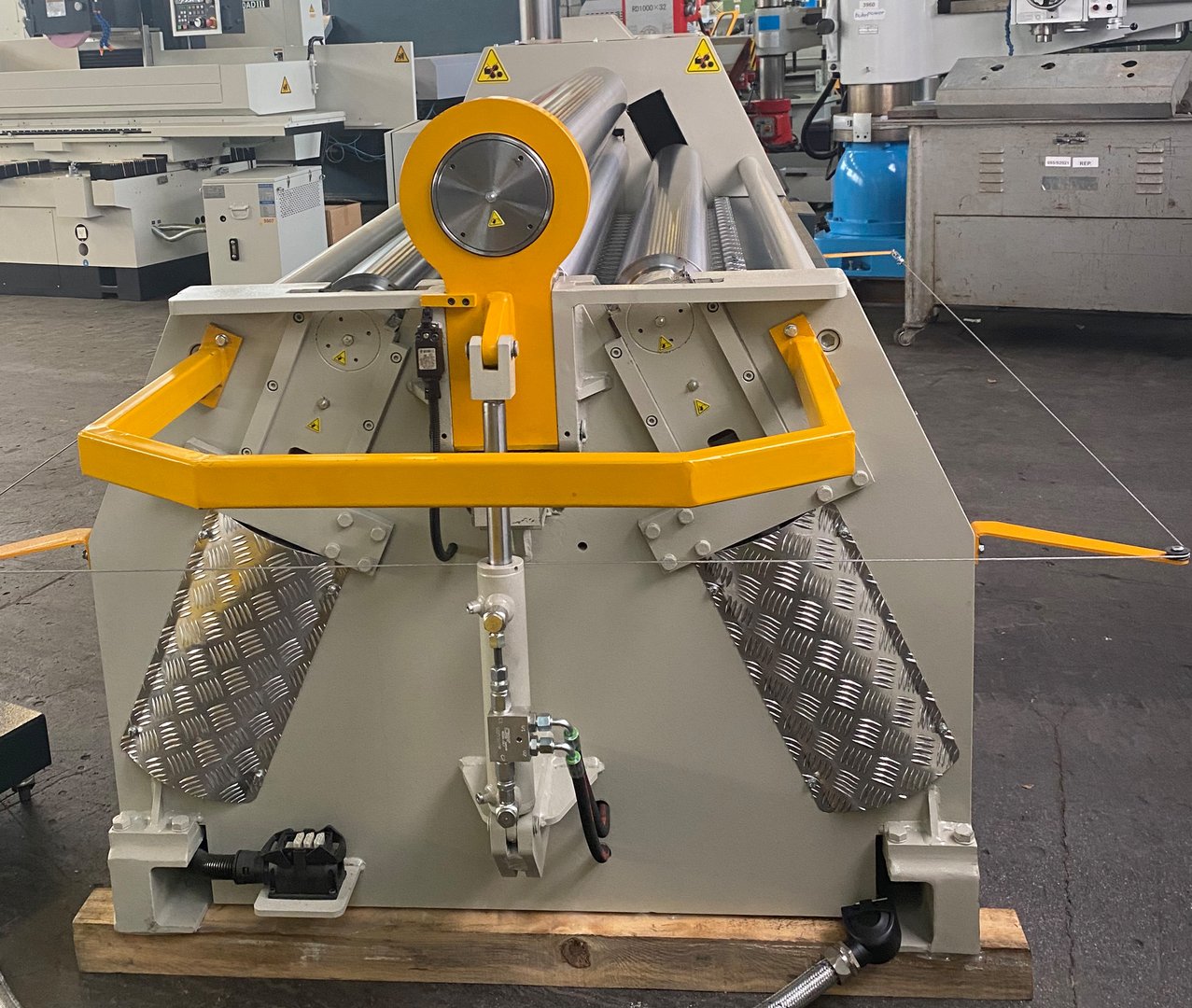

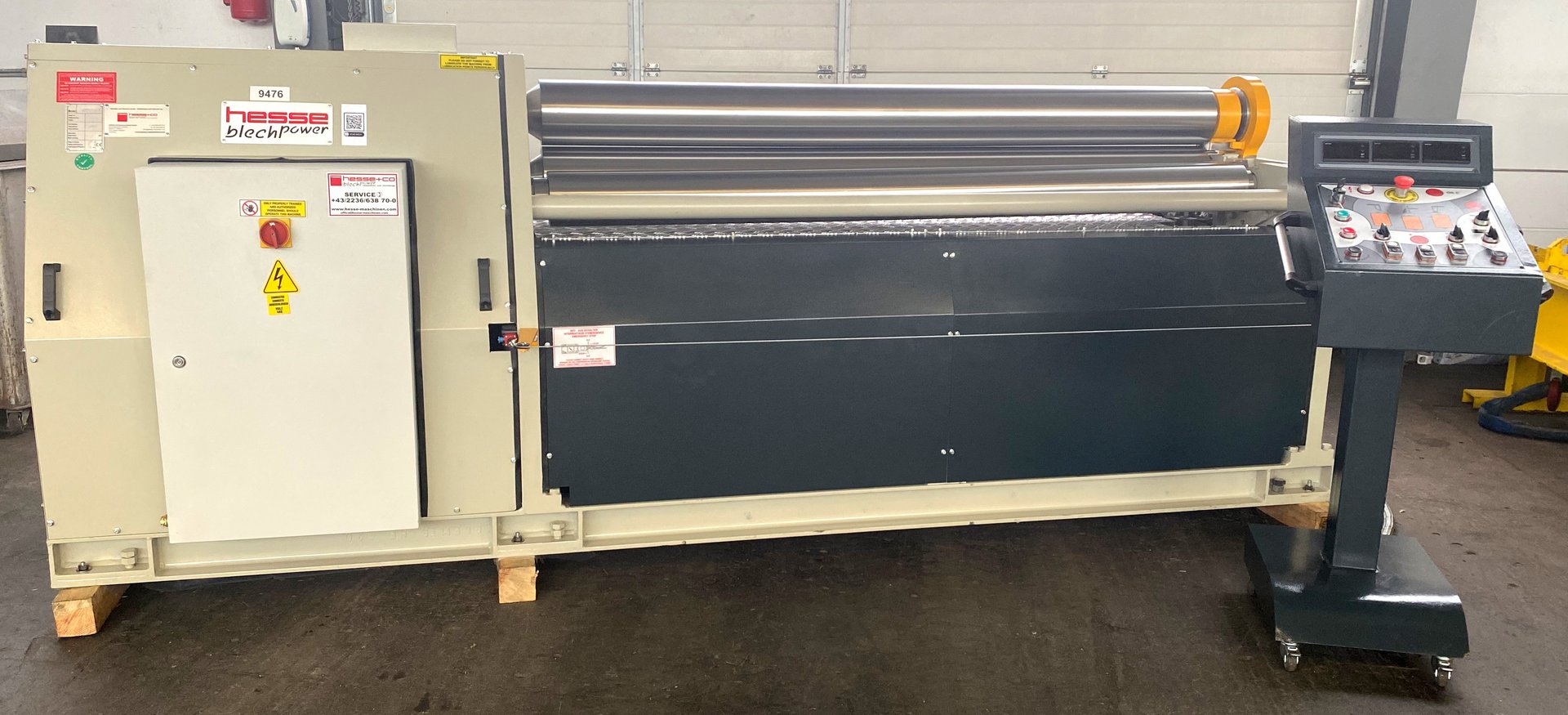

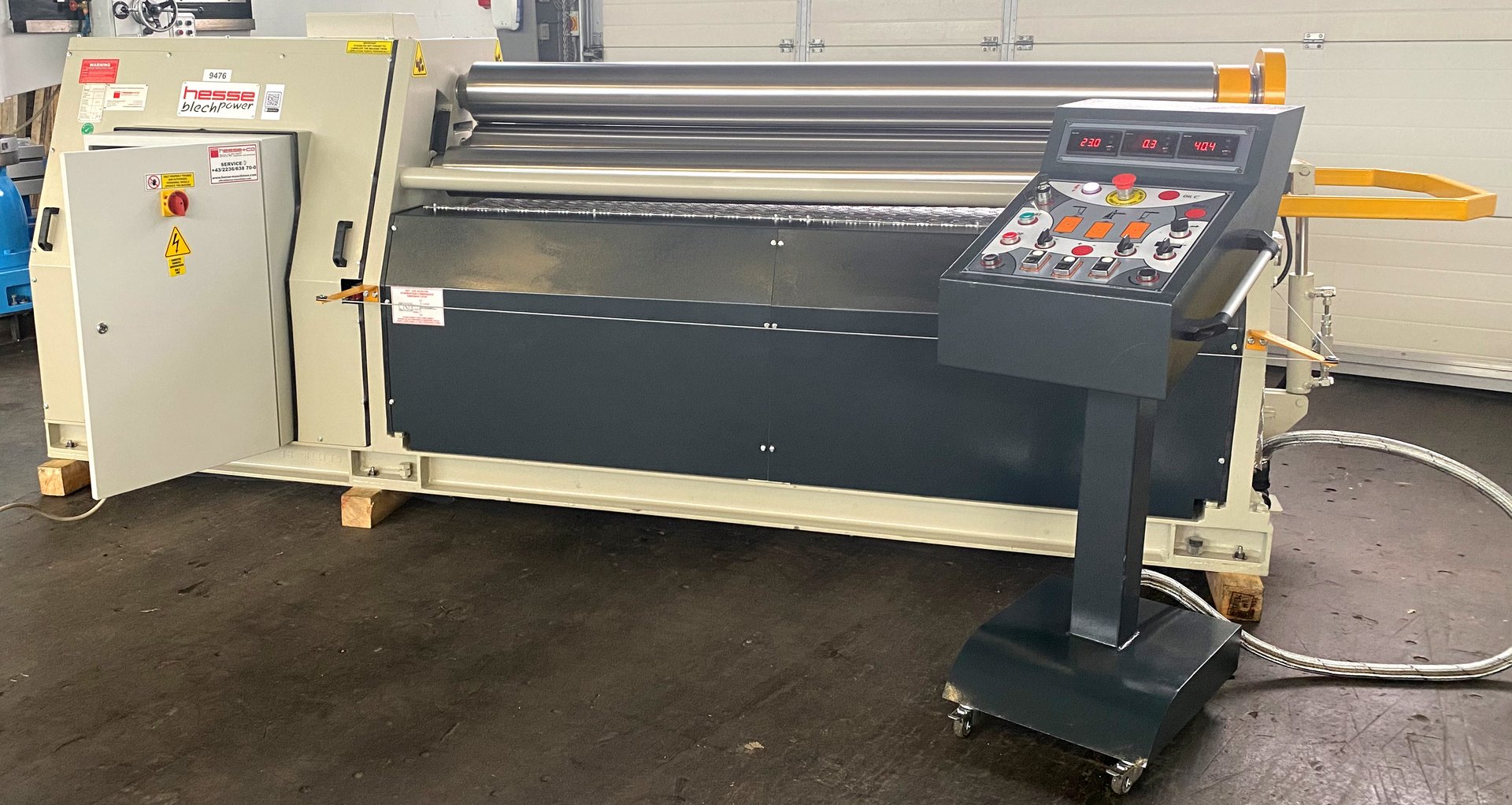

Motorized 4-roll plate bending machine HESSE by ISITAN 4R HMS 1550x130
| Model | 4R HMS 1550x130 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 1550 mm |
| Upper roll diameter | 130 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 1550 mm |
| Max. bending capacity - mild steel | 4.5 |
| Max. plate thickness without prebending - mild steel | 4.5 mm |
| Max. plate thickness with prebending - mild steel | 3.5 mm |
| Max. plate thickness without prebending at D=5x upper roll diam. - mild steel | 4.5 mm |
| Max. plate thickness without prebending at D=1,5x upper roll diam. - mild steel | 3.5 mm |
| Max. plate thickness with prebending at D=5x upper roll diam. - mild steel | 3.5 mm |
| Max. plate thickness with prebending at D=1,5x upper roll diam. - mild steel | 2.5 mm |
| Upper roll diameter | 130 mm |
| Lower roll diameter | 130 mm |
| Lateral roll diameter | 130 mm |
| Bending speed | 5 m/min |
| Motor power | 2,2 + 1,1 kW |
Dimensions and weight
| Length | 3300 mm |
| Width | 1150 mm |
| Height | 1110 mm |
| Weight | 2370 kg |
Description
motorized roller drive
upper and lower roller driven
hydraulic side roll feed

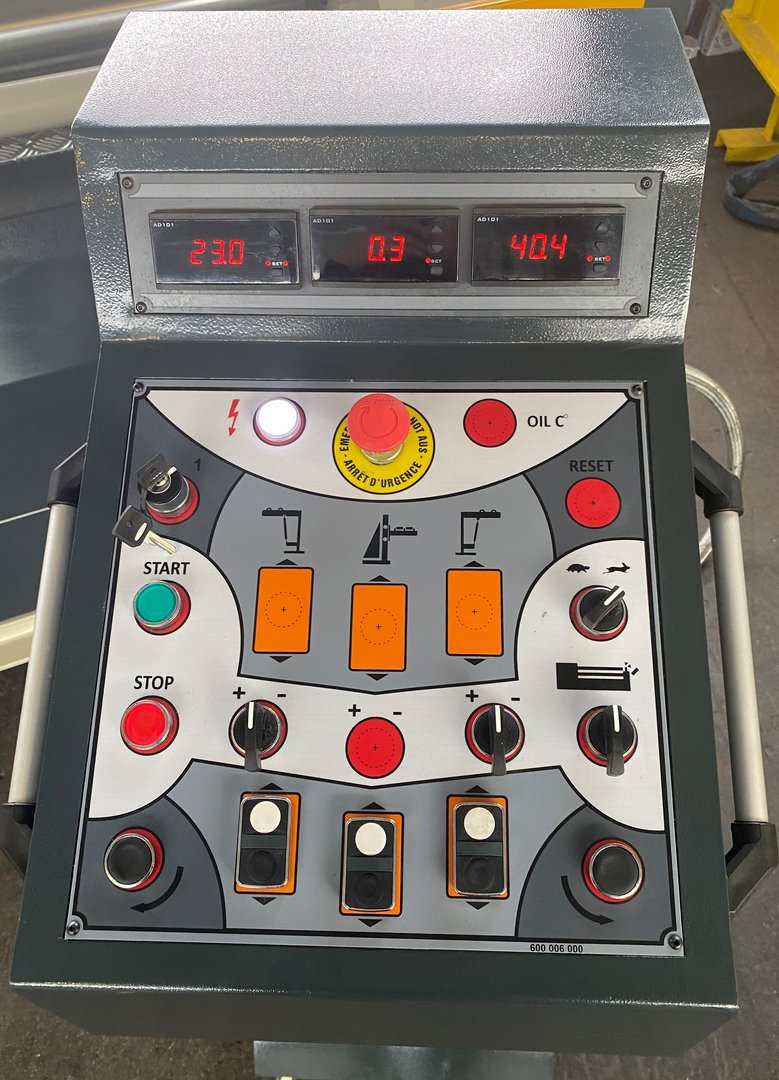

3 digital displays
hydraulic folding bearings
hardened rollers
conical bending device
user manual in GERMAN or ENGLISH
