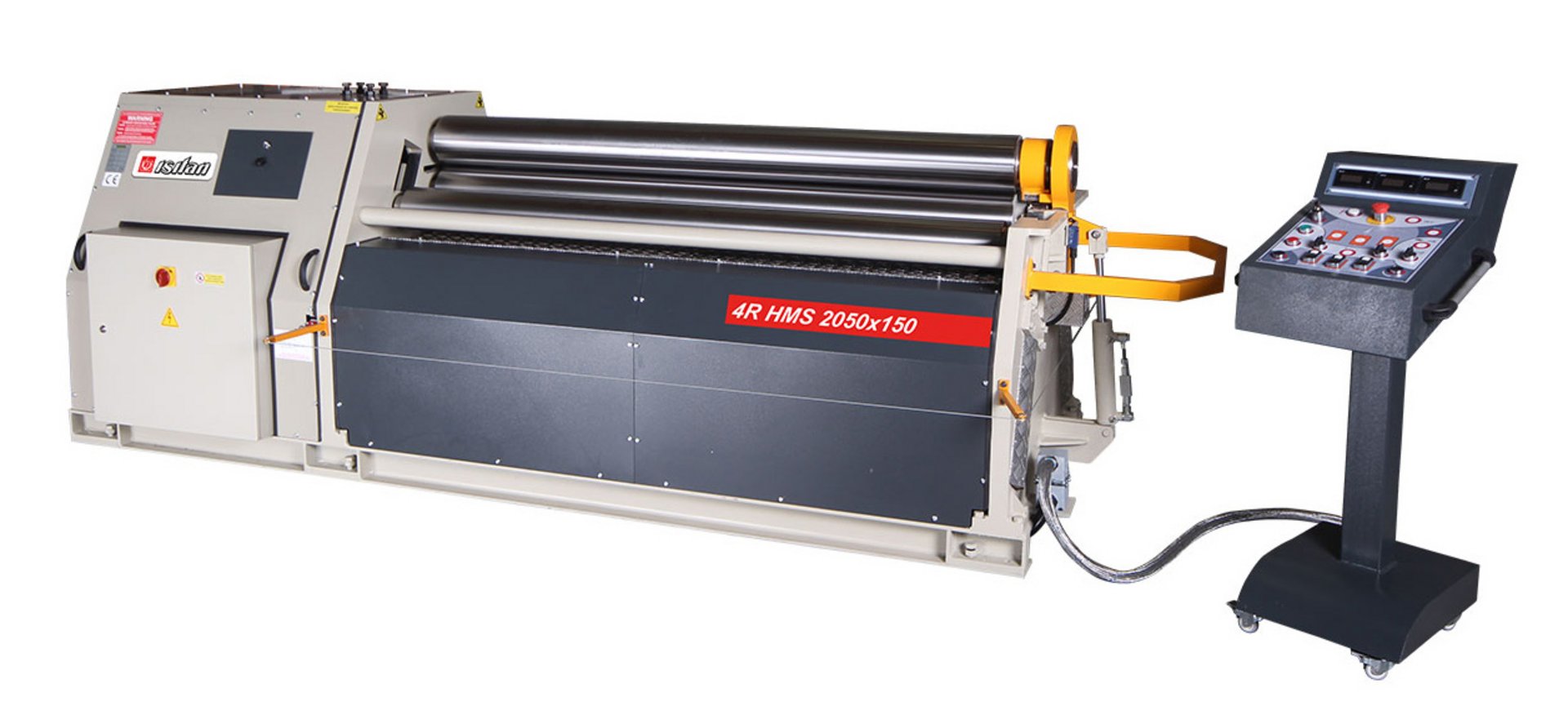

Motorized 4-roll plate bending machine HESSE by ISITAN 4R HMS 2050x180
| Model | 4R HMS 2050x180 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 2050 mm |
| Upper roll diameter | 180 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 2050 mm |
| Max. bending capacity - mild steel | 8 |
| Max. plate thickness without prebending - mild steel | 8 mm |
| Max. plate thickness with prebending - mild steel | 6 mm |
| Max. plate thickness without prebending at D=5x upper roll diam. - mild steel | 8 mm |
| Max. plate thickness without prebending at D=1,5x upper roll diam. - mild steel | 6 mm |
| Max. plate thickness with prebending at D=5x upper roll diam. - mild steel | 6 mm |
| Max. plate thickness with prebending at D=1,5x upper roll diam. - mild steel | 4 mm |
| Upper roll diameter | 180 mm |
| Lower roll diameter | 180 mm |
| Lateral roll diameter | 150 mm |
| Bending speed | 5 m/min |
Dimensions and weight
| Length | 3850 mm |
| Width | 1350 mm |
| Height | 1290 mm |
| Weight | 3300 kg |
Description
motorized roller drive
upper and lower roller driven
hydraulic side roll feed
3 digital displays
hydraulic folding bearings
hardened rollers
conical bending device
user manual in GERMAN or ENGLISH

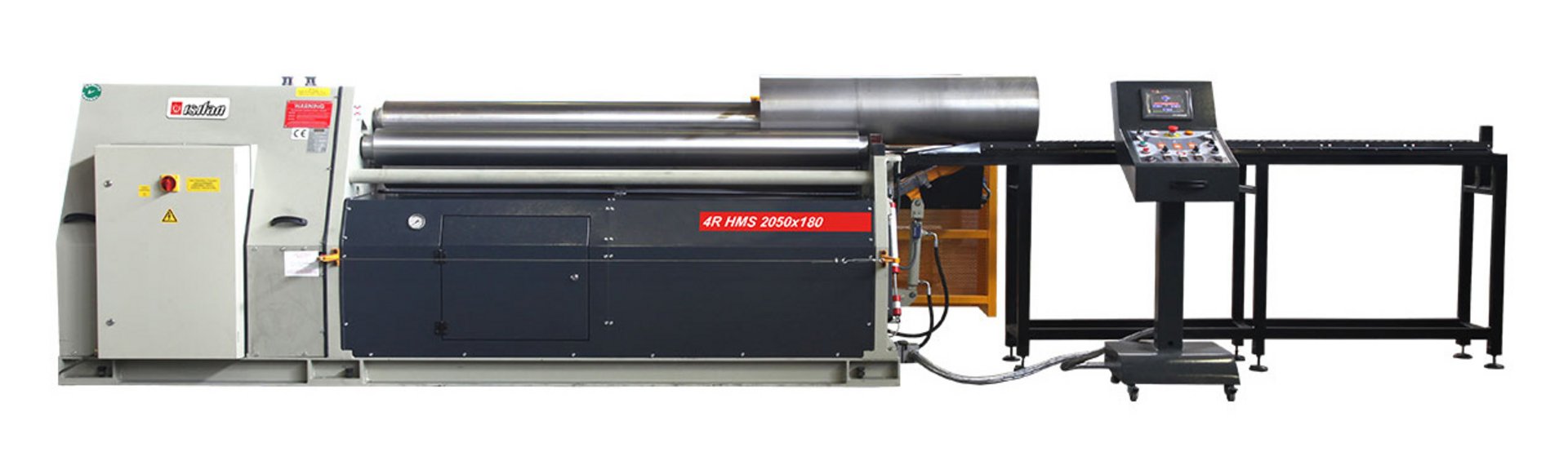

Optional equipment:
overhead crane
side supports
NC control
variable speed
