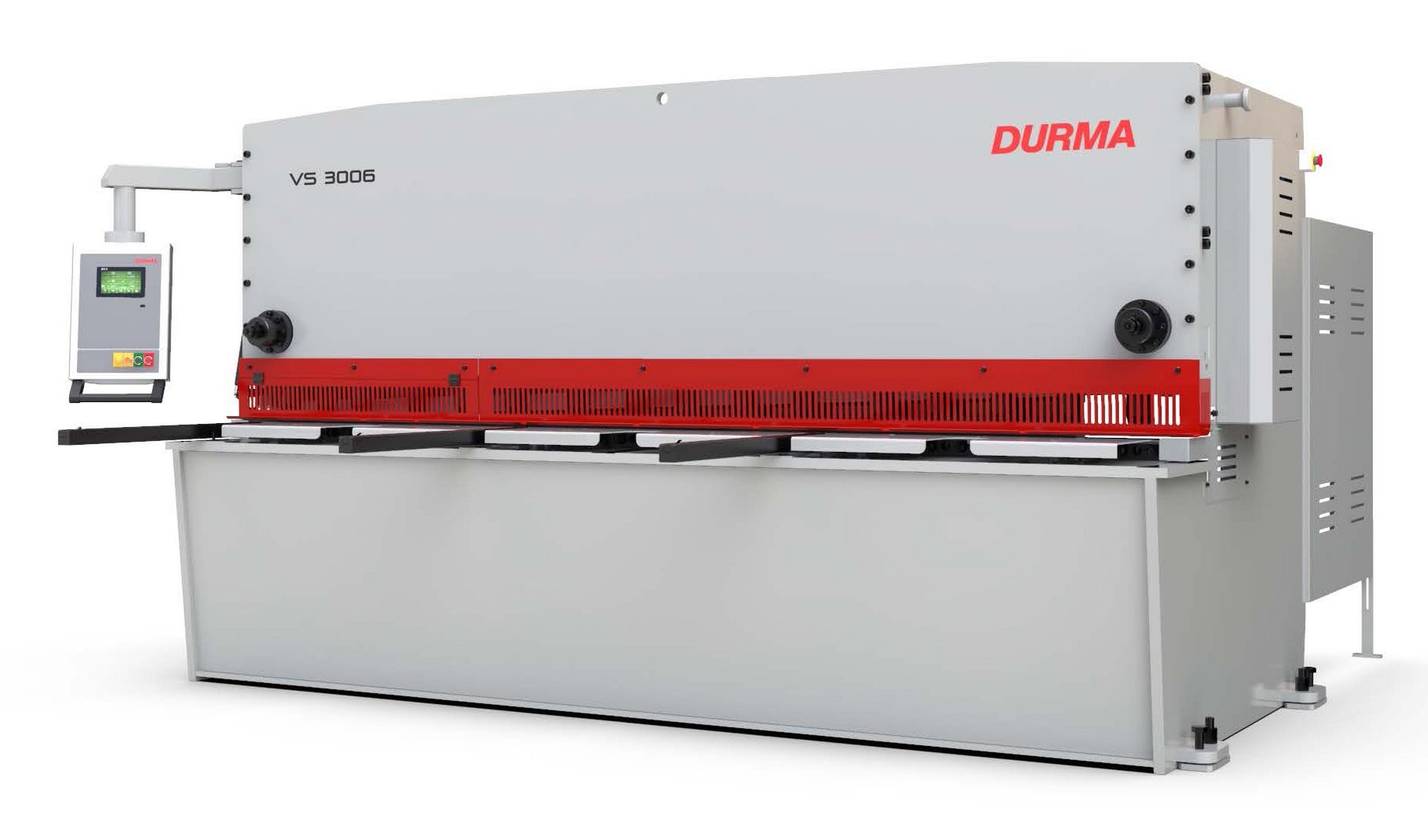

Hydraulic CNC plate shear HESSE by DURMA VS 3006
| Model | VS 3006 |
| Brand | HESSE by DURMA |
| Condition | new |
| Max. thickness - mild steel | 6 mm |
| Cutting length | 3080 mm |
| Origin | Türkiye |
General characteristics
| Cutting length | 3080 mm |
| Max. thickness - mild steel | 6 mm |
| Max. thickness - stainless steel | 4 mm |
| Gap in side frame | 350 mm |
| Strokes | 20 1/min |
| Cutting angle | 0,5 - 2 ° |
| Number of downholders | 16 pcs. |
| Pressure of downholder | 20 to |
| Back gauge | 1000 mm |
| Back gauge speed | 200 mm/s |
| Motor power | 11 kW |
| Oiltank | 125 l |
| Support arms | 3 pcs. |
| Table height | 820 mm |
| Table width | 494 mm |
| Table length | 3280 mm |
Dimensions and weight
| Length | 4100 mm |
| Width | 2050 mm |
| Total width with support arm und protection fence | 3650 mm |
| Height | 1950 mm |
| Weight | 7980 kg |
Description
linear guided
CNC touch screen D-touch 7 back gauge, cutting angle, cutting gap, cutting length, quantity
USB port
cutting line illumination
foldable ball screws for back gauge
balls in table
foldable finger protection, 1.000 mm
side lay with T-slot, tilting cam and scale
3 support arms wit T-slots
oilfilling
light barrier on the back of the machine
user manual in GERMAN and ENGLISH
