General characteristics
| Cutting length | 3050 mm |
| Max. thickness - mild steel | 6 mm |
| Strokes | 11 - 25 1/min |
| Cutting angle | 0.5 - 3 ° |
| Number of downholders | 18 pcs. |
| Back gauge | 750 mm |
| Motor power | 11 kW |
| Working height | 770 mm |
Dimensions and weight
| Length | 3850 mm |
| Width | 1750 mm |
| Height | 1720 mm |
| Weight | 4600 kg |
Description
SC 5 control for:
- Sheet thickness input
- Automatic cutting angle and gap adjustment
- Cutting length limitation
- Programmable backgauge length
Motorized backgauge 750 mm
Downholder protection guard
Foot pedal
Table supports with ball bearings
1 side fence 1000 mm
Operating manual in German
Machine does not comply with German accident prevention regulations (UVV) or Austrian AMVO
New blades
Further information
Product video

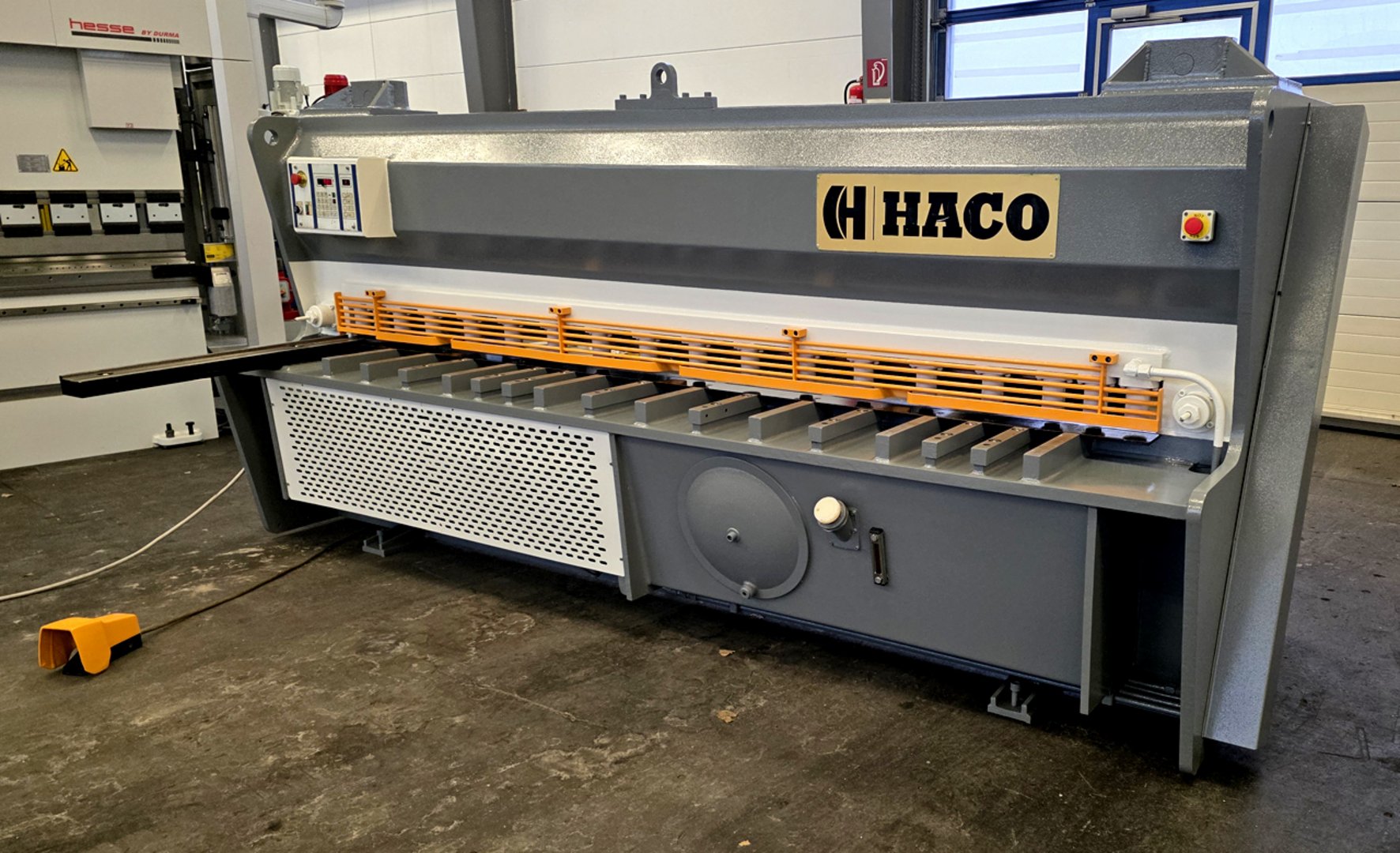

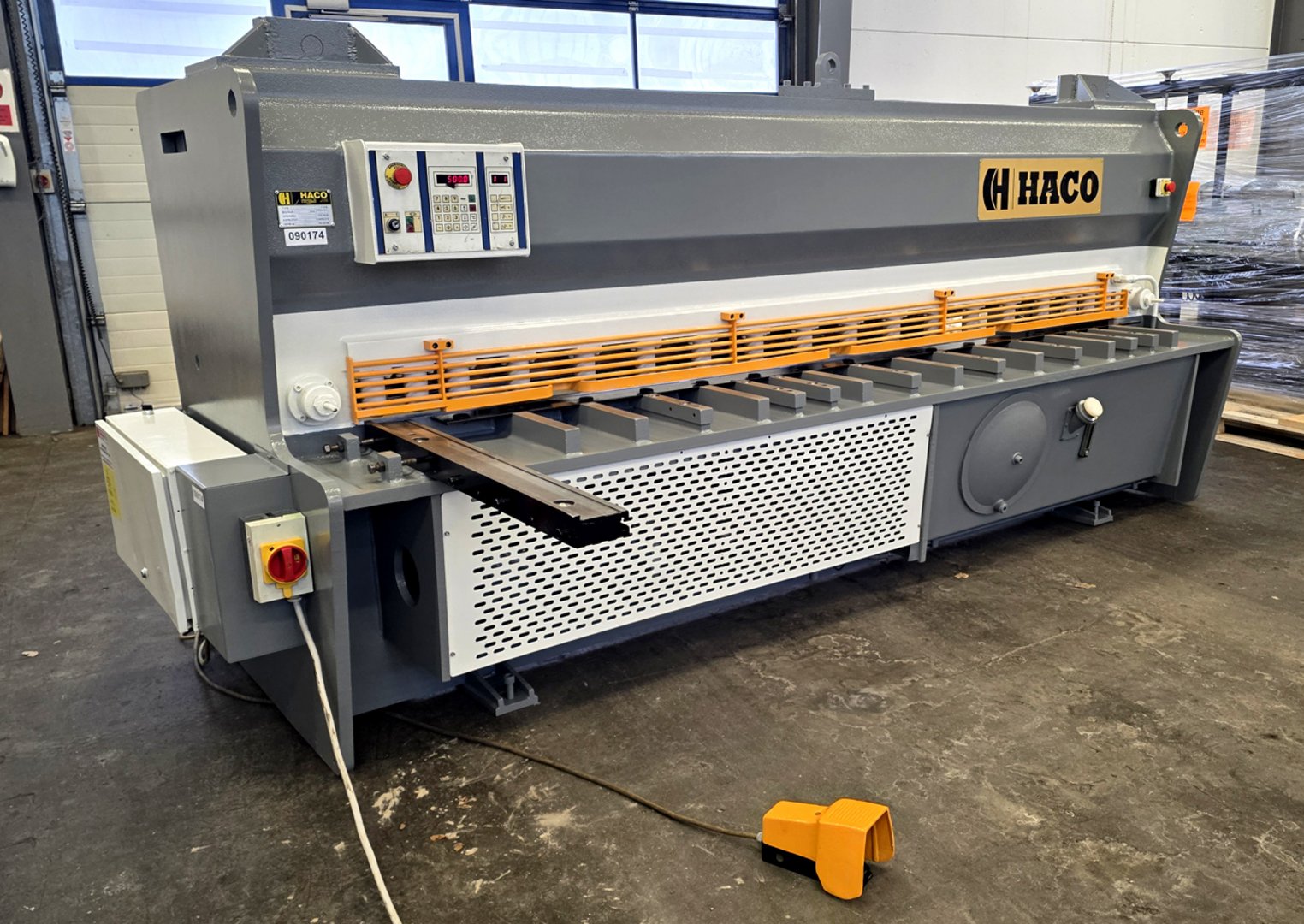

Hydraulic plate shear HACO HSLX 3006
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
