Hydraulic plate shear HESSE by DURMA SBT 4006
| Model | SBT 4006 |
| Brand | HESSE by DURMA |
| Condition | new |
| Max. thickness - mild steel | 6 mm |
| Cutting length | 4100 mm |
| Origin | Türkiye |
General characteristics
| Cutting length | 4100 mm |
| Max. thickness - mild steel | 6 mm |
| Max. thickness - stainless steel | 4 mm |
| Gap in side frame | 50 mm |
| Strokes | 12 1/min |
| Cutting angle | 1.5 ° |
| Number of downholders | 20 pcs. |
| Pressure of downholder | 17 to |
| Back gauge | 1000 mm |
| Back gauge speed | 200 mm/s |
| Motor power | 15 kW |
| Oiltank | 200 l |
| Support arms | 3 pcs. |
| Table height | 865 mm |
| Table width | 580 mm |
| Table length | 4510 mm |
Dimensions and weight
| Length | 5230 mm |
| Width | 2300 mm |
| Total width with support arm und protection fence | 3600 mm |
| Height | 2150 mm |
| Weight | 11460 kg |
Description
Swing cut construction
NC-preselection system D-touch 7 with touch screen for back gauge, cutting length, quantity, USB port
Motorized back gauge 1000 mm on ball screws, folding upwards
Clear control panel mounted on moveable arm
Hydraulic hold down pistons are arranged close to the cutting edge
Foot switch
Central, manual blade gap adjustment
Cutting line illumination
Broad table with balls
Piece counter
Single and continous stoke
Fold up finger guard 1.000 mm
1 squaring arm 1. 500 mm with scale, T-slot and tilting cam
2 supporting arms 1.000 mm with T-slot
Simple replacement and grinding of the blades
Variable adjustable cutting length for economic processing
Lower blade fourfold turnable
Upper blade double turnable
Oilfilling
Light barrier on the back of the machine
Qualified customer support
User manual in GERMAN and ENGLISH
according to CE rules

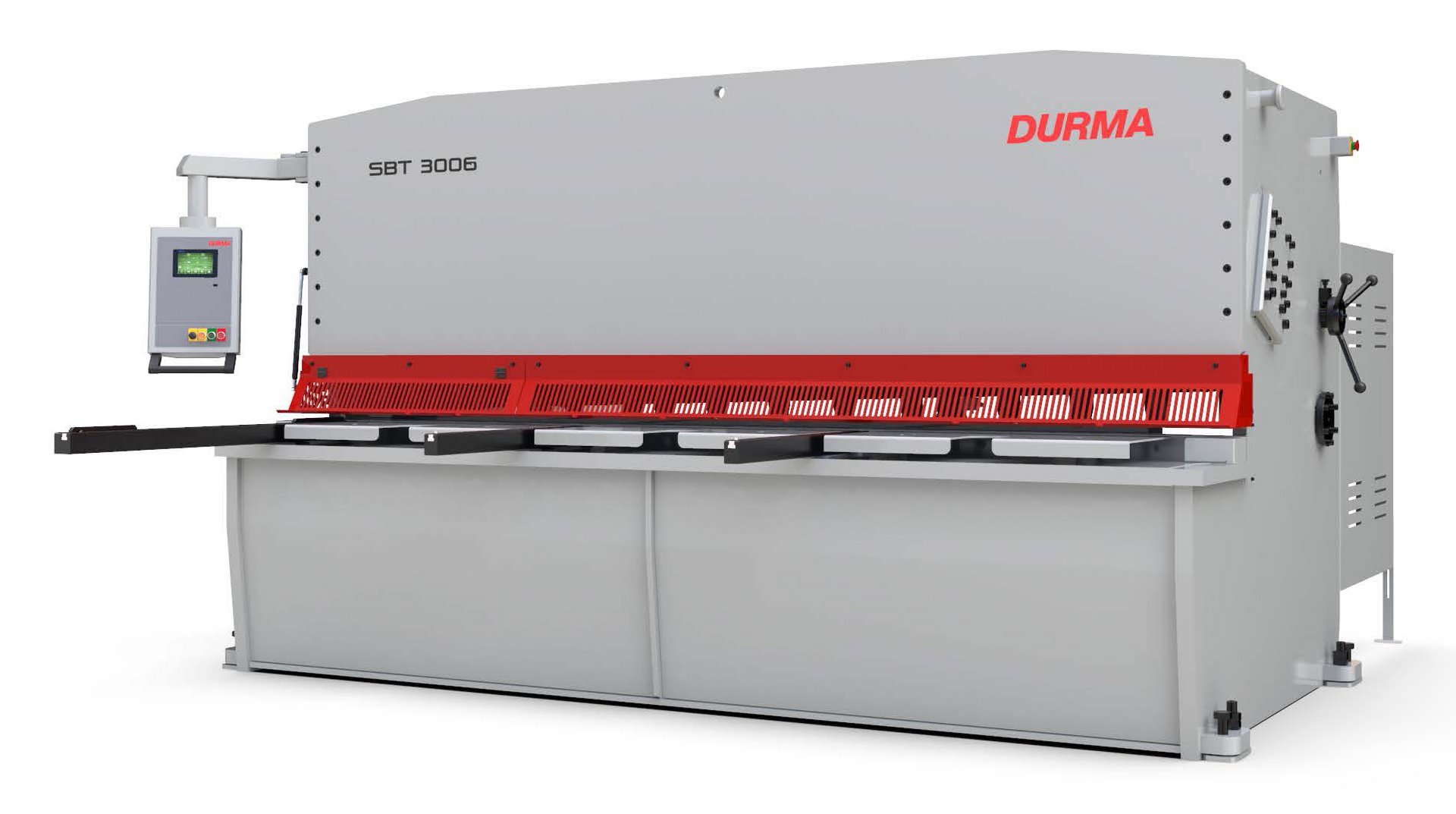

(sample photo)
We have more than 850 references!
Further information
Brochures
Product video
Hydraulic plate shear SBT 4006
