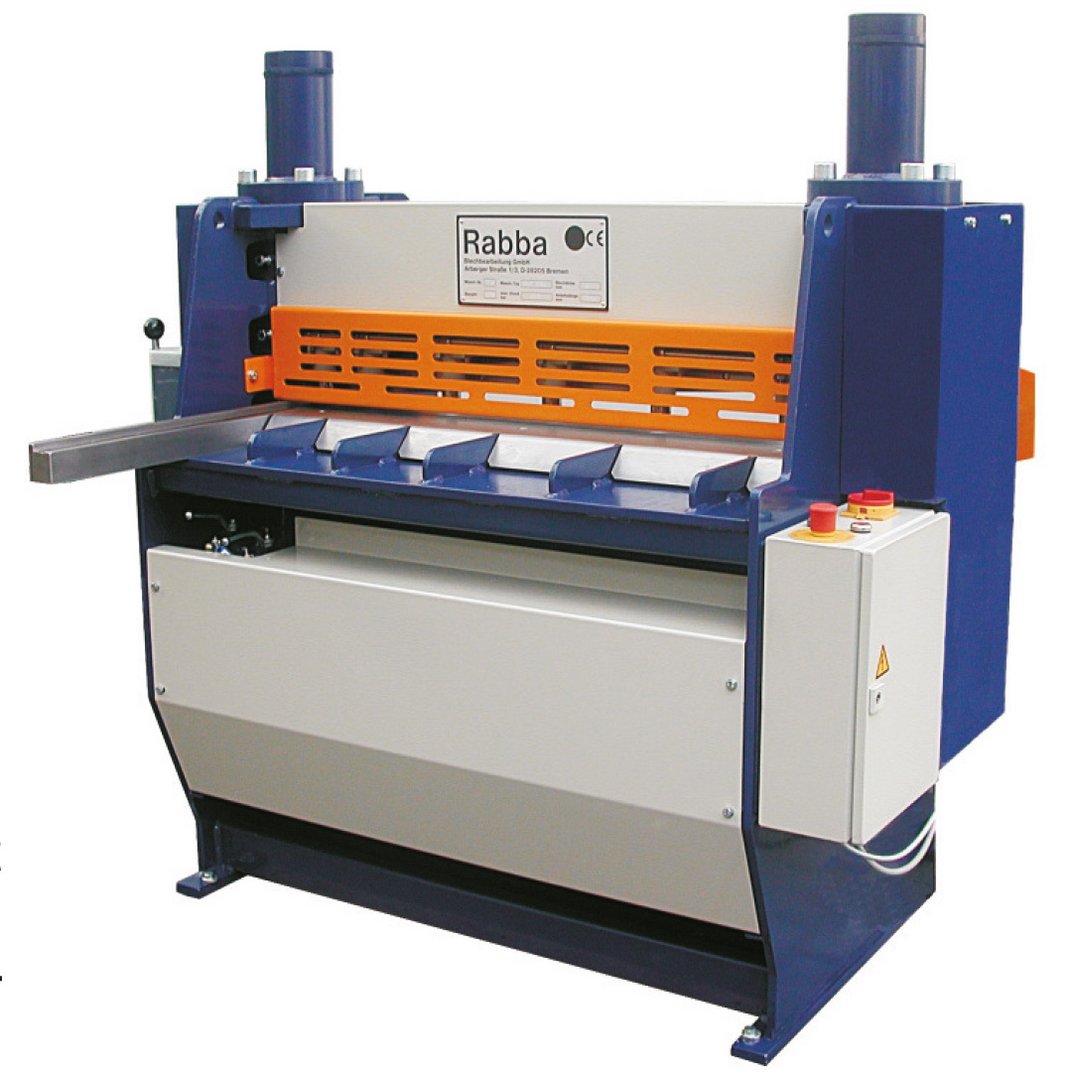

Hydraulic plate shear RABBA HS 12/1250
| Model | HS 12/1250 |
| Brand | RABBA |
| Condition | new |
| Max. thickness - mild steel | 12 mm |
| Cutting length | 1280 mm |
General characteristics
| Cutting length | 1280 mm |
| Max. thickness - mild steel | 12 mm |
| Max. thickness - stainless steel | 9 mm |
| Strokes | 9 1/min |
| Cutting angle | 3 ° |
| Number of downholders | 7 pcs. |
| Back gauge | 500 mm |
| Motor power | 15 kW |
| Oiltank | 180 l |
| Table height | 950 mm |
Dimensions and weight
| Length | 1950 mm |
| Width | 1200 mm |
| Height | 1800 mm |
| Weight | 3200 kg |
Description
hydr. drive unit, completely integrated in the machine body
overload safety, hydraulic and electrical
adjusting of the cutting angle
adjusting of the cutting gap
blank holder pressure, adjustable
support arm with angle stop and scale up to 600 mm
4 rotating knives for VA steel
movable pedal switch with solenoid valves
manual adjustable and foldable back gauge
exchangeable machine table support
section area lighting
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
