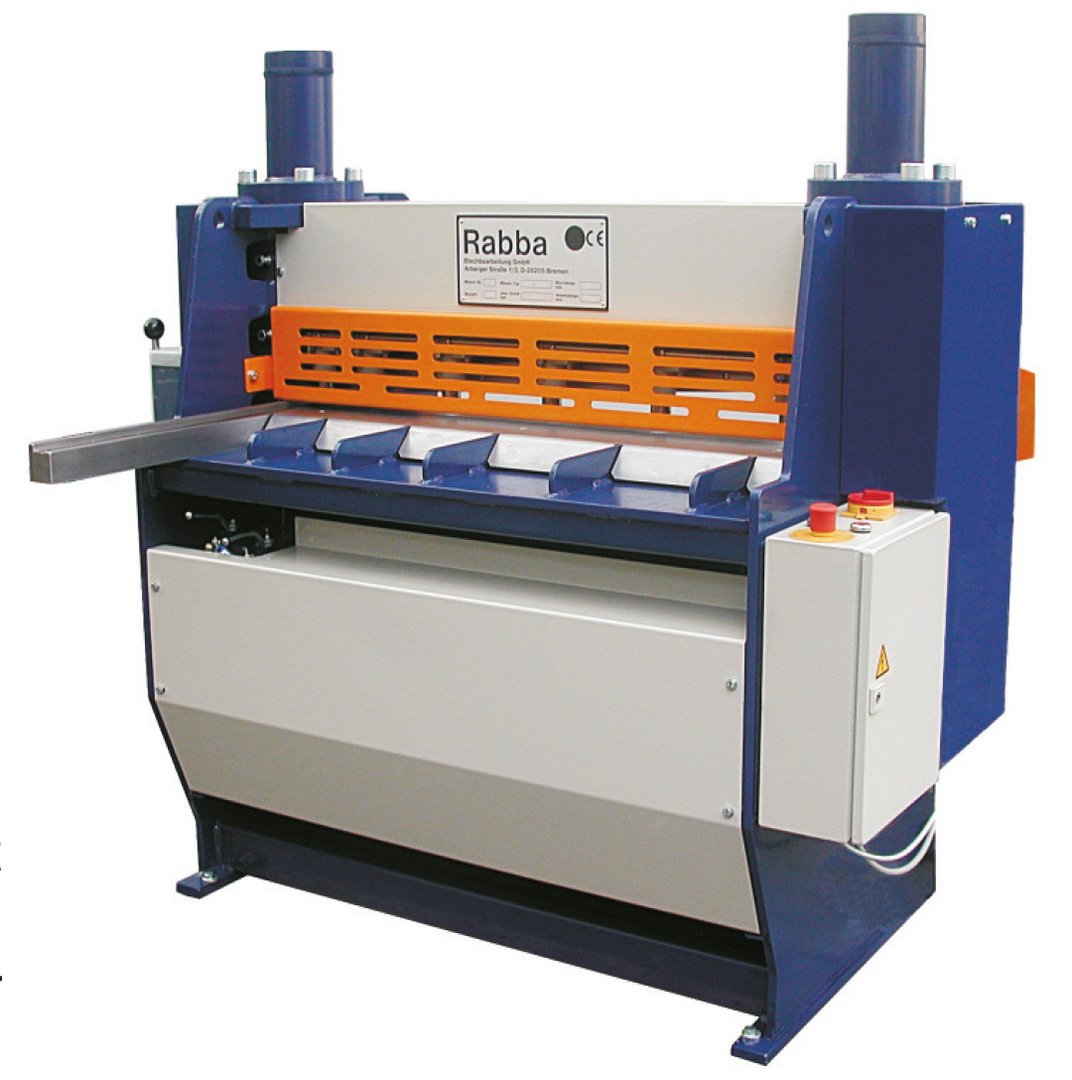

Hydraulic plate shear RABBA HS 16/1250
| Model | HS 16/1250 |
| Brand | RABBA |
| Condition | new |
| Max. thickness - mild steel | 16 mm |
| Cutting length | 1280 mm |
General characteristics
| Cutting length | 1280 mm |
| Max. thickness - mild steel | 16 mm |
| Max. thickness - stainless steel | 12 mm |
| Strokes | 8 1/min |
| Cutting angle | 3 ° |
| Number of downholders | 7 pcs. |
| Back gauge | 500 mm |
| Motor power | 22.5 kW |
| Oiltank | 250 l |
| Table height | 950 mm |
Dimensions and weight
| Length | 2100 mm |
| Width | 1400 mm |
| Height | 2000 mm |
| Weight | 5000 kg |
Description
hydr. drive unit, completely integrated in the machine body
overload safety, hydraulic and electrical
adjusting of the cutting angle
adjusting of the cutting gap
blank holder pressure, adjustable
support arm with angle stop and scale up to 600 mm
4 rotating knives for VA steel
movable pedal switch with solenoid valves
Motorised backgauge
Central lubrication
exchangeable machine table support
section area lighting
