General characteristics
| Cutting length | 3100 mm |
| Max. thickness - mild steel | 6 mm |
| Cutting angle | 0.5 - 3.5 ° |
| Motor power | 9 kW |
| Table height | 950 mm |
Dimensions and weight
| Length | 4070 mm |
| Width | 2330 mm |
| Total width with support arm und protection fence | 3400 mm |
| Height | 1850 mm |
| Weight | 5500 kg |
Description

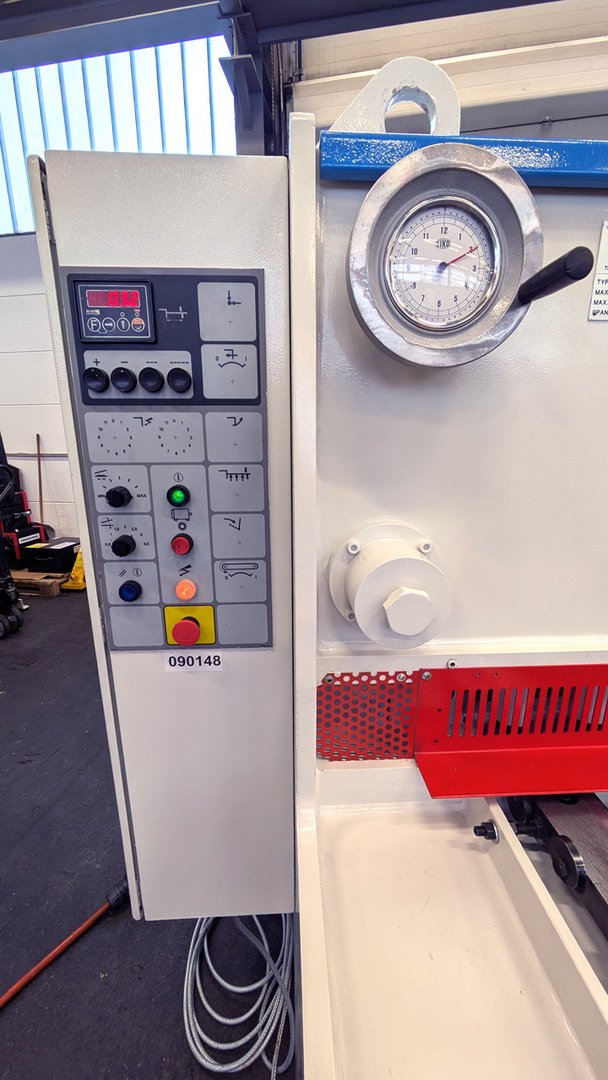

Motorized backgauge 1000 mm, ball screws, digital display
Cutting gap adjustment from the front with handwheel
Cutting length adjusment
Cutting angle adjustment
Downholer safety guard
Rear safety via light barrier

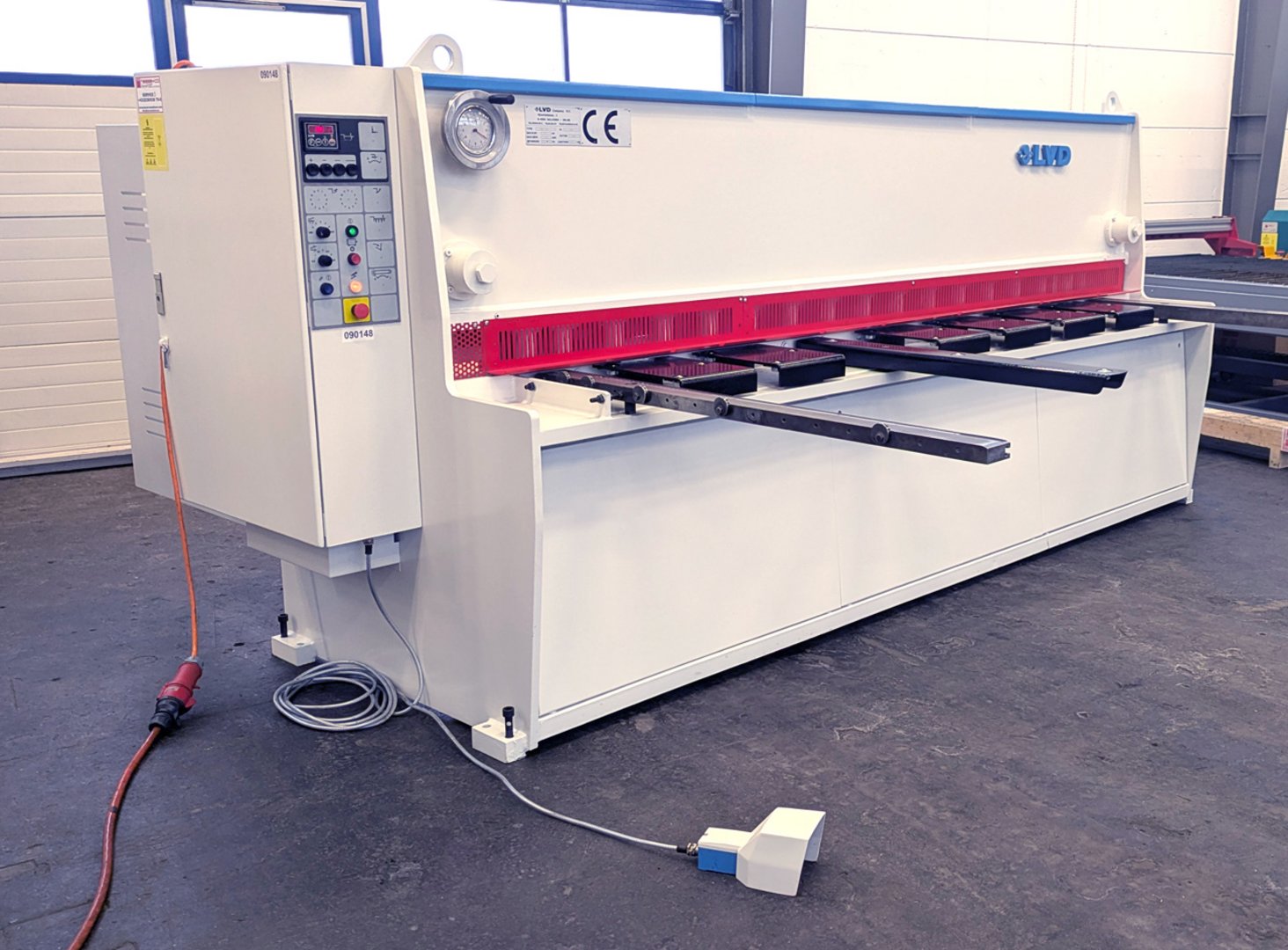

Foot pedal
Table supports with ball bearings
1 side arm 1500 mm
2 support arms
Operating manual in German with CE declaration of conformity
Further information
Product video
Hydraulic plate shear LVD LVD HST-C 31/6
