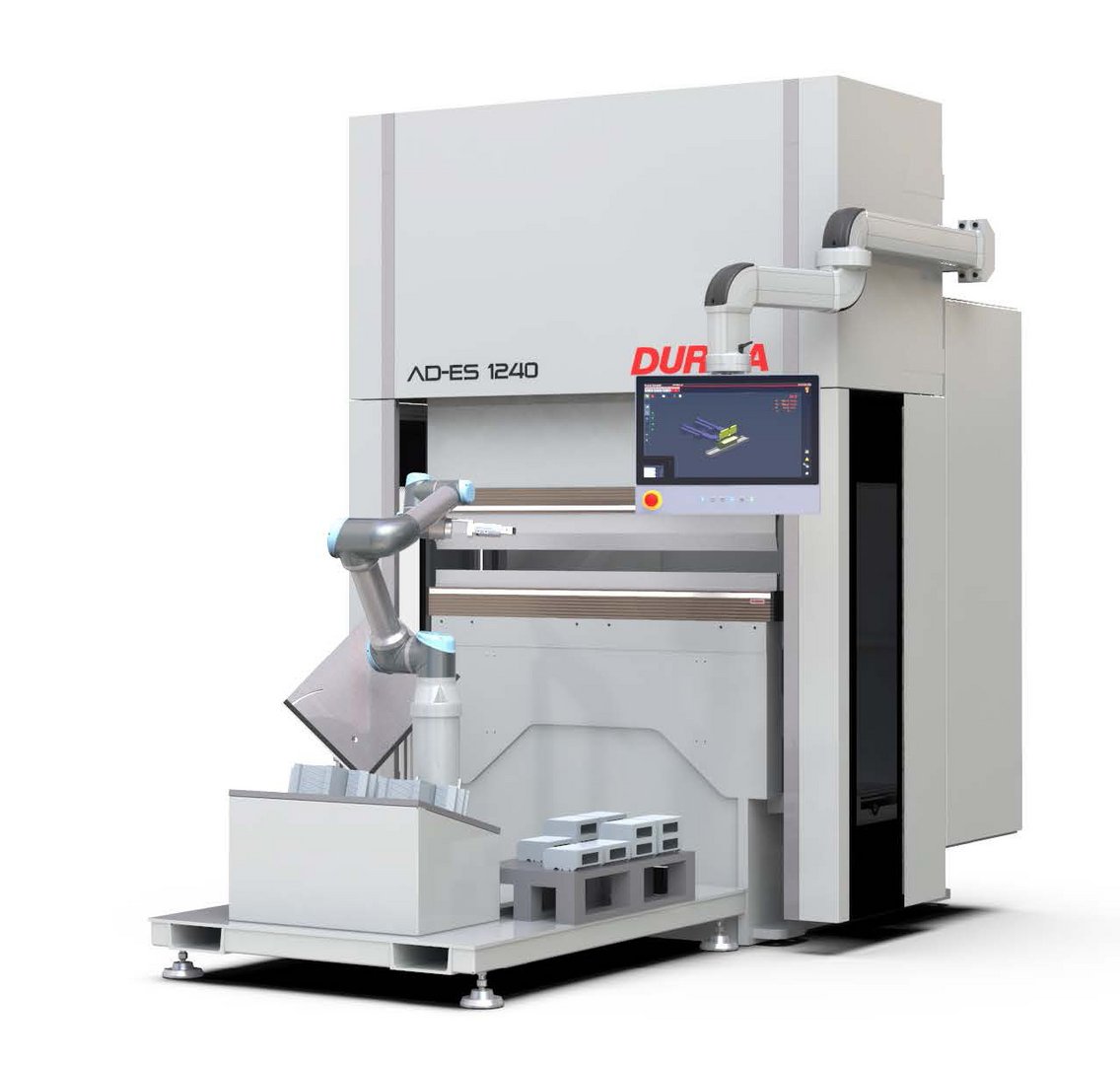

Electric CNC press brake HESSE by DURMA AD-ES 1240

Model AD-ES 1240
Brand HESSE by DURMA
Condition new
pressing capacity 40 to
Bending length 1250 mm
Origin Türkiye

General characteristics

pressing capacity 40 to
Bending length 1250 mm
Axes Y1 / Y2 / X and R axis
Stroke 200 mm
Inside distance between side frames 1050 mm
Gap in side frame 250 mm
Daylight 440 mm
Power concept servomotorized spindle drive
rapid speed Y-axis 115 mm/s
Working speed Y-axis 10
Retractionspeed Y-axis 115
Back gauge travel X-axis 650 mm
Back gauge travel R-axis 250 mm
Table height 1000 mm
Motor power 7.2 kW

Dimensions and weight

Length 1950 mm
Width 1450 mm
Height 2650 mm
Weight 3600 kg

Description

servomotorized spindle drive
4 axes (Y1, Y2, X and R)
CNC control SKY 22
- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5“ in full HD
- with 2D and 3D working screen
- direct programming of the bending angle
- user friendly programming in dialogue form optionally in 2D or 3D mode
- 2D and 3D simulation of the bending sequence
- automatic tool selection in 3D mode
- automatic calculation of the blank sheet size
- bending order calculation
- graphic product and tool memory
- correction possibility
- USB and Ethernet interfaces for import, backup and programm transportation
- OS: Windows
- IGES, STEP, DXF files import
servo motorized back gauge on linear guides and ball screws
quick release upper tool clamping
upper tool 1010 / A / 75 °, devided and cranked
4-V die block 60x60 2009 (V = 16,22,35 and 50 mm)
laser safety device Fiessler AKAS mounted on the upper beam
linear guided sheet support arms
according to CE rules
users manual in English or German

Advantages of this concept:
- higher productivity as classic hydraulic press brakes,
  by nearly instantaneously reaction on foot pedal signal
- low energy consumption
- compact motor-spindle unit with small amount of components
- no hydraulic components

optional equipment (prices on request):

Z1/Z2-axes
CNC control DELEM DA-66S or DA-69S
