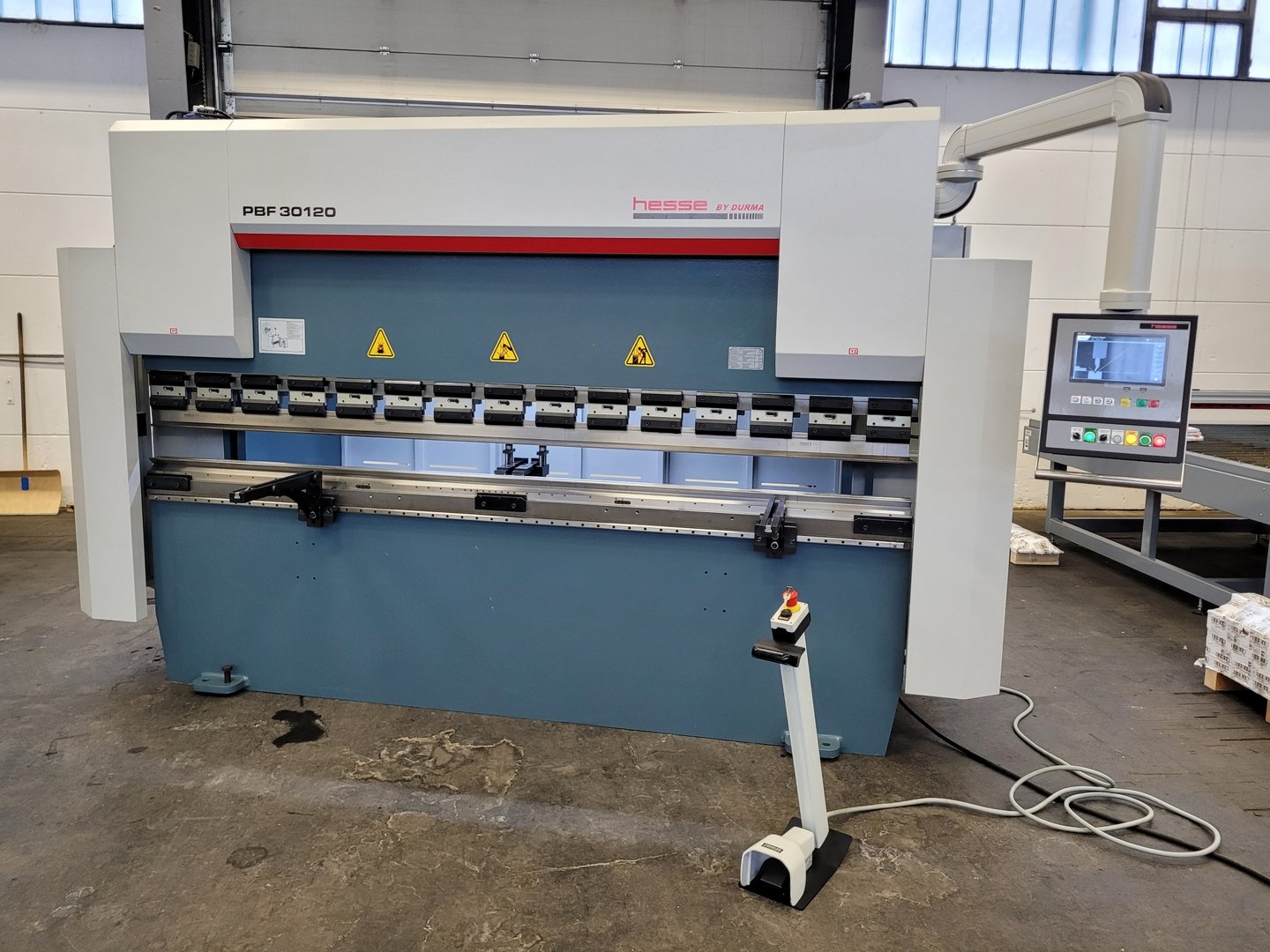

Hydraulic CNC press brake HESSE by DURMA PBF 30120
| Model | PBF 30120 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2019 |
| pressing capacity | 120 to |
| Bending length | 3050 mm |
| Stock number | 80173 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 120 to |
| Bending length | 3050 mm |
| Axes | 3 |
| Stroke | 180 mm |
| Inside distance between side frames | 2550 mm |
| Gap in side frame | 250 mm |
| Daylight | 375 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 100 mm/s |
| Working speed Y-axis | 9 |
| Retractionspeed Y-axis | 77 |
| Back gauge travel X-axis | 620 mm |
| Back gauge speed X-axis | 250 |
| Table height | 878 mm |
| Table width | 104 mm |
| Oiltank | 150 l |
| Motor power | 11 kW |
Dimensions and weight
| Length | 3750 mm |
| Width | 1250 mm |
| Height | 2400 mm |
| Weight | 5900 kg |
Description
Excellent condition
Only approximately 600 operating hours and 2000 strokes
3 axes (Y1, Y2 and X axes)

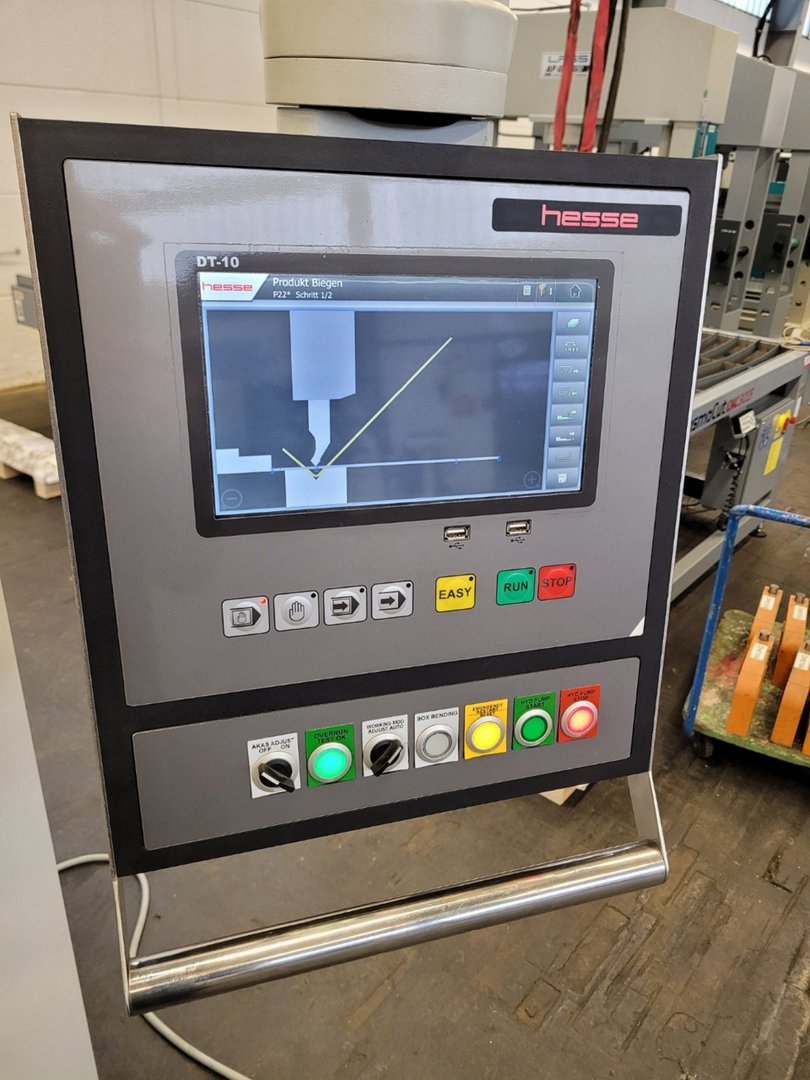

CNC control DT-10
- intuitive touch-screen control (simple drawing of the bending outline with your finger)
- user friendly programming in dialogue form
- automatic calculation of bending sequence
- automatic calculation of the blank sheet size
- graphic product and tool memory
- correction possibility
- USB interfaces for backup and programm transportation
- PC software, generating programms on the PC and transfer to the machine by USB

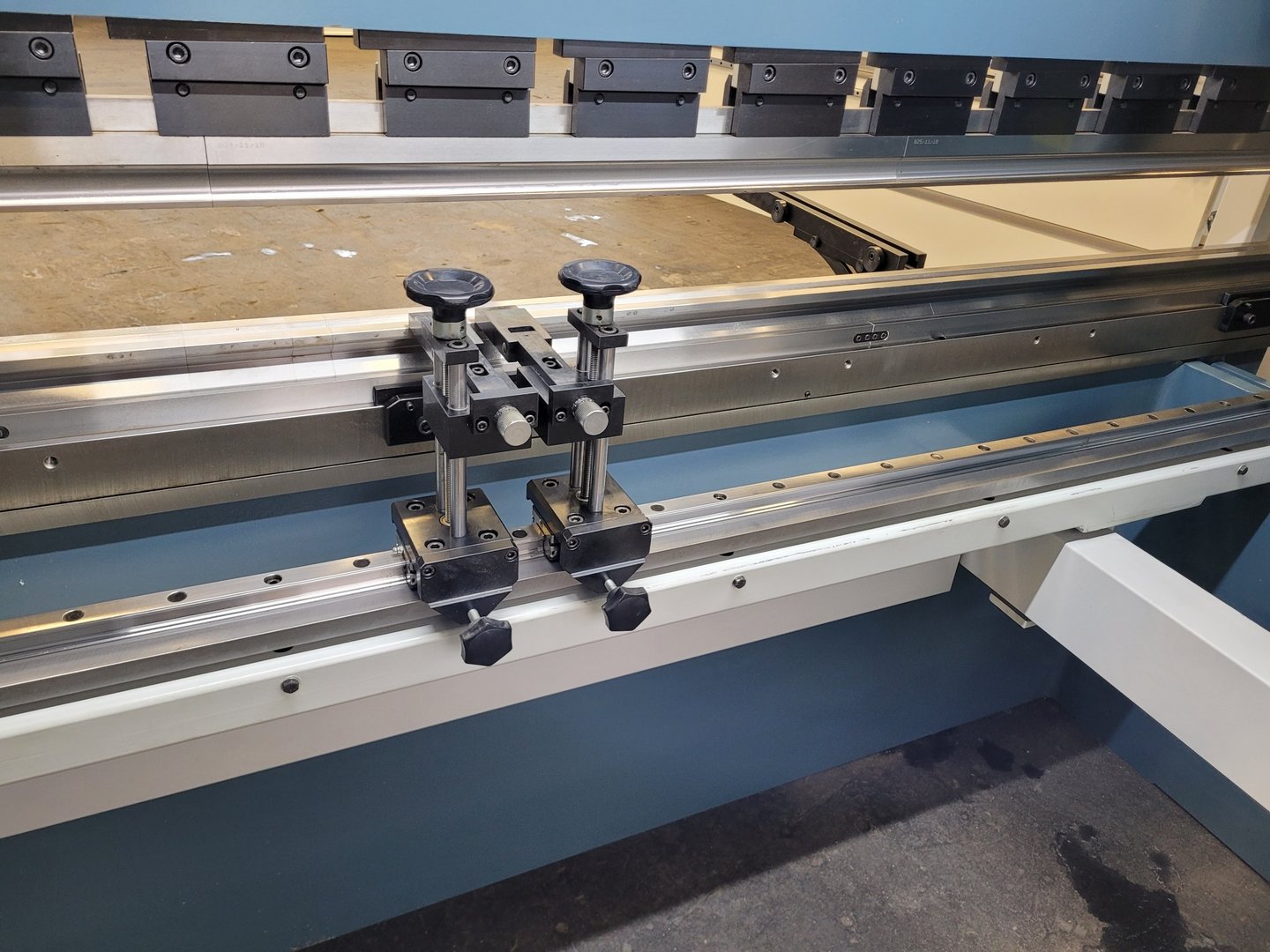

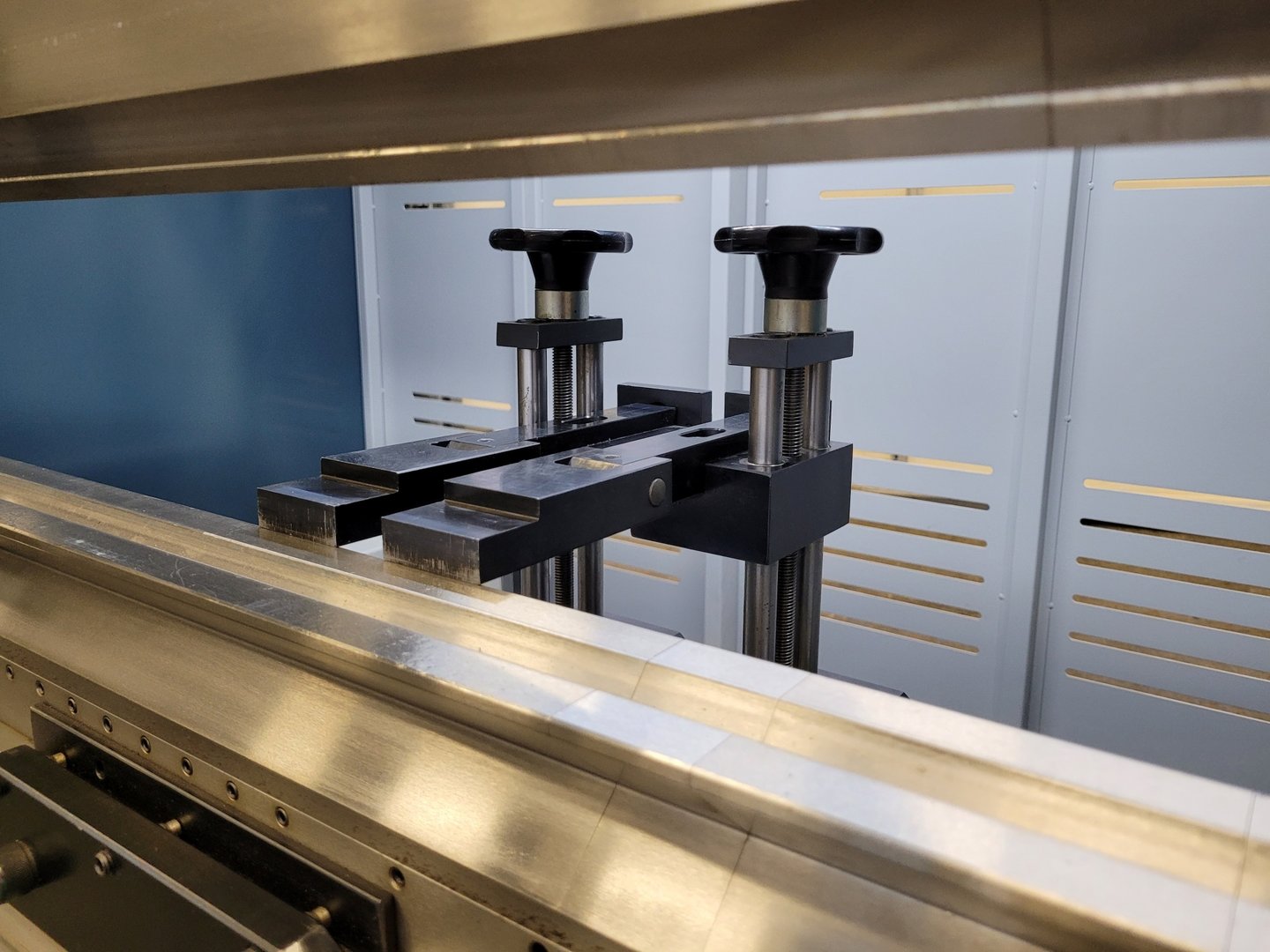

CNC controlled back gauge with linear guide and ball screw spindles
Manual, centralized adjustable crowning table

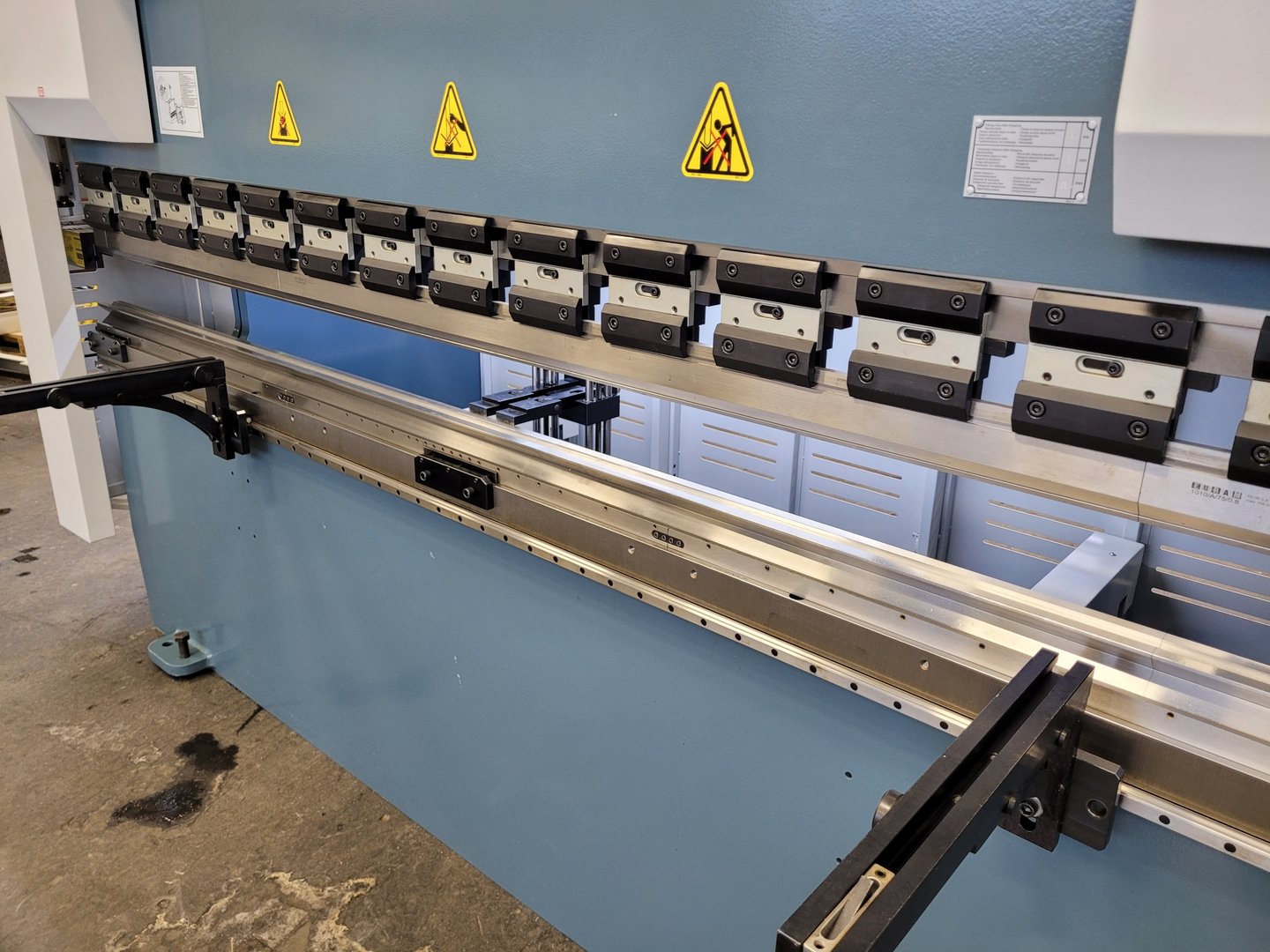

intermediate clamps for upper tool
upper tool 1010/A/75°/0,8, sectioned, bending radius hardened and ground
die holder for 60 mm dies
die type 2009/85° (V 16, 22, 35, 50 mm) sectioned, geteilt, bending radii hardened and ground

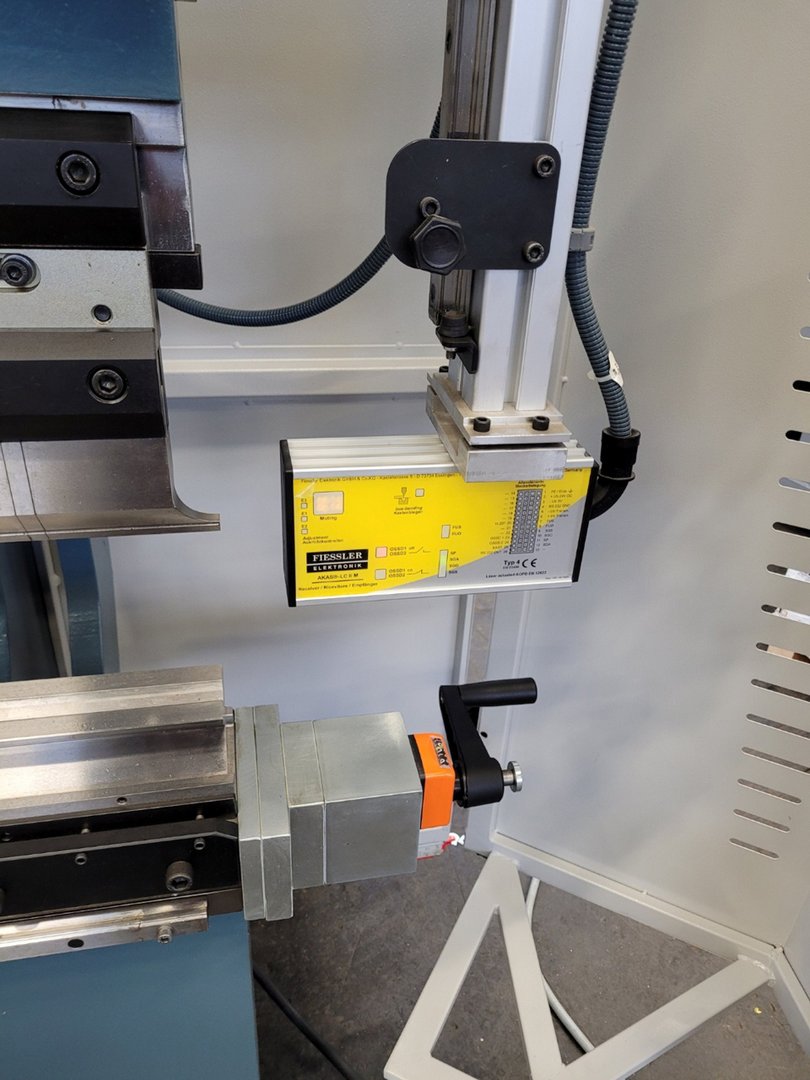

laser safety device Fiessler AKAS mounted on the upper beam
2 sheet support arms
protection covers on the sides and back side
according to CE rules
oilfilling
users manual in GERMAN with EC declaration of conformity
